Plan 360077DK Craftsman House Plan with Angled Garage Under 2,200 Square Feet

2,162 3-5 2.5 - 3.5 1-2 2
Print
Compare HIDE
All plans are copyrighted by our designers. Photographed homes may include modifications made by the homeowner with their builder.

Craftsman House Plan with Angled Garage Under 2,200 Square Feet

Plan 360077DK

  • 2,162

    Heated s.f.

  • 3-5

    Beds

  • 2.5 - 3.5

    Baths

  • 1-2

    Stories

  • 2

    Cars

  • This 3-bed Craftsman home plan with angled garage was designed in response to requests to get a home like this under 2,200 square feet. Clapboard across the front, shingles in the gables and decorative timbers in the entry porch give this home great curb appeal.
  • A split bedroom layout maximizes the potential for entertaining in the middle of the home with the vaulted family room being gathering central. A fireplace, flanked by built-ins, can be seen from the kitchen as well as the dining room given the open layout.
  • The vault in the family room extends to the covered terrace in back. At 14' deep, it has the potential to serve as an outdoor living room if the climate is right.
  • NOTE: if you select the Basement foundation, the bonus room above the garage is eliminated. If you want the basement AND the bonus room, request that as a modification.
  • Related Plans: Get a slightly alternate versions with house plans 360081DK (2,000 sq. ft.) and 360083DK (2,097 sq. ft.).

This plan includes the following elements:

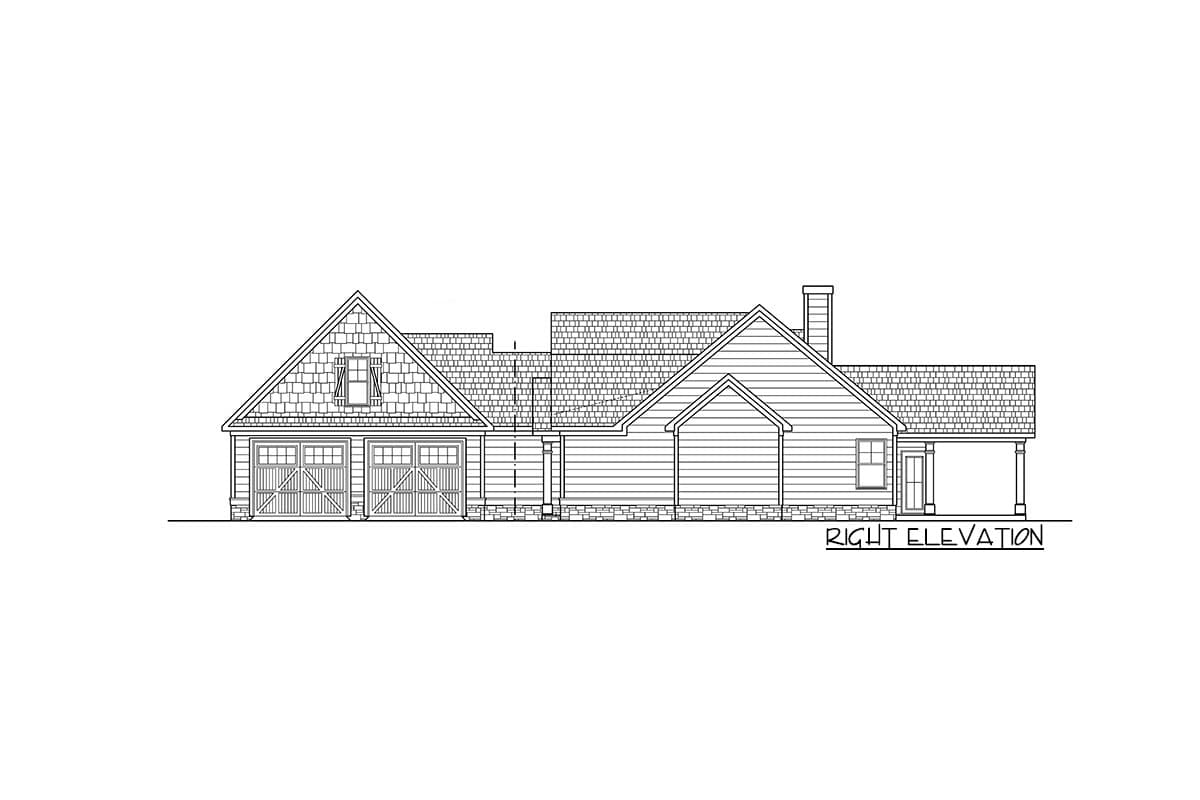

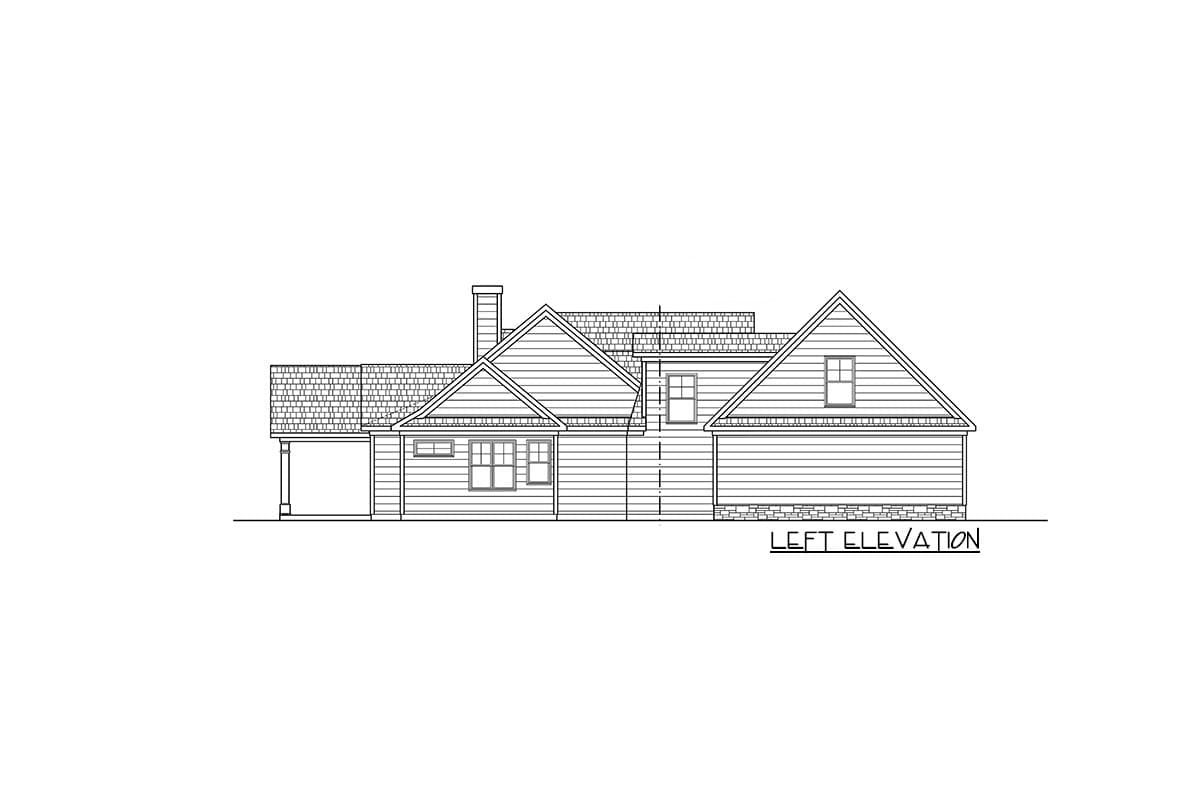

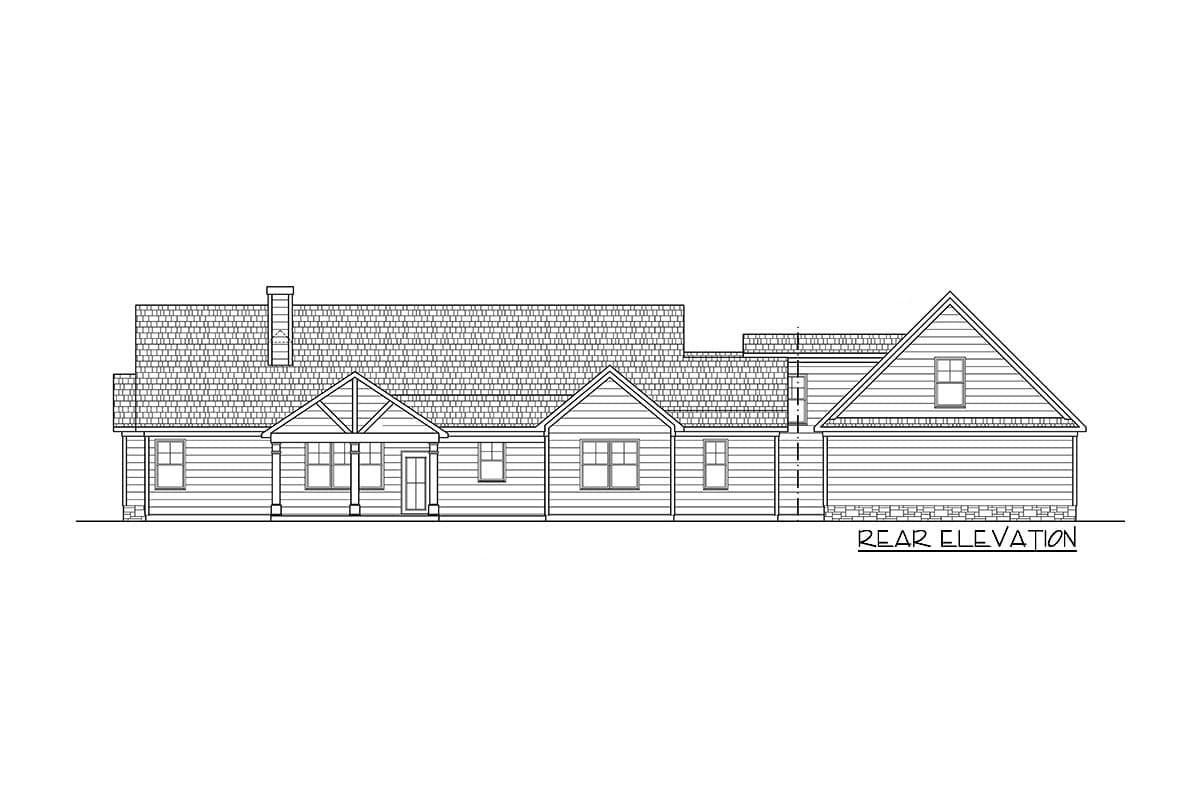

  • All Elevations
  • Birds Eye Roof Plan
  • Floor plans
  • Foundation Plan
  • Suggested Electrical Layout
  • General Construction Details
  • Some plans include a Cross Section through the structure (but not all do); write us to find out if your plan has these - [email protected]
These items are NOT included:
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Floor Plan

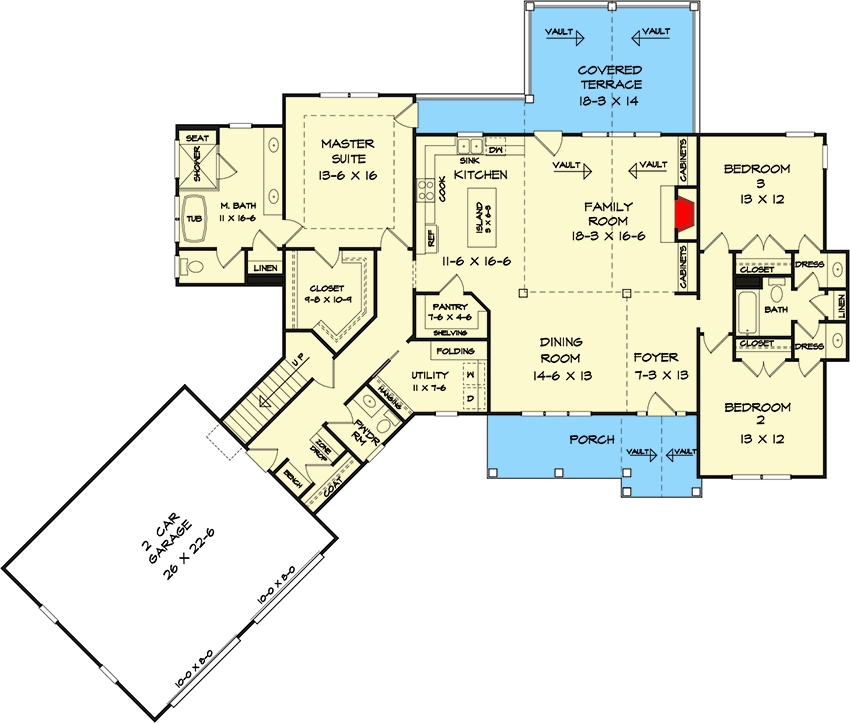

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.
Craftsman House Plan with Angled Garage Under 2,200 Square Feet - 360077DK floor plan - Main Level

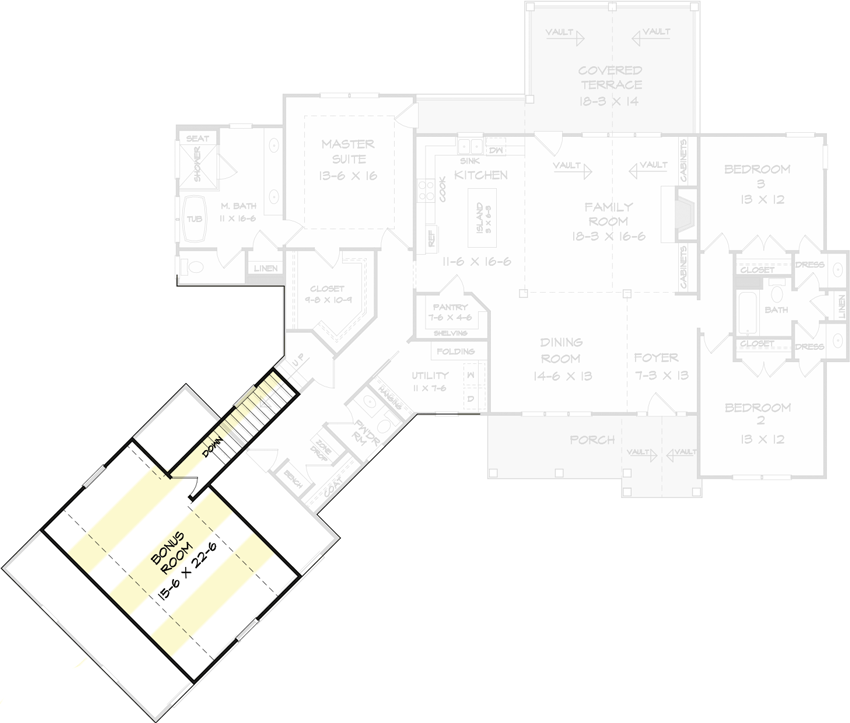

2nd Floor

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.
Craftsman House Plan with Angled Garage Under 2,200 Square Feet - 360077DK floor plan - 2nd Floor

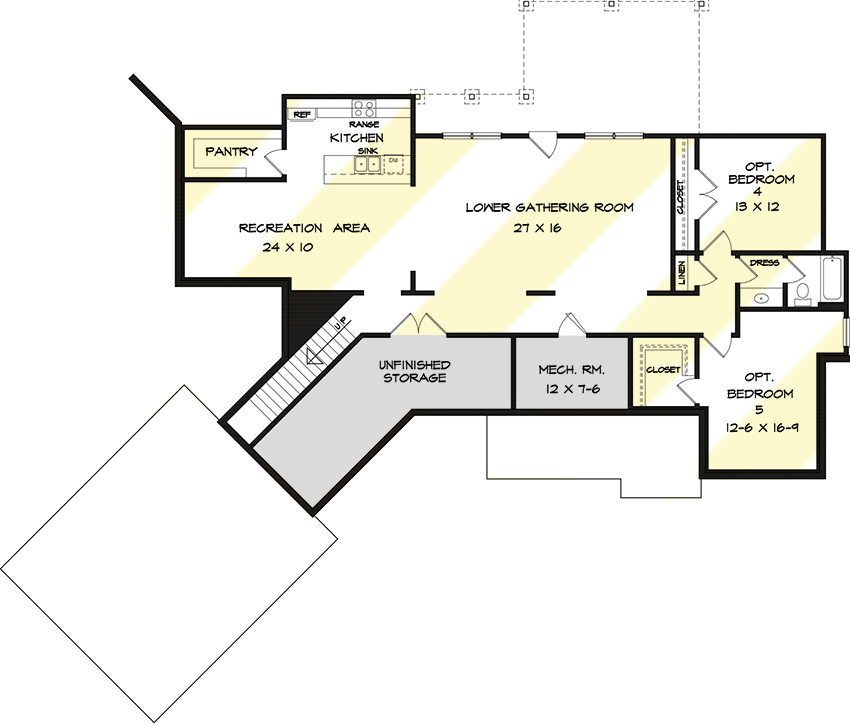

Optional Lower Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.
Craftsman House Plan with Angled Garage Under 2,200 Square Feet - 360077DK floor plan - Optional Lower Level

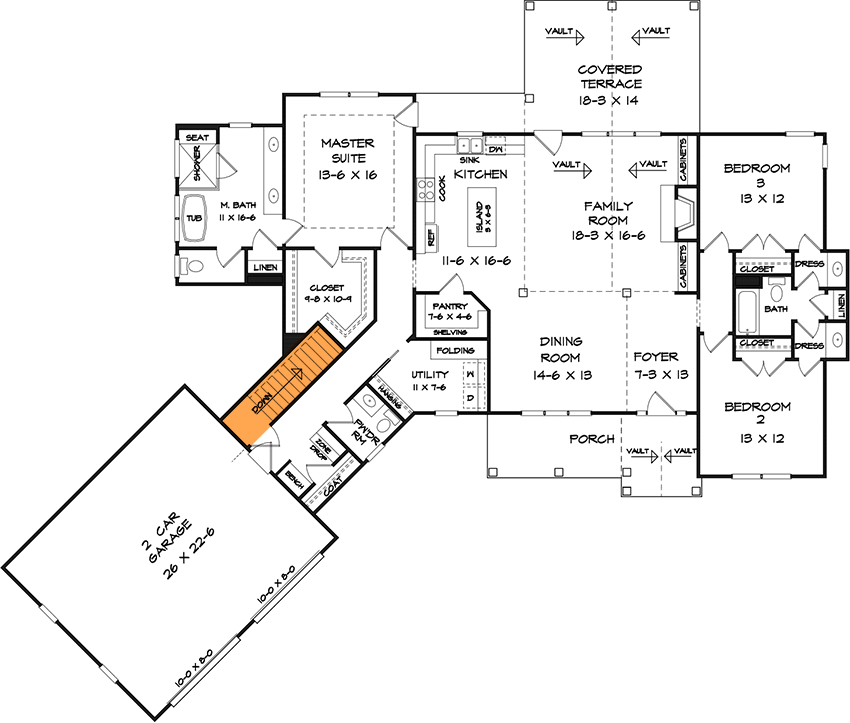

Main Floor - Basement Stairs Location

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.
Craftsman House Plan with Angled Garage Under 2,200 Square Feet - 360077DK floor plan - Main Floor - Basement Stairs Location

Plan details

Square Footage Breakdown

  • Total Heated Area: 2,162 sq. ft.
  • 1st Floor: 2,162 sq. ft.
  • Porch, Rear: 303 sq. ft.
  • Porch, Front: 166 sq. ft.
  • Bonus: 412 sq. ft.

Beds/Baths

  • Bedrooms: 3, 4, or 5
  • Full bathrooms: 2 or 3
  • Half bathrooms: 1

Foundation Type

  • Standard Foundations: Slab
  • Optional Foundations: Walkout

Exterior Walls

  • Standard Type(s): 2x4

Dimensions

  • Width: 89' 9"
  • Depth: 76' 4"
  • Max ridge height: 24' 2"

Garage

  • Type: Attached
  • Area: 629 sq. ft.
  • Count: 2 Cars
  • Entry Location: Courtyard, Front

Ceiling Heights

  • Floor / Height: First Floor / 9' 0" Second Floor / 9' 0"
Room Details Ceiling Type Width Depth Height
Family Room Vaulted

Roof Details

  • Primary Pitch: 10 on 12
  • Secondary Pitch: 12 on 12
  • Framing Type: Stick

Architectural Style

Special features

Craftsman House Plan with Angled Garage Under 2,200 Square Feet

  • 2,162

    Heated s.f.

  • 3-5

    Beds

  • 2.5 - 3.5

    Baths

  • 1-2

    Floors

  • 2

    Car garage

Buy This Plan
  • 5 Sets $1,300
  • PDF Light $1,800
  • CAD + PDF - Single-Build $2,100
  • View all purchase option online

About This Plan

  • This 3-bed Craftsman home plan with angled garage was designed in response to requests to get a home like this under 2,200 square feet. Clapboard across the front, shingles in the gables and decorative timbers in the entry porch give this home great curb appeal.
  • A split bedroom layout maximizes the potential for entertaining in the middle of the home with the vaulted family room being gathering central. A fireplace, flanked by built-ins, can be seen from the kitchen as well as the dining room given the open layout.
  • The vault in the family room extends to the covered terrace in back. At 14' deep, it has the potential to serve as an outdoor living room if the climate is right.
  • NOTE: if you select the Basement foundation, the bonus room above the garage is eliminated. If you want the basement AND the bonus room, request that as a modification.
  • Related Plans: Get a slightly alternate versions with house plans 360081DK (2,000 sq. ft.) and 360083DK (2,097 sq. ft.).

Floor Plans

  • Main Level

  • 2nd Floor

  • Optional Lower Level

  • Main Floor - Basement Stairs Location

Plan Details

Square Footage Breakdown

  • Total Heated Area: 2,162 sq. ft.
  • 1st Floor: 2,162 sq. ft.
  • Porch, Rear: 303 sq. ft.
  • Porch, Front: 166 sq. ft.
  • Bonus: 412 sq. ft.

Beds/Baths

  • Bedrooms: 3, 4, or 5
  • Full bathrooms: 2 or 3
  • Half bathrooms: 1

Foundation Type

    • Standard Foundations: Slab
    • Optional Foundations: Walkout

Exterior Walls

  • Standard Type(s): 2x4

Dimensions

  • Width: 89' 9"
  • Depth: 76' 4"
  • Max ridge height: 24' 2"

Garage

  • Type: Attached
  • Area: 629 sq. ft.
  • Count: 2 Cars
  • Entry Location: Courtyard, Front

Ceiling Heights

  • Floor / Height: First Floor / 9' 0" Second Floor / 9' 0"

Roof

  • Primary Pitch: 10 on 12
  • Secondary Pitch: 12 on 12
  • Framing Type: Stick
