Plan 280001JWD

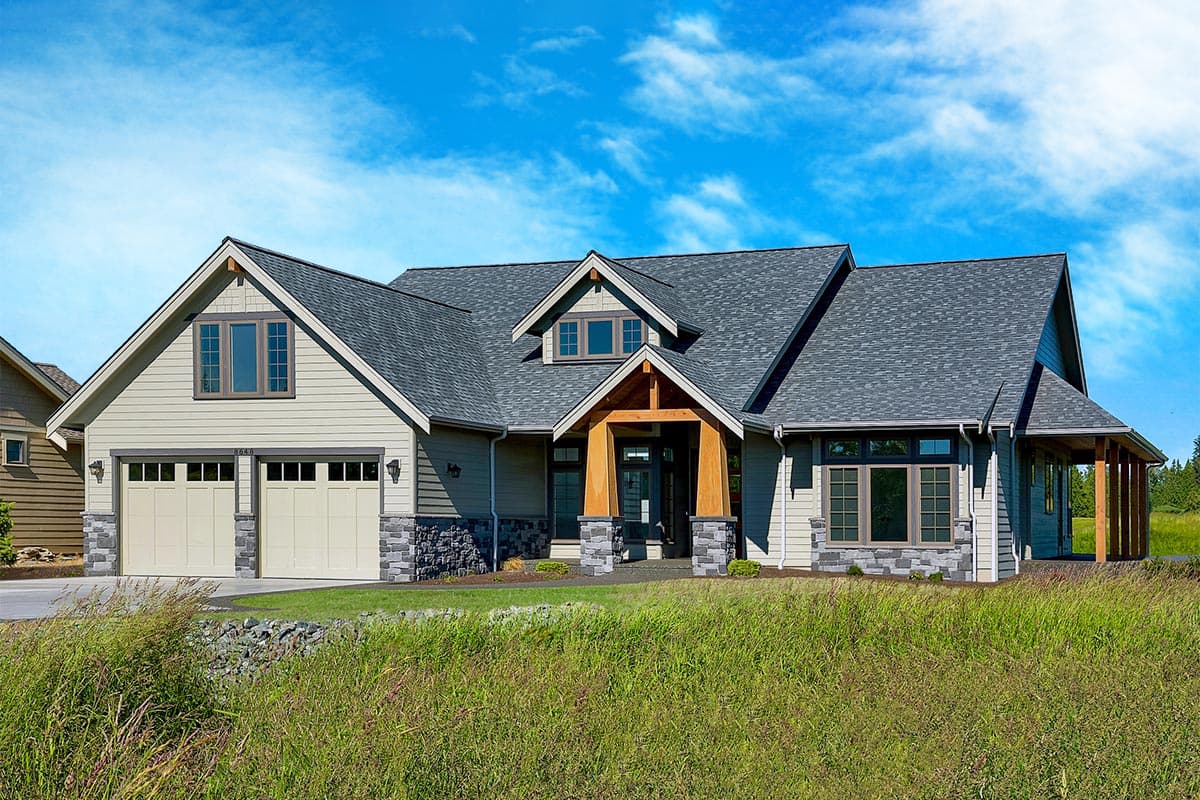

Craftsman House Plan with Bonus Room Included - 2939 Sq Ft

Heated S.F.
2,939
Beds
3
Baths
2.5
Stories
1
Cars
2

Floor Plan

Plan 280001JWD

Main Level
Main Level
Bonus
Bonus

Plan 280001JWD

M-F 9am-5pm EST |

1-203-761-8500

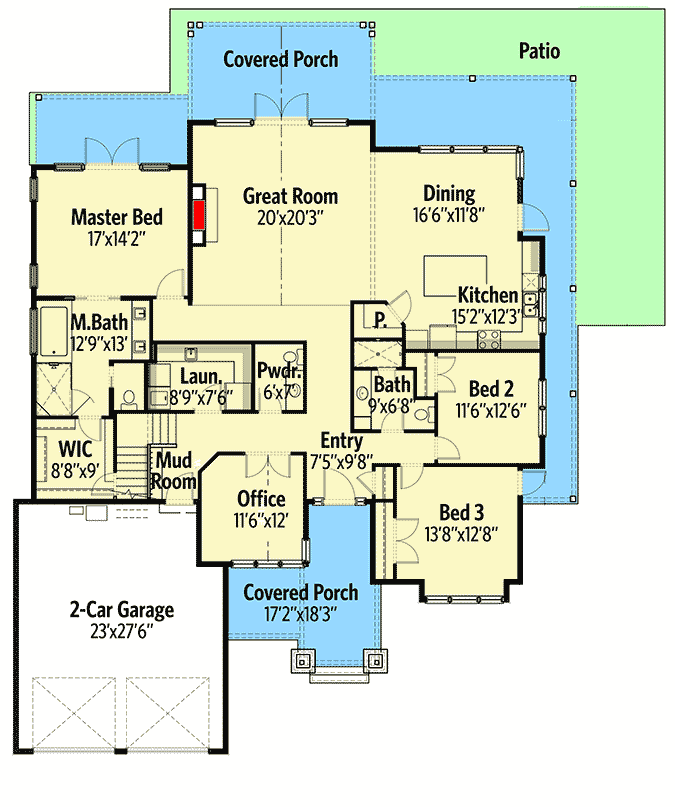

Main Level

Plan 280001JWD: Craftsman House Plan with Bonus Room Included - 2939 Sq Ft - Floor Plan - Main Level - Craftsman, Mountain, Northwest

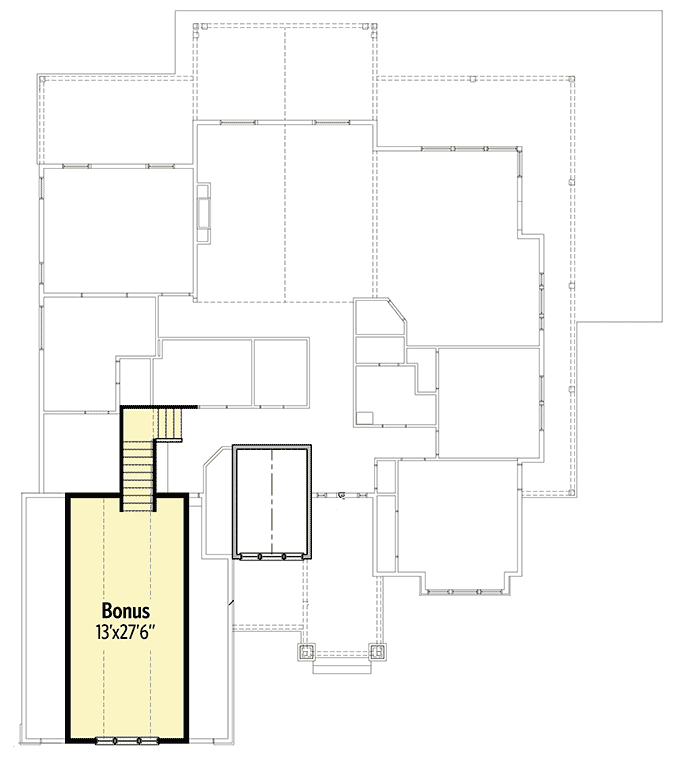

Bonus

Plan 280001JWD: Craftsman House Plan with Bonus Room Included - 2939 Sq Ft - Floor Plan - Bonus - Craftsman, Mountain, Northwest

Plan Details

  • Most of the square footage in this beautiful Craftsman house plan is on the main floor but you also get a second floor bonus room that is included in the total living area.

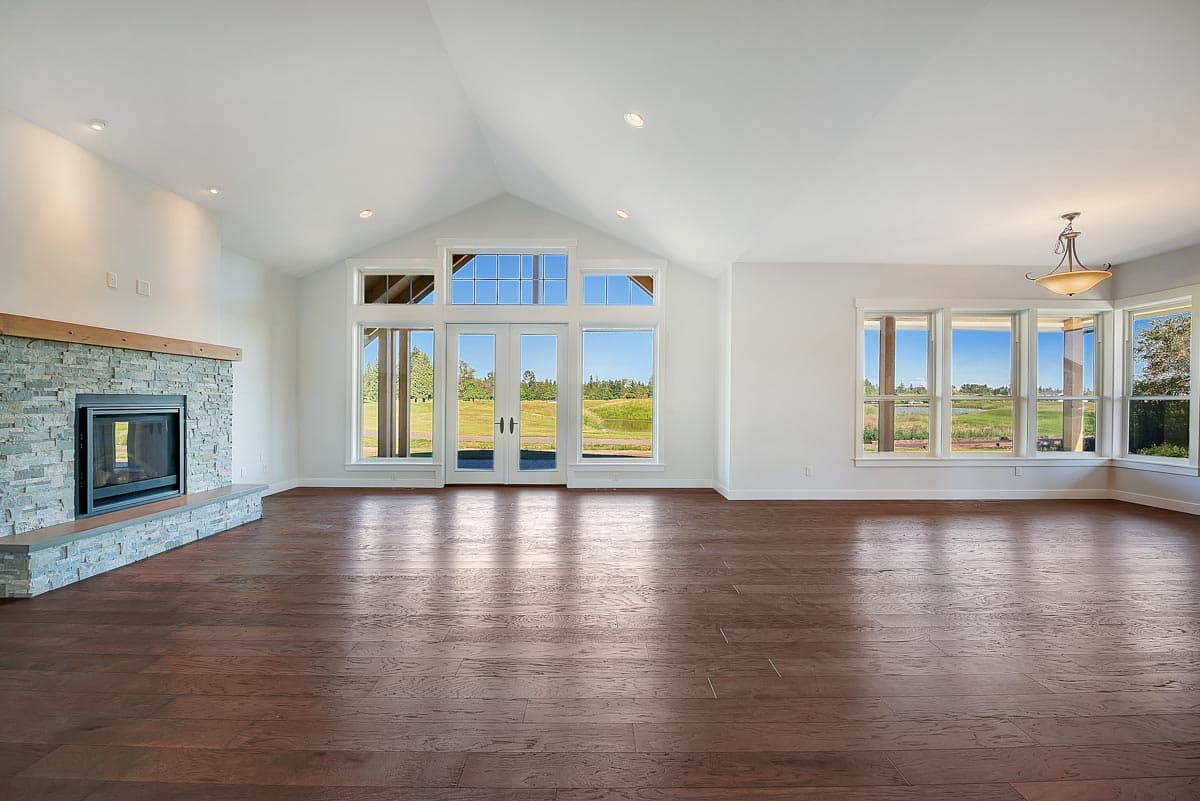

  • Open concept living is highlighted with the huge vaulted great room as the centerpiece.

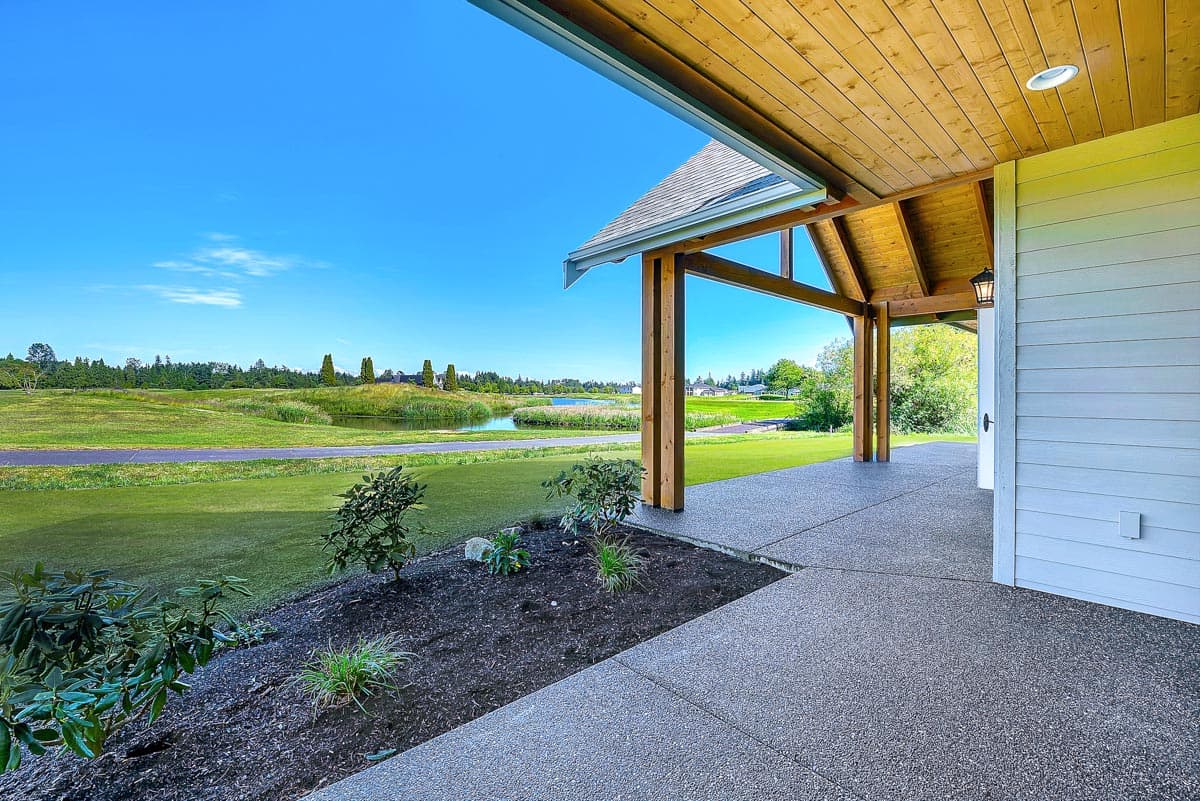

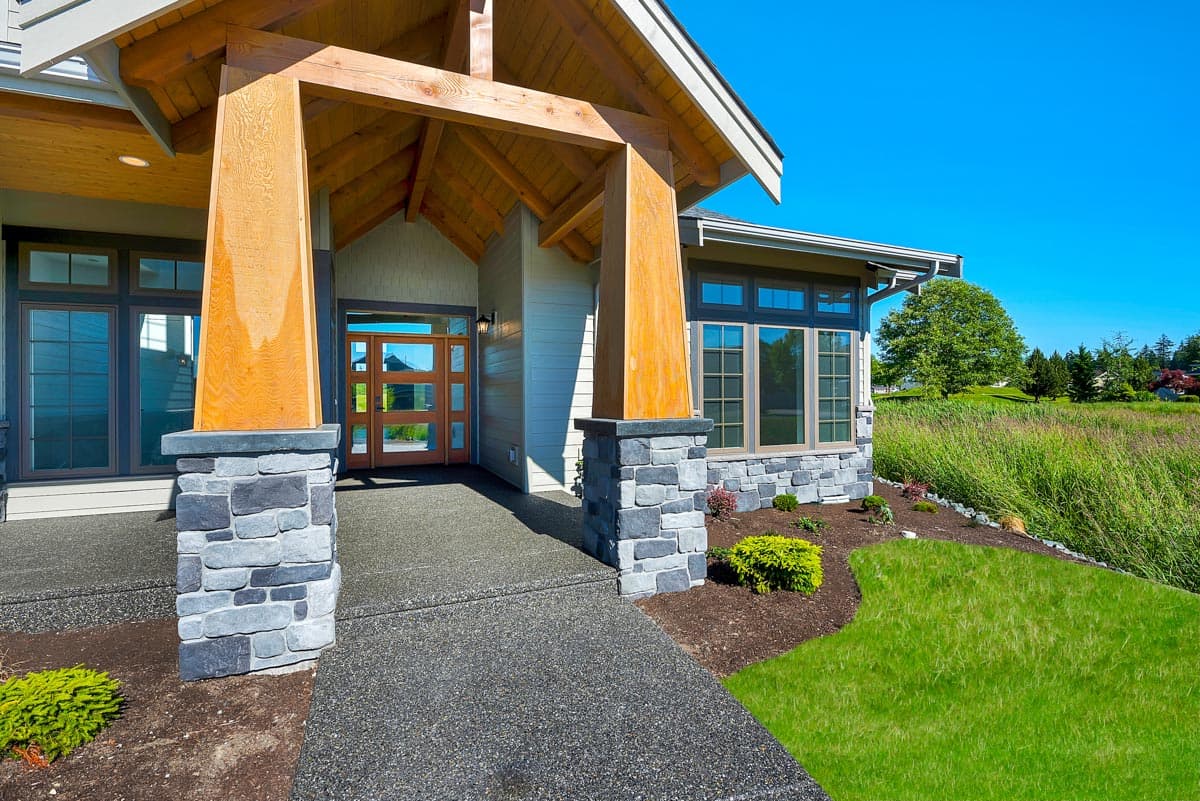

  • The wrap-around covered porch beckons you to spend time outdoors in the shade.
  • A split bedroom layout serves to give you a quiet and private master suite with double doors to the back porch.
  • The home office features a vaulted ceiling too and wrap-around windows.

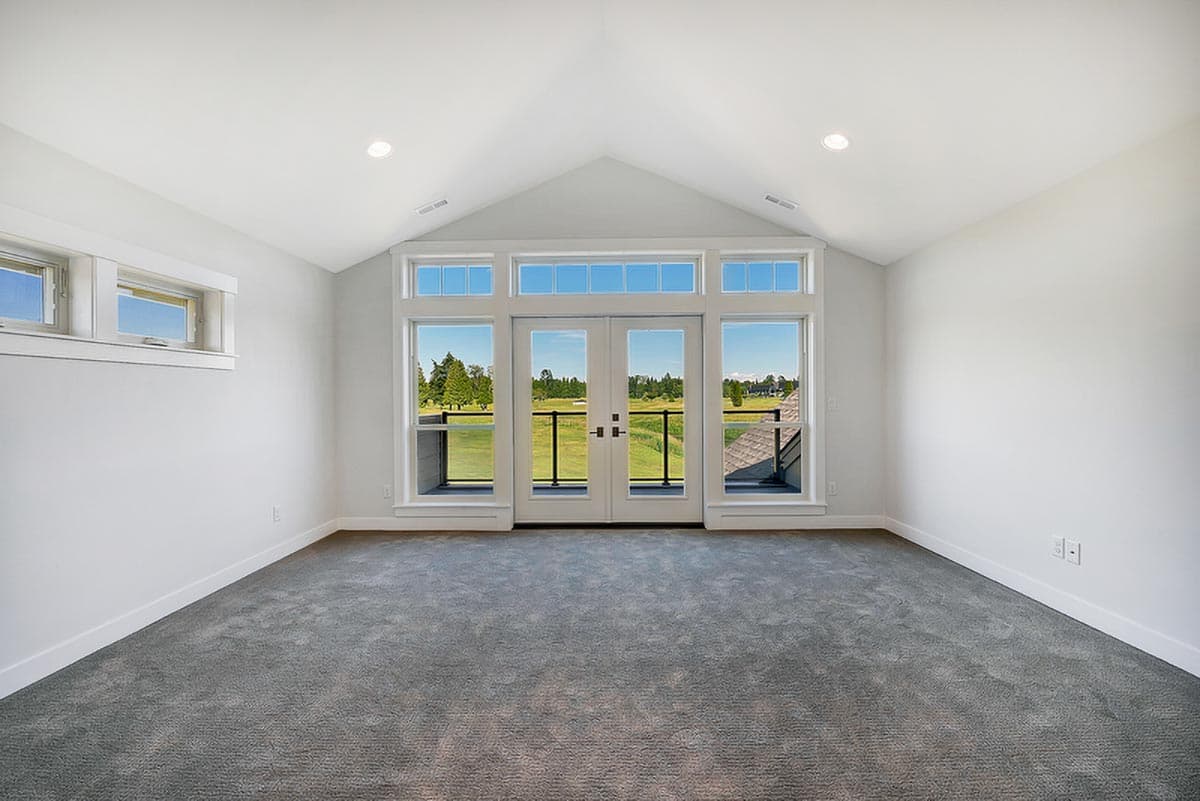

  • On the second floor, the bonus room ceiling rises up making the room feel larger.
  • IMPORTANT NOTE: The total heated square footage includes the bonus room.

What's Included

  • Exterior Elevations
  • Main Floor Plan
  • Second level floor plan - if applicable
  • Bonus Floor Plan - if applicable
  • Building Sections
  • Typical Wall Detail
  • Main Floor Framing Plan & Details
  • Bonus Room & Roof Framing Plan
  • Electrical Plan

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Ready to Get Started?

Select your plan set options before checkout.

Price Match Guarantee
What's included?

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

2,939 sq. ft.

1st Floor

2,540 sq. ft.

Bonus

399 sq. ft.

Porch, Front

209 sq. ft.

Covered Patio

759 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Half bathrooms

1

Foundation Type

Standard Foundations

Crawl

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

58' 0"

Depth

71' 0"

Max Ridge Height

28' 0"

Garage

Type

Attached

Area

649 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

First Floor

10'

Second Floor

8'

Roof Details

Primary Pitch

10 on 12

Secondary Pitch

6 on 12

Framing Type

Truss

Architectural Style

Craftsman

Mountain

Northwest

Special Features

Bedrooms - Split

Home Office

Laundry Access from Master Suite

Laundry - Main Level

Master Suite - 1st Floor

Optionally Finished Bonus Room

Walk-in Pantry

Wraparound Porch
