Plan 42580DB

Craftsman House Plan with Casita

Pageloader

Craftsman House Plan with Casita

Plan 42580DB

  • 2,338

    Heated s.f.

  • 4

    Beds

  • 3.5

    Baths

  • 2

    Stories

  • 2

    Cars

  • Stone, shake siding and a tapered column stoop add distinction to this Craftsman house plan with a separate apartment (labeled as a casita) tucked behind the garage that is perfect for a live-in caregiver/nanny or adult child. The casita has its own bedroom, bathroom, kitchen, entertaining space and even a pocket office for finishing up projects.
  • The main home provides ample entertaining and daily living accommodations on the main floor.
  • Three bedrooms, two bathrooms and the laundry room on the second floor, and there are transom windows in both the owner’s bathroom and walk-in closet for welcome natural light.
  • Related Plans: Get an alternate exterior with house plans 42414DB and 42583DB.

Plans include the following:


Cover Page. Each home plan features the rendered elevation and informative reference sections including: general notes and design criteria 1; abbreviations; and symbols for your plan.

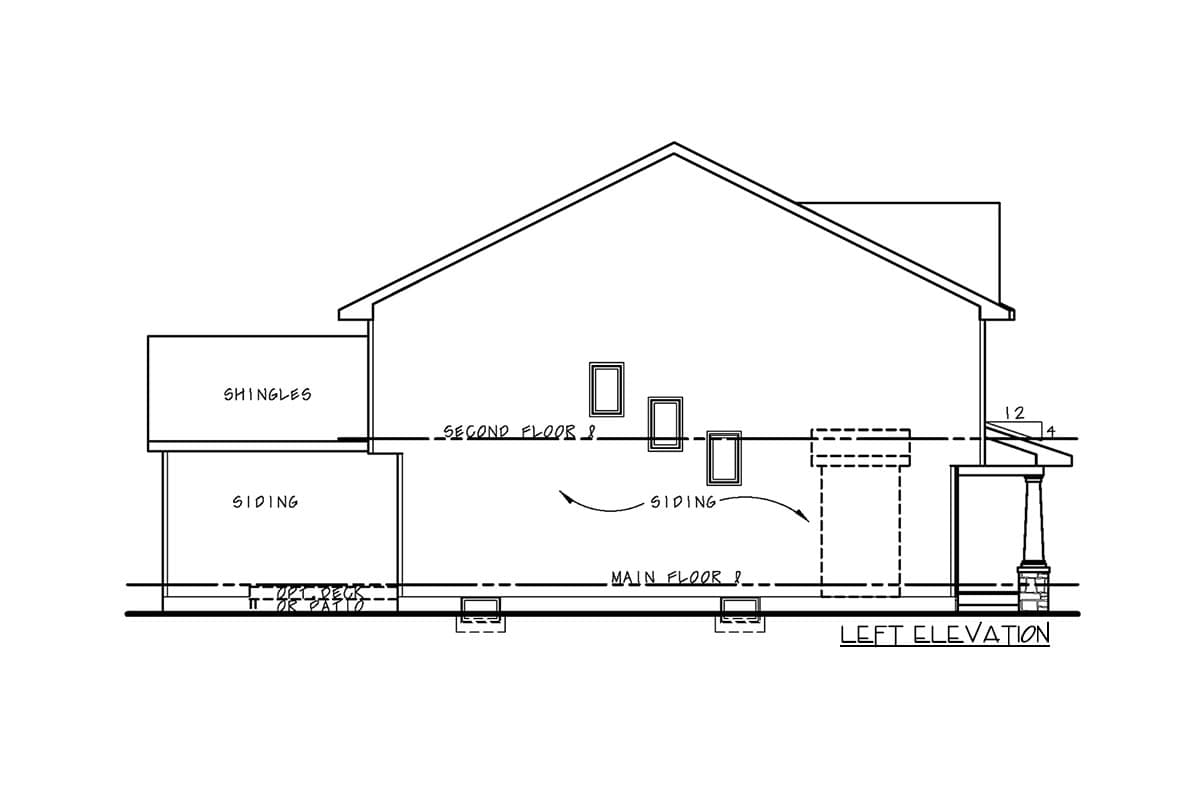

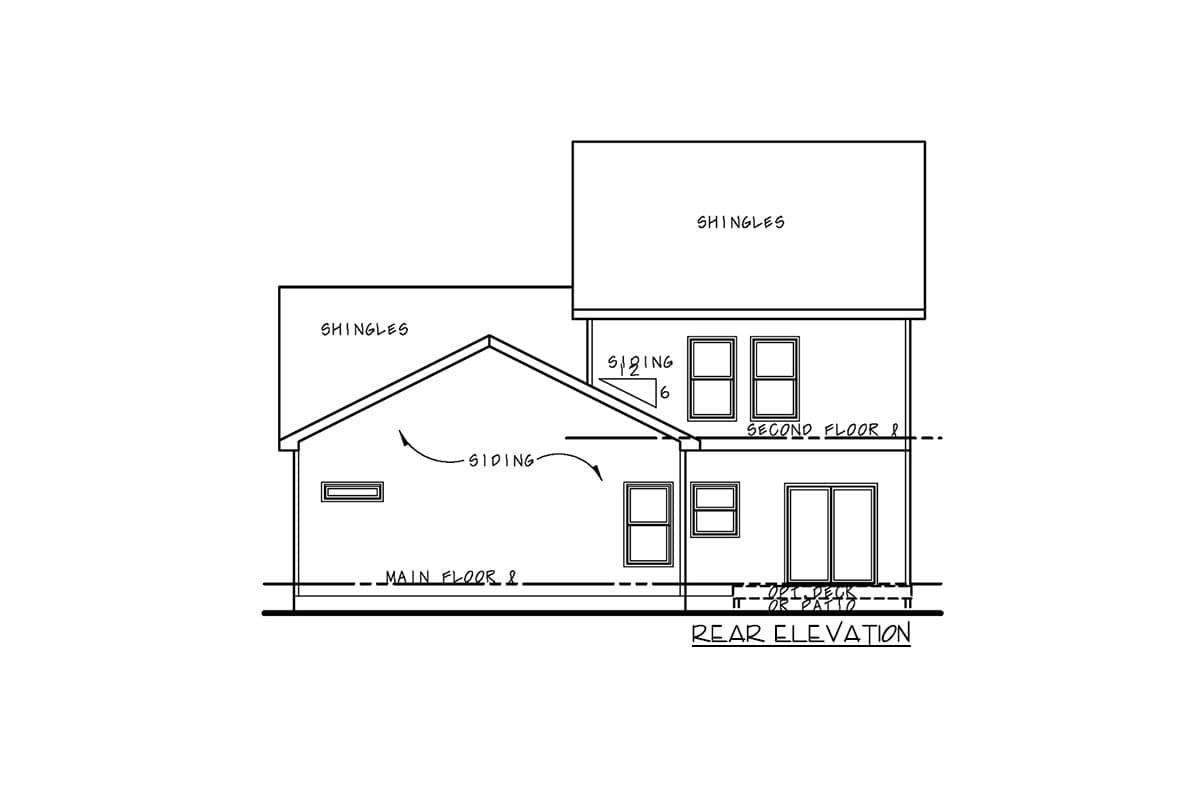

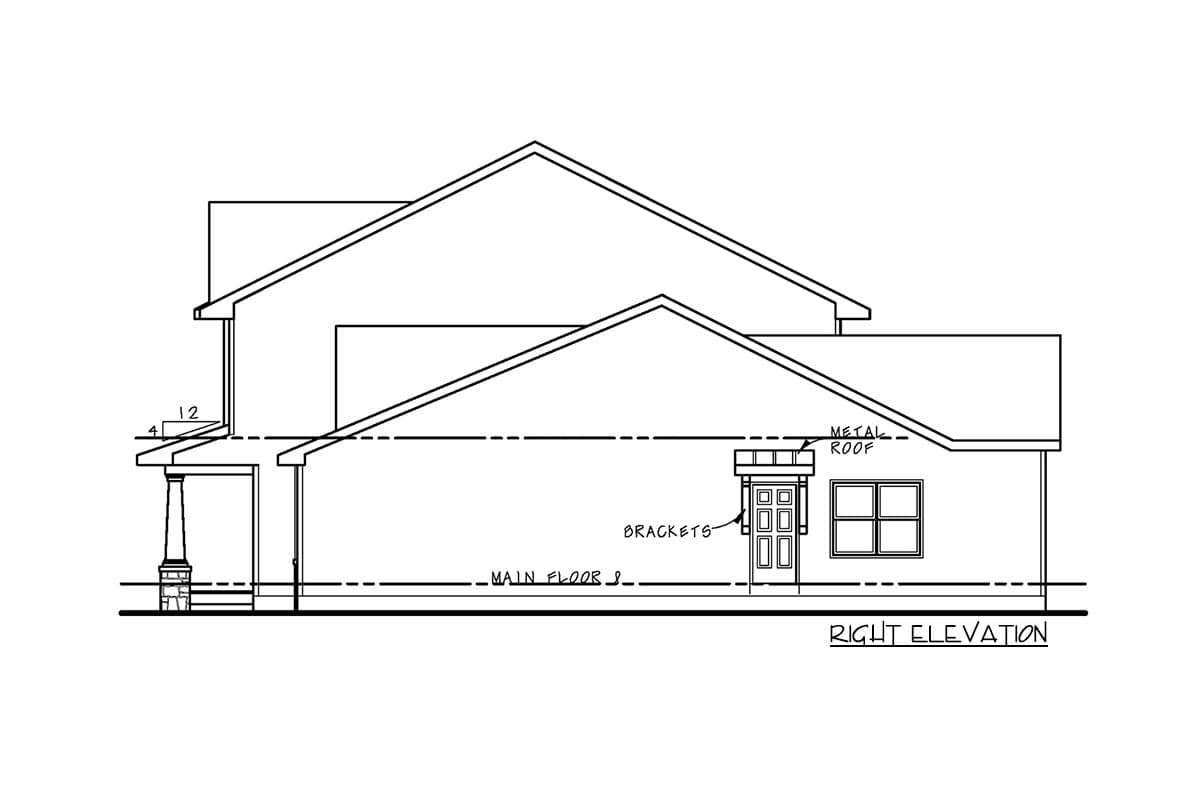

Elevations:  Drafted at 1/4" scale for the front and 1/8" scale for the rear and sides. All elevations are detailed and an aerial view of the roof is provided, showing all hips, valleys and ridges.

 Foundation: Drafted at 1/4" scale. Poured or block basement or slab foundations are standard. We also show the HVAC equipment, structural information, steel beam and pole locations and the direction and spacing of the floor system above.

Main Level Floor Plan: 1/4" scale. Fully dimensioned from stud to stud for ease of framing. The detailed drawings include such things as structural header locations, framing layout and kitchen layout.1

 Second Level Floor Plan: 1/4" scale. Dimensioned from stud to stud and drafted to the same degree of detail as the main level floor plan.1

 Interior Elevations:Useful for the cabinet and bidding process, this page shows all kitchen and bathroom cabinets as well as any other cabinet elevations.

Electrical and Sections: Illustrated on a separate page for clarity, the electrical plan shows suggested electrical layout for the foundation, main and second level floor plans. Typical wall, cantilever, stair, brick and fireplace sections are provided to further explain construction of these areas.

Roof Framing Plan: Illustrated on a separate page for clarity, the roof framing plan shows the suggested dimensional plan showing lengths, runs, ridge heights and wall plate heights.

Floor Plan

Plan details



Craftsman House Plan with Casita

  • 2,338

    Heated s.f.

  • 4

    Beds

  • 4

    Baths

  • 2

    Floors

  • 2

    Car garage

Buy This Plan
  • Digital Study Set $1,295
  • PDF - single-use $1,895
  • 5 Sets $2,045
  • 5 Sets PLUS $2,090
  • 8 Sets $2,170
  • PDF - multi-use $2,395
  • CAD $2,843
  • CAD - multi-use $3,343
  • View all purchase option online

About This Plan

  • Stone, shake siding and a tapered column stoop add distinction to this Craftsman house plan with a separate apartment (labeled as a casita) tucked behind the garage that is perfect for a live-in caregiver/nanny or adult child. The casita has its own bedroom, bathroom, kitchen, entertaining space and even a pocket office for finishing up projects.
  • The main home provides ample entertaining and daily living accommodations on the main floor.
  • Three bedrooms, two bathrooms and the laundry room on the second floor, and there are transom windows in both the owner’s bathroom and walk-in closet for welcome natural light.
  • Related Plans: Get an alternate exterior with house plans 42414DB and 42583DB.

Floor Plans

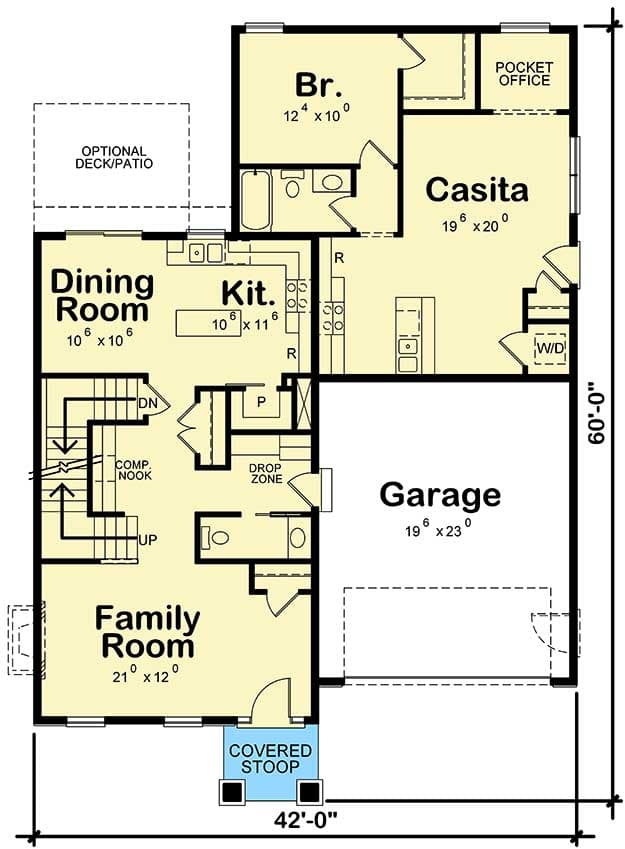

  • Main Level

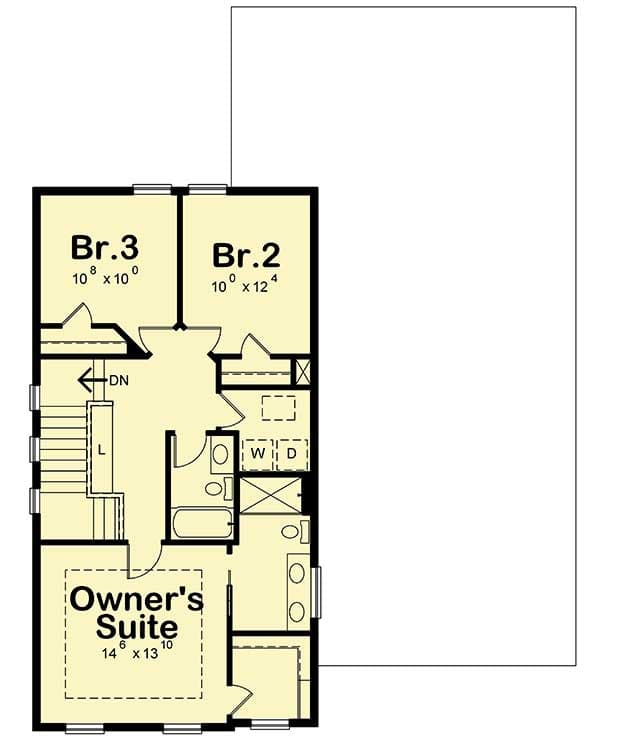

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total Heated Area: 2,338 sq. ft.
  • 1st Floor: 1,493 sq. ft.
  • 2nd Floor: 845 sq. ft.
  • Porch, Front: 44 sq. ft.

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 3
  • Half bathrooms: 1

Foundation Type

    • Standard Foundations: Basement

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 42' 0"
  • Depth: 60' 0"
  • Max ridge height: 30' 9"

Garage

  • Type: Attached
  • Area: 470 sq. ft.
  • Count: 2 Cars
  • Entry Location: Front

Ceiling Heights

  • Floor / Height: First Floor / 9' 0" Second Floor / 8' 0"

Roof

  • Primary Pitch: 6 on 12
  • Secondary Pitch: 7 on 12
