Plan 42595DB

Craftsman House Plan with Convenient One-Story Living

Pageloader

Craftsman House Plan with Convenient One-Story Living

Plan 42595DB

  • 1,878

    Heated s.f.

  • 3

    Beds

  • 2

    Baths

  • 1

    Stories

  • 2

    Cars

  • Clapboard, stone and shingles and a great front porch combine to give this Craftsman house plan great curb appeal. It comes with an optional master bath layout as well as an optional kitchen design making the home very versatile.
  • The family room opens to the kitchen and eating area and overlooks the covered patio in back. Take your meals outside with outdoor access from the eating area.
  • The bedrooms line up along the left of the home, leaving. The master suite has a tray ceiling and a large walk-in closet. The bathroom gives you an oversized doorless shower. The two front bedrooms share a bath.
  • Related Plan: Get expansion space on a second floor with house plan 42572DB.

Plans include the following:


Cover Page. Each home plan features the rendered elevation and informative reference sections including: general notes and design criteria 1; abbreviations; and symbols for your plan.

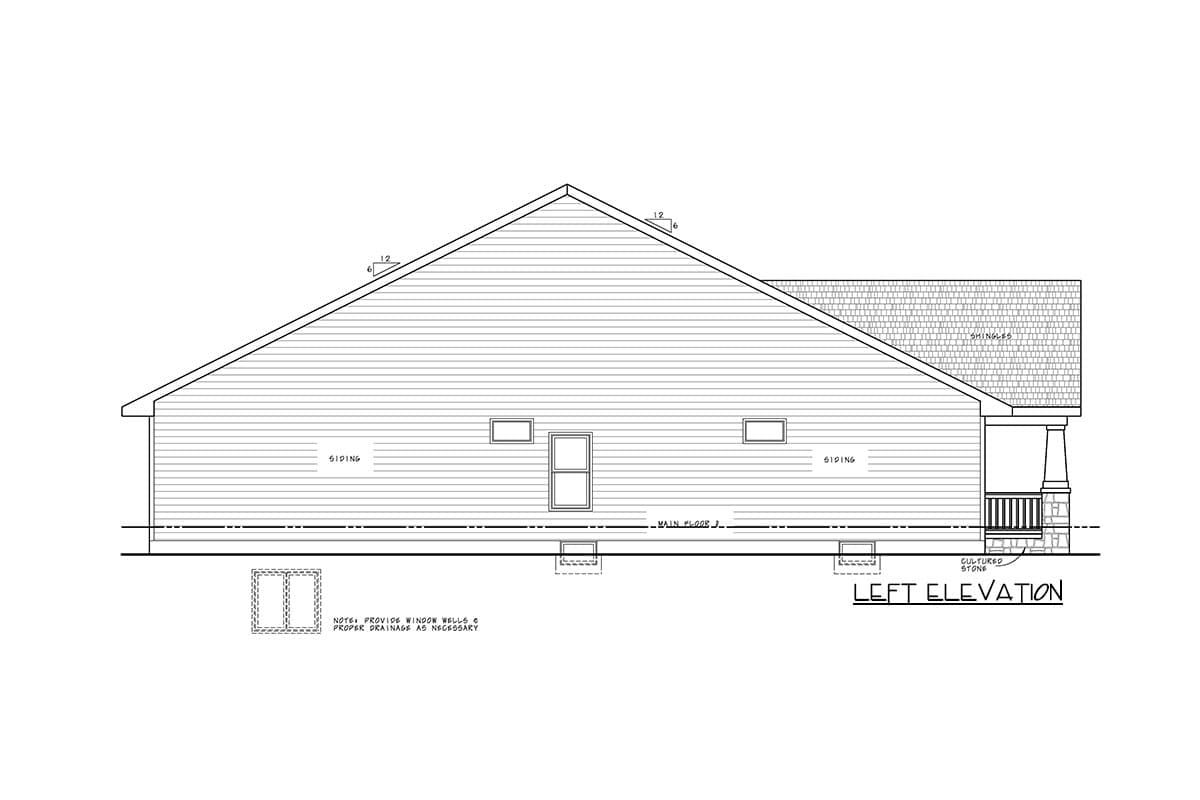

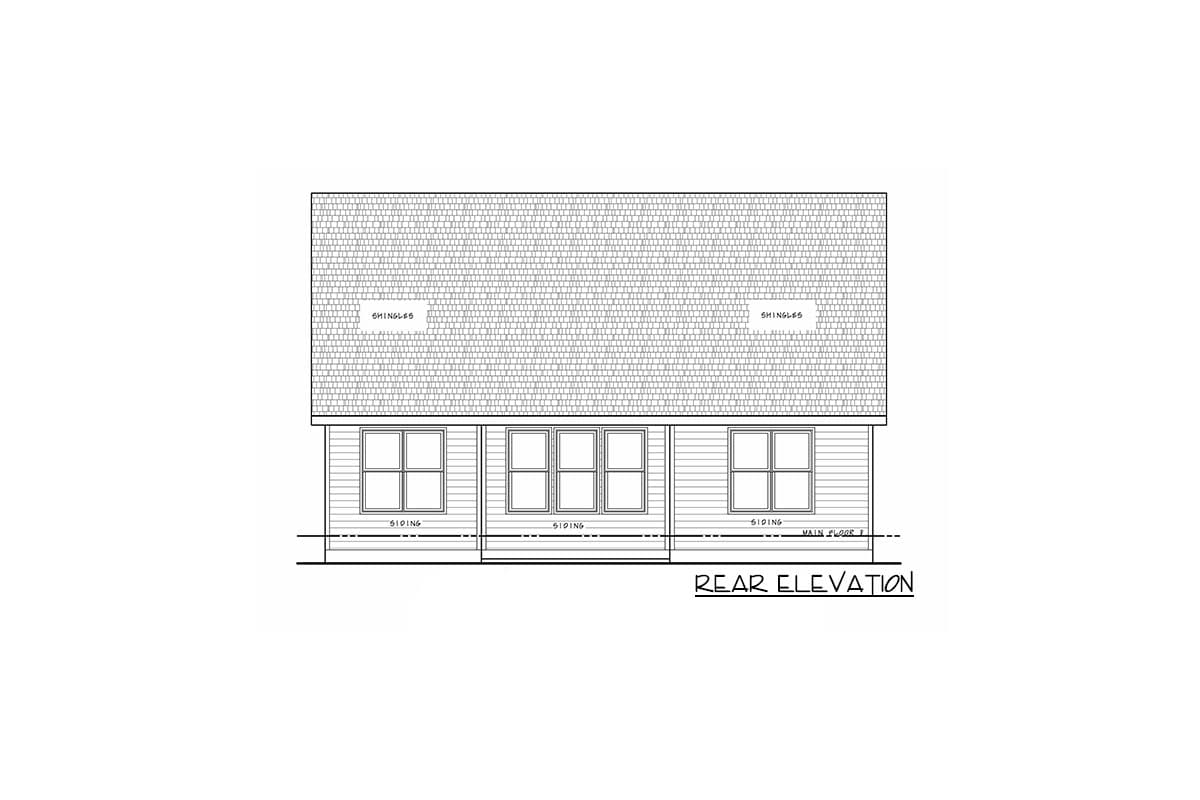

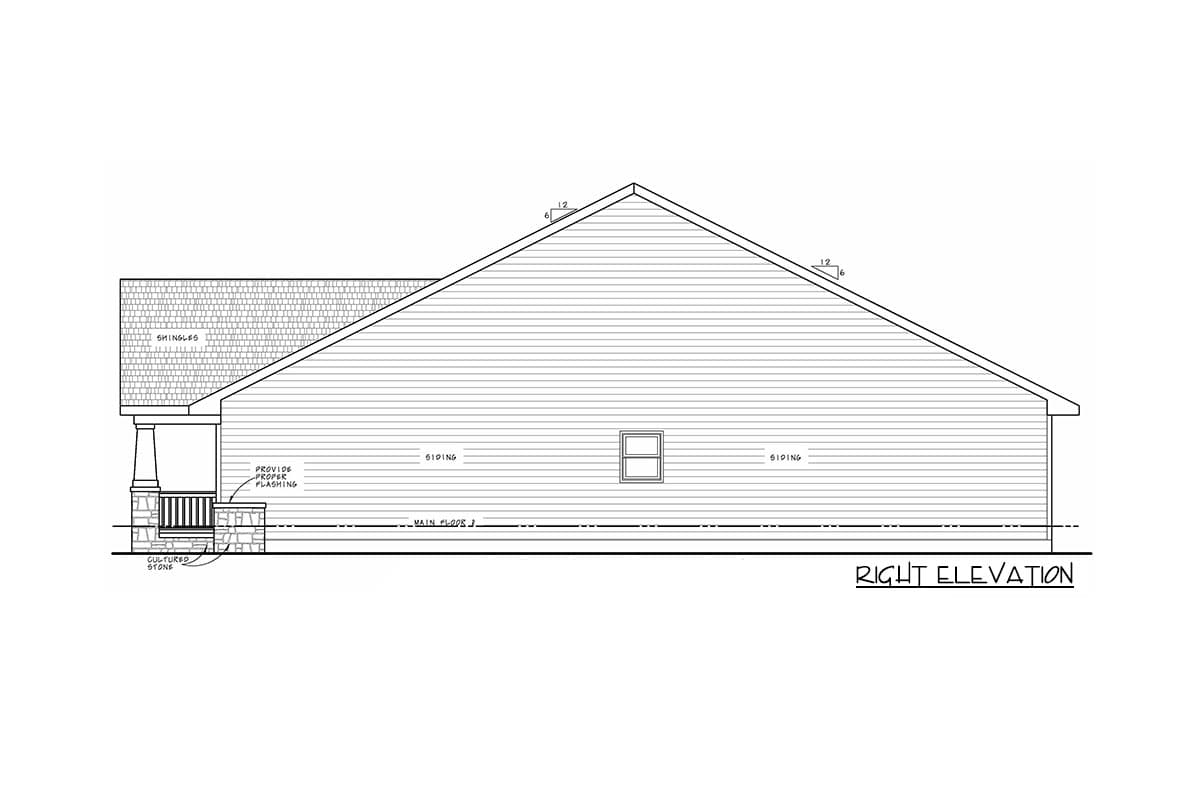

Elevations:  Drafted at 1/4" scale for the front and 1/8" scale for the rear and sides. All elevations are detailed and an aerial view of the roof is provided, showing all hips, valleys and ridges.

 Foundation: Drafted at 1/4" scale. Poured or block basement or slab foundations are standard. We also show the HVAC equipment, structural information, steel beam and pole locations and the direction and spacing of the floor system above.

Main Level Floor Plan: 1/4" scale. Fully dimensioned from stud to stud for ease of framing. The detailed drawings include such things as structural header locations, framing layout and kitchen layout.1

 Second Level Floor Plan: 1/4" scale. Dimensioned from stud to stud and drafted to the same degree of detail as the main level floor plan.1

 Interior Elevations:Useful for the cabinet and bidding process, this page shows all kitchen and bathroom cabinets as well as any other cabinet elevations.

Electrical and Sections: Illustrated on a separate page for clarity, the electrical plan shows suggested electrical layout for the foundation, main and second level floor plans. Typical wall, cantilever, stair, brick and fireplace sections are provided to further explain construction of these areas.

Roof Framing Plan: Illustrated on a separate page for clarity, the roof framing plan shows the suggested dimensional plan showing lengths, runs, ridge heights and wall plate heights.

Floor Plan

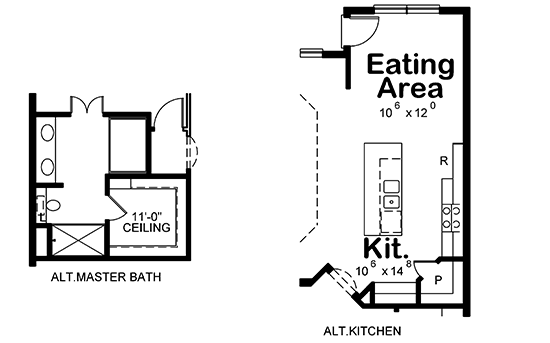

Optional Layout

Pinit white
Craftsman House Plan with Convenient One-Story Living - 42595DB floor plan - Optional Layout

Plan details

Architectural Style



Craftsman House Plan with Convenient One-Story Living

  • 1,878

    Heated s.f.

  • 3

    Beds

  • 2

    Baths

  • 1

    Floors

  • 2

    Car garage

Buy This Plan
  • Digital Study Set $635
  • PDF - single-use $965
  • 5 Sets $1,090
  • 5 Sets PLUS $1,135
  • 8 Sets $1,160
  • PDF - multi-use $1,465
  • CAD $1,689
  • CAD - multi-use $2,189
  • View all purchase option online

About This Plan

  • Clapboard, stone and shingles and a great front porch combine to give this Craftsman house plan great curb appeal. It comes with an optional master bath layout as well as an optional kitchen design making the home very versatile.
  • The family room opens to the kitchen and eating area and overlooks the covered patio in back. Take your meals outside with outdoor access from the eating area.
  • The bedrooms line up along the left of the home, leaving. The master suite has a tray ceiling and a large walk-in closet. The bathroom gives you an oversized doorless shower. The two front bedrooms share a bath.
  • Related Plan: Get expansion space on a second floor with house plan 42572DB.

Floor Plans

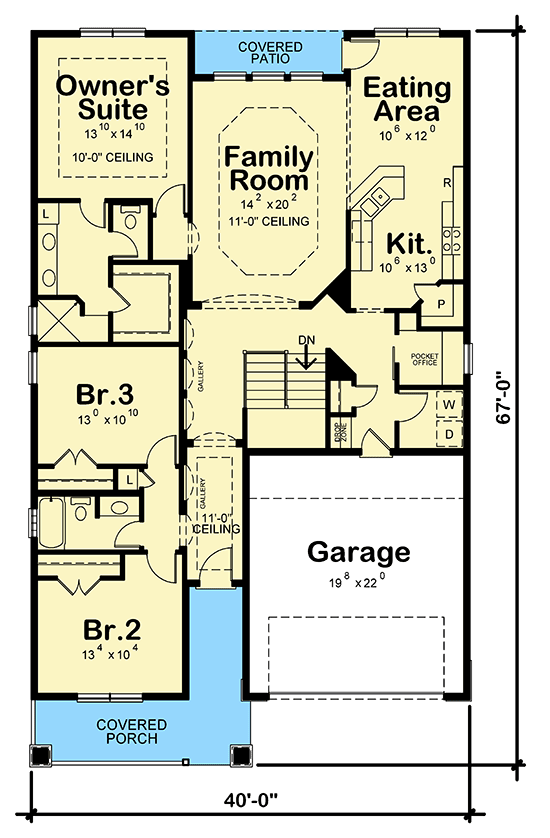

  • Main Level

  • Optional Layout

Plan Details

Square Footage Breakdown

  • Total Heated Area: 1,878 sq. ft.
  • 1st Floor: 1,878 sq. ft.

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 2

Foundation Type

    • Standard Foundations: Basement

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 40' 0"
  • Depth: 67' 0"
  • Max ridge height: 27' 1"

Garage

  • Type: Attached
  • Area: 456 sq. ft.
  • Count: 2 Cars
  • Entry Location: Front

Ceiling Heights

  • Floor / Height: First Floor / 9' 0"
