Craftsman House Plan with Flexible Second Floor

Plan 42572DB

  • 2,666

    Heated s.f.

  • 3-4

    Beds

  • 3

    Baths

  • 2

    Stories

  • 2

    Cars

  • Clapboard, stone and shingles and a great front porch combine to give this Craftsman house plan great curb appeal. With a flexible upstairs, it gives you 3 or 4 bedrooms depending on how you use the flex room.
  • The family room opens to the kitchen and eating area and overlooks the covered patio in back. Take your meals outside with outdoor access from the eating area.
  • The bedrooms line up along the left of the home, leaving. The master suite has a tray ceiling and a large walk-in closet. The bathroom gives you an oversized doorless shower. The two front bedrooms share a bath.
  • Upstairs, a flex room can be used as a study or as a fourth bedroom. The rec room gives you 272 square feet of fun space.
  • Related Plan: Eliminate the second floor with house plan 42595DB.

Plans include the following:


Cover Page. Each home plan features the rendered elevation and informative reference sections including: general notes and design criteria; abbreviations; and symbols for your plan.

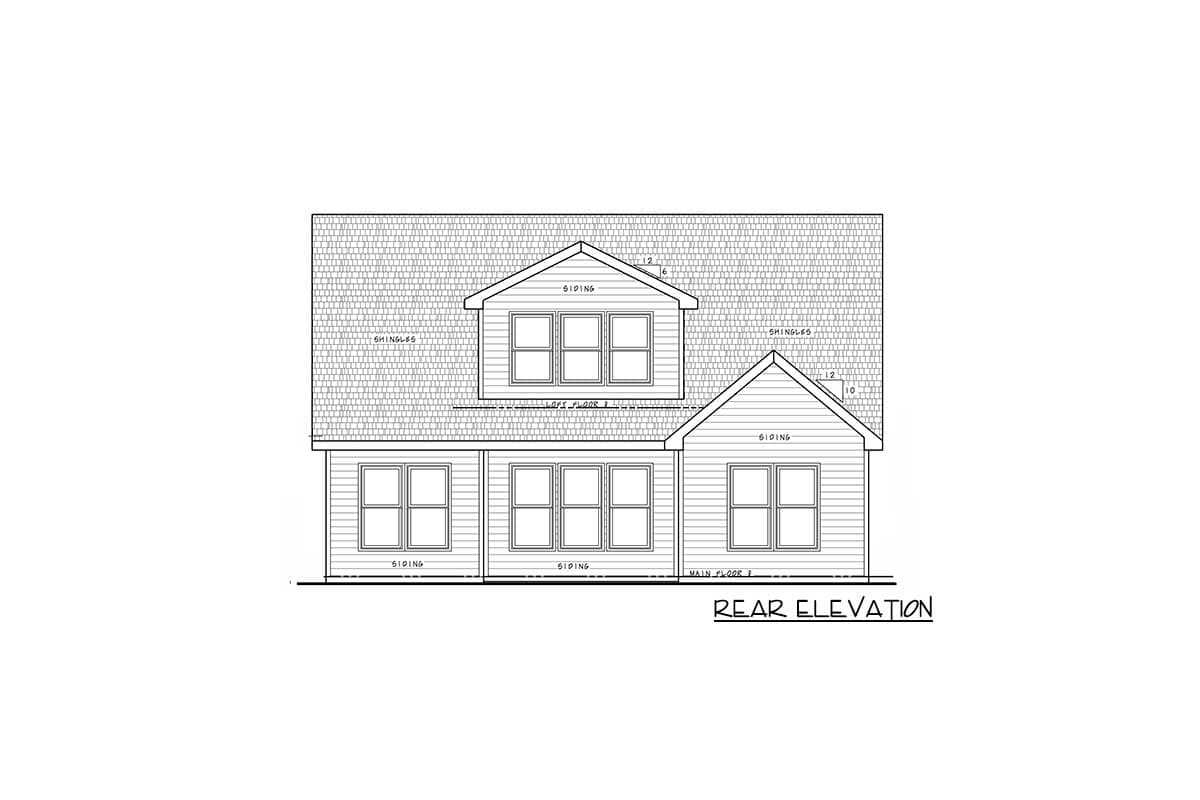

Elevations:  Drafted at 1/4" scale for the front and 1/8" scale for the rear and sides. All elevations are detailed and an aerial view of the roof is provided, showing all hips, valleys and ridges.

 Foundation: Drafted at 1/4" scale. Poured or block basement or slab foundations are standard. We also show the HVAC equipment, structural information, steel beam and pole locations and the direction and spacing of the floor system above.

Main Level Floor Plan: 1/4" scale. Fully dimensioned from stud to stud for ease of framing. The detailed drawings include such things as structural header locations, framing layout and kitchen layout.

 Second Level Floor Plan: 1/4" scale. Dimensioned from stud to stud and drafted to the same degree of detail as the main level floor plan.

 Interior Elevations:Useful for the cabinet and bidding process, this page shows all kitchen and bathroom cabinets as well as any other cabinet elevations.

Electrical and Sections: Illustrated on a separate page for clarity, the electrical plan shows suggested electrical layout for the foundation, main and second level floor plans. Typical wall, cantilever, stair, brick and fireplace sections are provided to further explain construction of these areas.

Roof Framing Plan: Illustrated on a separate page for clarity, the roof framing plan shows the suggested dimensional plan showing lengths, runs, ridge heights and wall plate heights.

Floor Plan

Main Level

Reverse Floor Plan
Craftsman House Plan with Flexible Second Floor - 42572DB floor plan - Main Level

2nd Floor

Reverse Floor Plan

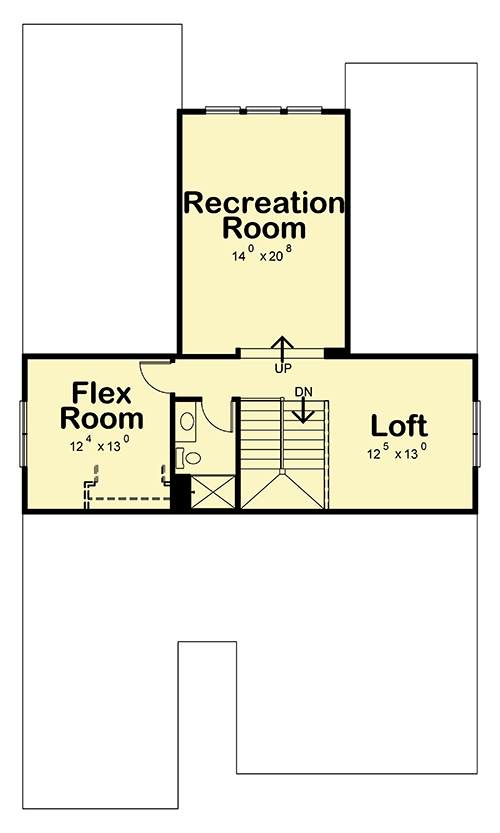

Craftsman House Plan with Flexible Second Floor - 42572DB floor plan - 2nd Floor

Plan details

Square Footage Breakdown

  • Total Heated Area: 2,666 sq. ft.
  • 1st Floor: 1,894 sq. ft.
  • 2nd Floor: 772 sq. ft.

Beds/Baths

  • Bedrooms: 3 or 4
  • Full bathrooms: 3

Foundation Type

  • Standard Foundations: Slab
  • Optional Foundations: Basement, Crawl

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Dimensions

  • Width: 39' 1"
  • Depth: 73' 4"
  • Max ridge height: 28' 1"

Garage

  • Type: Attached
  • Area: 458 sq. ft.
  • Count: 2 Cars
  • Entry Location: Front

Ceiling Heights

  • Floor / Height: First Floor / 10' 0" Second Floor / 8' 0"

Roof Details

  • Primary Pitch: 6 on 12
  • Secondary Pitch: 6 on 12

Architectural Style

Special features



Craftsman House Plan with Flexible Second Floor

  • 2,666

    Heated s.f.

  • 3 - 4

    Beds

  • 3

    Baths

  • 2

    Floors

  • 2

    Car garage

Buy This Plan
  • Study Set – Digital $685
  • PDF - Single-Build $1,045
  • PDF - Unlimited Build $1,545
  • CAD - Single-Build $1,829
  • CAD - Unlimited Build $2,329
  • View all purchase option online

About This Plan

  • Clapboard, stone and shingles and a great front porch combine to give this Craftsman house plan great curb appeal. With a flexible upstairs, it gives you 3 or 4 bedrooms depending on how you use the flex room.
  • The family room opens to the kitchen and eating area and overlooks the covered patio in back. Take your meals outside with outdoor access from the eating area.
  • The bedrooms line up along the left of the home, leaving. The master suite has a tray ceiling and a large walk-in closet. The bathroom gives you an oversized doorless shower. The two front bedrooms share a bath.
  • Upstairs, a flex room can be used as a study or as a fourth bedroom. The rec room gives you 272 square feet of fun space.
  • Related Plan: Eliminate the second floor with house plan 42595DB.

Floor Plans

  • Main Level

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total Heated Area: 2,666 sq. ft.
  • 1st Floor: 1,894 sq. ft.
  • 2nd Floor: 772 sq. ft.

Beds/Baths

  • Bedrooms: 3 or 4
  • Full bathrooms: 3

Foundation Type

    • Standard Foundations: Slab
    • Optional Foundations: Basement, Crawl

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Dimensions

  • Width: 39' 1"
  • Depth: 73' 4"
  • Max ridge height: 28' 1"

Garage

  • Type: Attached
  • Area: 458 sq. ft.
  • Count: 2 Cars
  • Entry Location: Front

Ceiling Heights

  • Floor / Height: First Floor / 10' 0" Second Floor / 8' 0"

Roof

  • Primary Pitch: 6 on 12
  • Secondary Pitch: 6 on 12
