Plan 29813RL Craftsman House Plan with Dramatic Vaulted Great Room and Detached Garage

1,736 2-4 2 - 4 1 2
Print
Compare
...
All plans are copyrighted by our designers. Photographed homes may include modifications made by the homeowner with their builder.

Craftsman House Plan with Dramatic Vaulted Great Room and Detached Garage

Plan 29813RL

  • 1,736

    Heated s.f.

  • 2-4

    Beds

  • 2 - 4

    Baths

  • 1

    Stories

  • 2

    Cars

  • The 18' vaulted great room with its fireplace and two stories of glass is the central showpiece of this moutain house plan.
  • Enjoy the view from the screened porch with direct access from the master suite and the sunroom off the kitchen as well.
  • You'll find an excellent kitchen with great work and storage spaces.
  • A second bedroom completes the main level.
  • On the terrace level you'll get 2 additional bedrooms plus a rec area and ample storage. This area can be finished as needed and affords the same great views of the outdoors as the main level of the house.
  • The 2-car garage is attached by a breezeway and can be angled to suit site conditions or your own personal tastes.
  • While the designer shows the width including the garage and breezeway at 100'9", please note that this dimension will be based on your site. You have the flexibility to adjust the garage location. The breezeway with is currently 6' wide.

Each plan set includes the following:

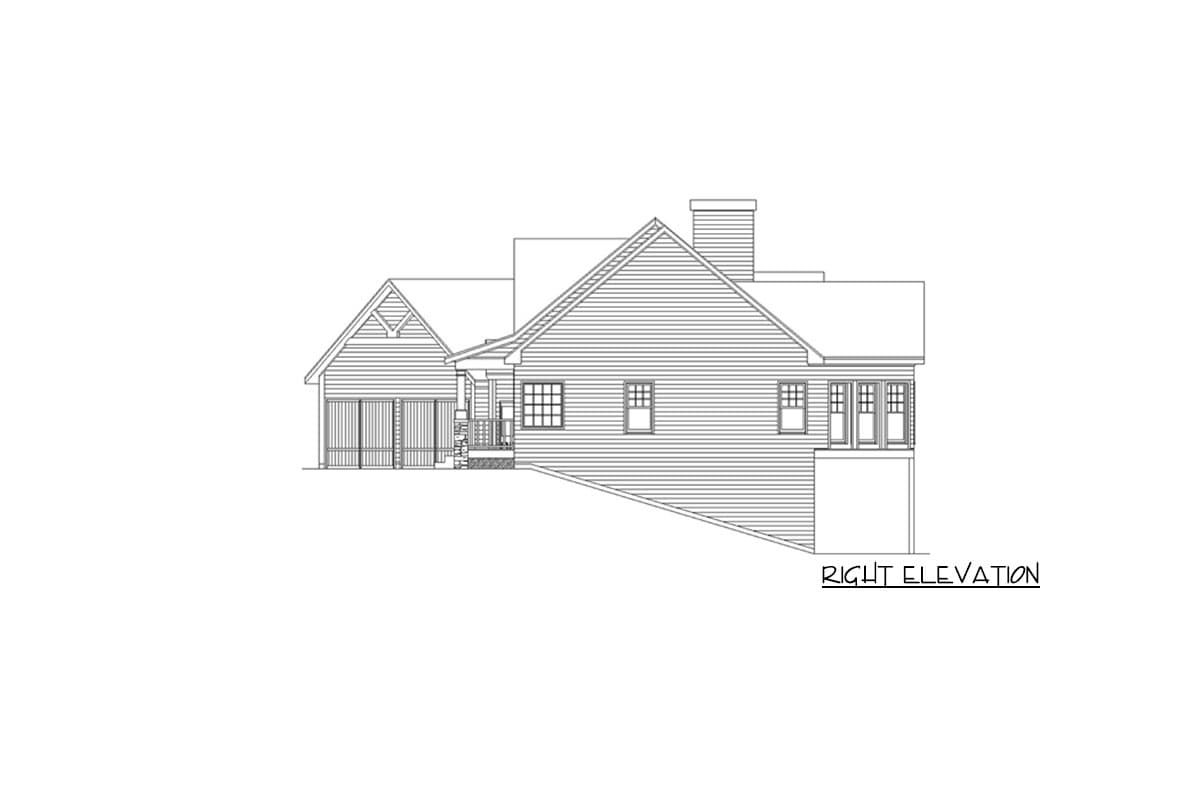

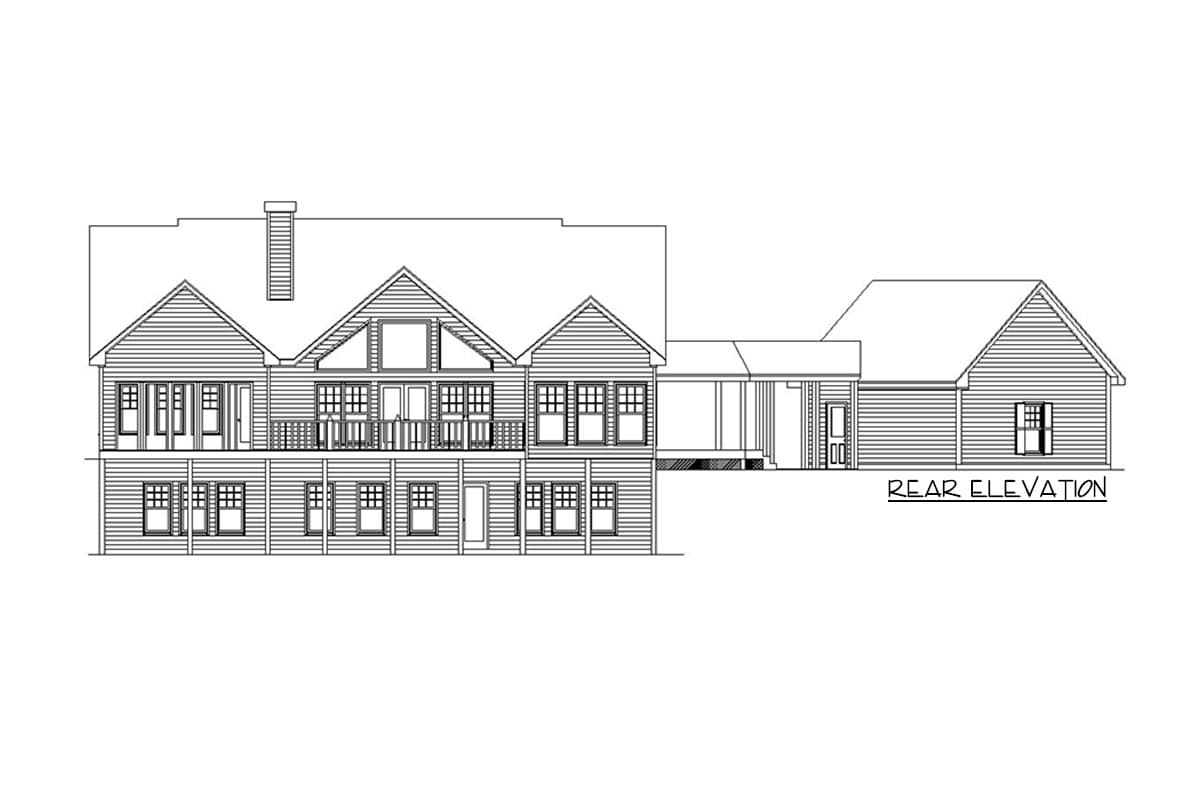

  • All 4 elevations (front, rear, left, right)
  • 2D Roof overview
  • 3D Roof overview
  • Main Level Layout
  • Basement Level Layout
  • Cross-Section
  • Typical Details
These items are NOT included:
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.
Craftsman House Plan with Dramatic Vaulted Great Room and Detached Garage - 29813RL floor plan - Main Level

Lower Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

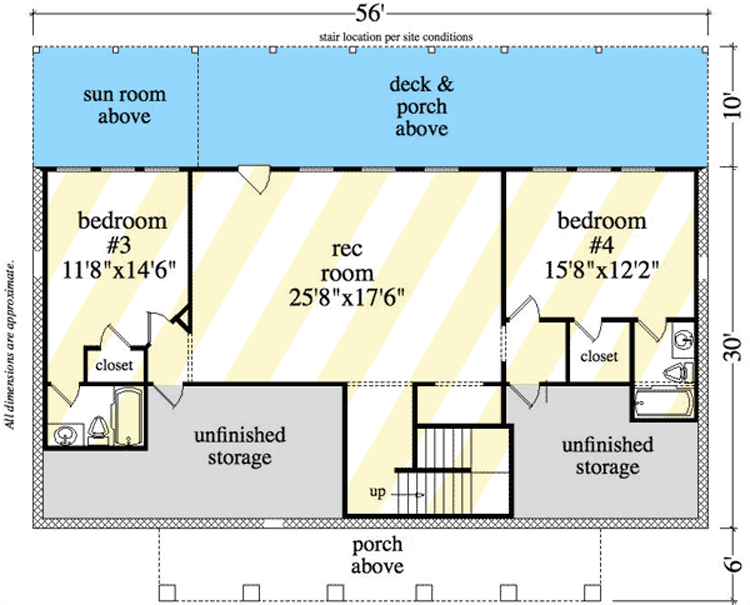

Craftsman House Plan with Dramatic Vaulted Great Room and Detached Garage - 29813RL floor plan - Lower Level

Detached Garage

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.
Craftsman House Plan with Dramatic Vaulted Great Room and Detached Garage - 29813RL floor plan - Detached Garage

Plan details

Square Footage Breakdown

  • Total Heated Area: 1,736 sq. ft.
  • 1st Floor: 1,736 sq. ft.
  • Screened Porch: 160 sq. ft.
  • Optional Lower Level: 1,124 sq. ft.

Beds/Baths

  • Bedrooms: 2, 3, or 4
  • Full bathrooms: 2, 3, or 4

Foundation Type

  • Standard Foundations: Basement, Walkout
  • Optional Foundations: Crawl, Slab

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Dimensions

  • Width: 56' 0"
  • Depth: 30' 0"
  • Max ridge height: 23' 4"

Garage

  • Type: Attached
  • Area: 476 sq. ft.
  • Count: 2 Cars
  • Entry Location: Courtyard

Ceiling Heights

  • Floor / Height: Lower Level / 9' 0" First Floor / 9' 0"

Roof Details

  • Primary Pitch: 10 on 12

Architectural Style

Special features

Plan Collections

Craftsman House Plan with Dramatic Vaulted Great Room and Detached Garage

  • 1,736

    Heated s.f.

  • 2-4

    Beds

  • 2 - 4

    Baths

  • 1

    Floors

  • 2

    Car garage

Buy This Plan
  • PDF - Single-Build $1,109
  • 5 Sets + PDF $1,359
  • PDF - Unlimited Build $1,709
  • CAD - Single-Build $2,218
  • View all purchase option online

About This Plan

  • The 18' vaulted great room with its fireplace and two stories of glass is the central showpiece of this moutain house plan.
  • Enjoy the view from the screened porch with direct access from the master suite and the sunroom off the kitchen as well.
  • You'll find an excellent kitchen with great work and storage spaces.
  • A second bedroom completes the main level.
  • On the terrace level you'll get 2 additional bedrooms plus a rec area and ample storage. This area can be finished as needed and affords the same great views of the outdoors as the main level of the house.
  • The 2-car garage is attached by a breezeway and can be angled to suit site conditions or your own personal tastes.
  • While the designer shows the width including the garage and breezeway at 100'9", please note that this dimension will be based on your site. You have the flexibility to adjust the garage location. The breezeway with is currently 6' wide.

Floor Plans

  • Main Level

  • Lower Level

  • Detached Garage

Plan Details

Square Footage Breakdown

  • Total Heated Area: 1,736 sq. ft.
  • 1st Floor: 1,736 sq. ft.
  • Screened Porch: 160 sq. ft.
  • Optional Lower Level: 1,124 sq. ft.

Beds/Baths

  • Bedrooms: 2, 3, or 4
  • Full bathrooms: 2, 3, or 4

Foundation Type

    • Standard Foundations: Basement, Walkout
    • Optional Foundations: Crawl, Slab

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Dimensions

  • Width: 56' 0"
  • Depth: 30' 0"
  • Max ridge height: 23' 4"

Garage

  • Type: Attached
  • Area: 476 sq. ft.
  • Count: 2 Cars
  • Entry Location: Courtyard

Ceiling Heights

  • Floor / Height: Lower Level / 9' 0" First Floor / 9' 0"

Roof

  • Primary Pitch: 10 on 12
Plan 29813RL
View this and more for this plan by visiting www.architechtecturaldesigns.com/29813RL
|
