Plan 785006KPH

Craftsman House Plan with Drive-Under Garage and Media Room - 3540 Sq Ft

Heated S.F.

3,540

Beds

3 - 4

Baths

3.5

Stories

2

Cars

2

Floor Plan

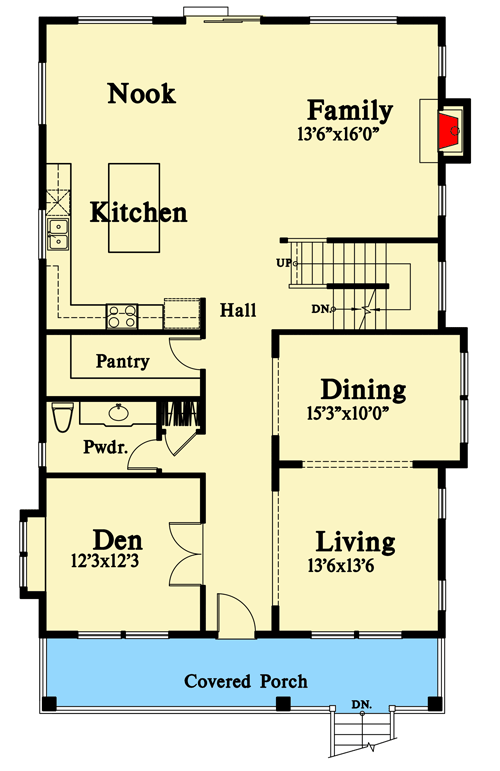

Main Level

Plan 785006KPH: Craftsman House Plan with Drive-Under Garage and Media Room - 3540 Sq Ft - Floor Plan - Main Level - Craftsman, Northwest, Traditional

Second Level

Plan 785006KPH: Craftsman House Plan with Drive-Under Garage and Media Room - 3540 Sq Ft - Floor Plan - Second Level - Craftsman, Northwest, Traditional

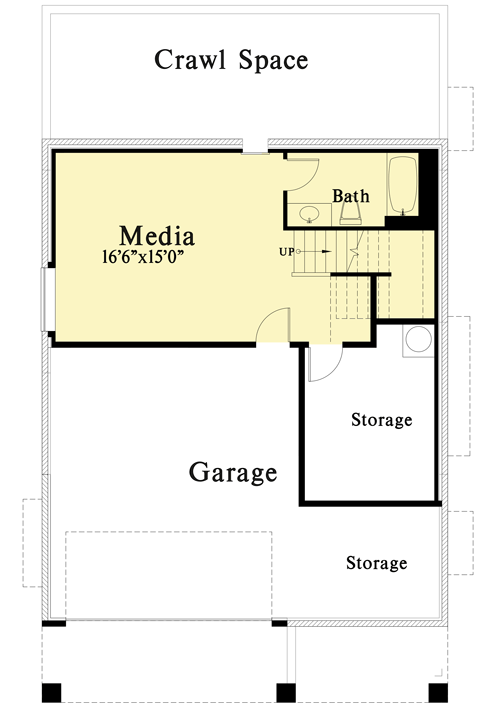

Lower Level

Plan 785006KPH: Craftsman House Plan with Drive-Under Garage and Media Room - 3540 Sq Ft - Floor Plan - Lower Level - Craftsman, Northwest, Traditional

Plan Details

A traditional exterior comes together with interior, modern must-haves in this Craftsman house plan with drive-under garage.
Towards the front of the home, a quiet den and living room border the foyer, with windows overlooking the covered, front porch. A dining room sits across from the main-level, powder bath.
The heart of this home provides an open layout with a fireplace in the family room serving as a focal point. An L-shaped kitchen with an island in the center offers plenty of storage and a walk-in pantry adds convenience.
Upstairs, your master suite awaits through french doors and features a master bathroom with dual sinks, a separate tub and shower, and a walk-in closet. The second-level, laundry room is located just outside the master for ease of use.
Down the hall, two additional bedrooms sit across from a 4-fixture bathroom, and a bonus room can be used as a playroom or fourth bedroom.
The lower level offers a media room which could be used as a fifth bedroom with a full bath right there, a storage room and parking for two cars.

What's Included

Cover Sheet
Code Notes
Foundation and Lower Floor
Main Floor Framing
Main Floor
Second Level Framing
Second Level
Elevations and Budling Section

What's Not Included

Architectural or Engineering Stamp - handled locally if required
Site Plan - handled locally when required
Plumbing & Electrical plans
Mechanical Drawings (location of heating and air equipment and duct work)
Renderings, photography, or marketing imagery
Energy calculations - handled locally when required

Loading...

Ready to Get Started?

Select your plan set options before checkout.

Price Match Guarantee

What's included?

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

3,540 sq. ft.

Lower Level

459 sq. ft.

1st Floor

1,598 sq. ft.

2nd Floor

1,483 sq. ft.

Basement Unfinished

146 sq. ft.

Porch, Combined

192 sq. ft.

Beds/Baths

Bedrooms

3 or 4

Full bathrooms

3

Half bathrooms

1

Foundation Type

Standard Foundations

Walkout

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

34' 0"

Depth

60' 9"

Garage

Type

Drive Under

Area

555 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

Lower Level

9'

First Floor

9'

Second Floor

8'

Roof Details

Primary Pitch

4 on 12

Secondary Pitch

9 on 12

Framing Type

Truss

Architectural Style

Special Features

Laundry - Upstairs

Master Suite - Upstairs

Optionally Finished Bonus Room

Plan Collections

Square Footage Breakdown

Total Heated Area

3,540 sq. ft.

Lower Level

459 sq. ft.

1st Floor

1,598 sq. ft.

2nd Floor

1,483 sq. ft.

Basement Unfinished

146 sq. ft.

Porch, Combined

192 sq. ft.

Beds/Baths

Bedrooms

3 or 4

Full bathrooms

3

Half bathrooms

1

Foundation Type

Standard Foundations

Walkout

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

34' 0"

Depth

60' 9"

Garage

Type

Drive Under

Area

555 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

Lower Level

9'

First Floor

9'

Second Floor

8'

Roof Details

Primary Pitch

4 on 12

Secondary Pitch

9 on 12

Framing Type

Truss

Architectural Style

Special Features

Laundry - Upstairs

Master Suite - Upstairs

Optionally Finished Bonus Room
