Craftsman House Plan with Flex and Bonus Rooms - 2546 Sq Ft
Heated S.F.
2,546
Beds
3-4
Baths
2.5
Stories
2
Cars
3
What's Included
Plan Details
  • This Craftsman house plan gives you 2,546 square feet of heated living with 3 beds, a flex room and a bonus room giving you great flexibility.
  • Inside, vaulted ceilings add an element of surprise overhead, while the open communal spaces enjoy the warmth of a fireplace and easy access to a covered patio.
  • French doors near the foyer reveal a flex room that can be used as a home office, study or guest bedroom.
  • The master bedroom is conveniently located on the main level and includes a 5-fixture bathroom and walk-in closet.
  • Upstairs, two bedrooms share a bathroom and a bonus room gives you additional flexibility.
  • Related Plans: Get an alternate version with house plans 28109J (2,768 sq. ft.), 28034J (2,526 sq ft.) and 28108J (2,037 sq. ft.).
What's Included
  • Foundation plan with details
  • Detailed floor plan (includes window sizes, ceiling joist directions, plumbing fixture locations, etc.)
  • Four exterior views (front, rear, right, left)
  • Roof plan (birds eye view of roof)
  • Building section
  • Wall section
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Print
Hide
Compare
Favorite
Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

Craftsman House Plan with Flex and Bonus Rooms - 2546 Sq Ft

  • 2,546

    Heated s.f.

  • 3-4

    Beds

  • 2.5

    Baths

  • 2

    Floors

  • 3

    Car garage

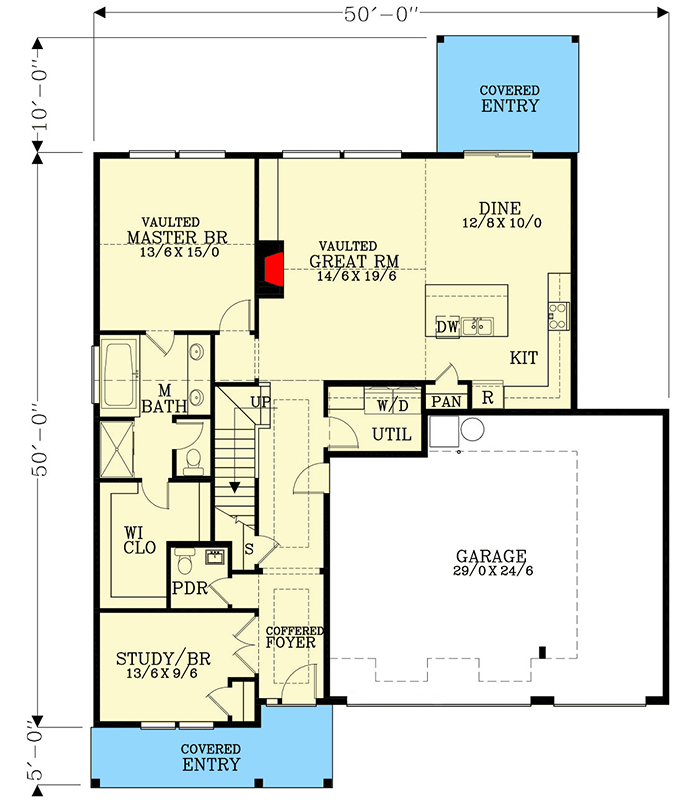

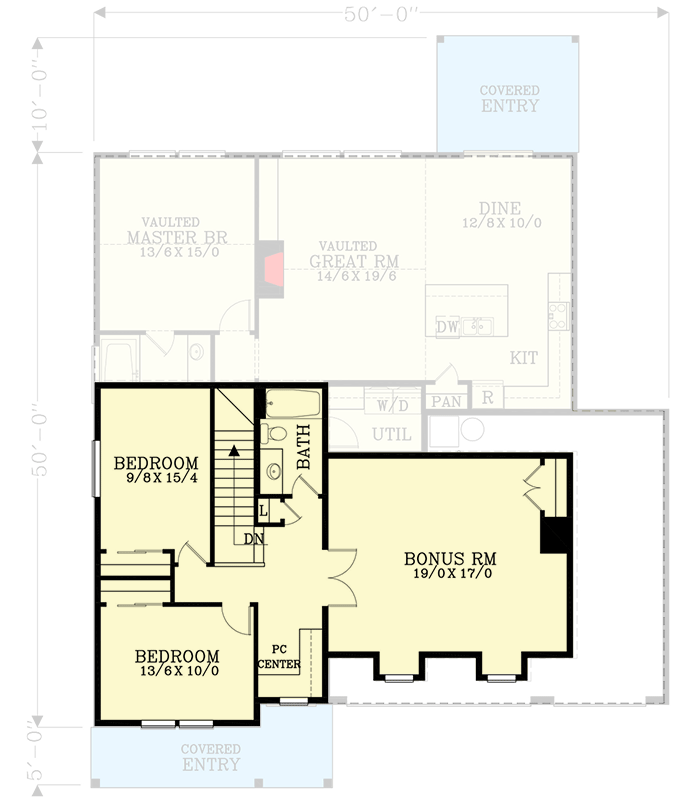

Floor Plan

  • Main Level

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total: 2,546 sq. ft.
  • 1st Floor: 1,535 sq. ft.
  • 2nd Floor: 1,011 sq. ft.

Dimensions

  • Width: 50' 0"
  • Depth: 50' 0"
  • Max ridge height: 27' 4"

Beds/Baths

  • Bedrooms: 3 or 4
  • Full bathrooms: 2
  • Half bathrooms: 1

Garage

  • Type: Attached
  • Area: 701 sq. ft.
  • Count: 3 Cars
  • Entry Location: Front

Foundation Type

    • Standard Foundations: Crawl, Post/Beam

Exterior Walls

  • Standard Type(s): 2x6

Ceiling Heights

  • Floor / Height: First Floor / 9' 0" Second Floor / 8' 0"

Roof

  • Primary Pitch: 12 on 10
  • Secondary Pitch: 12 on 6
  • Framing Type: Truss
