Plan 42368DB

Craftsman House Plan with Flex Room

Pageloader

Craftsman House Plan with Flex Room

Plan 42368DB

  • 2,463

    Heated s.f.

  • 4

    Beds

  • 2.5 - 3.5

    Baths

  • 2

    Stories

  • 2

    Cars

  • Board and battan siding on the front adds a visual appeal to this charming Craftsman house plan.
  • The wide foyer has built-in niches with transoms above.
  • Use the flex room as a formal dining room or a study or whatever you choose.
  • The main living area in the back of the home is all open concept with flowing views so you can see what everyone's doing while preparing meals.
  • Note the handy drop zone by the garage entrance and the big walk-in coat closet.
  • Bedroom 2 upstairs has a study nook and all bedrooms get walk-in closets.
  • The second floor laundry room is a real step saver.

Plans include the following:


Cover Page. Each home plan features the rendered elevation and informative reference sections including: general notes and design criteria 1; abbreviations; and symbols for your plan.

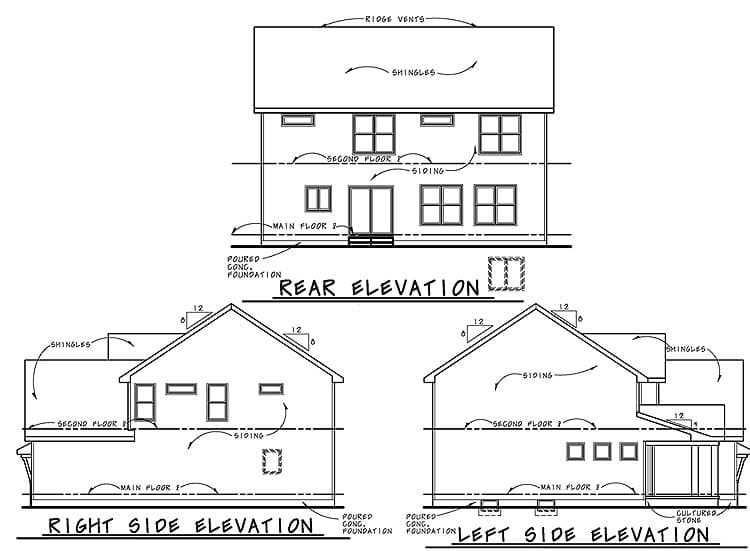

Elevations:  Drafted at 1/4" scale for the front and 1/8" scale for the rear and sides. All elevations are detailed and an aerial view of the roof is provided, showing all hips, valleys and ridges.

 Foundation: Drafted at 1/4" scale. Poured or block basement or slab foundations are standard. We also show the HVAC equipment, structural information, steel beam and pole locations and the direction and spacing of the floor system above.

Main Level Floor Plan: 1/4" scale. Fully dimensioned from stud to stud for ease of framing. The detailed drawings include such things as structural header locations, framing layout and kitchen layout.1

 Second Level Floor Plan: 1/4" scale. Dimensioned from stud to stud and drafted to the same degree of detail as the main level floor plan.1

 Interior Elevations:Useful for the cabinet and bidding process, this page shows all kitchen and bathroom cabinets as well as any other cabinet elevations.

Electrical and Sections: Illustrated on a separate page for clarity, the electrical plan shows suggested electrical layout for the foundation, main and second level floor plans. Typical wall, cantilever, stair, brick and fireplace sections are provided to further explain construction of these areas.

Roof Framing Plan: Illustrated on a separate page for clarity, the roof framing plan shows the suggested dimensional plan showing lengths, runs, ridge heights and wall plate heights.

Floor Plan

Plan details



Craftsman House Plan with Flex Room

  • 2,463

    Heated s.f.

  • 4

    Beds

  • 3 +

    Baths

  • 2

    Floors

  • 2

    Car garage

Buy This Plan
  • Digital Study Set $670
  • PDF - single-use $1,025
  • 5 Sets $1,150
  • 5 Sets PLUS $1,195
  • 8 Sets $1,220
  • PDF - multi-use $1,525
  • CAD $1,794
  • CAD - multi-use $2,294
  • View all purchase option online

About This Plan

  • Board and battan siding on the front adds a visual appeal to this charming Craftsman house plan.
  • The wide foyer has built-in niches with transoms above.
  • Use the flex room as a formal dining room or a study or whatever you choose.
  • The main living area in the back of the home is all open concept with flowing views so you can see what everyone's doing while preparing meals.
  • Note the handy drop zone by the garage entrance and the big walk-in coat closet.
  • Bedroom 2 upstairs has a study nook and all bedrooms get walk-in closets.
  • The second floor laundry room is a real step saver.

Floor Plans

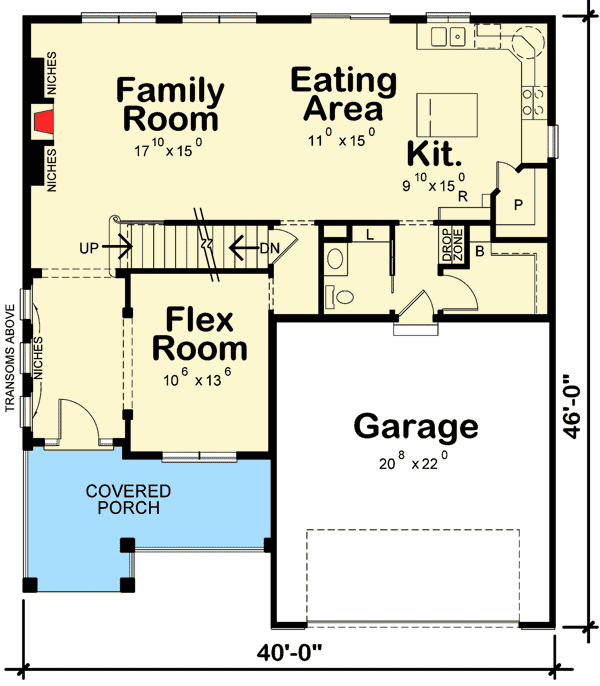

  • Main Level

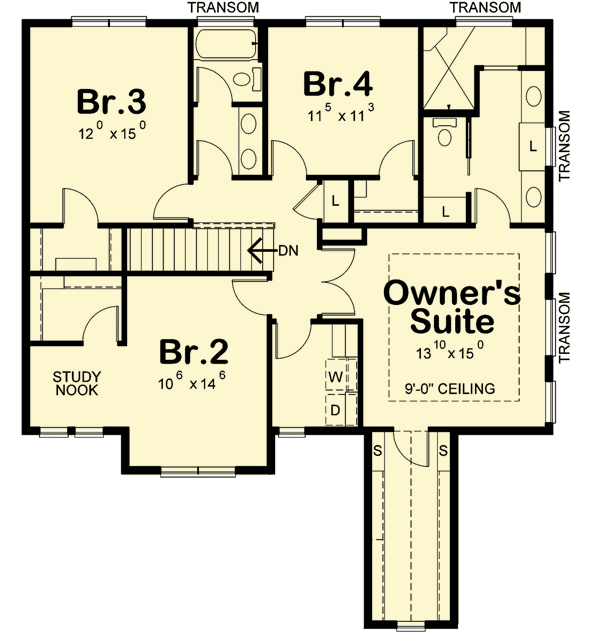

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total Heated Area: 2,463 sq. ft.
  • 1st Floor: 1,109 sq. ft.
  • 2nd Floor: 1,354 sq. ft.

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 2 or 3
  • Half bathrooms: 1

Foundation Type

    • Standard Foundations: Basement
    • Optional Foundations: Crawl, Slab

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 40' 0"
  • Depth: 46' 0"

Garage

  • Type: Attached
  • Area: 487 sq. ft.
  • Count: 2 Cars
  • Entry Location: Front

Ceiling Heights

  • Floor / Height: First Floor / 9' 0" Second Floor / 8' 0"
