Craftsman House Plan with Garage Workshop and Lower Level Expansion
Heated S.F.
2,298
Beds
2-4
Baths
2.5 - 4.5
Stories
1
Cars
3
Flyer
What's Included
Floor Plan
PRINT PLANS
Main Level
Reverse Floor Plan

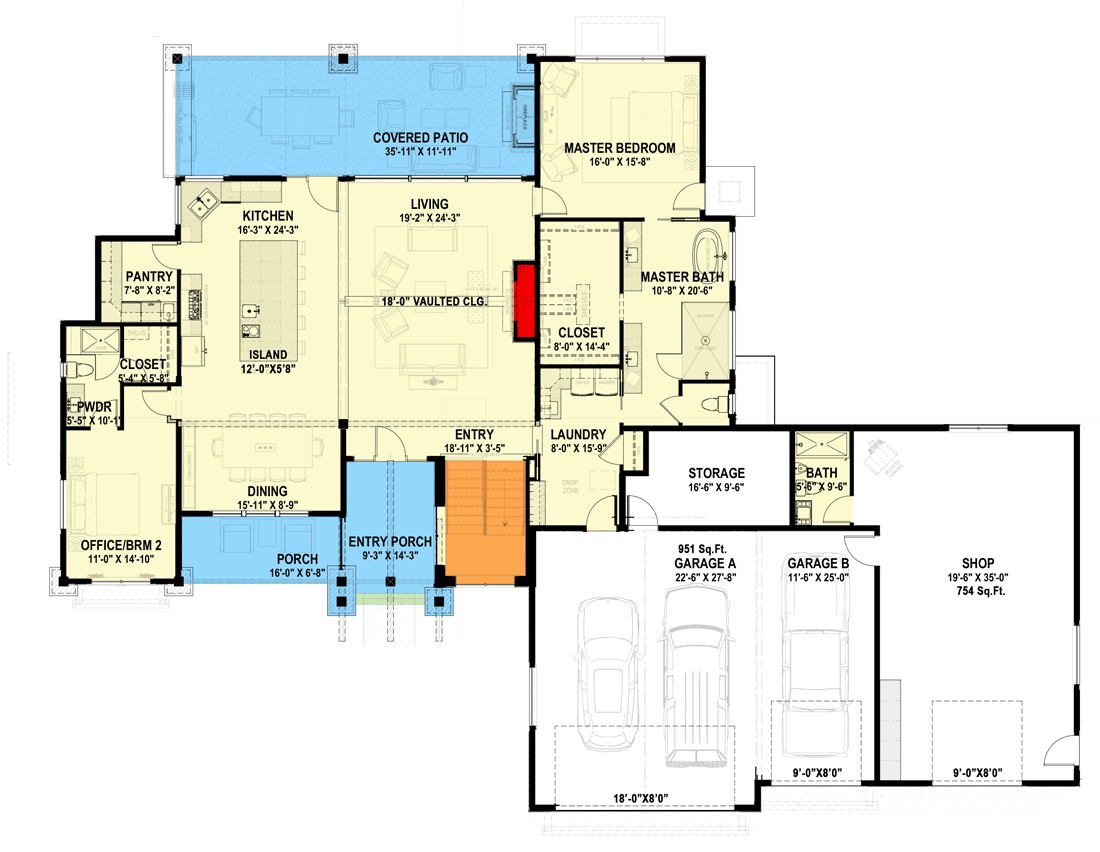

Craftsman House Plan with Garage Workshop and Lower Level Expansion - 64539SC floor plan - Main Level
Optionally Finished Lower Level
Reverse Floor Plan

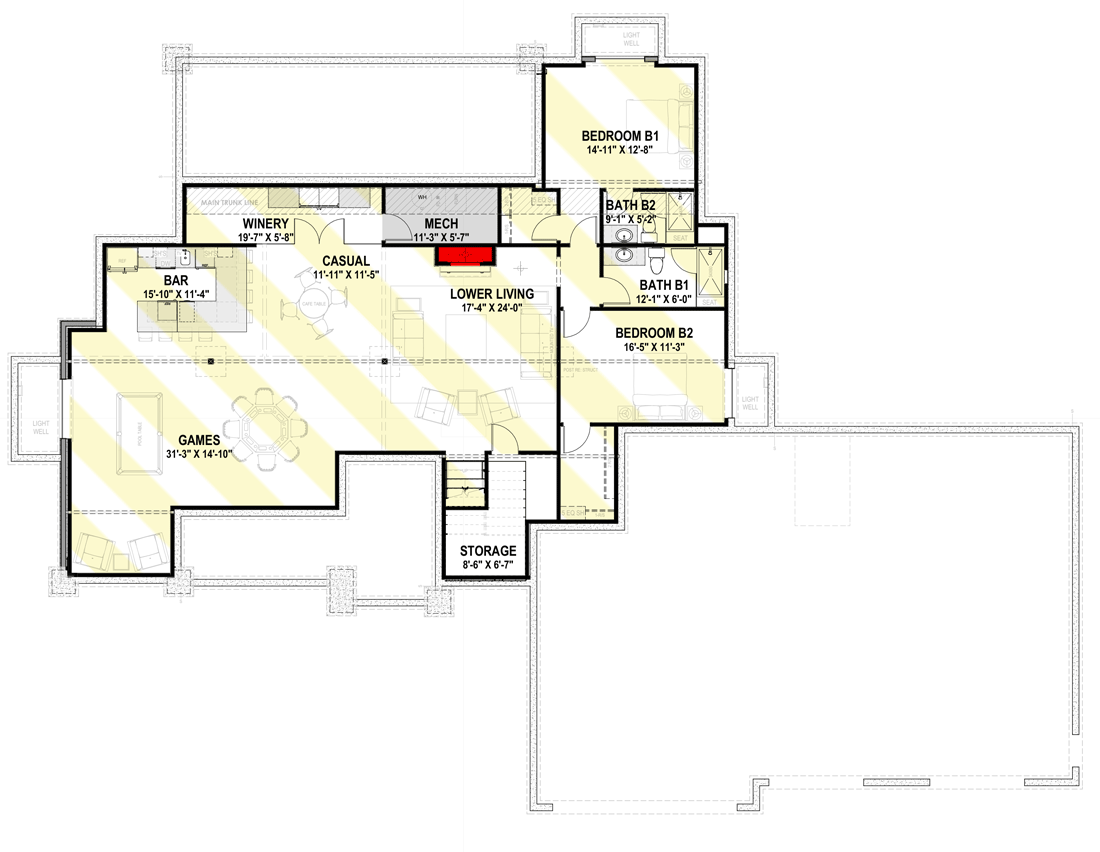

Craftsman House Plan with Garage Workshop and Lower Level Expansion - 64539SC floor plan - Optionally Finished Lower Level
Plan Details
  • This rustic Craftsman house plan gives you 2,298 square feet of heated one-level living with 2,335 square feet of lower level expansion space. The home gives you 2 beds on the main floor and two more in the lower level if/when you finish it.
  • Three garage bays - one double and one single - and a workshop bay (use the space to work on projects or as an RV garage) gives you great vehicle storage.
  • The living room has a vaulted ceiling and has views ot the covered patio in back and is open to the kitchen with massive island with seating on two sides.
  • Bedrooms are in a split layout with the guest bedroom on the left serving as a home office if needed. The master suite has a large walk-in closet and direct laundry access.
  • In addition to bedrooms and baths, the lower level has a wine room with display and a wet bar. A games room a second living room with fireplace and storage complete the home.
What's Included
  • Cover Sheet - project statistics, including square footages, 3D images (typically), general notes and drawings sheet index.
  • Foundation/basement plan - showing room/wall layout, beams, posts and joist direction, and often electrical outlets, switches and light locations.
  • Main Level Plan - floor plan rooms and walls dimensioned, window and door sizes noted, plumbing, millwork locations and other general notes.
  • Upper Level Plan (if needed) - same information as Main Level.
  • Roof Plan - layout with pitch markers, dimensions and notes.
  • Main Level Electrical Plan - electrical outlets, switches and light locations shown.
  • Upper Level Electrical Plan (if needed) - electrical outlets, switches and light locations shown.

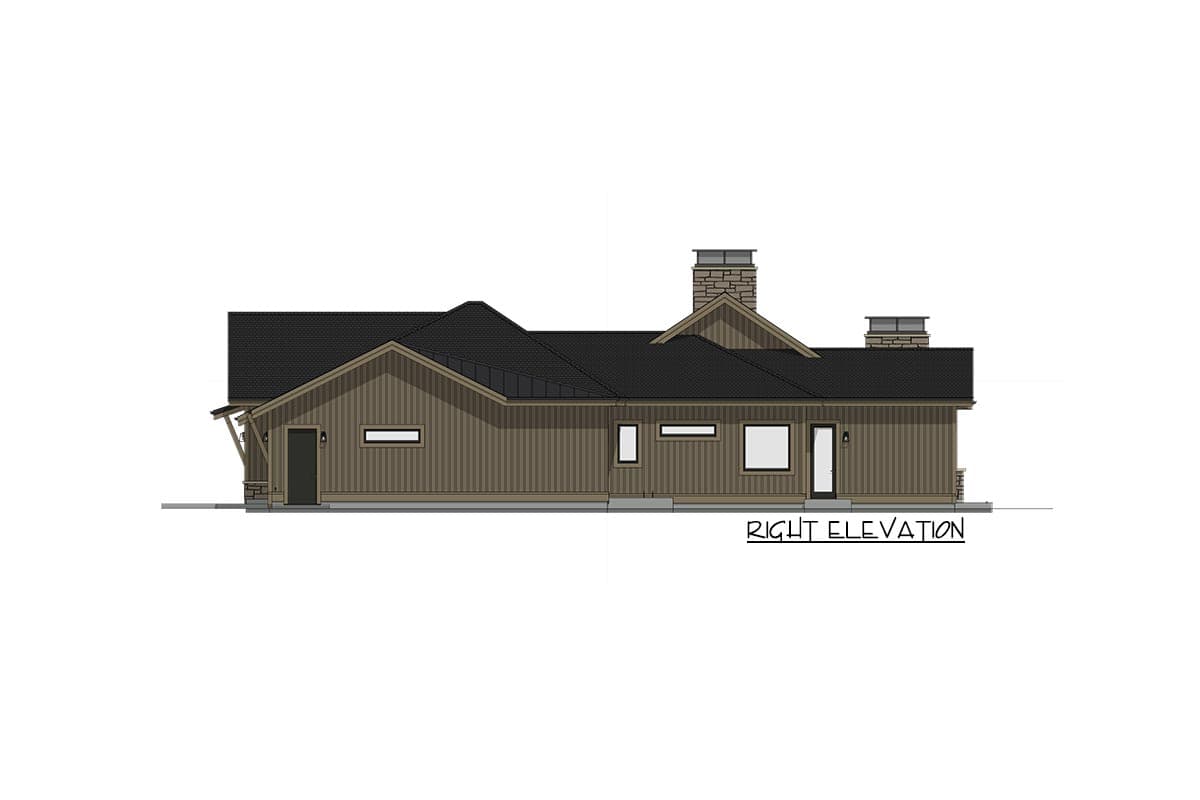

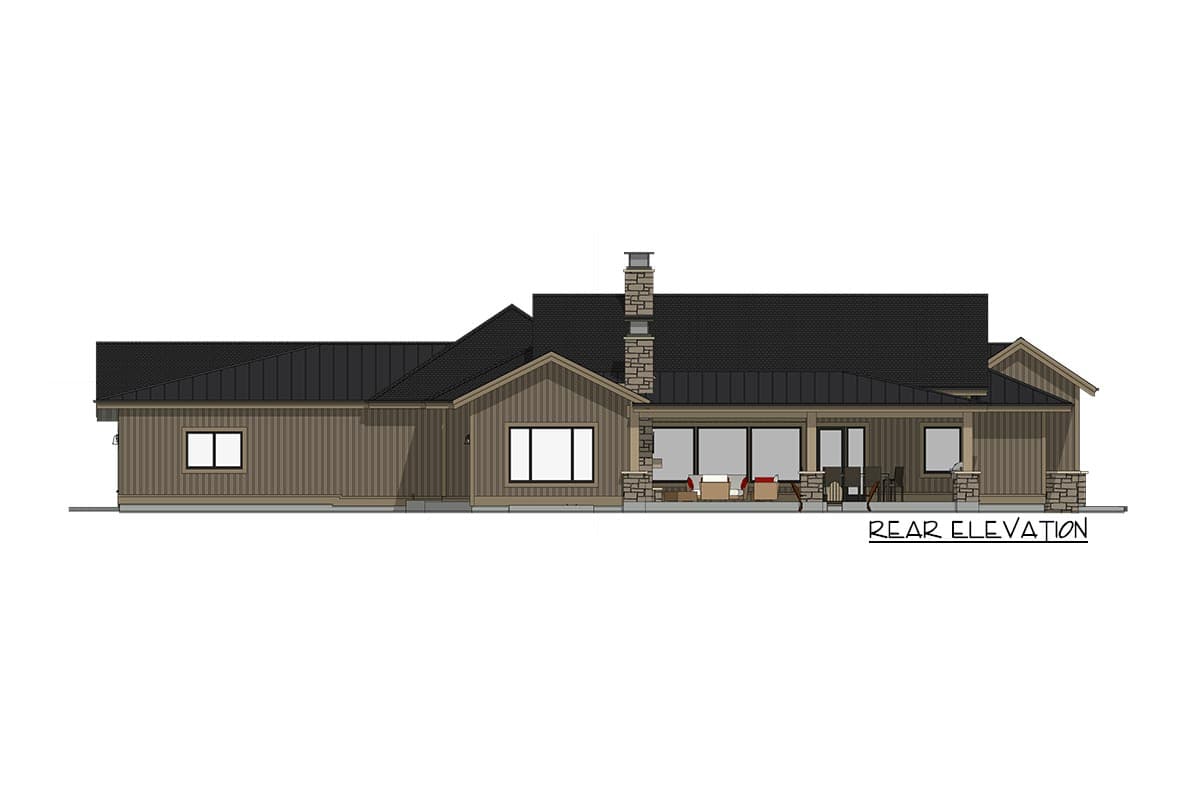

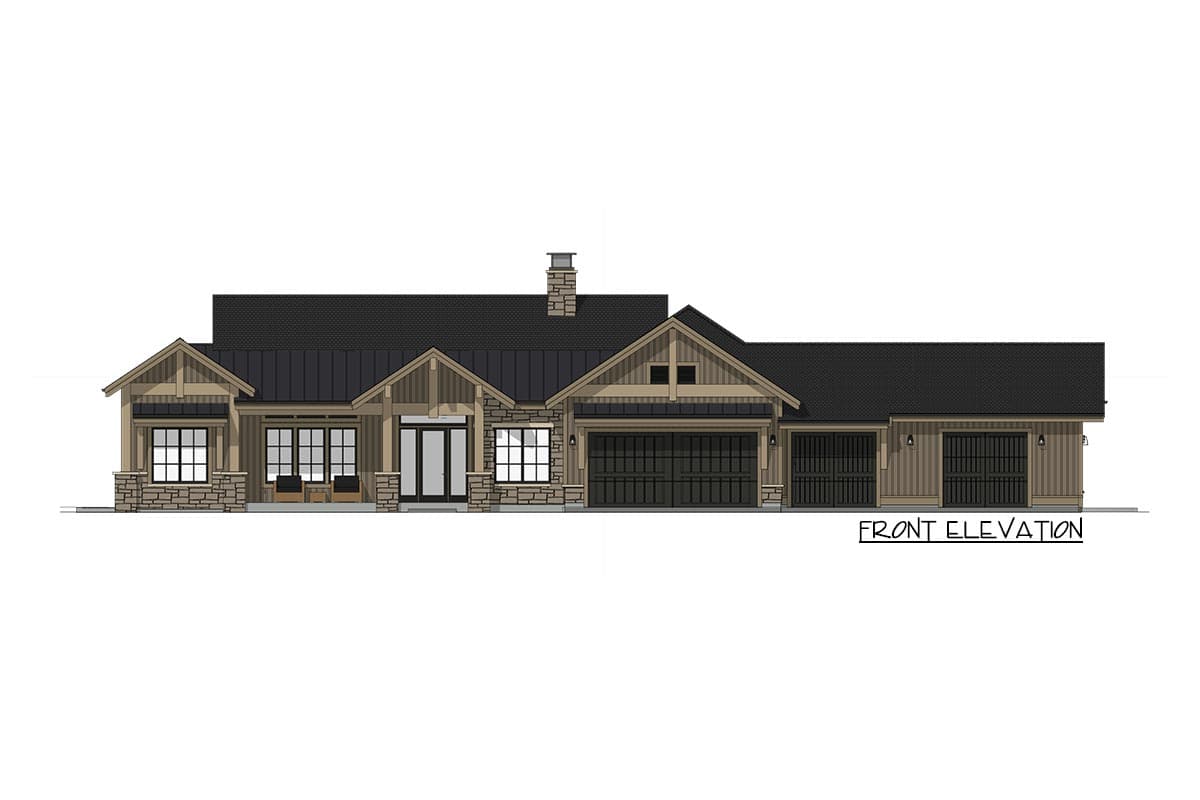

  • Exterior Elevations - Elevations of the Front and Right side with notes, dimensions and material designations.
  • Exterior Elevations - Elevations of the Back and Left side with notes, dimensions and material designations.
  • Sections and details - One or more building sections to show vertical relationships and construction plate heights, details as needed.
  • Interior Elevations and Details - mostly millwork, fireplace and other items that need additional explanation, details as needed.
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
