Plan 42483DB

Craftsman House Plan with Main Level Master and Finished Lower Level

Heated S.F.
3,041
Beds
4 - 5
Baths
3
Stories
1
Cars
2

Floor Plan

Plan 42483DB

Main Level
Main Level
Lower Level
Lower Level
Optionally Finished Bonus Room
Optionally Finished Bonus Room

Plan 42483DB

M-F 9am-5pm EST |

1-203-761-8500

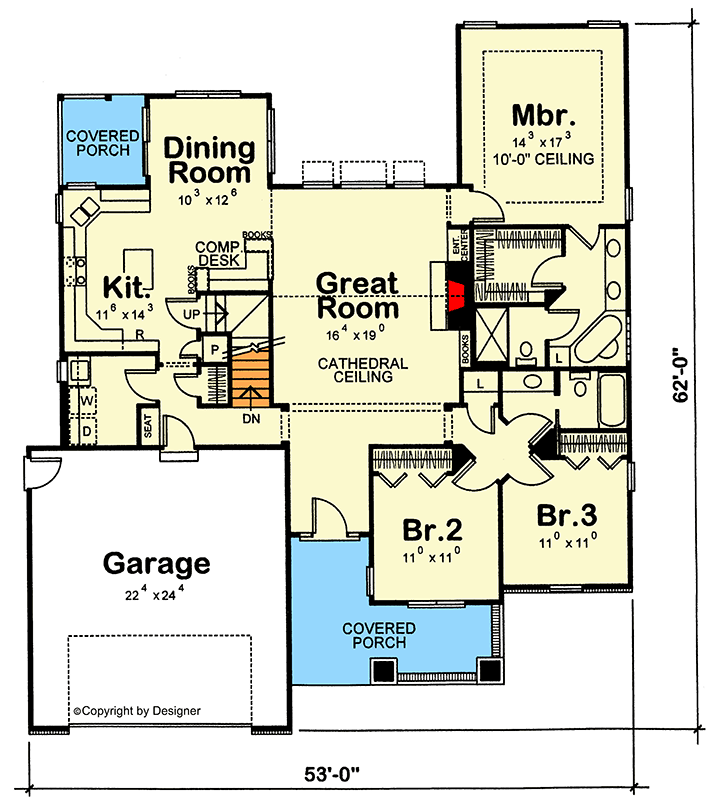

Main Level

Plan 42483DB: Craftsman House Plan with Main Level Master and Finished Lower Level - Floor Plan - Main Level - Craftsman, Northwest

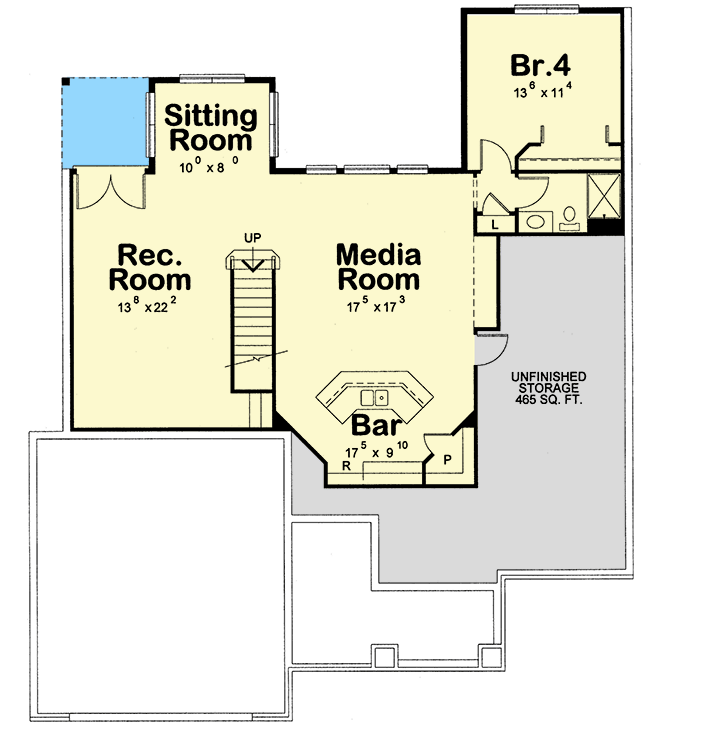

Lower Level

Plan 42483DB: Craftsman House Plan with Main Level Master and Finished Lower Level - Floor Plan - Lower Level - Craftsman, Northwest

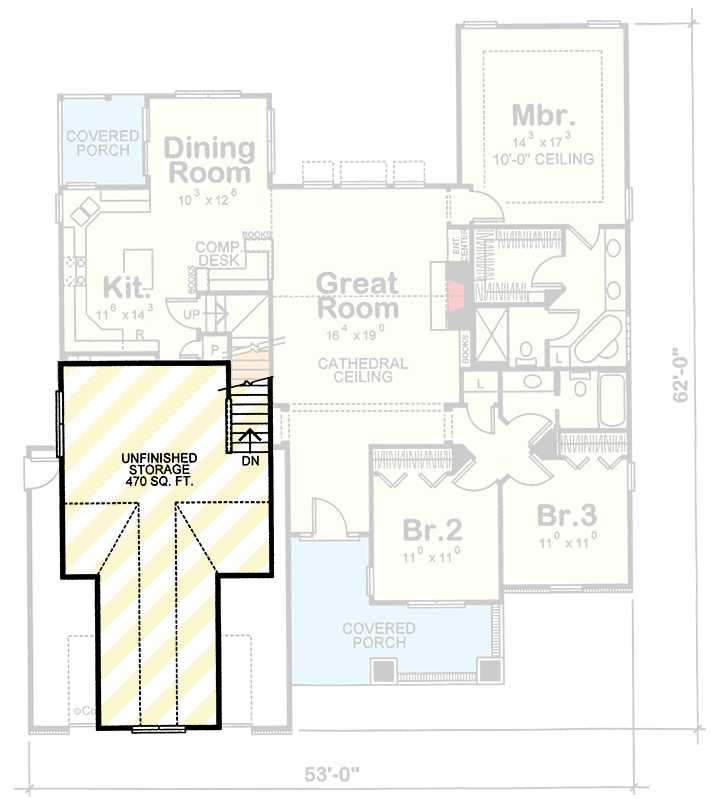

Optionally Finished Bonus Room

Plan 42483DB: Craftsman House Plan with Main Level Master and Finished Lower Level - Floor Plan - Optionally Finished Bonus Room - Craftsman, Northwest

Plan Details

  • This 3,041 sq. ft. Craftsman-style house plan offers 4 to 5 bedrooms, 3 bathrooms, and a 556 sq. ft. two-car front-entry garage, all wrapped in a timeless Northwest aesthetic featuring green siding, crisp white trim, and a welcoming brick-accented foundation.
  • Upon entering this inviting Craftsman home, the main level unfolds with a thoughtful layout designed for both connection and privacy, enhanced by a generous 9-foot ceiling height.
  • The main living areas, characterized by a seamless flow, create an ideal environment for daily life and entertaining, with the main level laundry and a practical mudroom conveniently positioned for ease and organization.
  • The luxurious primary suite, ideally situated on the first floor, offers a private sanctuary with a sophisticated 10-foot tray ceiling, while additional bedrooms are thoughtfully clustered, ensuring comfort and privacy for family members or guests.
  • A charming covered front porch, adorned with classic columns and a brick foundation accent, offers a serene spot to enjoy the outdoors or welcome guests into this beautifully designed home.
  • An expansive 470 sq. ft. bonus room above the garage offers flexible space that can be optionally finished to suit diverse needs, whether as an additional bedroom, a vibrant play area, or a dedicated home office.
  • Related Plan: Get a similar version with house plan 42402DB (1,820 sq. ft.).

What's Included

  • General Notes

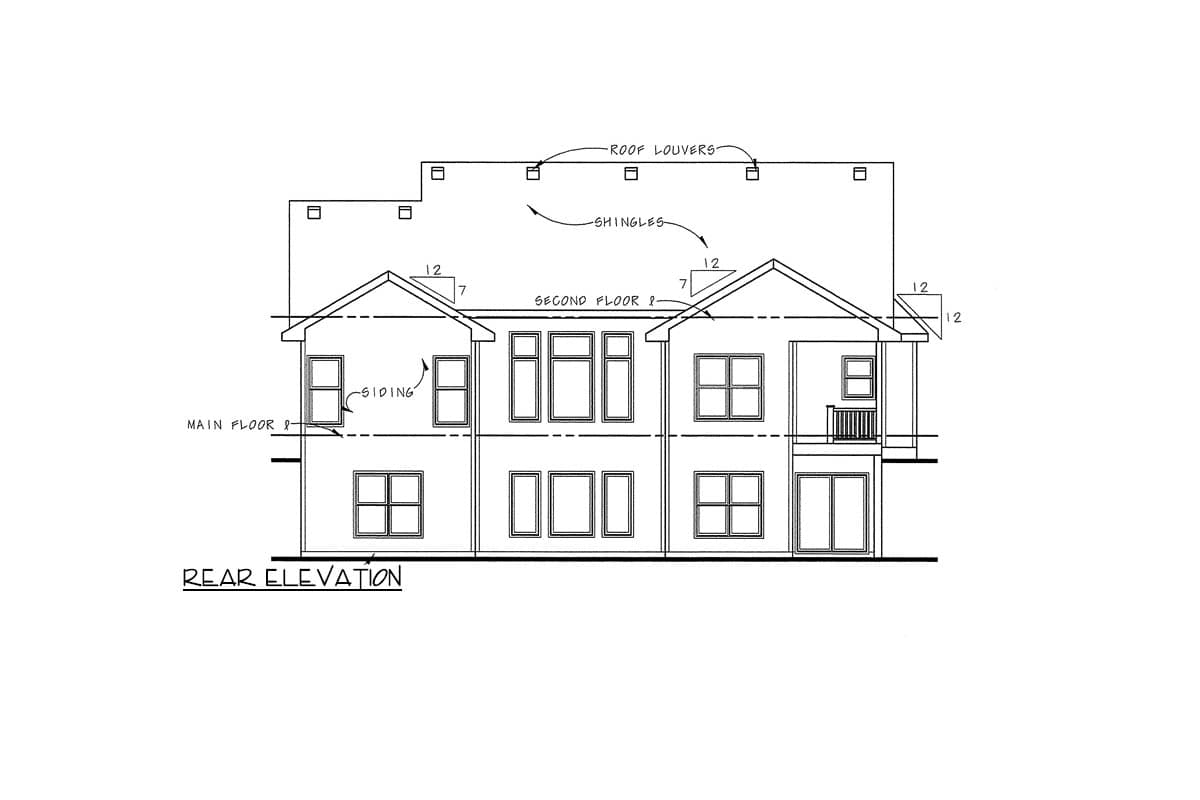

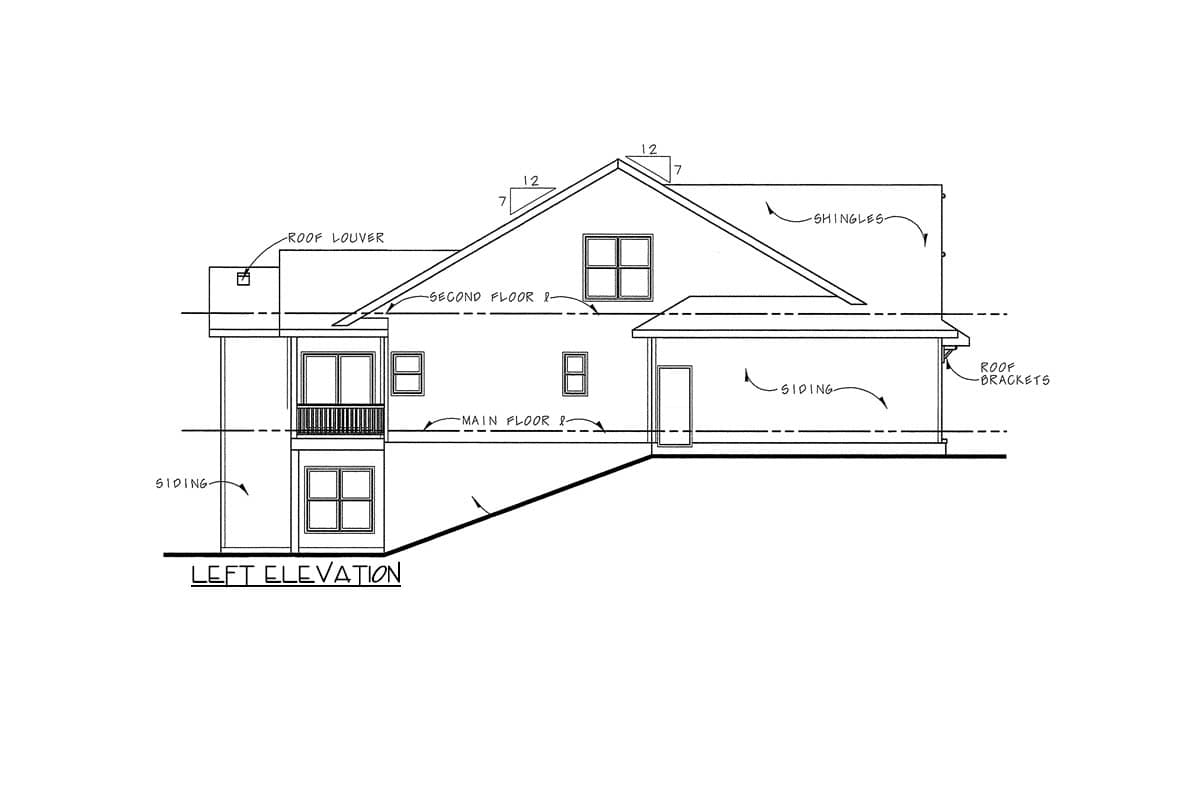

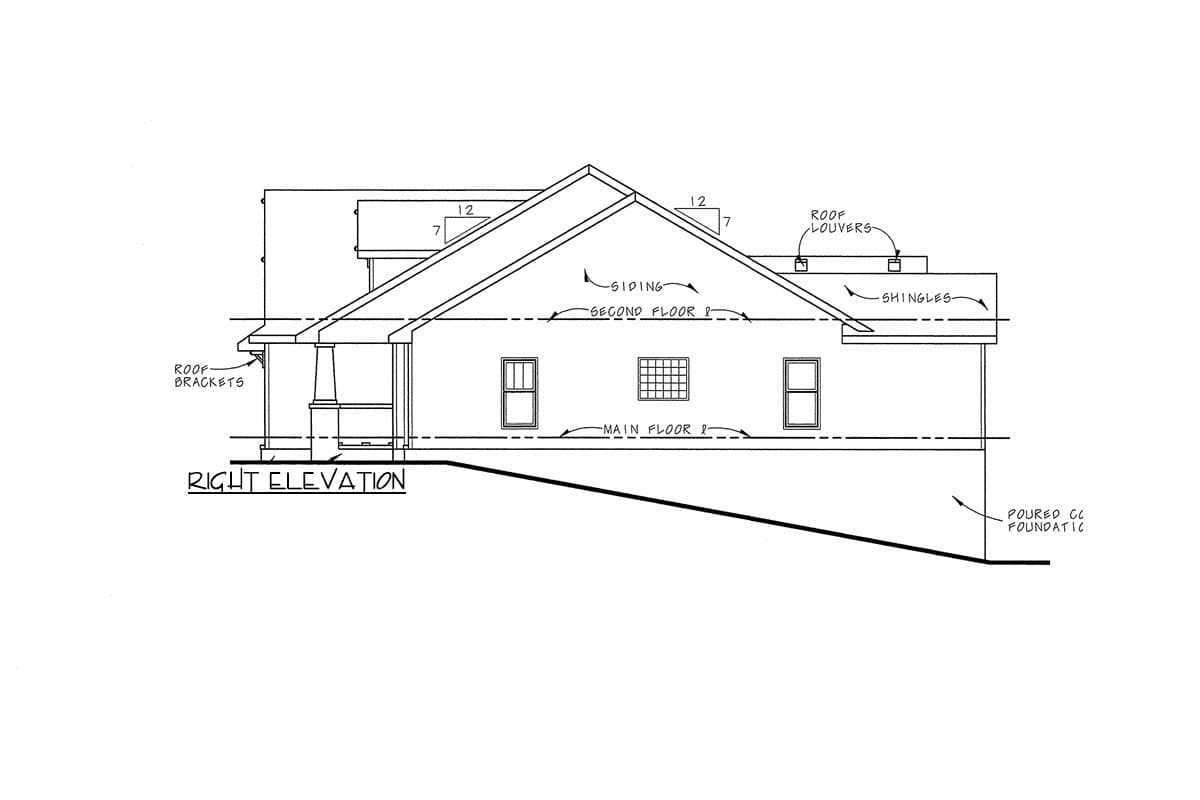

  • Front, Rear, Left, Right Elevations
  • Roof Plan - Birds Eye View
  • Foundation plan, Wall Section, Stair Section
  • Main Level Floor Plan
  • Second Level Floor Plan (if applicable)
  • Electrical Plan (showing fixtures, switches, outlets)
  • *Some plans include cabinet elevations. Please contact us for more information.
View Sample Plan

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Starting at

Price Match Guarantee
What's included?

FORMAT & LICENSE

Choose an option

$0

Not sure what to choose?

Pointer link icon

FOUNDATION

Choose an option

+$0

Not sure what to choose?

Pointer link icon

OPTIONS

Choose Additional Options

+$0

Not sure what to choose?

Pointer link icon

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

3,041 sq. ft.

Lower Level

1,221 sq. ft.

1st Floor

1,820 sq. ft.

Bonus

470 sq. ft.

Basement Unfinished

465 sq. ft.

Beds/Baths

Bedrooms

4 or 5

Full bathrooms

3

Foundation Type

Standard Foundations

Walkout, Basement

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

53' 0"

Depth

62' 0"

Max Ridge Height

25' 5"

Garage

Type

Standard

Area

556 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

Lower Level

8'

First Floor

9'

Second Floor

8'

Room

Ceiling Type

Height

Bedroom 1

Tray

10' 0''

Roof Details

Primary Pitch

8 on 12

Secondary Pitch

12 on 12

Framing Type

Stick

Architectural Style

Craftsman

Northwest

Special Features

Bedrooms - Clustered

Game/Rec Room

Laundry - Main Level

Master Suite - 1st Floor

Media Room

Mudroom

Optionally Finished Bonus Room

Wet Bar
