Plan 36007DK Craftsman House Plan with Media Room

3,730 4 3.5 2 3
Print
Compare HIDE
All plans are copyrighted by our designers. Photographed homes may include modifications made by the homeowner with their builder.

Craftsman House Plan with Media Room

Plan 36007DK

  • 3,730

    Heated s.f.

  • 4

    Beds

  • 3.5

    Baths

  • 2

    Stories

  • 3

    Cars

  • Craftsman styling blends a combination of materials on the exterior of this eye-catching Northwest house plan.
  • Two columns and an arch are all that separate the dining room from the foyer, making each space feel larger.
  • Another arched entry in back announces the grand family room where three sets of double doors open to the covered terrace.
  • The upscale kitchen boasts two islands and lots of counter space for great storage.
  • Homeowners get the best bedroom in the house with its tray ceiling, window seat and direct access to the rear terrace.
  • A grand master bathroom and huge walk-in closet divided into his and her sections complete this deluxe suite.
  • The second floor media center is raised up two steps from the bedroom level on the upper floor and comes with storage closets for your media equipment.
  • Optional bonus space over the three car garage gives you room for expansion.

This plan includes the following elements:

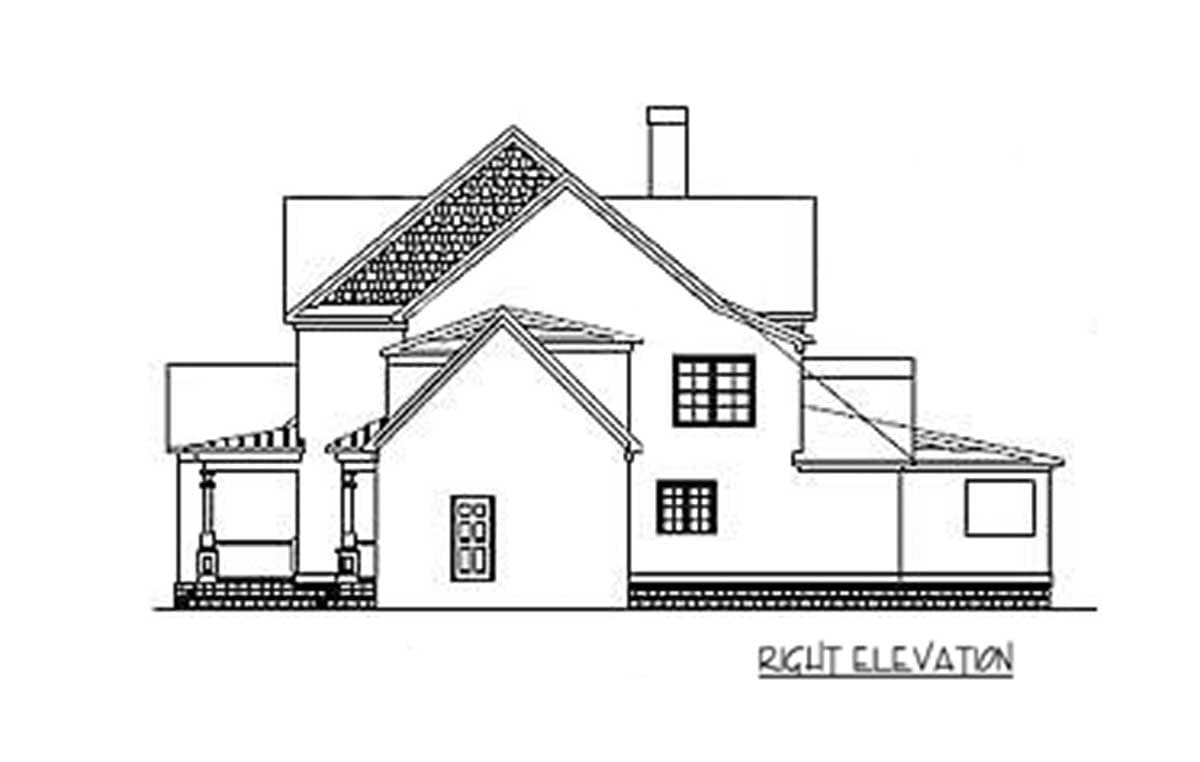

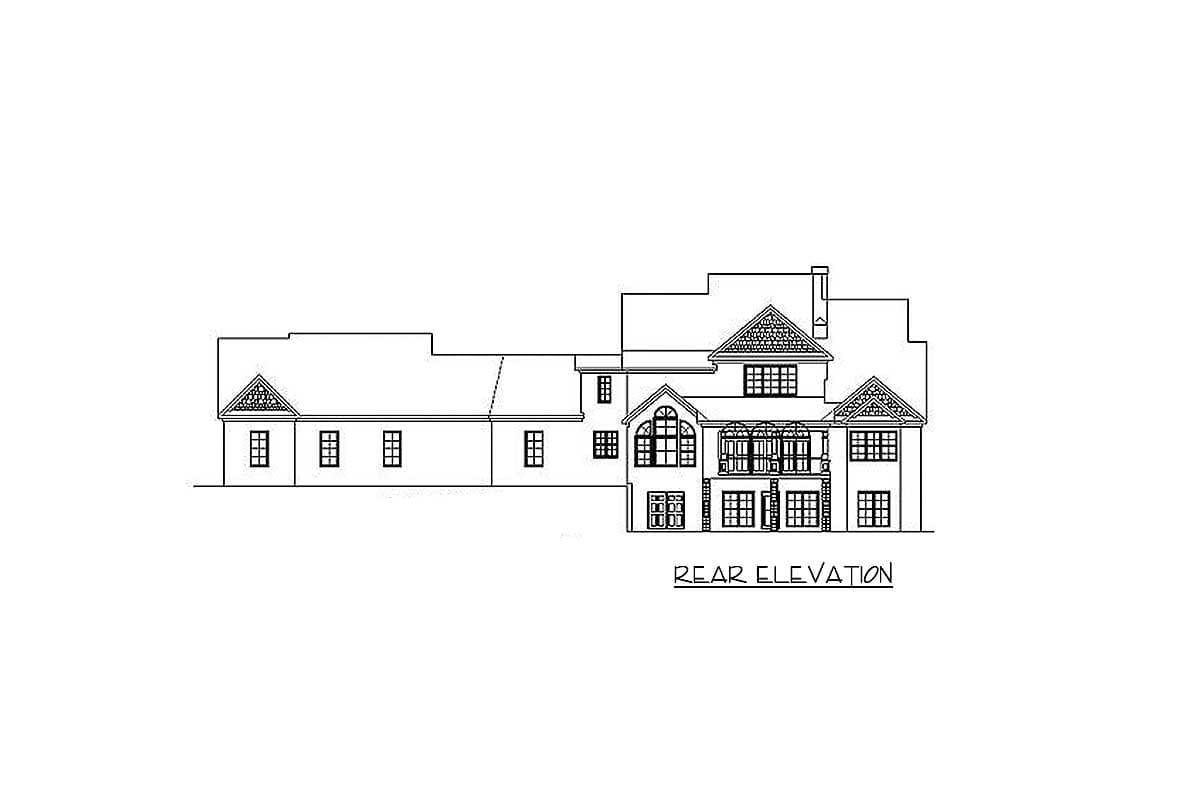

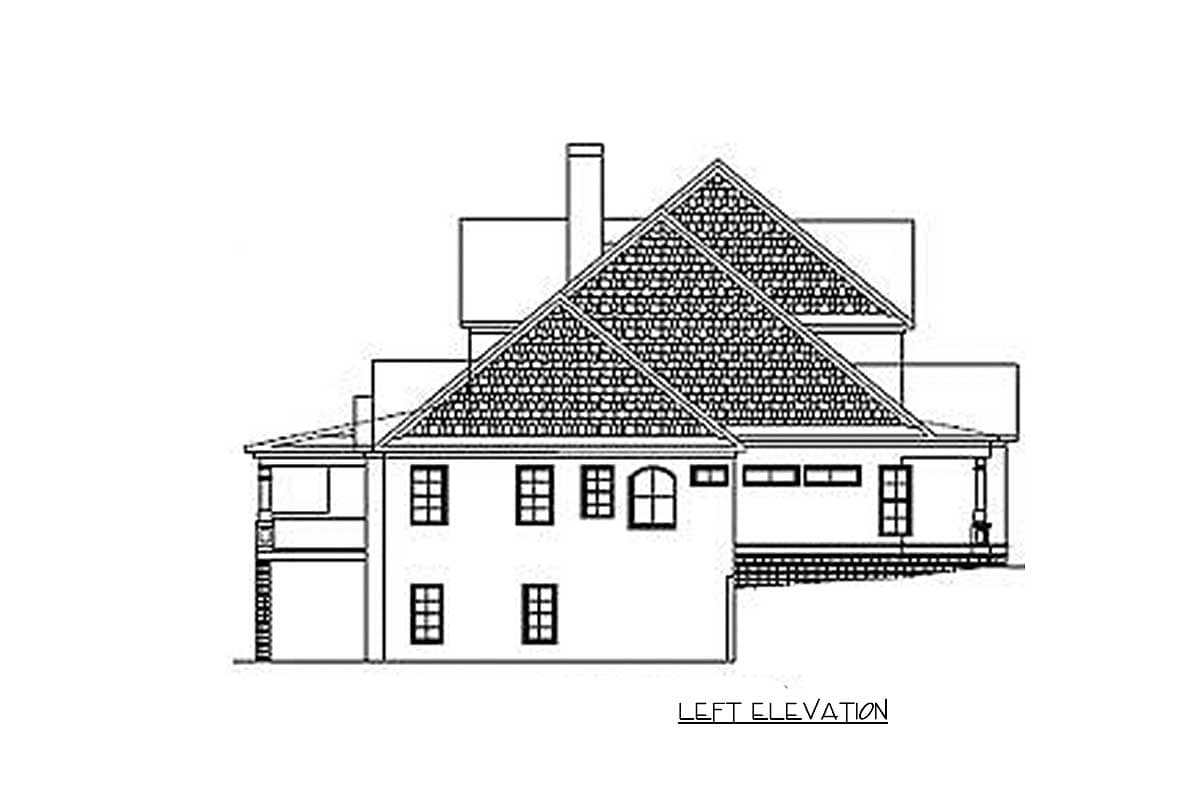

  • All Elevations
  • Birds Eye Roof Plan
  • Floor plans
  • Foundation Plan
  • Suggested Electrical Layout
  • General Construction Details
  • Some plans include a Cross Section through the structure (but not all do); write us to find out if your plan has these - [email protected]
These items are NOT included:
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

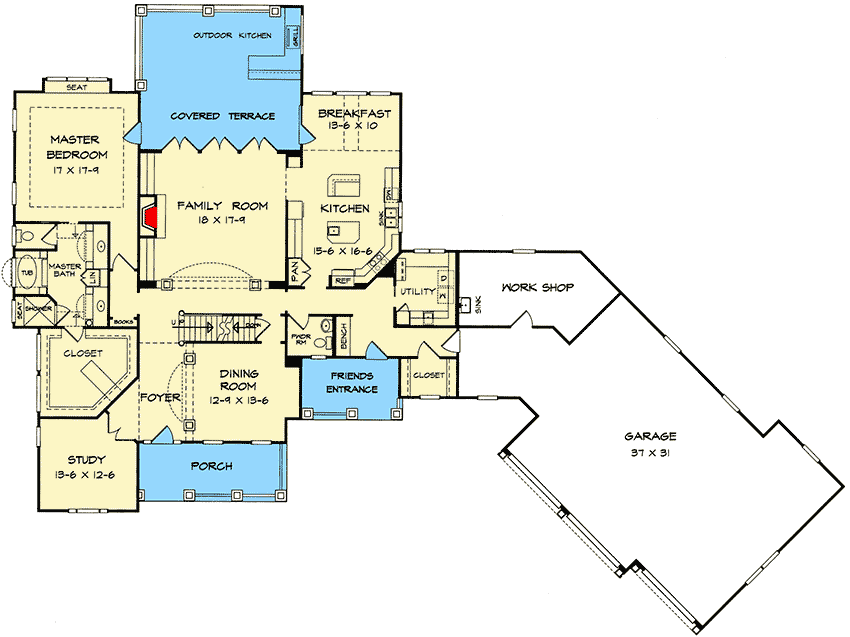

Craftsman House Plan with Media Room - 36007DK floor plan - Main Level

2nd Floor

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

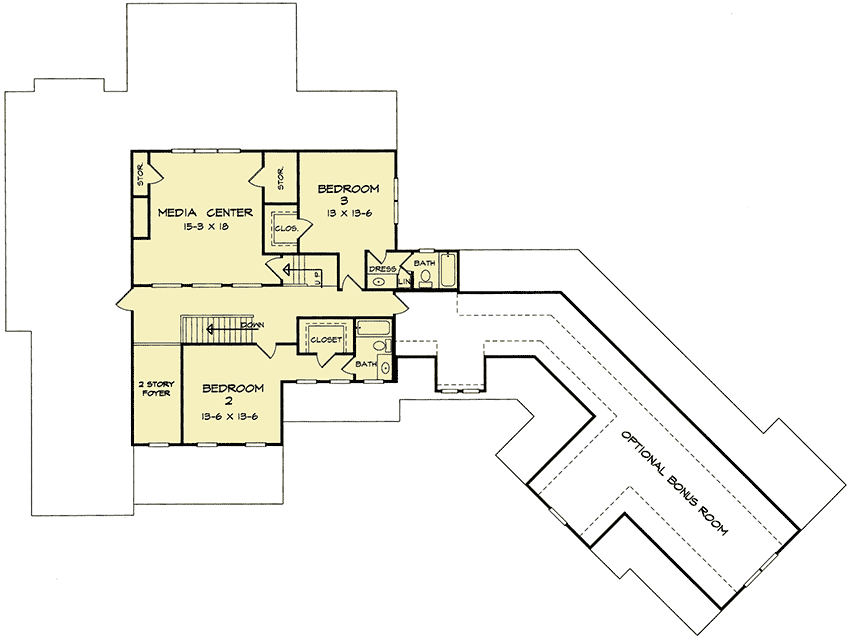

Craftsman House Plan with Media Room - 36007DK floor plan - 2nd Floor

Plan details

Square Footage Breakdown

  • Total Heated Area: 3,730 sq. ft.
  • 1st Floor: 2,518 sq. ft.
  • 2nd Floor: 1,212 sq. ft.
  • Porch, Combined: 705 sq. ft.
  • Bonus: 912 sq. ft.

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 3
  • Half bathrooms: 1

Foundation Type

  • Standard Foundations: Basement

Exterior Walls

  • Standard Type(s): 2x4

Dimensions

  • Width: 116' 0"
  • Depth: 87' 0"

Garage

  • Type: Attached
  • Area: 1147 sq. ft.
  • Count: 3 Cars
  • Entry Location: Courtyard

Roof Details

  • Framing Type: Stick

Architectural Style

Special features

Craftsman House Plan with Media Room

  • 3,730

    Heated s.f.

  • 4

    Beds

  • 3.5

    Baths

  • 2

    Floors

  • 3

    Car garage

Floor Plan

  • Main Level

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total: 3,730 sq. ft.
  • 1st Floor: 2,518 sq. ft.
  • 2nd Floor: 1,212 sq. ft.

Dimensions

  • Width: 116' 0"
  • Depth: 87' 0"

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 3
  • Half bathrooms: 1

Garage

  • Type: Attached
  • Area: 1147 sq. ft.
  • Count: 3 Cars
  • Entry Location: Courtyard

Foundation Type

    • Standard Foundations: Basement

Exterior Walls

  • Standard Type(s): 2x4
