Plan 890053AH
Craftsman House Plan with Optional Bonus Space
Heated S.F.
2,130
Beds
3
Baths
2.5
Stories
1
Cars
2
Videos
What's Included
Plan Details
  • This three-bedroom ranch offers an open concept floor plan and bonus room above the garage.
  • An eleven-foot ceiling draws you into the home where the great room directly ahead allows plenty of light into the space.
  • The kitchen breakfast bar overlooks the dining area and great room creating a large entertaining space.
  • Bedrooms lie to the left of the entry and includes a master suite with step ceiling, walk-in closet and Jacuzzi tub.
  • The other two bedrooms enjoy walk-in closets and a Jack and Jill bathroom.
  • A large bonus room above the garage can be finished as a playroom, extra bedroom office or casual family room.
  • A two-stall garage with extra storage completes the home.
What's Included
  • General Notes
  • Rendering
  • Elevations
  • Fully dimensioned floor plans
  • Foundation
  • Typical wall section & stair section
  • Cross section
  • Cabinet elevations
  • Electrical Plan
  • Roof plan

What's Not Included
  • Architectural or Engineering Stamp
  • Site Plan
  • Mechanical Drawings (location of heating and air equipment and duct work)
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations)
  • Framing layouts with beam sizes and locations
  • Energy calculations
Print
Hide
Compare
Favorite
Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

Craftsman House Plan with Optional Bonus Space

  • 2,130

    Heated s.f.

  • 3

    Beds

  • 2.5

    Baths

  • 1

    Floors

  • 2

    Car garage

Floor Plan

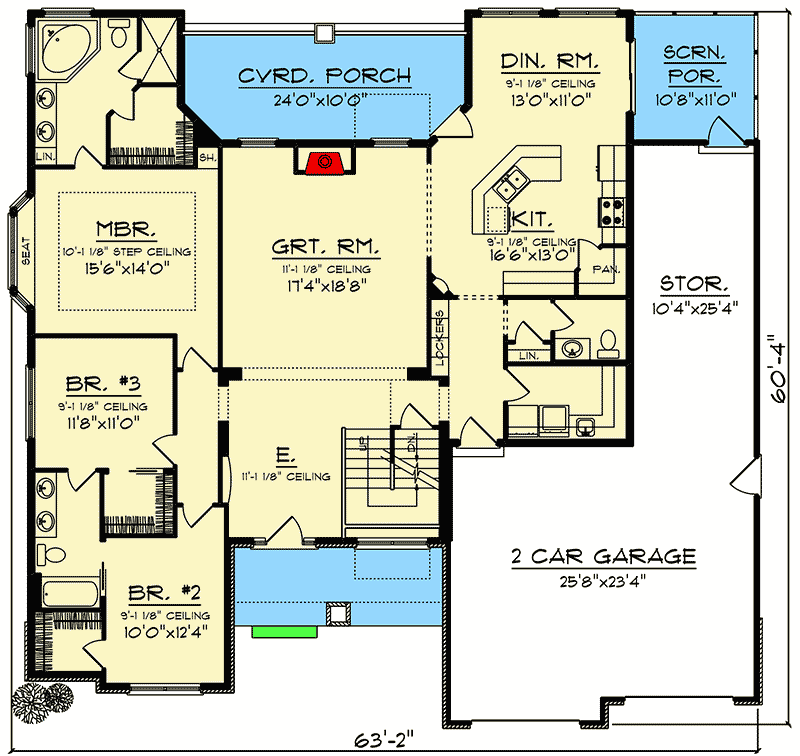

  • Main Level

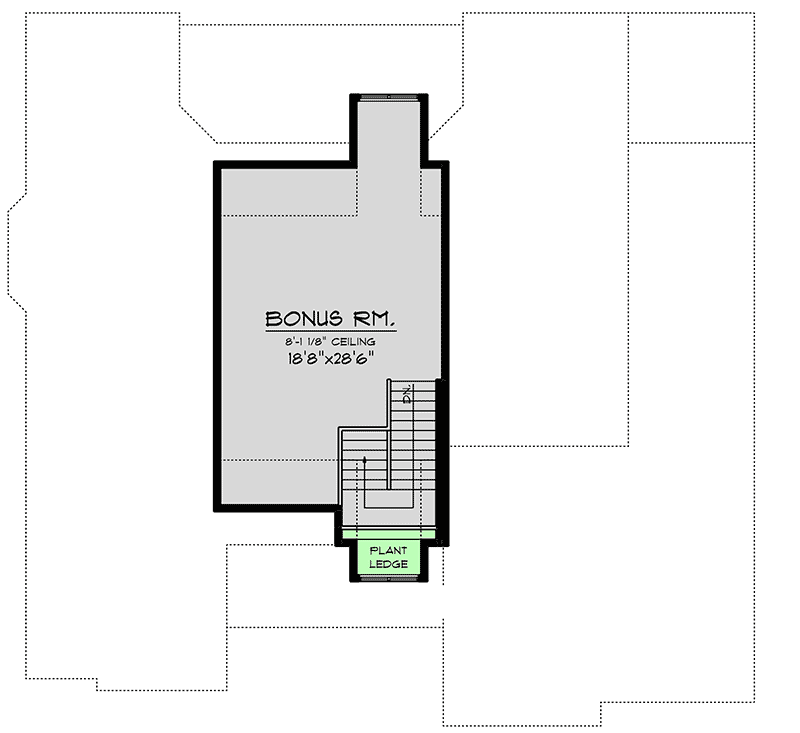

  • Bonus Level

Plan Details

Square Footage Breakdown

  • Total: 2,130 sq. ft.
  • 1st Floor: 2,130 sq. ft.

Dimensions

  • Width: 63' 2"
  • Depth: 60' 4"
  • Max ridge height: 28' 4"

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 2
  • Half bathrooms: 1

Garage

  • Type: Attached
  • Area: 868 sq. ft.
  • Count: 2 Cars
  • Entry Location: Front

Foundation Type

    • Standard Foundations: Basement
    • Optional Foundations: Slab, Crawl

Exterior Walls

  • Standard Type(s): 2x6

Ceiling Heights

  • Floor / Height: Lower Level / 9' 0" First Floor / 9' 0" Second Floor / 8' 0"

Roof

  • Primary Pitch: 10 on 12
  • Secondary Pitch: 8 on 12
  • Framing Type: Truss
