Plan 290050IY
Craftsman House Plan with Optional Sports Court
Heated S.F.
3,749
Beds
4-6
Baths
3.5 - 4.5
Stories
2
Cars
3
What's Included
Floor Plan
PRINT PLANS
Main Level
Reverse Floor Plan

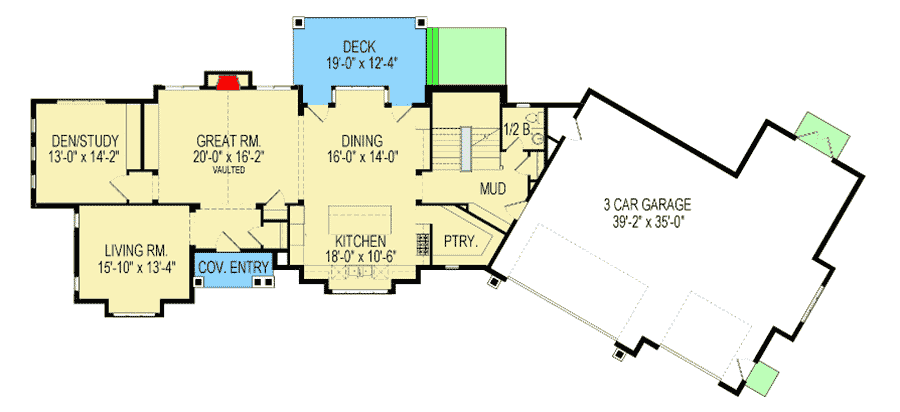

Craftsman House Plan with Optional Sports Court - 290050IY floor plan - Main Level
2nd Floor
Reverse Floor Plan

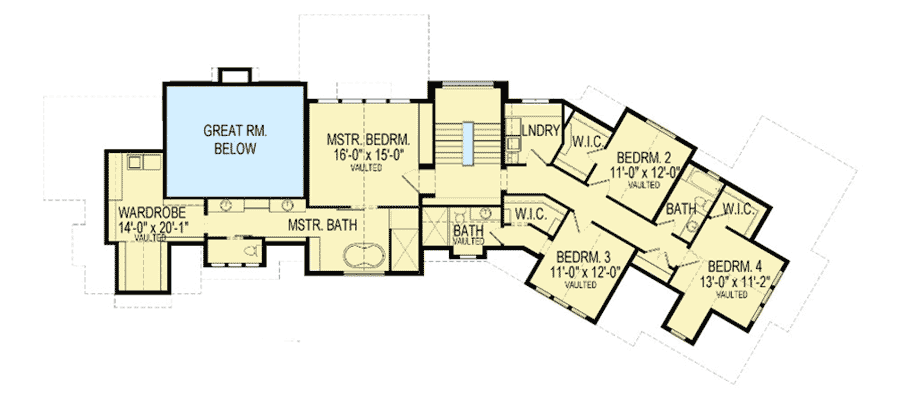

Craftsman House Plan with Optional Sports Court - 290050IY floor plan - 2nd Floor
Optional Lower Level
Reverse Floor Plan

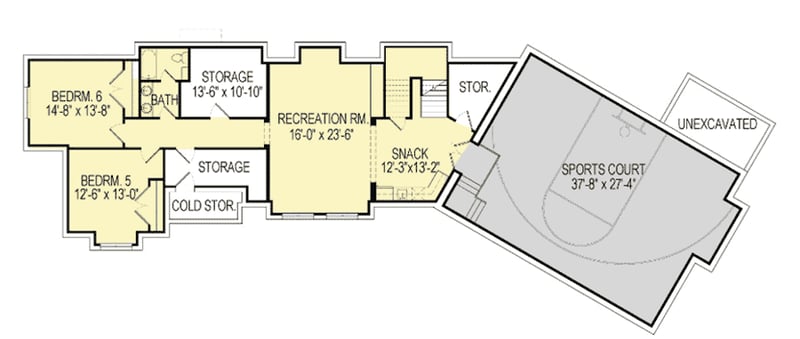

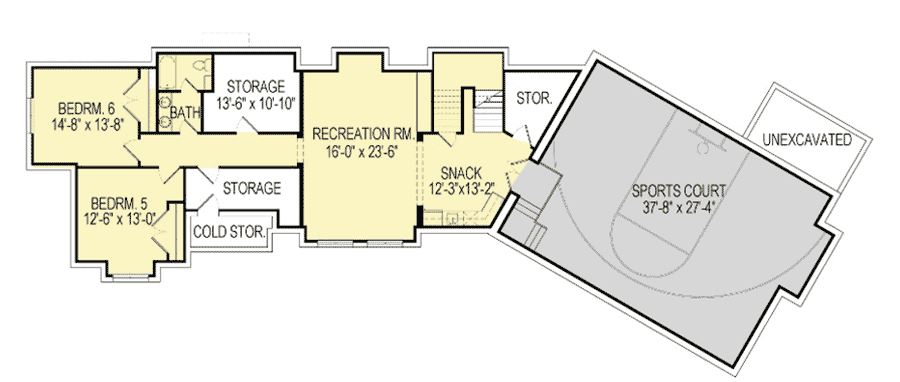

Craftsman House Plan with Optional Sports Court - 290050IY floor plan - Optional Lower Level
Plan Details
  • A mix of exterior materials blend together beautifully in this Craftsman house plan that offers an optional sports court.
  • The huge vaulted great room can be seen as soon as you enter the wide foyer.
  • Sharing one large open space, the kitchen and dining room give you that popular open layout.
  • Quiet spaces include the den/study and the formal living room.
  • Bedrooms are all upstairs with the vaulted master suite as the crown jewel.
  • Every bedroom on this floor has a vaulted ceiling and easy access to the laundry room down the hall.
  • Want more bedrooms? Finish the optional lower level to gain two more bedrooms and a massive rec room with snack bar.
  • Games on in the optional sports court that will delight friends and family alike.
What's Included
This plan set includes the following:
  • Cover sheet (with rendering)
  • Notes page
  • Complete schedule page
  • Foundation plan
  • Floor plans
  • Dimension plans
  • Elevations
  • Sections
  • Architectural details
  • 3D perspective views (not included with all plans)
  • Floor finish plans
  • Roof plan
  • Lighting plans, and power plans.

Note: Contact us if building in Utah as these plans may not be available for construction in certain areas in that state.

These items are NOT included:
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Print
Hide
Compare
Favorite
Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

Craftsman House Plan with Optional Sports Court

  • 3,749

    Heated s.f.

  • 4-6

    Beds

  • 3.5 - 4.5

    Baths

  • 2

    Floors

  • 3

    Car garage

Floor Plan

  • Main Level

  • 2nd Floor

  • Optional Lower Level

Plan Details

Square Footage Breakdown

  • Total: 3,749 sq. ft.
  • 1st Floor: 1,852 sq. ft.
  • 2nd Floor: 1,897 sq. ft.

Dimensions

  • Width: 119' 0"
  • Depth: 54' 1"
  • Max ridge height: 29' 11"

Beds/Baths

  • Bedrooms: 4, 5, or 6
  • Full bathrooms: 3 or 4
  • Half bathrooms: 1

Garage

  • Type: Attached
  • Area: 1341 sq. ft.
  • Count: 3 Cars
  • Entry Location: Front

Foundation Type

    • Standard Foundations: Basement
    • Optional Foundations: Daylight

Exterior Walls

  • Standard Type(s): 2x6

Ceiling Heights

  • Floor / Height: Lower Level / 8' 0" First Floor / 9' 0" Second Floor / 9' 9"

Roof

  • Primary Pitch: 12 on 12
All house plans are copyright ©2024 by the architects and designers represented on our web site
