Plan 59966ND

Craftsman House Plan with Wrap-Around Porch

Heated S.F.
3,003
Beds
4
Baths
3
Stories
2
Cars
2

Floor Plan

Plan 59966ND

Main Level
Main Level
2nd Floor
2nd Floor

Plan 59966ND

M-F 9am-5pm EST |

1-203-761-8500

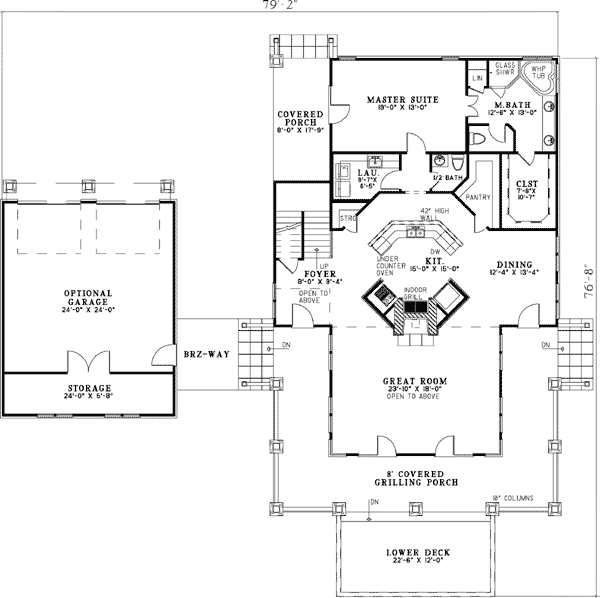

Main Level

Plan 59966ND: Craftsman House Plan with Wrap-Around Porch - Floor Plan - Main Level - Craftsman, Vacation

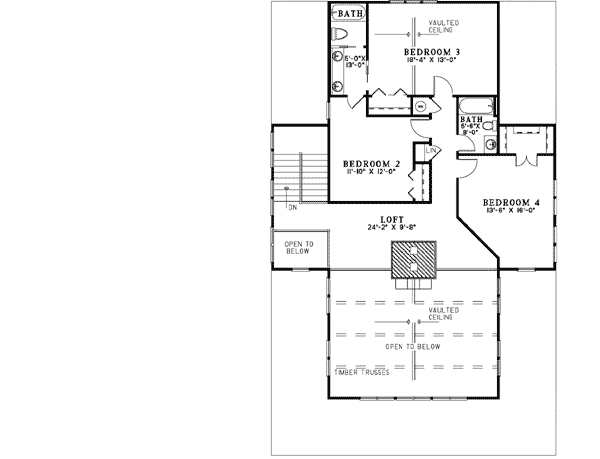

2nd Floor

Plan 59966ND: Craftsman House Plan with Wrap-Around Porch - Floor Plan - 2nd Floor - Craftsman, Vacation

Plan Details

  • A big 8' deep porch wraps around this idyllic Craftsman house plan that also comes with a lower deck and breezeway to an optional garage.
  • The huge stone fireplace is the focal point of the two-story great room that has windows on three sides.
  • Homeowners gets a private covered porch off the first floor master suite.
  • Climb the stairs to the large second floor that has three more bedrooms and a loft with an open rail so you can see down into the beamed great room below.

What's Included

  • Foundation Plan (1/4″ or 1/2″ = 1′)
  • Floor Plans (1/4″= 1′)
  • Set of Elevations (1/4″= 1′)
  • Miscellaneous Details (3/4″ = 1′)
  • Roof plan (bird's eye view of roof showing pitches, ridges and valleys
  • An electrical diagram showing a bird's-eye view of rooms with lights, fans to switches

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Starting at

Price Match Guarantee
What's included?

FORMAT & LICENSE

Choose an option

$0

Not sure what to choose?

Pointer link icon

FOUNDATION

Choose an option

+$0

Not sure what to choose?

Pointer link icon

OPTIONS

Choose Additional Options

+$0

Not sure what to choose?

Pointer link icon

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

3,003 sq. ft.

1st Floor

1,861 sq. ft.

2nd Floor

1,142 sq. ft.

Porch, Front

615 sq. ft.

Porch, Rear

142 sq. ft.

Beds/Baths

Bedrooms

4

Full bathrooms

3

Foundation Type

Standard Foundations

Crawl, Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

79' 0"

Depth

76' 8"

Max Ridge Height

23' 2"

Garage

Type

Attached

Area

756 sq. ft.

Count

2 Cars

Entry Location

Rear

Ceiling Heights

First Floor

9'

Second Floor

8'

Roof Details

Primary Pitch

12 on 12

Secondary Pitch

5 on 12

Framing Type

Stick

Architectural Style

Craftsman

Vacation

Special Features

Butler Walk-in Pantry

Loft

Master Suite - 1st Floor

Two Story Great Room

Wrap Around Porch
