Plan 72115DA

Craftsman Mountain House Plan with 4 Bedrooms and 2,587 Square Feet

Name: Plan 72115DA: Craftsman Mountain House Plan with 4 Bedrooms and 2,587 Square Feet
Brand: Architectural Designs
SKU: 72115DA
Price: 1979.65 USD
Availability: InStock

Heated S.F.

2,587

Beds

Baths

2.5

Stories

Cars

Floor Plan

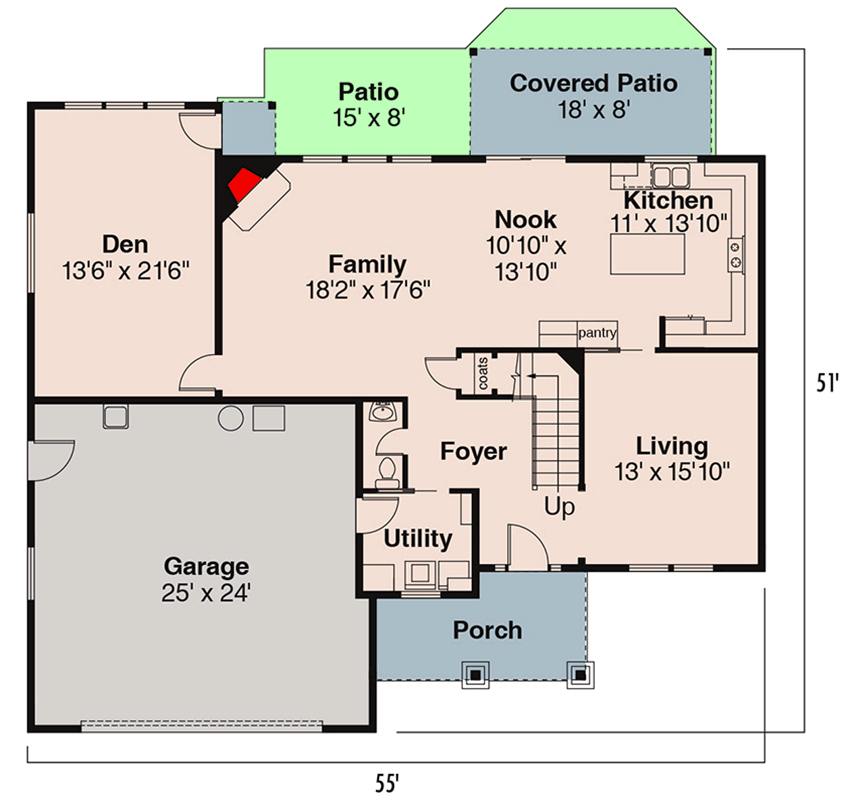

Main Level

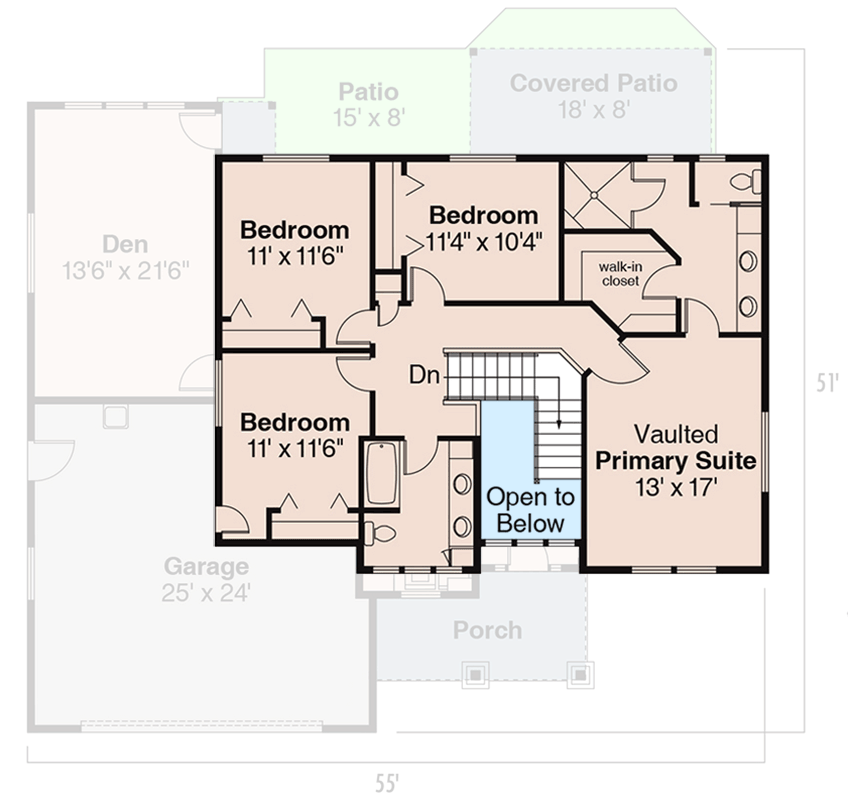

2nd Floor

Plan Details

This charming Craftsman mountain home offers 2,587 square feet of heated living space, four bedrooms, two and a half bathrooms, and an attached two-car garage.
The home greets you with a quintessential front porch featuring stone-based columns that transition into a welcoming foyer.
The main floor features an open-concept layout that flows seamlessly from a formal dining area into a bright kitchen and breakfast nook designed for daily life.
A dedicated den on the main level provides a quiet space for a home office or reading retreat, complemented by a convenient mudroom and main-level laundry.
The second floor houses all four bedrooms, including a spacious primary suite that offers a peaceful escape from the secondary living areas.
Natural elements like stacked stone and shingle siding define the exterior, grounding the home in its landscape while reflecting a timeless, traditional mountain aesthetic.

What's Included

Each plan set is drawn at 1/4"=1' scale and includes the following drawings:

Cover Sheet/Artist's Rendering: An artist's drawing of the home, usually viewed from the front, and general construction notes.

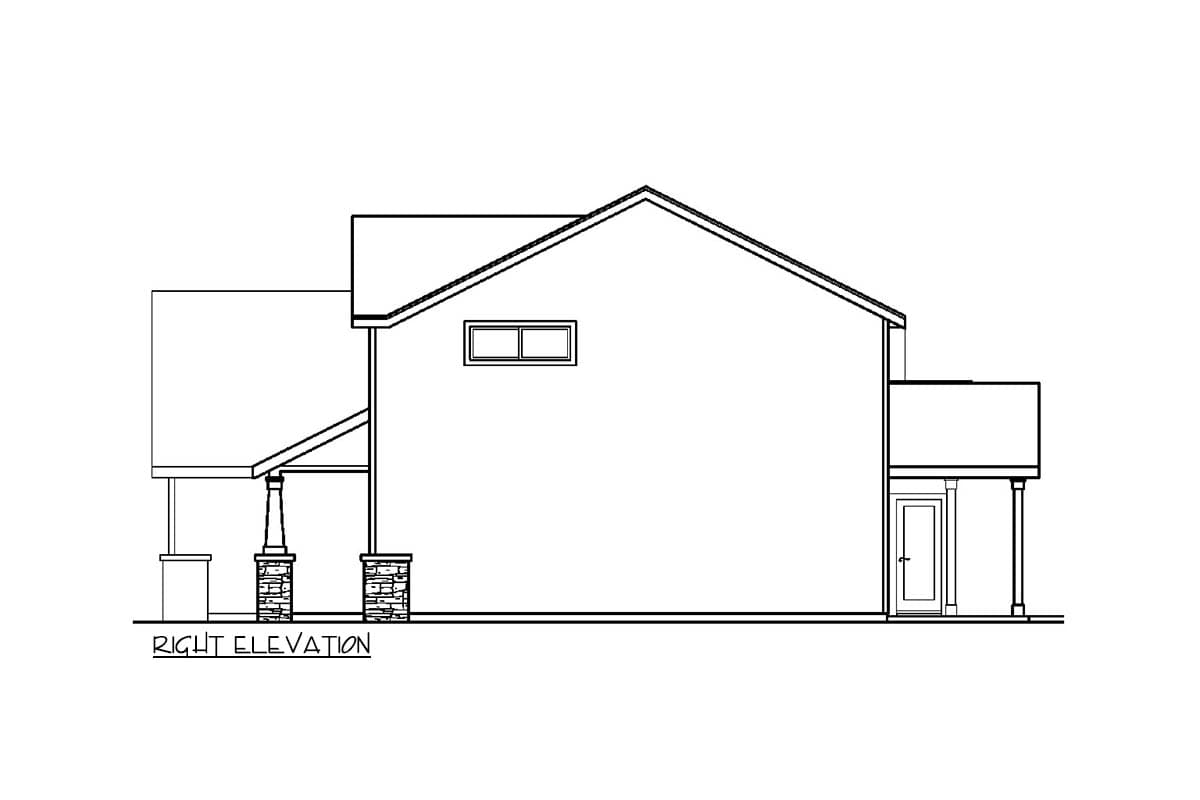

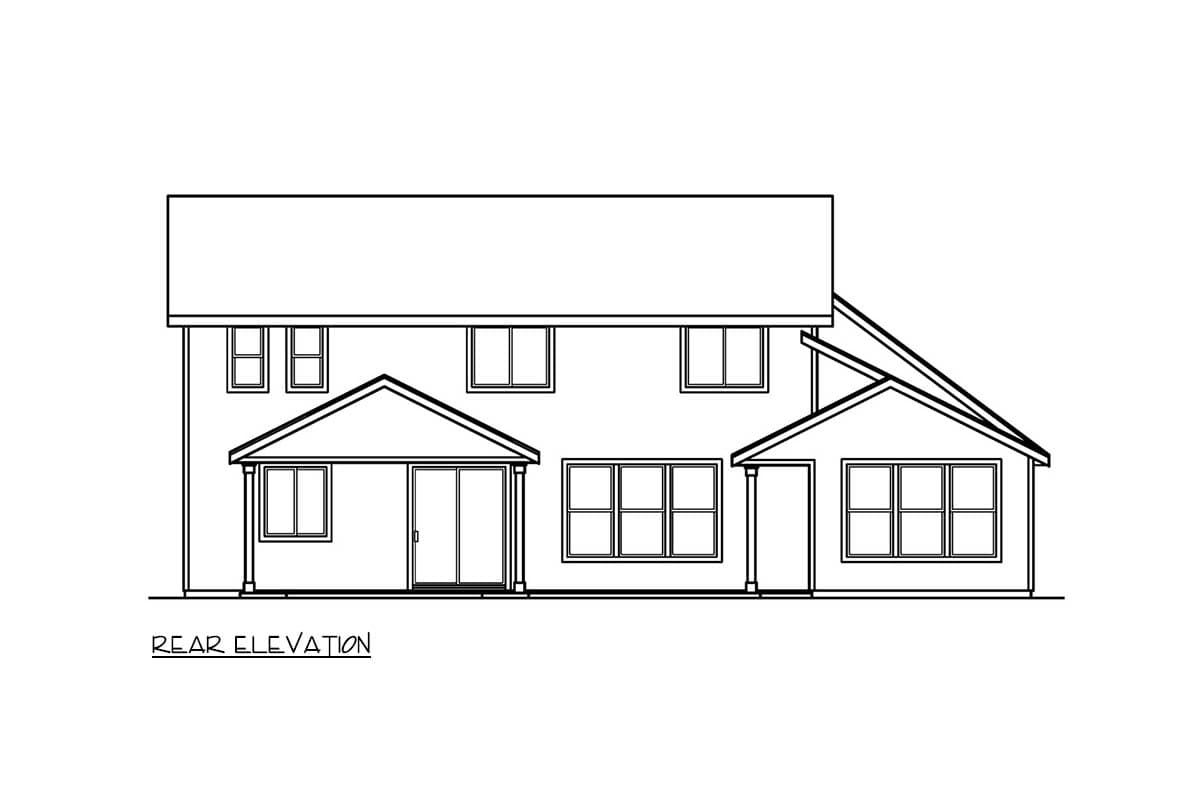

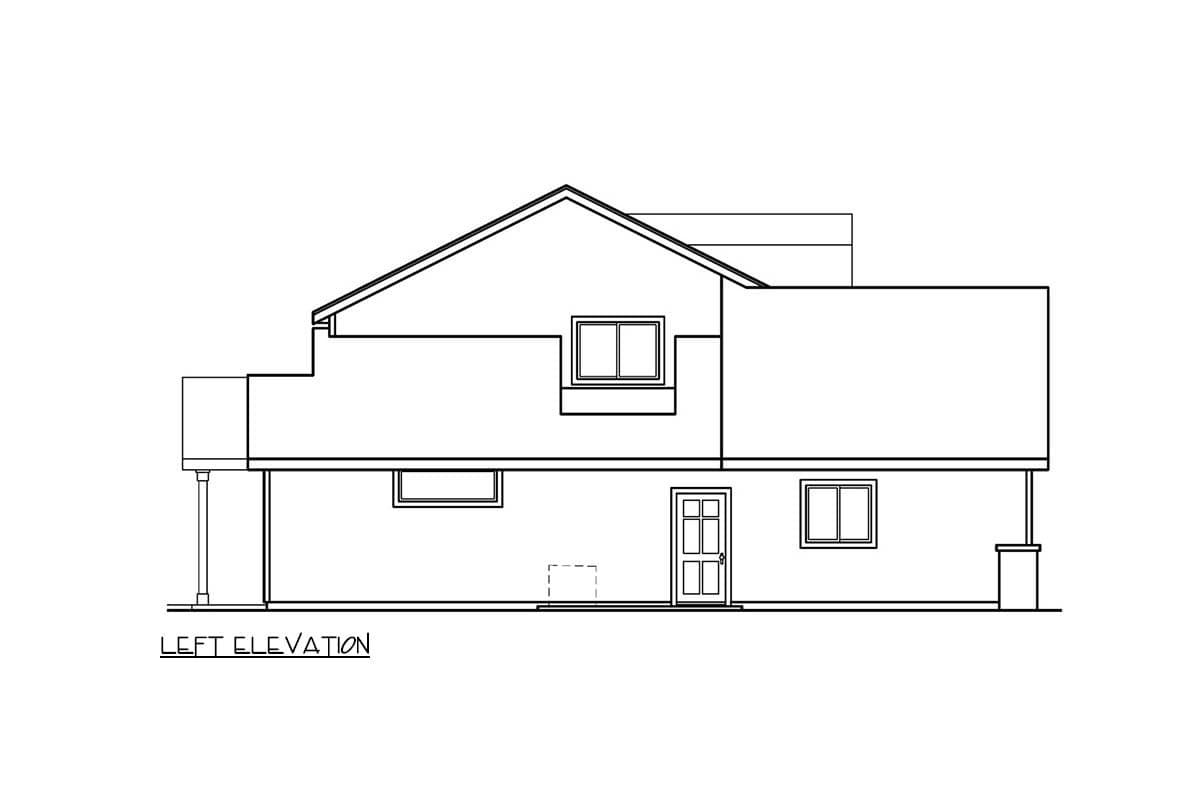

Elevations: Shows the front, sides, and rear, including exterior materials, trim sizes, roof pitches, etc.
Main Floor Plan: Shows placement and dimensions of walls, doors, & windows. Includes the location of appliances, plumbing fixtures, beams, ceiling heights, etc.
Second Floor Plan (if any): Shows the second floor in the same detail as the main floor. Includes second floor framing and details.
Foundation Plan: Shows the location of all concrete footings, floor beams, first floor framing, and foundation details. If there is a basement, a basement plan is included which shows all basement details. Foundation types vary; please call to confirm the foundation type of the plan you are interested in.
Roof Framing Plan: Shows roof outlines, conventional framing/trusses, beams, roof framing details, etc. Specific details such as fireplaces, stairways, decks, etc. Details are drawn at 1/2" = 1' scale, and appear as needed throughout the prints.
Building Section: Shows a cross-section of the home. Shows support members, exterior and interior materials, insulation, and foundation.
Electrical Plan: A schematic layout of all lighting, switches, and electrical outlets.

What's Not Included

Architectural or Engineering Stamp - handled locally if required
Site Plan - handled locally when required
Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
Energy calculations - handled locally when required
