Plan 95324RW

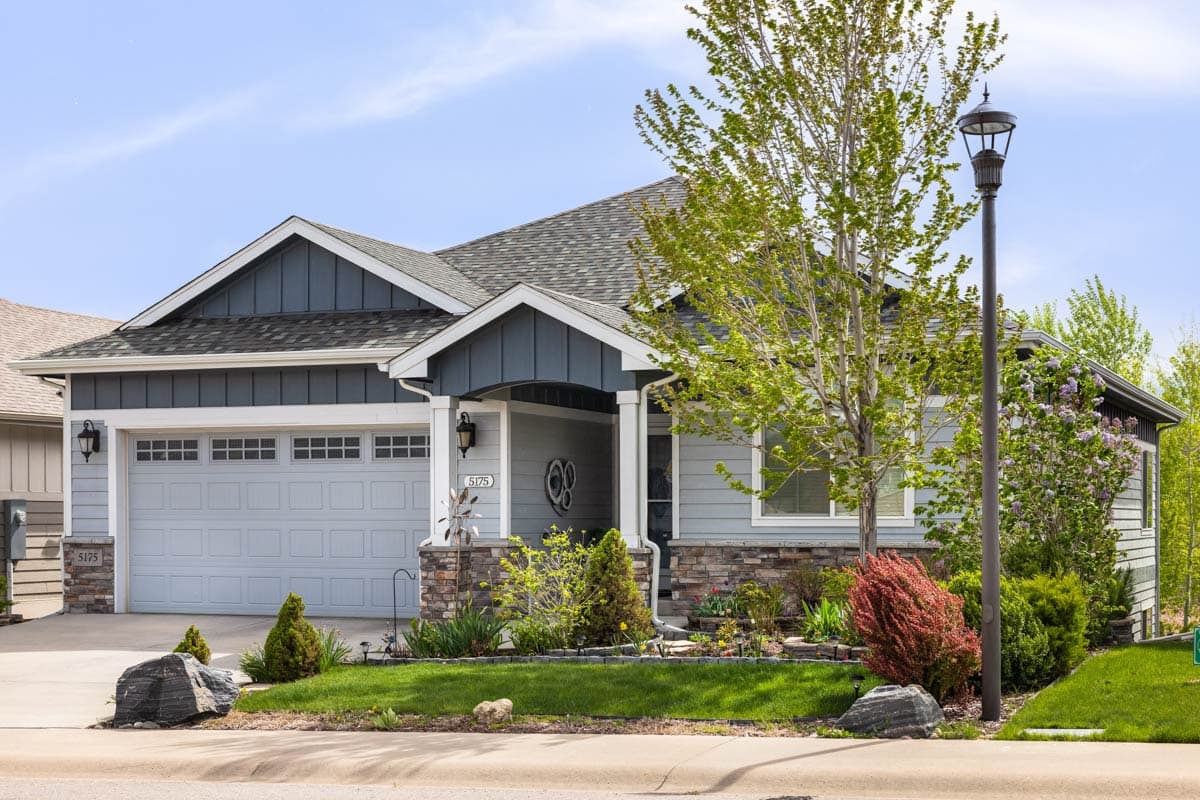

Craftsman Mountain Ranch House Plan: 3 Beds, Split Layout, Covered Porch

Heated S.F.
1,801
Beds
3
Baths
2
Stories
1
Cars
2

Floor Plan

Plan 95324RW

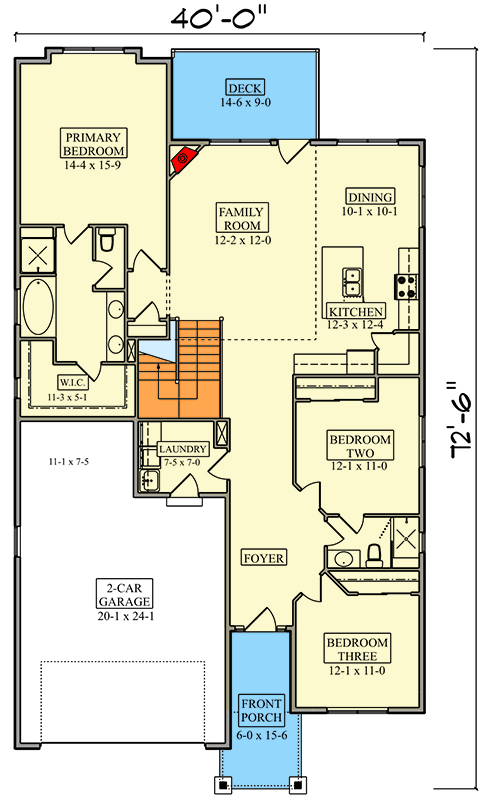

Main Level
Main Level

Plan 95324RW

M-F 9am-5pm EST |

1-203-761-8500

Main Level

Plan 95324RW: Craftsman Mountain Ranch House Plan: 3 Beds, Split Layout, Covered Porch - Floor Plan - Main Level - Craftsman, Mountain, Ranch

Plan Details

  • This inviting 1,801 sq. ft. Craftsman Mountain Ranch House Plan offers 3 bedrooms, 2 full bathrooms, and an attached 595 sq. ft. 2-car garage with front entry, all wrapped in a harmonious blend of natural textures and a welcoming aesthetic.
  • Step inside to discover a thoughtfully designed open-concept living space, where the main areas flow seamlessly. A convenient mudroom, located just off the garage entry, provides a practical transition zone for daily life.
  • The heart of the home features a spacious kitchen, ideal for culinary exploration and gathering, which opens directly to the dining area and a comfortable great room, fostering an effortless flow for everyday living.
  • Retreat to the private primary suite, located on the main level and thoughtfully separated from the secondary bedrooms for ultimate tranquility. This split-bedroom layout ensures privacy for all occupants, perfect for families or guests.
  • Enjoy the expansive outdoor living spaces, including a generous 364 sq. ft. of deck and porch area, perfect for morning coffee, evening relaxation, or alfresco dining amidst the fresh air.

What's Included

  • Cover Page
  • All Four Exterior Elevations (front, left, rear and right)
  • Dimensioned Floor Plans
  • Foundation Plan (with no specifications of structural elements)
  • Roof Plan (with no specifications of structural elements)
  • Typical Wall Sections
  • Electrical plan
View Sample Plan

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • REScheck or other energy related calculations are NOT included.
  • Wind load or seismic calculations are NOT included.
  • Framing plans or beam sizes are NOT included.
  • Other specific drawings that your local permit office may requires

Starting at

Ready to Get Started?

Select your plan set options before checkout.

Price Match Guarantee
What's included?

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

1,801 sq. ft.

1st Floor

1,801 sq. ft.

Basement Unfinished

1,801 sq. ft.

Deck & Porch

364 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Foundation Type

Standard Foundations

Walkout

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

40' 0"

Depth

72' 6"

Max Ridge Height

19' 8"

Garage

Type

Standard, Attached

Area

595 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

Lower Level

9'

First Floor

9'

Roof Details

Primary Pitch

6 on 12

Architectural Style

Craftsman

Mountain

Ranch

Special Features

Bedrooms - Split

Laundry - Main Level

Master Suite - 1st Floor

Mudroom

Plan Collections

Photo Gallery
