Plan 95328RW

Craftsman Mountain Ranch House Plan: Split Bedrooms and RV Garage

Heated S.F.
2,085
Beds
3
Baths
2.5
Stories
1
Cars
3

Floor Plan

Plan 95328RW

Main Level
Main Level
Optionally Finished Lower Level
Optionally Finished Lower Level

Plan 95328RW

M-F 9am-5pm EST |

1-203-761-8500

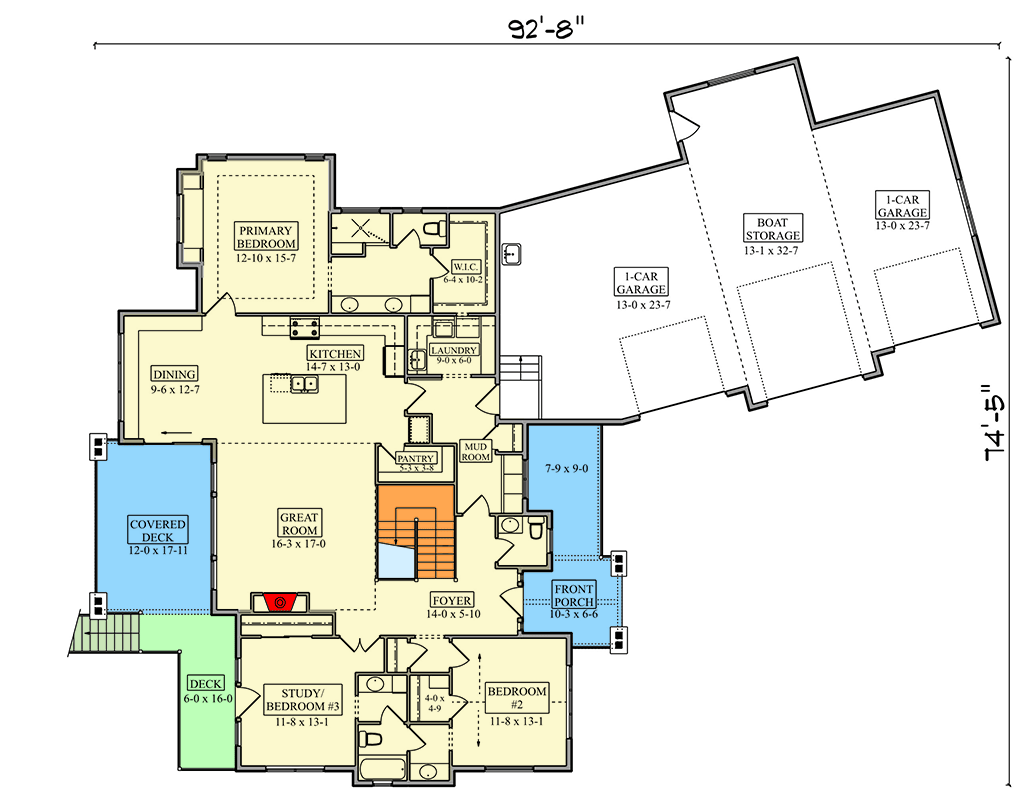

Main Level

Plan 95328RW: Craftsman Mountain Ranch House Plan: Split Bedrooms and RV Garage - Floor Plan - Main Level - Craftsman, Mountain, Ranch

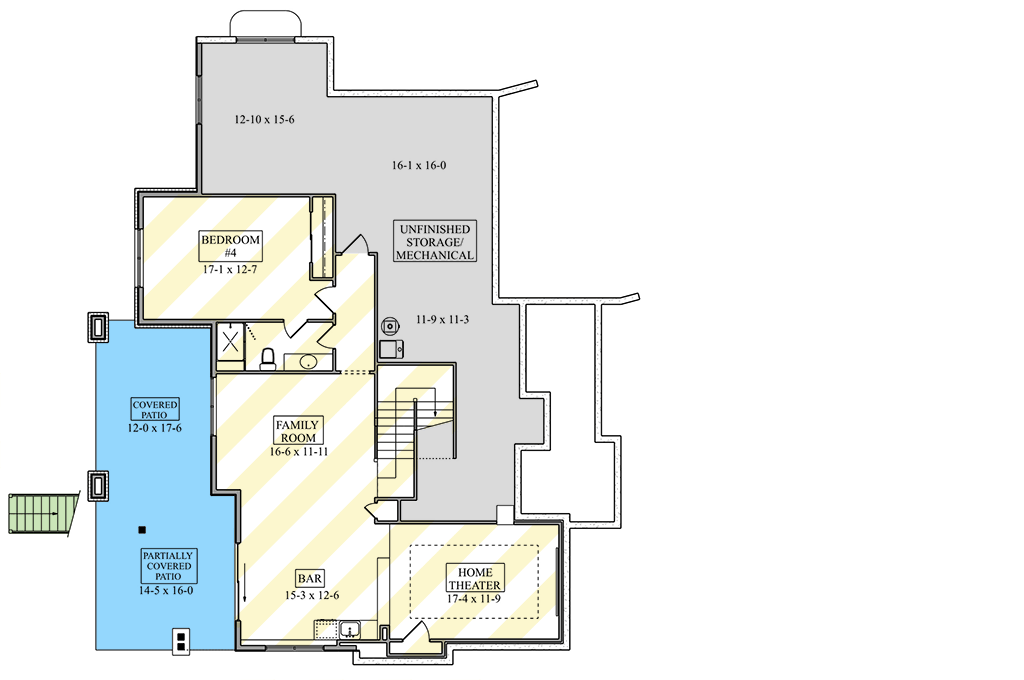

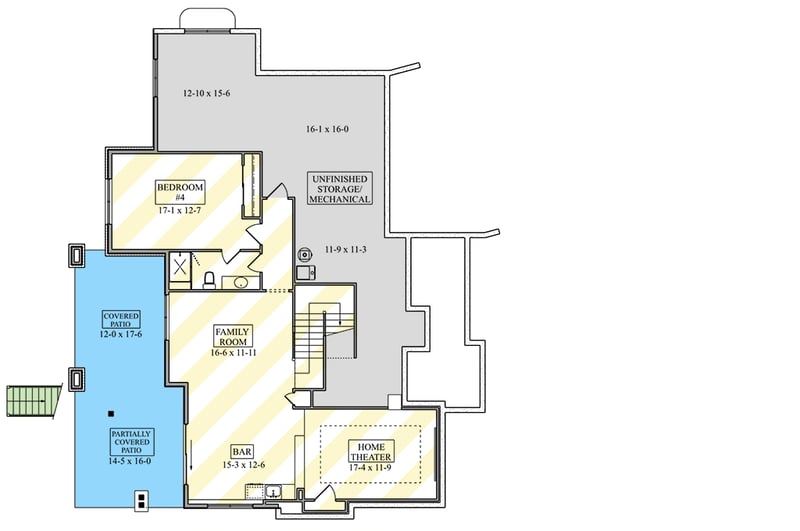

Optionally Finished Lower Level

Plan 95328RW: Craftsman Mountain Ranch House Plan: Split Bedrooms and RV Garage - Floor Plan - Optionally Finished Lower Level - Craftsman, Mountain, Ranch

Plan Details

  • This 2,085 sq. ft. Craftsman Mountain Ranch house plan features 3 bedrooms, 2.5 bathrooms, and an expansive 1,322 sq. ft. 3-car garage, including a dedicated RV bay, all encased in a striking exterior of stone and horizontal siding.
  • Step inside from the welcoming front porch into a grand foyer that opens directly into the heart of the home, revealing a spacious, open-concept great room with soaring 10-foot ceilings, perfect for lively gatherings or quiet evenings.
  • The great room flows seamlessly into the gourmet kitchen, boasting a large island and an adjacent butler's walk-in pantry for effortless meal preparation and entertaining. The formal dining area is perfectly positioned for memorable dinners, while a flexible study/bedroom offers versatility for a home office or guest quarters.
  • Retreat to the secluded primary bedroom suite, thoughtfully placed for privacy on one side of the home, featuring an elegant ensuite bathroom and a generously sized walk-in closet. Two additional bedrooms and a full bath are located on the opposite wing, providing comfortable accommodations for family or guests, alongside a convenient main-level laundry and mudroom.
  • For ultimate recreation, the optional lower level introduces a dedicated home theater for cinematic experiences and a stylish wet bar, ideal for hosting friends and family.
  • Enjoy the fresh air and scenic views from the expansive 502 sq. ft. of outdoor living space, including a covered deck off the dining area, an open deck, and a charming front porch, offering perfect spots for morning coffee or evening relaxation.
  • The impressive optional lower level expands the home by 1,135 sq. ft., adding a fourth bedroom, another full bathroom, a spacious family room, and direct access to a covered patio and partially covered patio, providing ample space for extended living and entertainment.

What's Included

  • Cover Page
  • All Four Exterior Elevations (front, left, rear and right)
  • Dimensioned Floor Plans
  • Foundation Plan (with no specifications of structural elements)
  • Roof Plan (with no specifications of structural elements)
  • Typical Wall Sections
  • Electrical plan
View Sample Plan

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • REScheck or other energy related calculations are NOT included.
  • Wind load or seismic calculations are NOT included.
  • Framing plans or beam sizes are NOT included.
  • Other specific drawings that your local permit office may requires
Starting at
What's included?
Plan Set
Select...
Foundation
Select...
Options
Optional Add-Ons
+$0
Price Match Guarantee
Cost to Build Report
Still deciding? Calculate the cost to build this house in your area.
Customize This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Cost to Furnish Report
Instant room-by-room estimates for your entire furniture & home decor plan, matched to your budget.

Square Footage Breakdown

Total Heated Area

2,085 sq. ft.

1st Floor

2,085 sq. ft.

Basement Unfinished

908 sq. ft.

Optional Lower Level

1,135 sq. ft.

Deck & Porch

502 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Half bathrooms

1

Foundation Type

Standard Foundations

Walkout

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

74' 5"

Depth

92' 8"

Max Ridge Height

20' 11"

Garage

Type

Standard, Attached, RV Garage

Area

1322 sq. ft.

Count

3 Cars

Entry Location

Courtyard

Ceiling Heights

Lower Level

10'

First Floor

10'

Roof Details

Primary Pitch

7 on 12

Architectural Style

Craftsman

Mountain

Ranch

Special Features

Angled Garage

Bedrooms - Split

Flex Room

Laundry - Main Level

Master Suite - 1st Floor

Mudroom

Walk-in Pantry

Wet Bar

Plan Collections
