Plan 267094SPK

Craftsman Mountain Ranch House Plan with Den and Main-Level Master

Heated S.F.
1,597
Beds
3
Baths
2
Stories
1
Cars
2

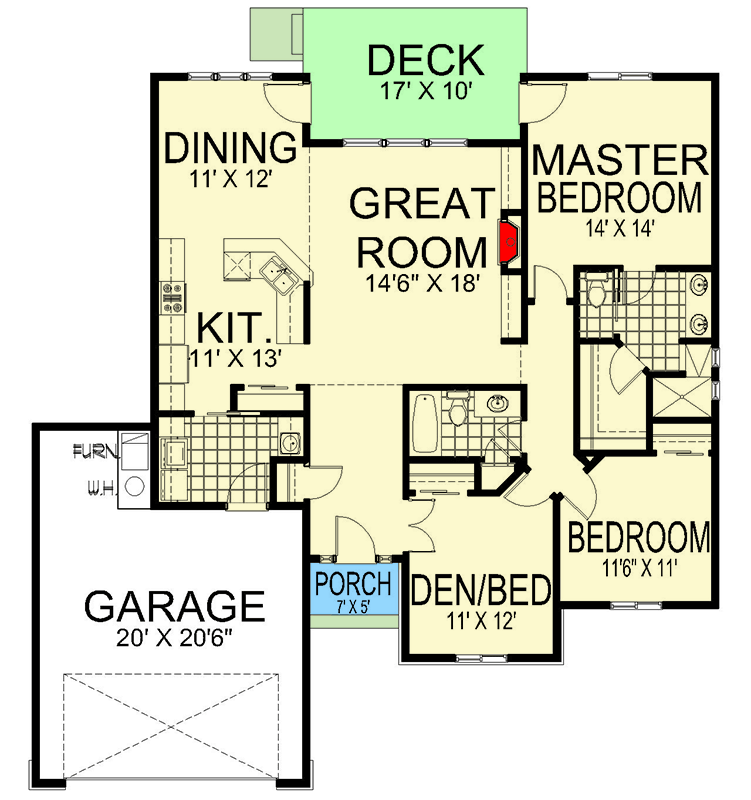

Floor Plan

Plan 267094SPK

Main Level
Main Level

Plan 267094SPK

M-F 9am-5pm EST |

1-203-761-8500

Main Level

Plan 267094SPK: Craftsman Mountain Ranch House Plan with Den and Main-Level Master - Floor Plan - Main Level - Craftsman, Mountain, New American, Ranch

Plan Details

  • This charming 1,597 sq. ft. Craftsman Mountain Ranch House Plan features 3 bedrooms, 2 full bathrooms, and a spacious 497 sq. ft. two-car front-entry garage, all wrapped in a delightful blend of stone, wood, and siding.
  • Stepping inside, you are greeted by a well-designed layout that seamlessly flows into the main living areas, offering a flexible space perfect for a home office or cozy den immediately accessible from the entry.
  • The heart of the home features an open-concept great room, kitchen, and dining area, ideal for relaxed gatherings and everyday living. Nine-foot ceilings throughout the first floor enhance the sense of spaciousness and light.
  • The private first-floor master suite offers a serene retreat, thoughtfully separated from the secondary bedrooms for ultimate privacy. The remaining two bedrooms are clustered together, providing convenient access to a shared full bathroom.
  • Beyond the main living, a versatile den or flex room provides an adaptable space that can serve as a quiet reading nook, a productive home office, or a creative hobby area.
  • Enjoy morning coffee on the inviting 35 sq. ft. front porch or step out onto the expansive 170 sq. ft. rear deck, perfect for alfresco dining and enjoying the surrounding landscape.

What's Included

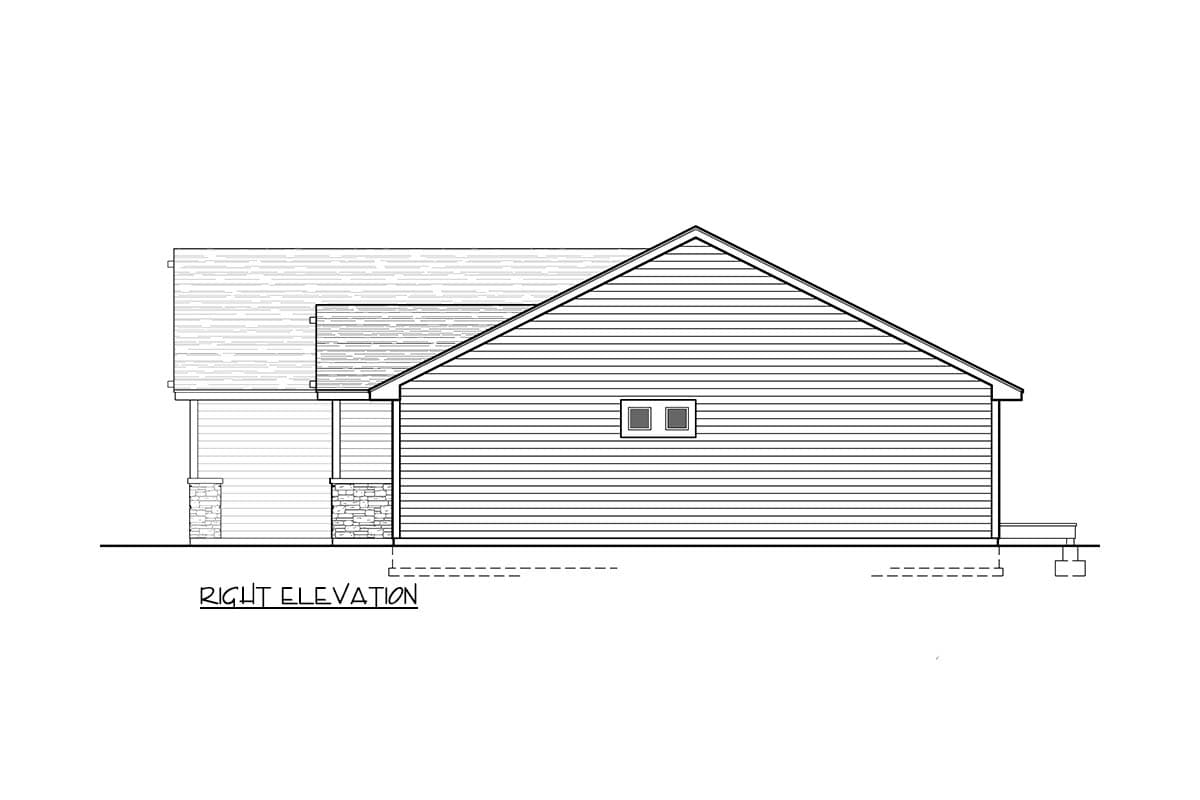

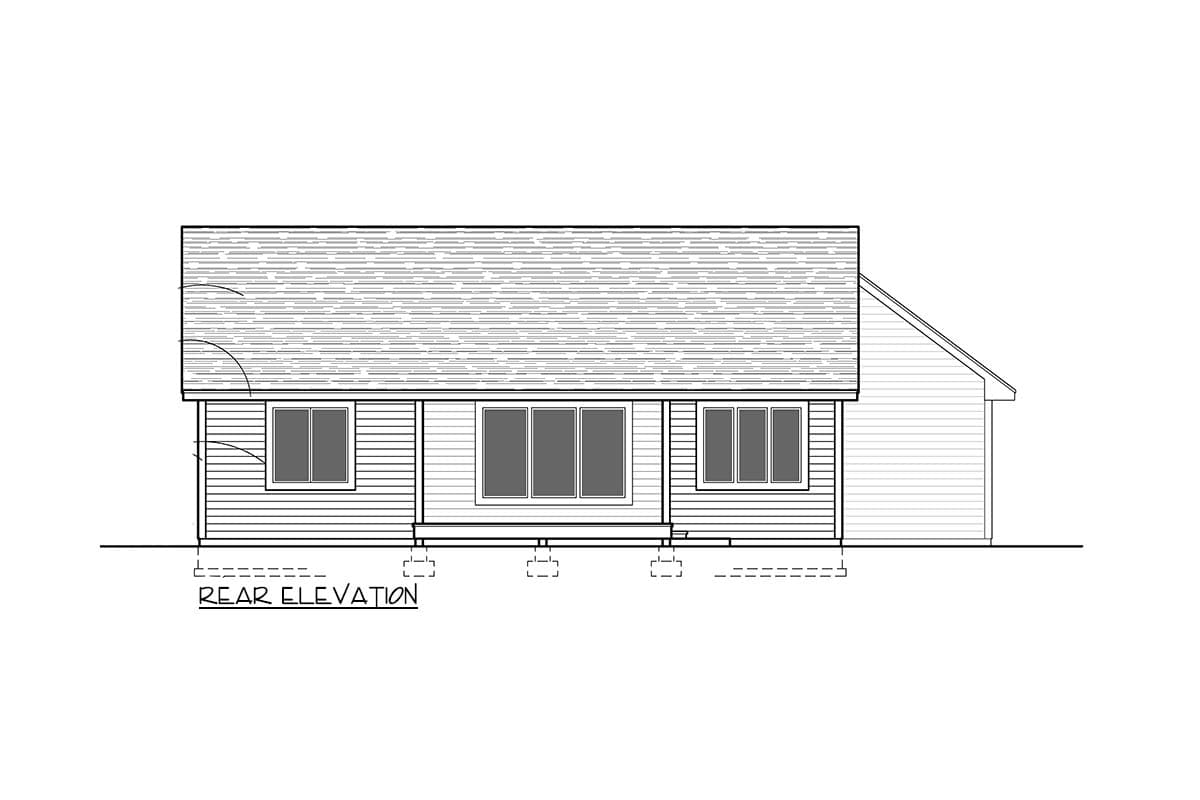

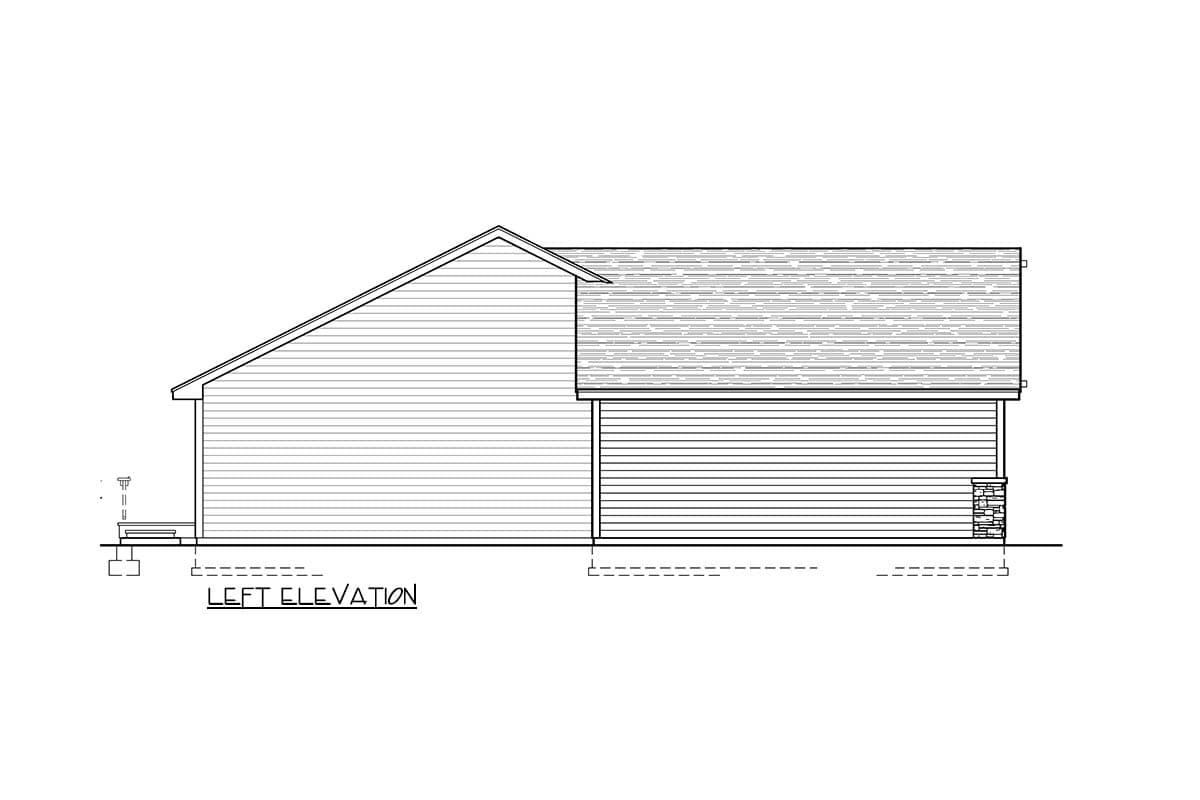

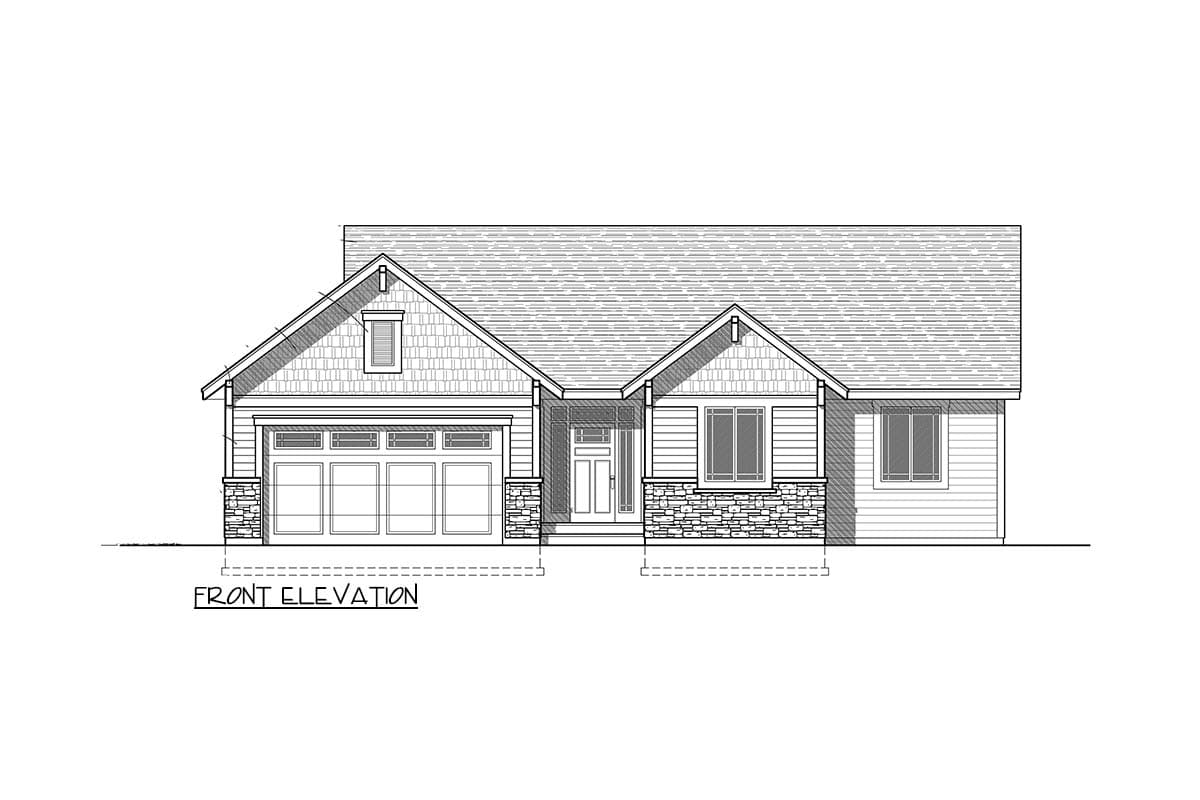

  • Exterior Elevations, Roof plan
  • Floor plan
  • Foundation plan
  • Typical details, building section
  • Notes and specifications
View Sample Plan

What's Not Included

  • Electrical Plan
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • REScheck or other energy related calculations are NOT included.
  • Wind load or seismic calculations are NOT included.
  • Framing plans or beam sizes are NOT included.
  • Other specific drawings that your local permit office may require

Ready to Get Started?

Select your plan set options before checkout.

Price Match Guarantee
What's included?

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

1,597 sq. ft.

1st Floor

1,597 sq. ft.

Porch, Front

35 sq. ft.

Deck

170 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Foundation Type

Standard Foundations

Crawl

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

52' 0"

Depth

54' 0"

Max Ridge Height

21' 4"

Garage

Type

Attached

Area

497 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

First Floor

9'

Roof Details

Primary Pitch

6 on 12

Secondary Pitch

9 on 12

Framing Type

Truss

Architectural Style

Craftsman

Mountain

New American

Ranch

Special Features

Bedrooms - Clustered

Den

Flex Room

Laundry - Main Level

Master Suite - 1st Floor

Mudroom

Square Footage Breakdown

Total Heated Area

1,597 sq. ft.

1st Floor

1,597 sq. ft.

Porch, Front

35 sq. ft.

Deck

170 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Foundation Type

Standard Foundations

Crawl

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

52' 0"

Depth

54' 0"

Max Ridge Height

21' 4"

Garage

Type

Attached

Area

497 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

First Floor

9'

Roof Details

Primary Pitch

6 on 12

Secondary Pitch

9 on 12

Framing Type

Truss

Architectural Style

Craftsman

Mountain

New American

Ranch

Special Features

Bedrooms - Clustered

Den

Flex Room

Laundry - Main Level

Master Suite - 1st Floor

Mudroom
