Plan 64564SC

Craftsman Mountain Ranch House Plan with Expansive Porches and 3-Car Garage

Name: Plan 64564SC: Craftsman Mountain Ranch House Plan with Expansive Porches and 3-Car Garage
Brand: Architectural Designs
SKU: 64564SC
Price: 1795.0 USD
Availability: InStock

Heated S.F.

2,827

Beds

2 - 3

Baths

2.5

Stories

Cars

Floor Plan

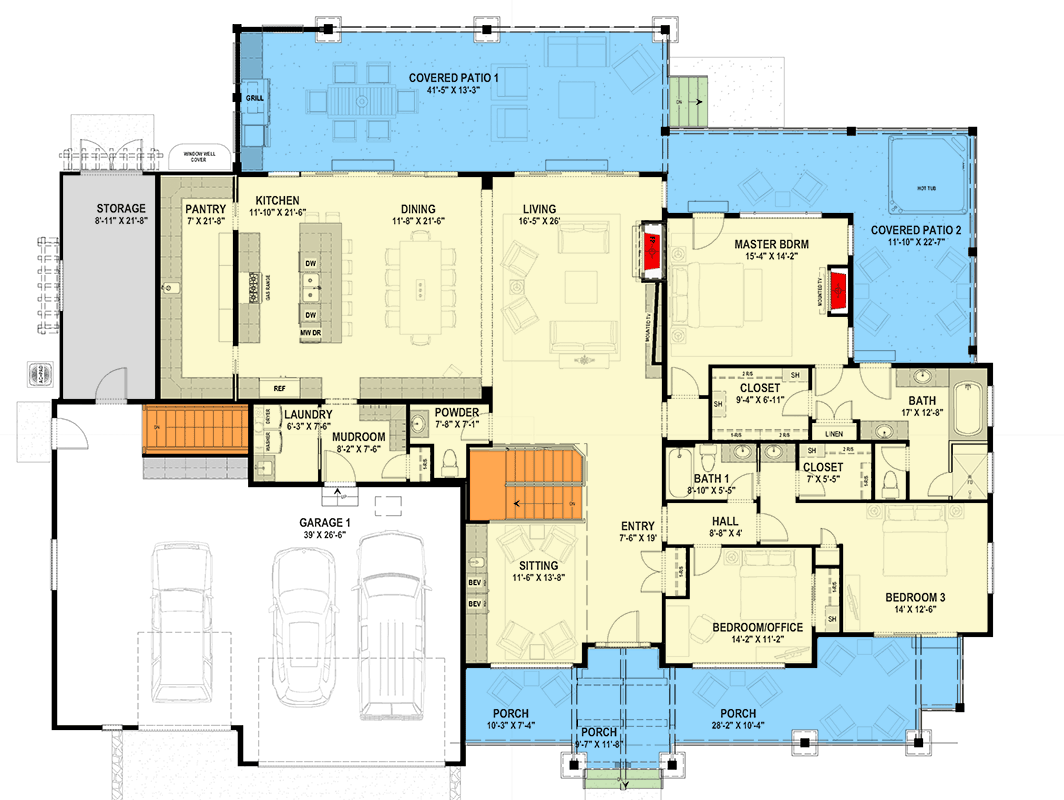

Main Level

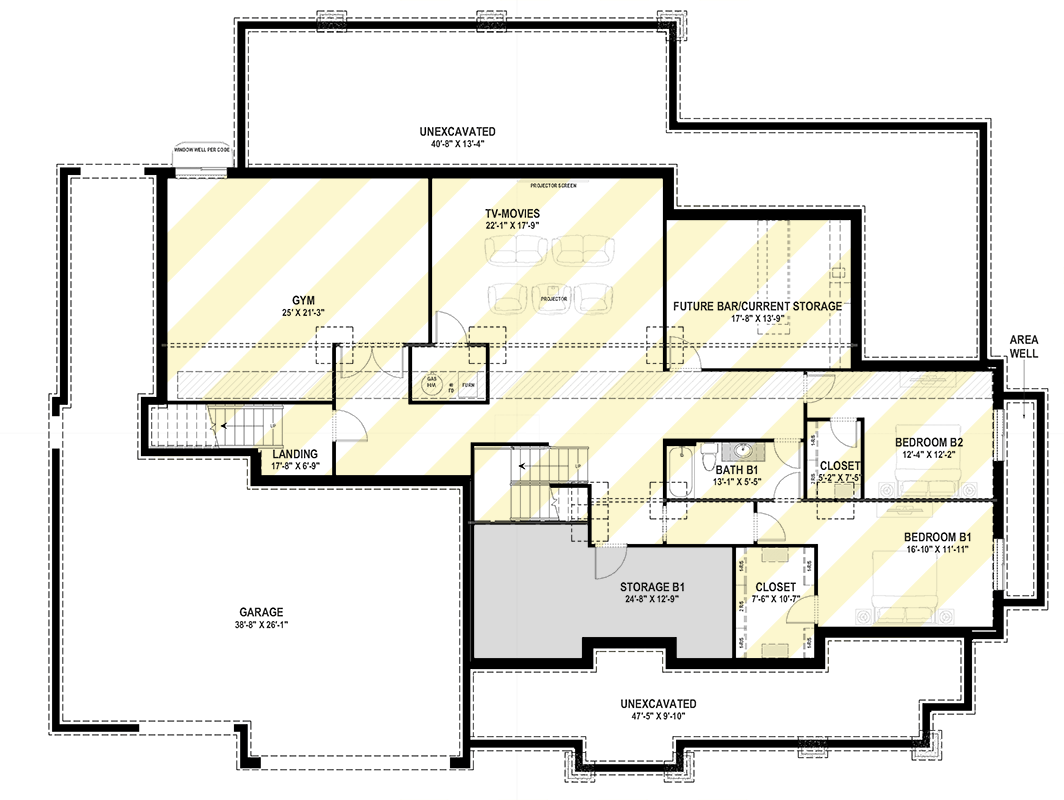

Optionally Finished Lower Level

Plan Details

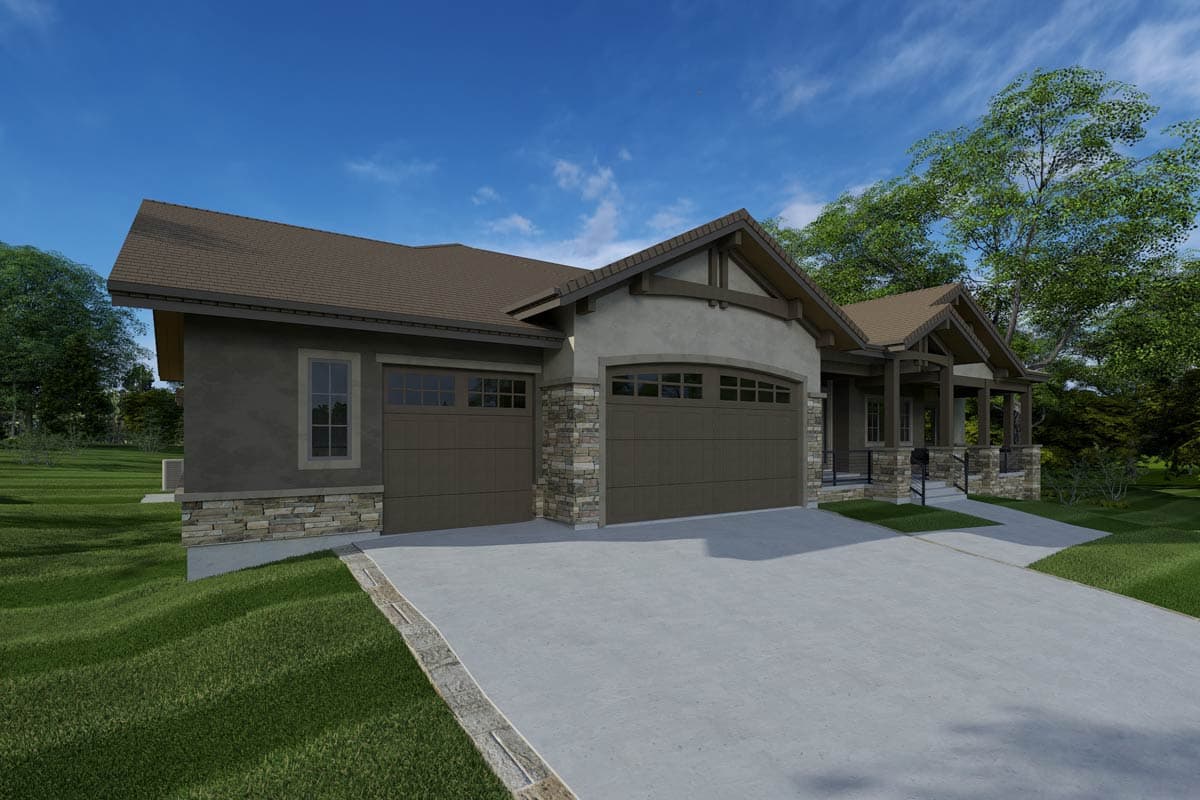

This inviting Craftsman Mountain Ranch house plan spans 2,827 finished square feet, offering 2 to 3 bedrooms, 2 full bathrooms, 1 half bathroom, and an attached 1,116 sq. ft. 3-car garage, all clad in a harmonious blend of stone and stucco.
Upon entry, guests are welcomed into a grand space designed for seamless living, featuring 10-foot ceilings and an open-concept layout that gracefully transitions from the entry to the main living areas, while a dedicated home office provides a quiet retreat.
The heart of the home features an expansive great room flowing effortlessly into the dining area and a gourmet kitchen, complete with a breakfast nook and a convenient butler's walk-in pantry, perfect for both everyday meals and sophisticated entertaining. A wet bar further enhances the home's social appeal.
The luxurious first-floor master suite offers a private sanctuary, thoughtfully separated from the secondary bedrooms which are clustered for privacy and convenience, ensuring a peaceful living experience for all occupants.
Beyond the main living spaces, this plan includes a versatile den, a flexible room adaptable to various needs, and a functional mudroom adjacent to the garage, providing essential utility and organization.

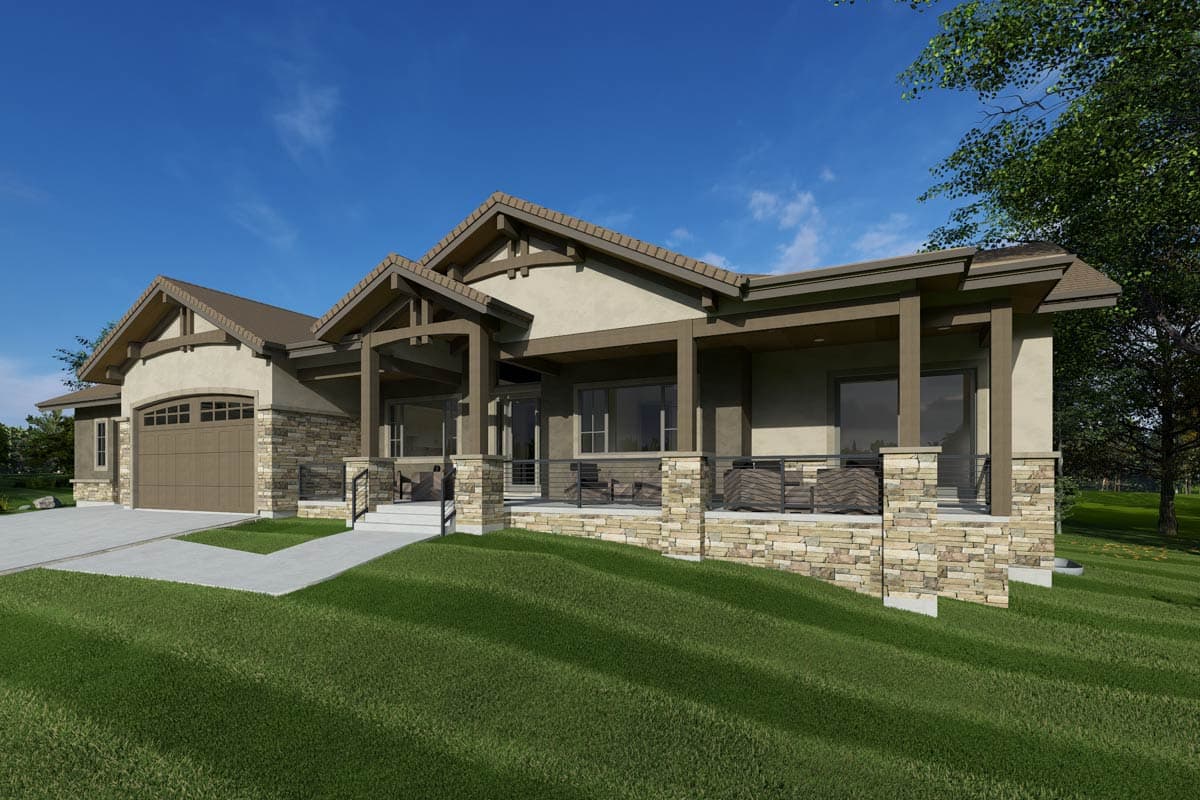

Embrace outdoor living with the generous 410 sq. ft. front porch, ideal for morning coffee, and an expansive 1,001 sq. ft. covered patio, which includes an outdoor kitchen, perfect for al fresco dining and enjoying the surrounding landscape. The wrap-around porch further extends opportunities for relaxation and connection with nature.
The design also offers an impressive optional lower level, adding 2,656 sq. ft. of customizable space, perfect for future expansion or creating additional recreational areas tailored to your lifestyle.

What's Included

Cover Sheet - project statistics, including square footages, 3D images (typically), general notes and drawings sheet index.
Foundation/basement plan - showing room/wall layout, beams, posts and joist direction, and often electrical outlets, switches and light locations.
Main Level Plan - floor plan rooms and walls dimensioned, window and door sizes noted, plumbing, millwork locations and other general notes.
Upper Level Plan (if needed) - same information as Main Level.
Roof Plan - layout with pitch markers, dimensions and notes.
Main Level Electrical Plan - electrical outlets, switches and light locations shown.
Upper Level Electrical Plan (if needed) - electrical outlets, switches and light locations shown.
Exterior Elevations - Elevations of the Front and Right side with notes, dimensions and material designations.
Exterior Elevations - Elevations of the Back and Left side with notes, dimensions and material designations.
Sections and details - One or more building sections to show vertical relationships and construction plate heights, details as needed.
Interior Elevations and Details - mostly millwork, fireplace and other items that need additional explanation, details as needed.

View Sample Plan

What's Not Included

Architectural or Engineering Stamp - handled locally if required
Site Plan - handled locally when required
Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
Energy calculations - handled locally when required
