Plan 180032VNW

Craftsman Mountain Ranch House Plan with Three Bedrooms and Attached Garage

Heated S.F.
1,864
Beds
3
Baths
2
Stories
1
Cars
2

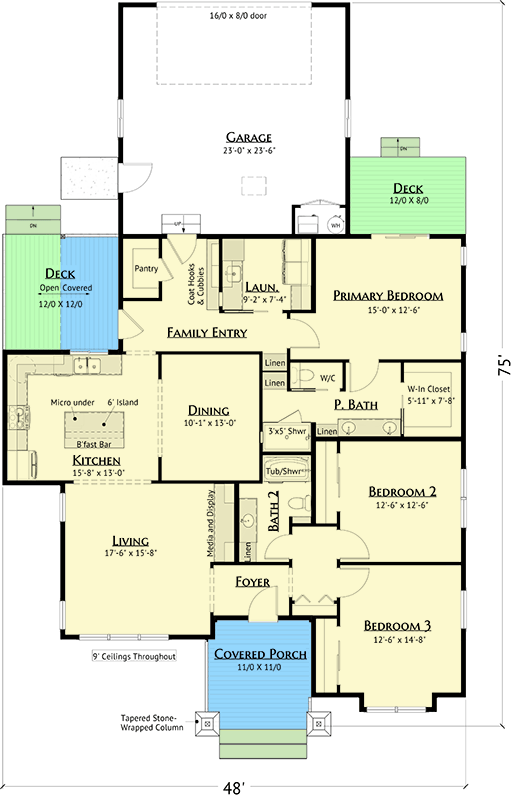

Floor Plan

Plan 180032VNW

Floor Plan 1

Plan 180032VNW

M-F 9am-5pm EST |

1-203-761-8500

Plan 180032VNW: Craftsman Mountain Ranch House Plan with Three Bedrooms and Attached Garage - Floor Plan - - Craftsman, Mountain, Ranch, Rustic

Plan Details

  • This 1,864 square foot Craftsman mountain ranch features three bedrooms, two bathrooms, and a two-car attached garage that provides 576 square feet of space.

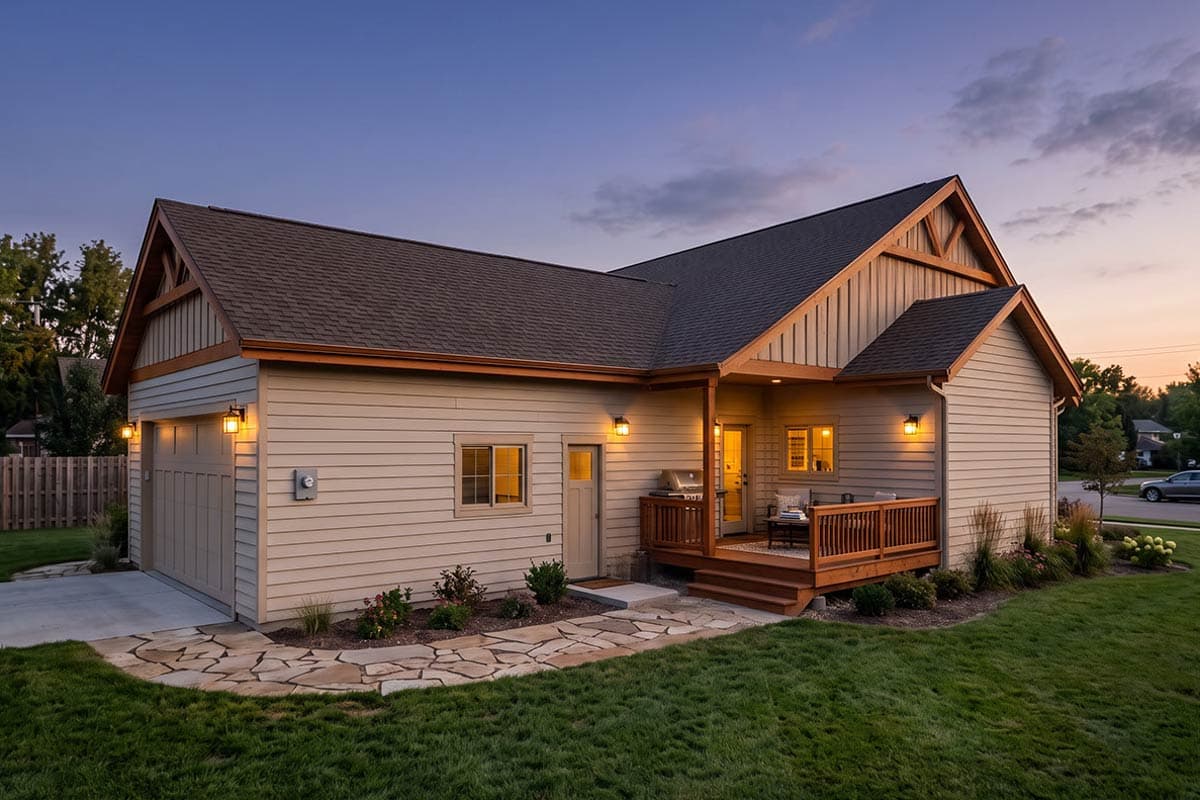

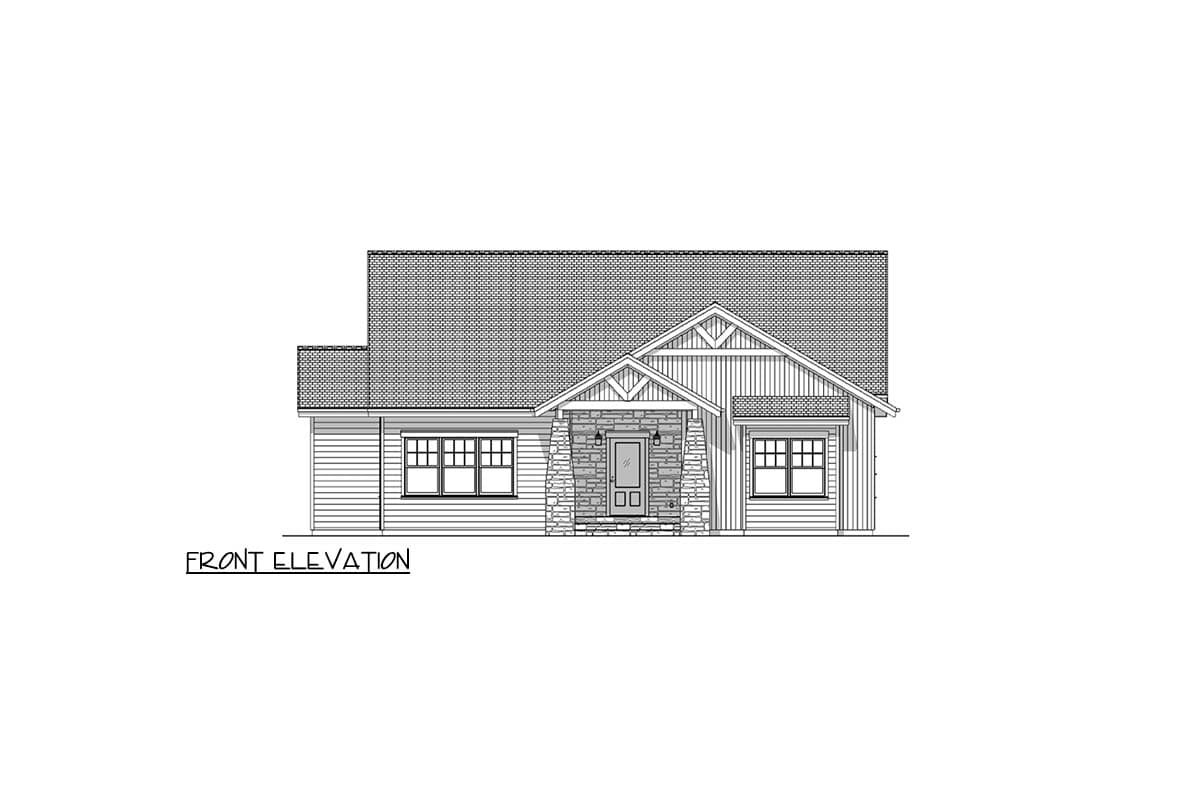

  • The exterior showcases rustic charm with stone accents and board-and-batten siding, welcoming visitors through an inviting covered front porch.
  • Upon entry, the home reveals a functional layout that balances open-concept living with defined spaces for dining and relaxation.

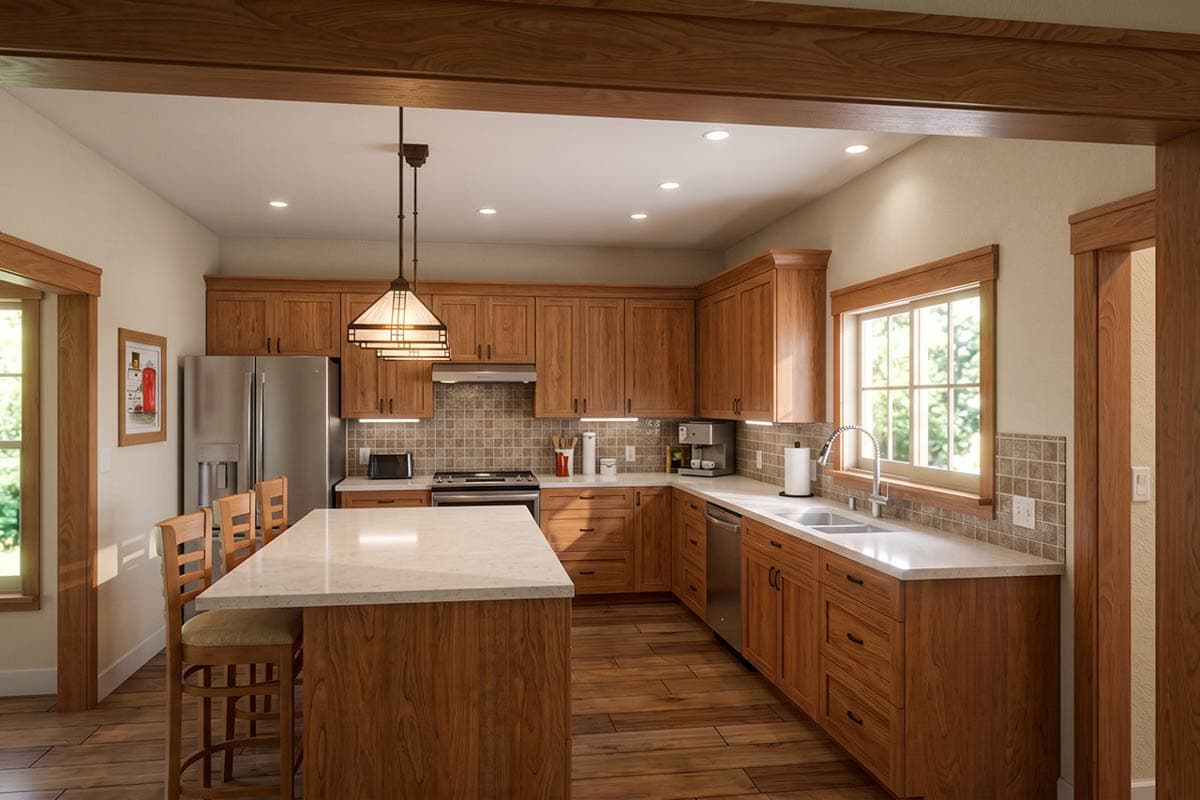

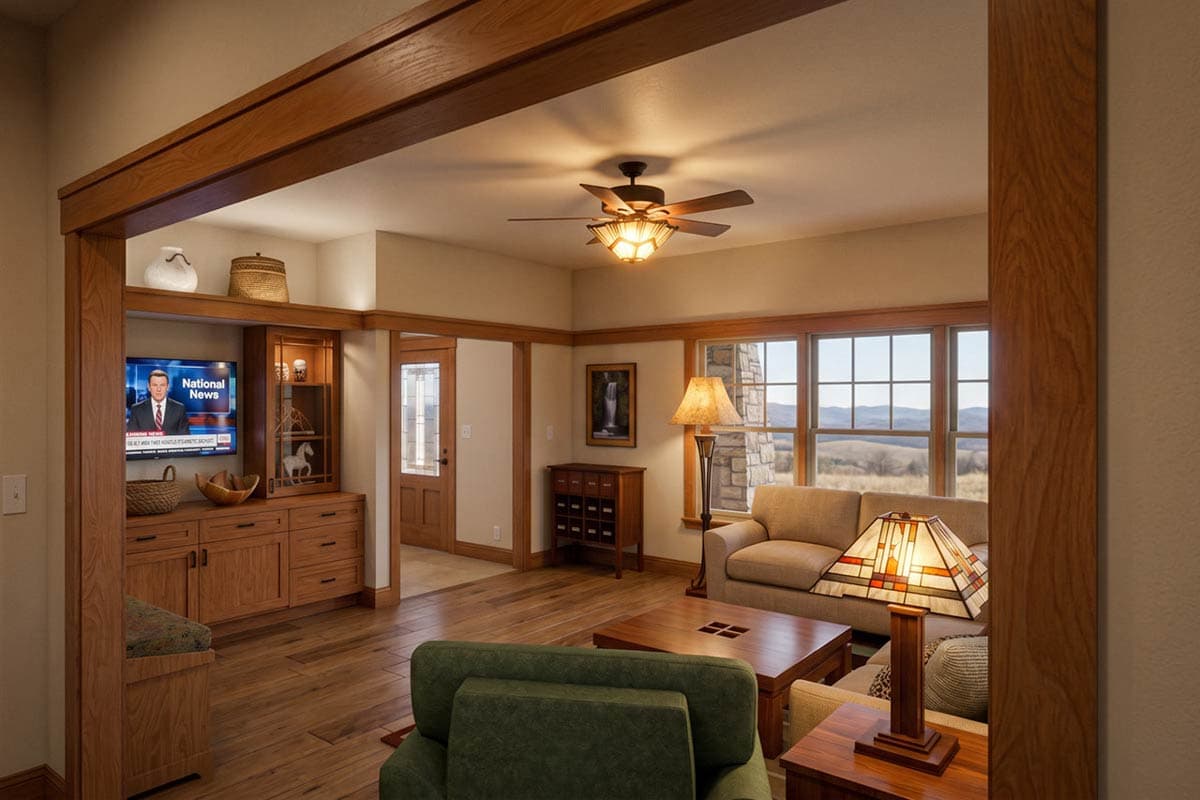

  • The central living area flows seamlessly into a well-appointed kitchen, which includes a convenient walk-in pantry for organized storage.
  • A split bedroom design ensures maximum privacy for the primary suite, which enjoys direct access to the main-level laundry room for ultimate convenience.
  • Practical features like a dedicated mudroom help keep the household organized, while the nine-foot ceilings throughout the main level create a bright and airy atmosphere.

What's Included

  • Cover Sheet

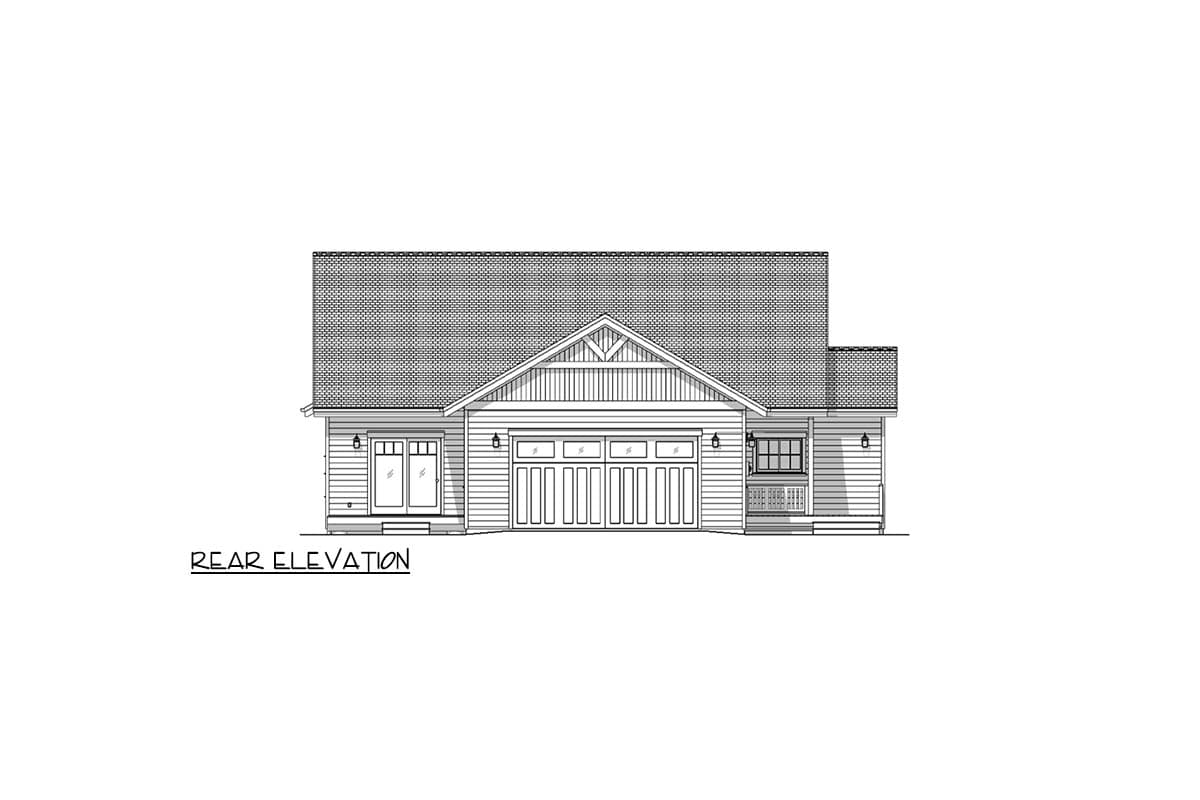

  • Exterior Elevations
  • Floor Plan(s)
  • Foundation Plan
  • Wall Framing and Floor Framing Plans
  • Roof Plans
  • Building Sections
  • Electrical Layout Plans
  • Misc. Construction Details, Information and Notes

What's Not Included

  • Architectural or Engineering Stamp
  • Site Plan
  • Mechanical Drawings (location of heating and air equipment and duct work)
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations)
  • Framing layouts with beam sizes and locations
  • Energy calculations

Ready to Get Started?

Select your plan set options before checkout.

Price Match Guarantee
What's included?

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

1,864 sq. ft.

1st Floor

1,864 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Foundation Type

Standard Foundations

Crawl

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

48' 0"

Depth

75' 0"

Max Ridge Height

20' 8"

Garage

Type

Standard, Attached

Area

576 sq. ft.

Count

2 Cars

Entry Location

Rear

Ceiling Heights

First Floor

9'

Roof Details

Primary Pitch

7 on 12

Framing Type

Truss

Architectural Style

Craftsman

Mountain

Ranch

Rustic

Special Features

Bedrooms - Split

Formal Dining

Laundry Access from Master Suite

Laundry - Main Level

Master Suite - 1st Floor

Mudroom

Walk-in Pantry

Plan Collections

Unlimited Build License

Square Footage Breakdown

Total Heated Area

1,864 sq. ft.

1st Floor

1,864 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Foundation Type

Standard Foundations

Crawl

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

48' 0"

Depth

75' 0"

Max Ridge Height

20' 8"

Garage

Type

Standard, Attached

Area

576 sq. ft.

Count

2 Cars

Entry Location

Rear

Ceiling Heights

First Floor

9'

Roof Details

Primary Pitch

7 on 12

Framing Type

Truss

Architectural Style

Craftsman

Mountain

Ranch

Rustic

Special Features

Bedrooms - Split

Formal Dining

Laundry Access from Master Suite

Laundry - Main Level

Master Suite - 1st Floor

Mudroom

Walk-in Pantry

Plan Collections

Unlimited Build License
