Plan 62909DJ Craftsman - New American House Plan with Cathedral Ceiling Great Room

1,457 3-4 2 - 3 1 2
Print
Compare
...
All plans are copyrighted by our designers. Photographed homes may include modifications made by the homeowner with their builder.

Craftsman - New American House Plan with Cathedral Ceiling Great Room

Plan 62909DJ

  • 1,457

    Heated s.f.

  • 3-4

    Beds

  • 2 - 3

    Baths

  • 1

    Stories

  • 2

    Cars

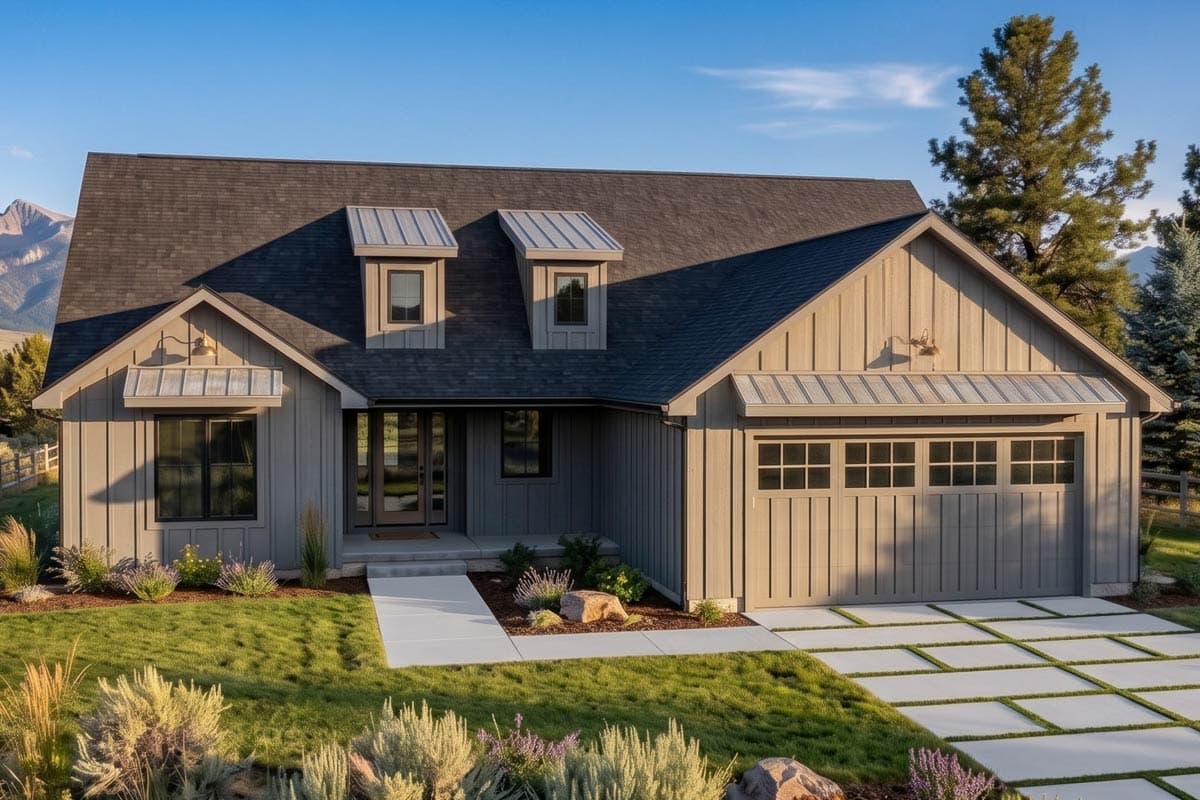

  • A beautiful combination of board and batten siding, standing seam metal roof accents, and a pair of shed dormers, gives this home Craftsman-New American-modern farmhouse plan unique curb appeal.
  • Just inside the home, you'll find a large great room that lies under a soaring 16' cathedral ceiling and is warmed by a fireplace. The kitchen, dining room, and great room flow seamlessly in an open layout. The kitchen includes a large walk-in pantry and an island with a snack bar.
  • The master suite also lies under its own cathedral ceiling and includes his/her vanities, a walk-in closet, and a walk-in shower. On the other side of the home, bedrooms 2 and 3 share a centrally located hall bathroom.
  • The 2-car garage enters the home through a convenient mudroom what includes a bench and lockers.
  • An optional finished basement adds 1,184 sq ft and includes an additional family room, a rec room, a 4th bedroom, and an amazing craft room with built-in shelves.

Each plan set includes:


  • Cover Sheet: Shows the front elevation and typical notes and requirements.
  • Exterior Elevations: Shows the front, rear and sides of the home including exterior materials, details and measurement
  • Floor Plans: Shows the placement of walls and the dimensions for rooms, doors, windows, stairways, etc. for each floor
  • Electrical Plans: Shows the location of outlets, fixtures and switches. They are shown as a separate sheet to make the floor plans more legible.
  • Foundation Plans: will include a basement, crawlspace or slab depending on what is available for that home plan. (Please refer to the home plan's details sheet to see what foundation options are available for a specific home plan.) The foundation plan details the layout and construction of the foundation.
  • Roof Plan
  • Typical wall section
  • Typical Stair section
  • Cabinets are shown on all plans.

These items are NOT included:
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

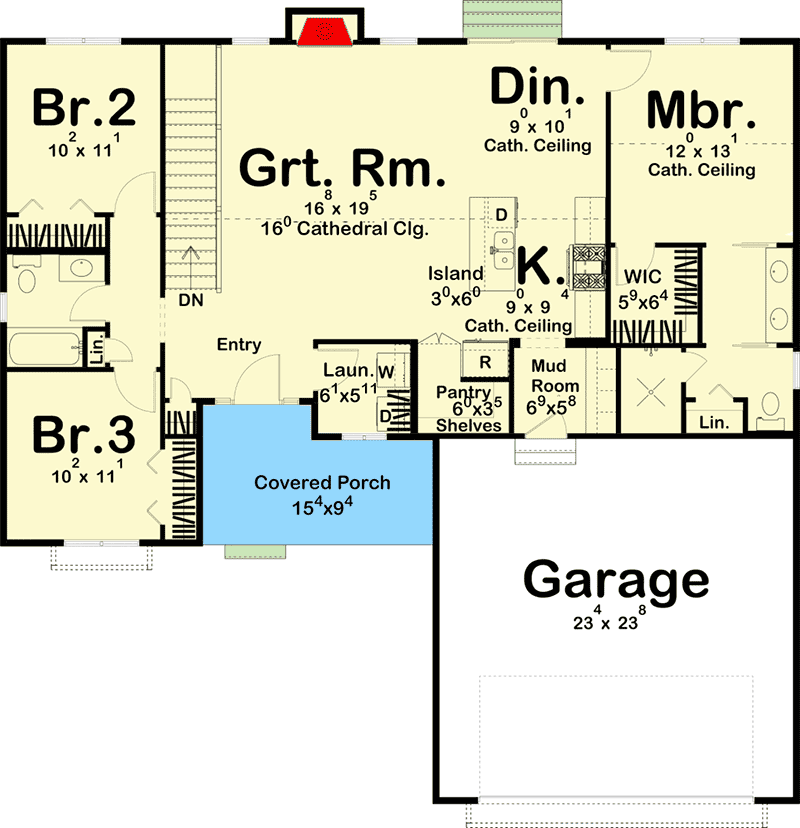

Craftsman - New American House Plan with Cathedral Ceiling Great Room - 62909DJ floor plan - Main Level

Optional Lower Layout (+250)

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

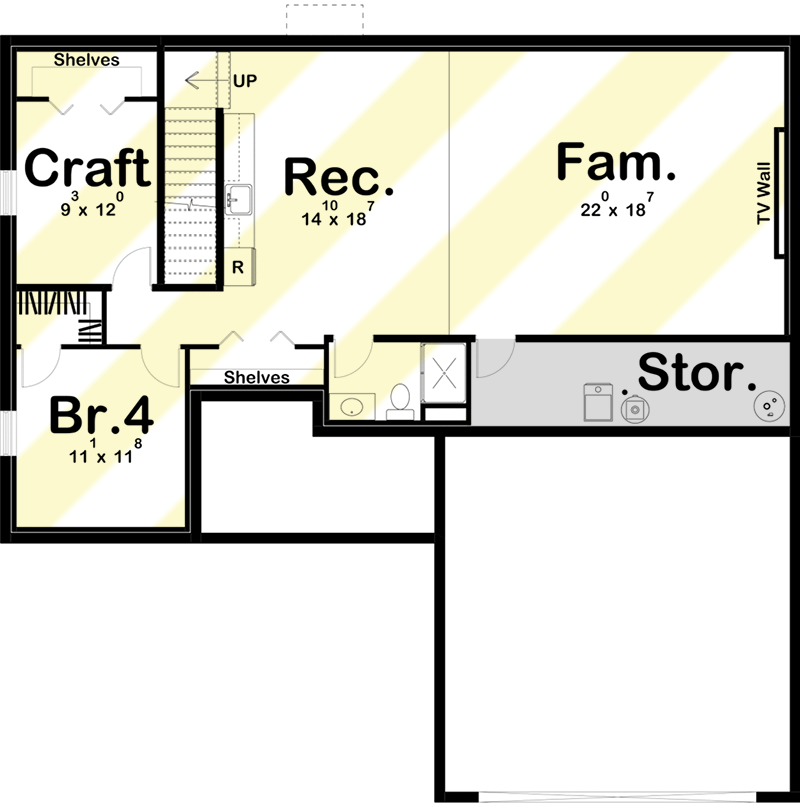

Craftsman - New American House Plan with Cathedral Ceiling Great Room - 62909DJ floor plan - Optional Lower Layout (+250)

Plan details

Square Footage Breakdown

  • Total Heated Area: 1,457 sq. ft.
  • 1st Floor: 1,457 sq. ft.
  • Optional Lower Level: 1,184 sq. ft.

Beds/Baths

  • Bedrooms: 3 or 4
  • Full bathrooms: 2 or 3

Foundation Type

  • Standard Foundations: Basement
  • Optional Foundations: Walkout, Slab, Crawl

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Dimensions

  • Width: 53' 0"
  • Depth: 53' 0"

Garage

  • Type: Attached
  • Area: 580 sq. ft.
  • Count: 2 Cars
  • Entry Location: Front

Ceiling Heights

  • Floor / Height: Lower Level / 9' 0" First Floor / 9' 0"

Roof Details

  • Primary Pitch: 10 on 12
  • Secondary Pitch: 8 on 12

Architectural Style

Special features

Craftsman - New American House Plan with Cathedral Ceiling Great Room

  • 1,457

    Heated s.f.

  • 3-4

    Beds

  • 2 - 3

    Baths

  • 1

    Floors

  • 2

    Car garage

Buy This Plan
  • PDF - Single-Build $1,200
  • 5 Sets + PDF $1,450
  • PDF - Unlimited Build $1,700
  • CAD + PDF - Single-Build $1,700
  • CAD Unlimited + PDF $2,200
  • View all purchase option online

About This Plan

  • A beautiful combination of board and batten siding, standing seam metal roof accents, and a pair of shed dormers, gives this home Craftsman-New American-modern farmhouse plan unique curb appeal.
  • Just inside the home, you'll find a large great room that lies under a soaring 16' cathedral ceiling and is warmed by a fireplace. The kitchen, dining room, and great room flow seamlessly in an open layout. The kitchen includes a large walk-in pantry and an island with a snack bar.
  • The master suite also lies under its own cathedral ceiling and includes his/her vanities, a walk-in closet, and a walk-in shower. On the other side of the home, bedrooms 2 and 3 share a centrally located hall bathroom.
  • The 2-car garage enters the home through a convenient mudroom what includes a bench and lockers.
  • An optional finished basement adds 1,184 sq ft and includes an additional family room, a rec room, a 4th bedroom, and an amazing craft room with built-in shelves.

Floor Plans

  • Main Level

  • Optional Lower Layout (+250)

Plan Details

Square Footage Breakdown

  • Total Heated Area: 1,457 sq. ft.
  • 1st Floor: 1,457 sq. ft.
  • Optional Lower Level: 1,184 sq. ft.

Beds/Baths

  • Bedrooms: 3 or 4
  • Full bathrooms: 2 or 3

Foundation Type

    • Standard Foundations: Basement
    • Optional Foundations: Walkout, Slab, Crawl

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Dimensions

  • Width: 53' 0"
  • Depth: 53' 0"

Garage

  • Type: Attached
  • Area: 580 sq. ft.
  • Count: 2 Cars
  • Entry Location: Front

Ceiling Heights

  • Floor / Height: Lower Level / 9' 0" First Floor / 9' 0"

Roof

  • Primary Pitch: 10 on 12
  • Secondary Pitch: 8 on 12
Plan 62909DJ
View this and more for this plan by visiting www.architechtecturaldesigns.com/62909DJ
|
Need Help? 800-854-7852
|
Plan 62909DJ
