Plan 72599DA

Craftsman Northwest House Plan with Three Bedrooms and Attached Two-Car Garage

Name: Plan 72599DA: Craftsman Northwest House Plan with Three Bedrooms and Attached Two-Car Garage
Brand: Architectural Designs
SKU: 72599DA
Price: 2615.0 USD
Availability: InStock

Heated S.F.

2,451

Beds

Baths

2.5

Stories

Cars

Floor Plan

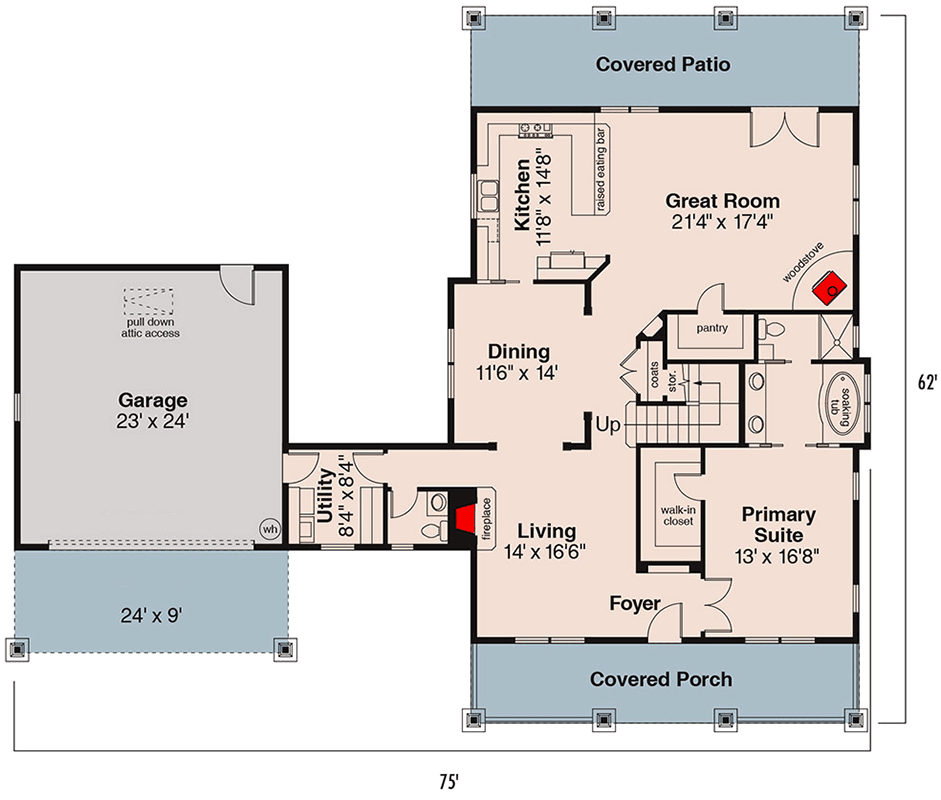

Main Level

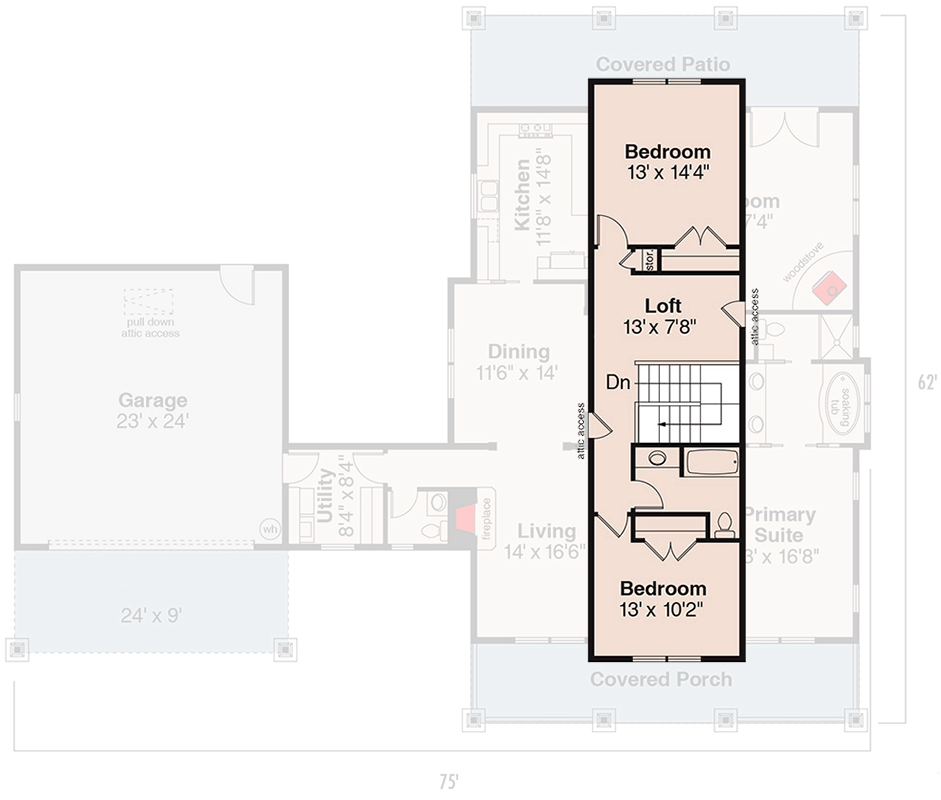

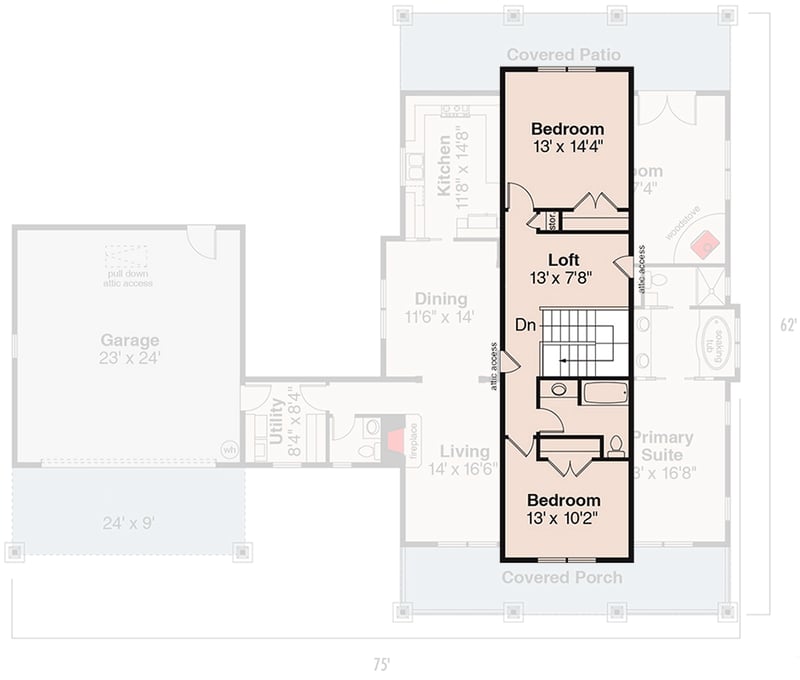

2nd Floor

Plan Details

This charming Craftsman Northwest style home offers 2,451 square feet of finished living space, including three bedrooms, two full bathrooms, a half bath, and a convenient attached two-car garage.

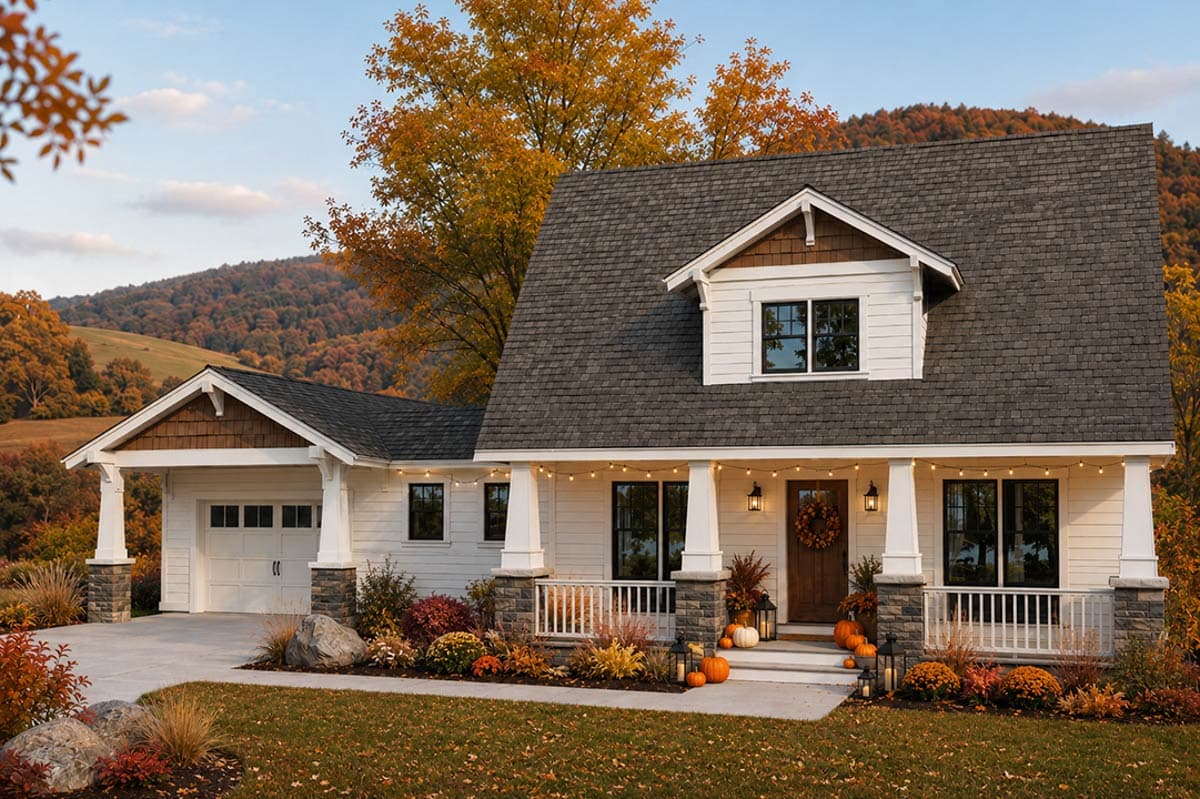

The welcoming front porch features classic stone-based tapered columns, providing an inviting entry that leads into a thoughtfully designed, open-concept floor plan.
The main level showcases a seamless flow between the formal dining area, the kitchen with its spacious walk-in pantry, and a cozy keeping room perfect for relaxing.
A private first-floor primary suite provides a peaceful retreat, while the secondary bedrooms are located upstairs, offering excellent separation and quietude.
The upper level further enhances the home's utility with a versatile loft space that can serve as a home office, study, or secondary lounge area.
With its blend of traditional exterior aesthetics and modern, functional interior layout, this home is designed to accommodate a comfortable and efficient lifestyle.

What's Included

Each plan set is drawn at 1/4"=1' scale and includes the following drawings:

Cover Sheet/Artist's Rendering: An artist's drawing of the home, usually viewed from the front, and general construction notes.

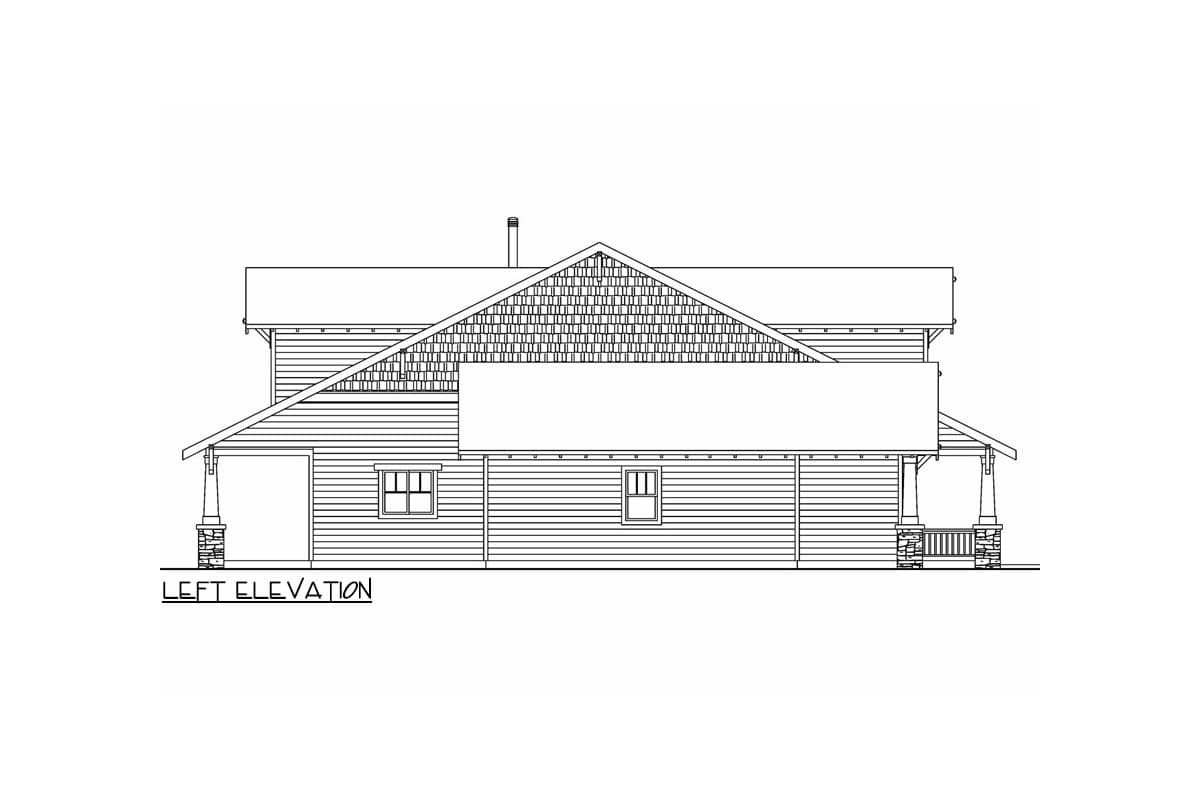

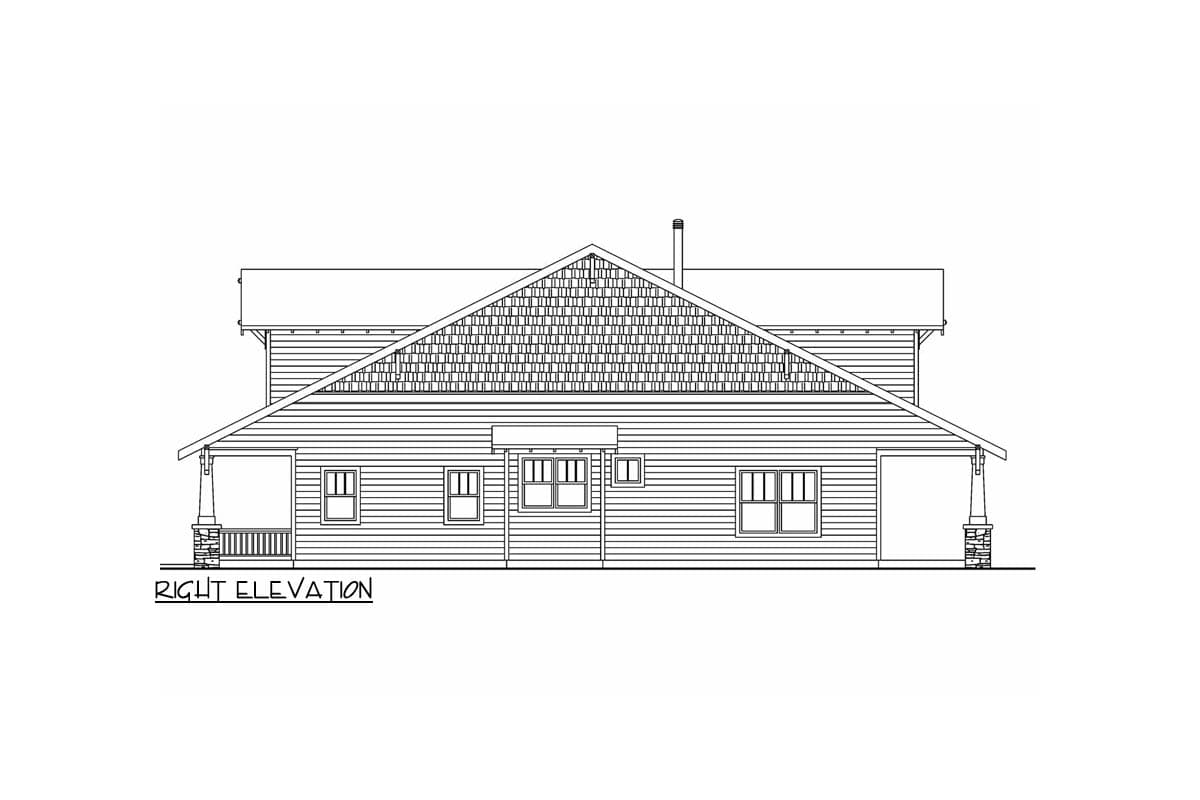

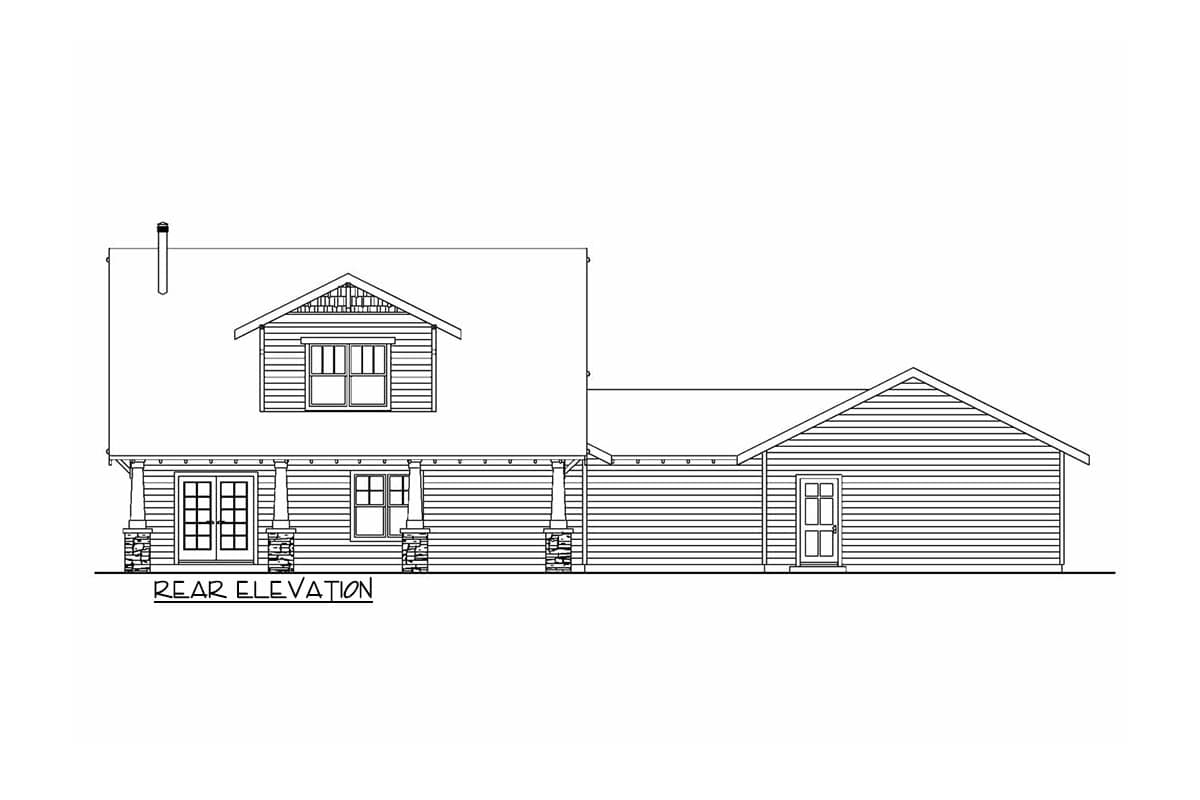

Elevations: Shows the front, sides, and rear, including exterior materials, trim sizes, roof pitches, etc.
Main Floor Plan: Shows placement and dimensions of walls, doors, & windows. Includes the location of appliances, plumbing fixtures, beams, ceiling heights, etc.
Second Floor Plan (if any): Shows the second floor in the same detail as the main floor. Includes second floor framing and details.
Foundation Plan: Shows the location of all concrete footings, floor beams, first floor framing, and foundation details. If there is a basement, a basement plan is included which shows all basement details. Foundation types vary; please call to confirm the foundation type of the plan you are interested in.
Roof Framing Plan: Shows roof outlines, conventional framing/trusses, beams, roof framing details, etc. Specific details such as fireplaces, stairways, decks, etc. Details are drawn at 1/2" = 1' scale, and appear as needed throughout the prints.
Building Section: Shows a cross-section of the home. Shows support members, exterior and interior materials, insulation, and foundation.
Electrical Plan: A schematic layout of all lighting, switches, and electrical outlets.

What's Not Included

Architectural or Engineering Stamp - handled locally, or use our structural engineering service if required
Site Plan - handled locally when required
Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
Energy calculations - handled locally when required
