Plan 69092AM Craftsman Plan full of Amenities

2,507 3 2.5 2 2
Print
Compare
...
All plans are copyrighted by our designers. Photographed homes may include modifications made by the homeowner with their builder.

Craftsman Plan full of Amenities

Plan 69092AM

  • 2,507

    Heated s.f.

  • 3

    Beds

  • 2.5

    Baths

  • 2

    Stories

  • 2

    Cars

  • Arts and Crafts touches, such as flared porch columns, board-and-batten siding, and overhanging eaves with brackets, distinguish the exterior of this home. A two-story central corridor, however, characterizes the interior. The two-story ceiling stretches from the foyer, past the U-shape staircase, to the great room. An upper-level balcony, which is visible from both spaces, tames the ceiling height by offering a midway focal point.
  • Formal and informal dining areas flank the kitchen. Each area features windows on two walls, making for sun-filled banquets. The kitchen has an angled peninsula counter with a snack bar and a pantry.
  • The master suite has all of the amenities you'll want, including a large window with rear view. A spa tub, dual-sink vanity, and walk-in closet outfit the bath. The main level also features a home office, a half bath, and a laundry room.
  • Older children will welcome the bedroom layout of the upper level, where two bedrooms are on opposite sides of the home for privacy. A study off the staircase landing provides an out-of-the-way place to read, study, or do homework.

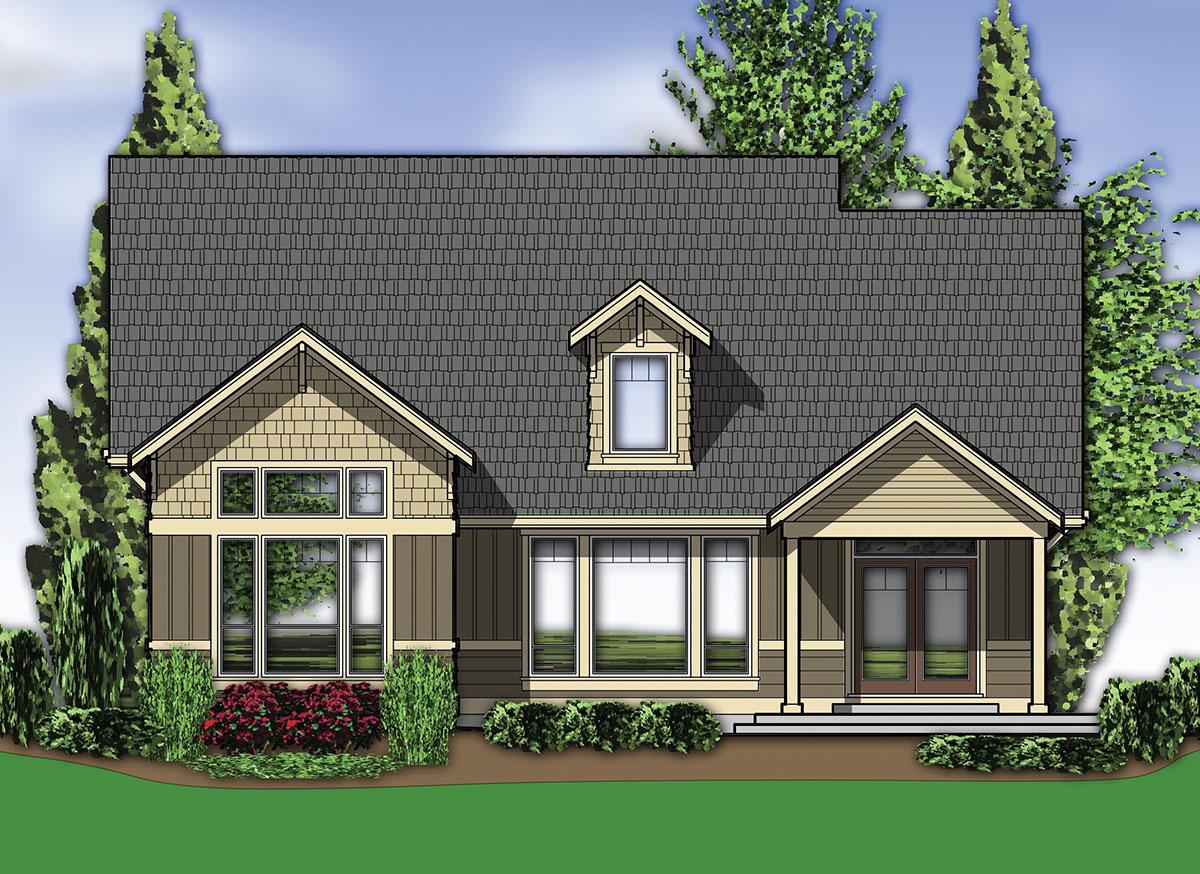

Exterior Elevations: In addition to the front exterior, your drawing set will include drawings of the rear and sides of your house as well. These drawings give notes on exterior materials and finishes. Particular attention is given to cornice detail, brick and stone accents, or other finish items that make your home unique.

Foundation Plan: The foundation page dimensions, concrete walls, footings, pads, posts, beams, bearing walls, and any stepped foundation information along with any retaining wall info (schematic only). A typical wall section for the home is also usually included on this page (if not, it is elsewhere in your plan set, as space allows). If your plan features a poured concrete slab rather than a basement or crawlspace, the foundation page shows footings and details for the slab, and includes plumbing locations.

Floor Plan(s): Exterior and interior wall framing, and windows/doors are dimensioned. Room sizes are indicated and any beams, posts and structural bearing points are called out. The floor plans include an electrical legend, and electrical fittings, lights and outlets are shown. Floor Plans will also indicate cross–section details (provided on the sections page) and show any special framing details applicable to the design. Cabinet elevations are included for kitchen and bathrooms; some designs feature cabinet elevations for design–related built–ins too.

Building Sections: Building sections show changes in floor, ceiling, or roof height, and the relationship of one level to another. Our section pages also show how the stairs are calculated (if there are some!) and depict roof and foundation members. We try and draw sections to show the most useful information — choosing locations where there are elements you or your contractor might need clarification on.

IMPORTANT NOTE:  Sections and elevations depict the standard foundation only.

Roof Plan: Roof framing or truss directions are shown, slope directions are indicated and structural members are sized and called out if applicable. The gravity loads used to calculate the rafters, beams and posts are indicated , and we also show gutters, downspouts, and any roof venting required for your home.

Notes and Details Page(s): Your home comes detailed to meet the requirements of the latest adopted version of the ‘International Residential Code’, and our notes and details pages outline all the elements applicable to the design of your home. Compliance with further standards may need to be incorporated into your plan set, depending on the requirements of your building department — these are usually done locally.


These items are NOT included:


  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

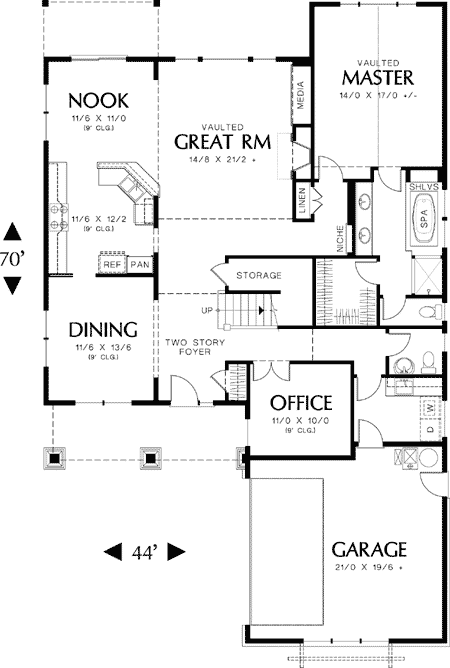

Craftsman Plan full of Amenities - 69092AM floor plan - Main Level

2nd Floor

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.
Craftsman Plan full of Amenities - 69092AM floor plan - 2nd Floor

Plan details

Square Footage Breakdown

  • Total Heated Area: 2,507 sq. ft.
  • 1st Floor: 1,879 sq. ft.
  • 2nd Floor: 628 sq. ft.

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 2
  • Half bathrooms: 1

Foundation Type

  • Standard Foundations: Slab, Crawl
  • Optional Foundations: Basement

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 44' 0"
  • Depth: 70' 0"
  • Max ridge height: 26' 6"

Garage

  • Type: Attached
  • Area: 455 sq. ft.
  • Count: 2 Cars
  • Entry Location: Courtyard

Ceiling Heights

  • Floor / Height: First Floor / 9' 0"

Roof Details

  • Framing Type: Truss

Architectural Style

Special features

Plan Collections

Craftsman Plan full of Amenities

  • 2,507

    Heated s.f.

  • 3

    Beds

  • 2.5

    Baths

  • 2

    Floors

  • 2

    Car garage

Buy This Plan
  • PDF - Single-Build $1,573
  • 5 Sets $1,773
  • 5 Sets + PDF $1,823
  • CAD + PDF - Unlimited Build $3,146
  • View all purchase option online

About This Plan

  • Arts and Crafts touches, such as flared porch columns, board-and-batten siding, and overhanging eaves with brackets, distinguish the exterior of this home. A two-story central corridor, however, characterizes the interior. The two-story ceiling stretches from the foyer, past the U-shape staircase, to the great room. An upper-level balcony, which is visible from both spaces, tames the ceiling height by offering a midway focal point.
  • Formal and informal dining areas flank the kitchen. Each area features windows on two walls, making for sun-filled banquets. The kitchen has an angled peninsula counter with a snack bar and a pantry.
  • The master suite has all of the amenities you'll want, including a large window with rear view. A spa tub, dual-sink vanity, and walk-in closet outfit the bath. The main level also features a home office, a half bath, and a laundry room.
  • Older children will welcome the bedroom layout of the upper level, where two bedrooms are on opposite sides of the home for privacy. A study off the staircase landing provides an out-of-the-way place to read, study, or do homework.

Floor Plans

  • Main Level

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total Heated Area: 2,507 sq. ft.
  • 1st Floor: 1,879 sq. ft.
  • 2nd Floor: 628 sq. ft.

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 2
  • Half bathrooms: 1

Foundation Type

    • Standard Foundations: Slab, Crawl
    • Optional Foundations: Basement

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 44' 0"
  • Depth: 70' 0"
  • Max ridge height: 26' 6"

Garage

  • Type: Attached
  • Area: 455 sq. ft.
  • Count: 2 Cars
  • Entry Location: Courtyard

Ceiling Heights

  • Floor / Height: First Floor / 9' 0"

Roof

  • Framing Type: Truss
Plan 69092AM
View this and more for this plan by visiting www.architechtecturaldesigns.com/69092AM
|
