Craftsman Plan with Grand Staircase

Plan 69346AM

  • 2,170

    Heated s.f.

  • 3

    Beds

  • 2.5

    Baths

  • 2

    Stories

  • 2

    Cars

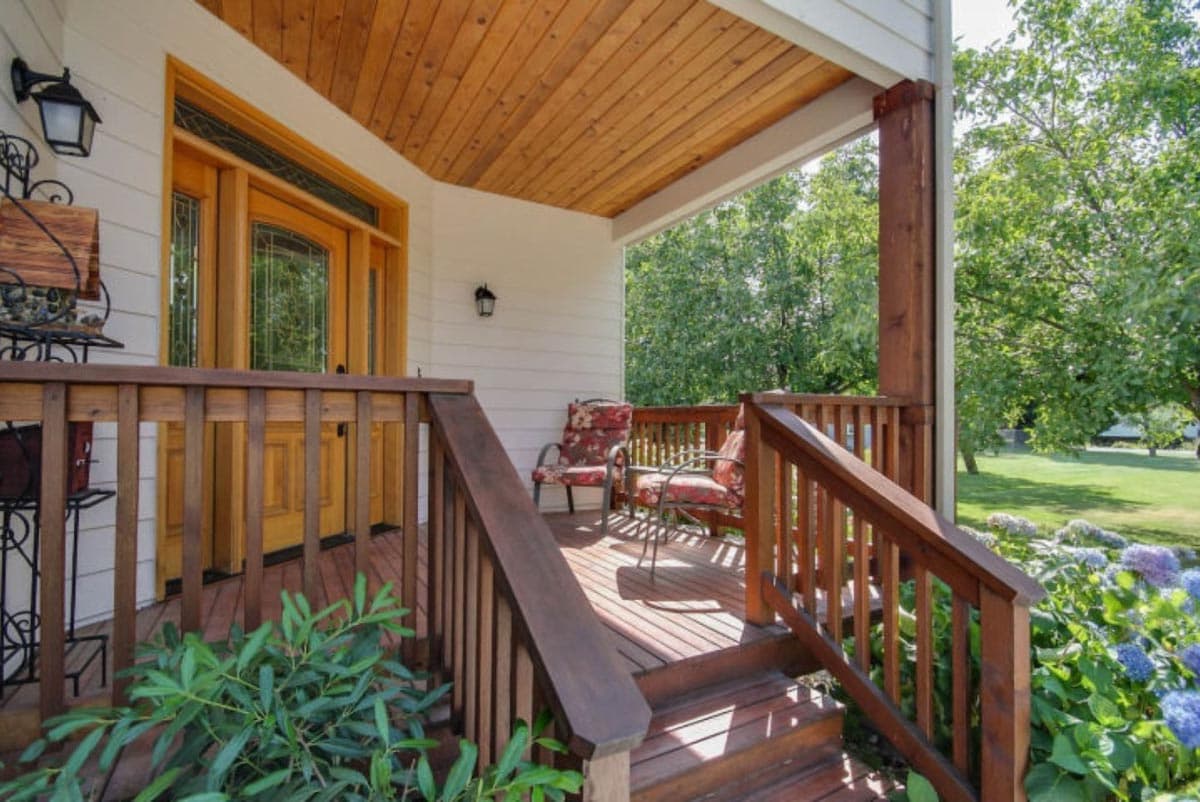

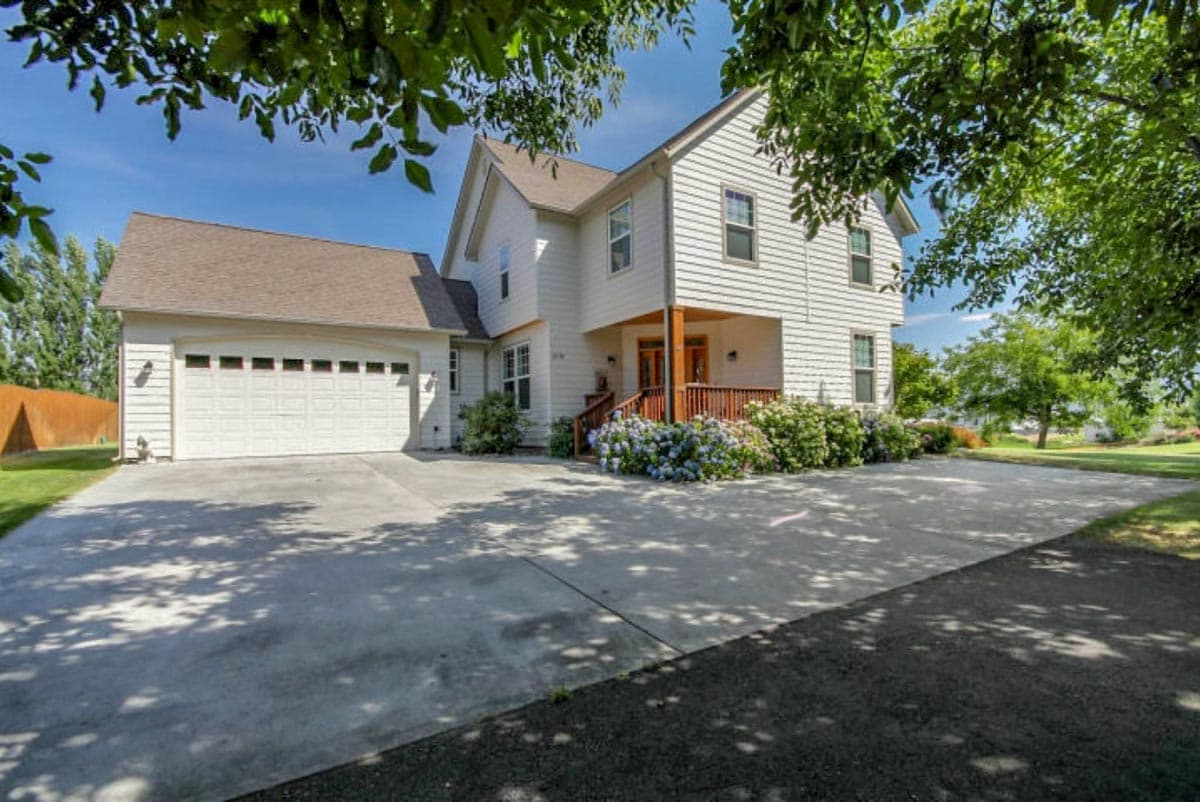

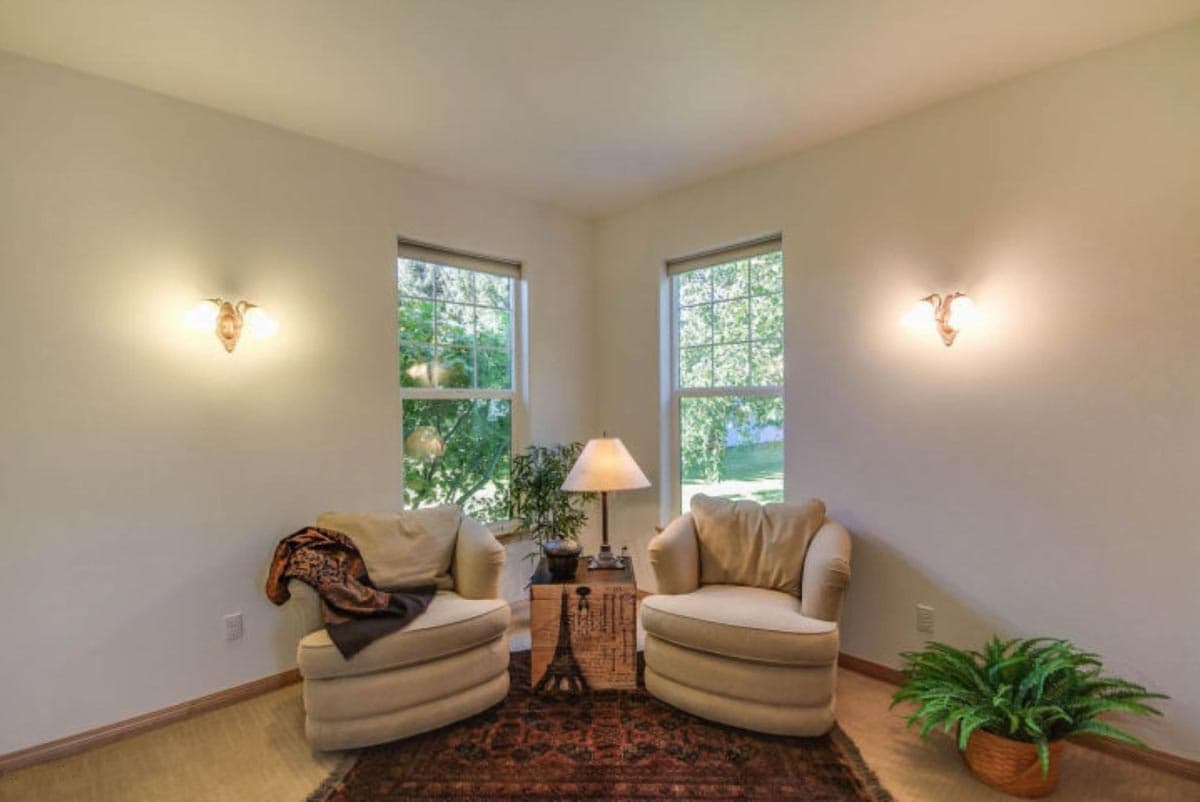

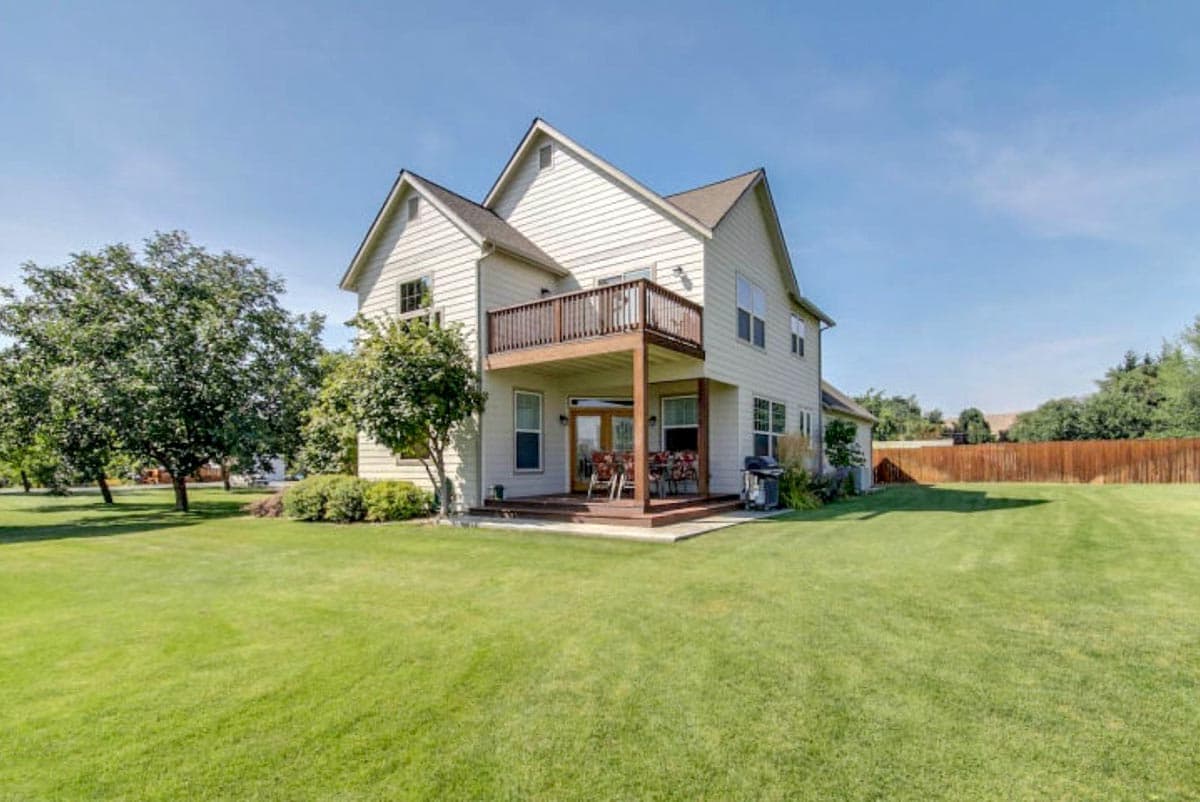

  • A front porch is delightful-but this home plan has a back porch too! The house also features tall ceilings, a formal foyer with a coat closet, and a grand staircase. Furnish the double-doored room off the entrance as a formal parlor or reserve it as an office or den, complete with storage closet.

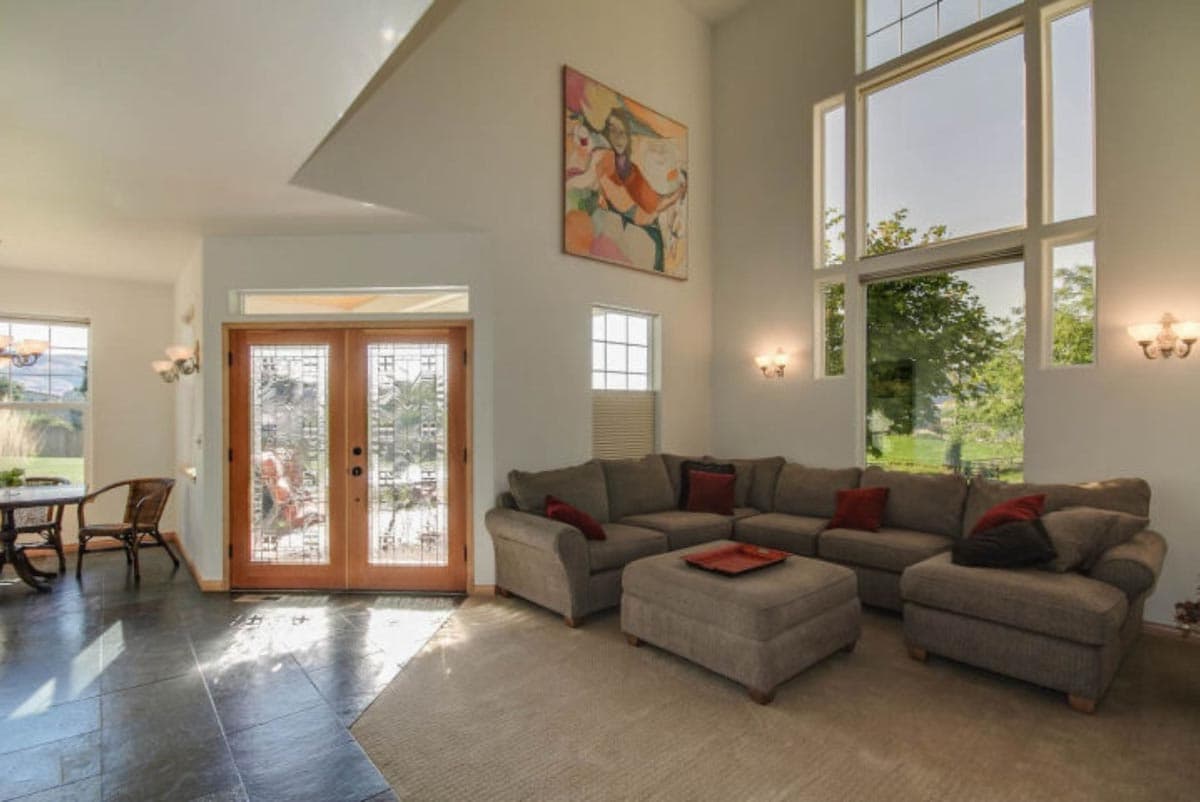

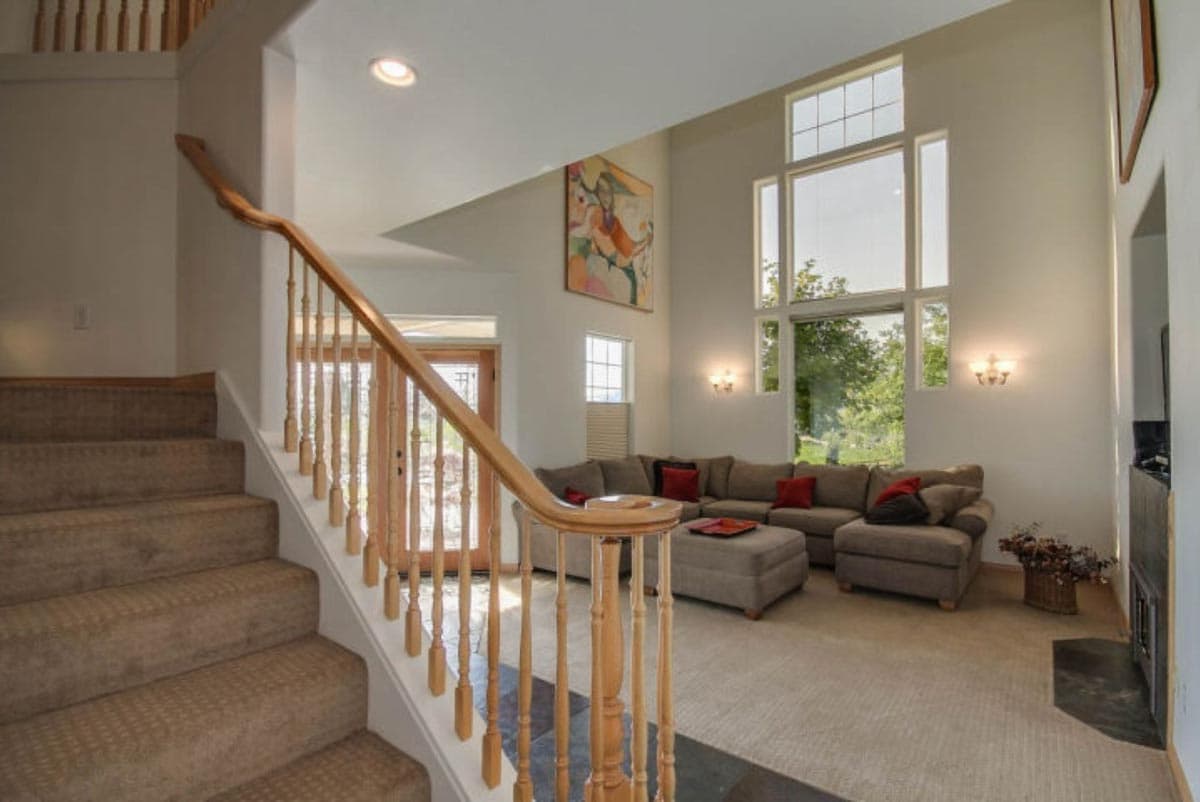

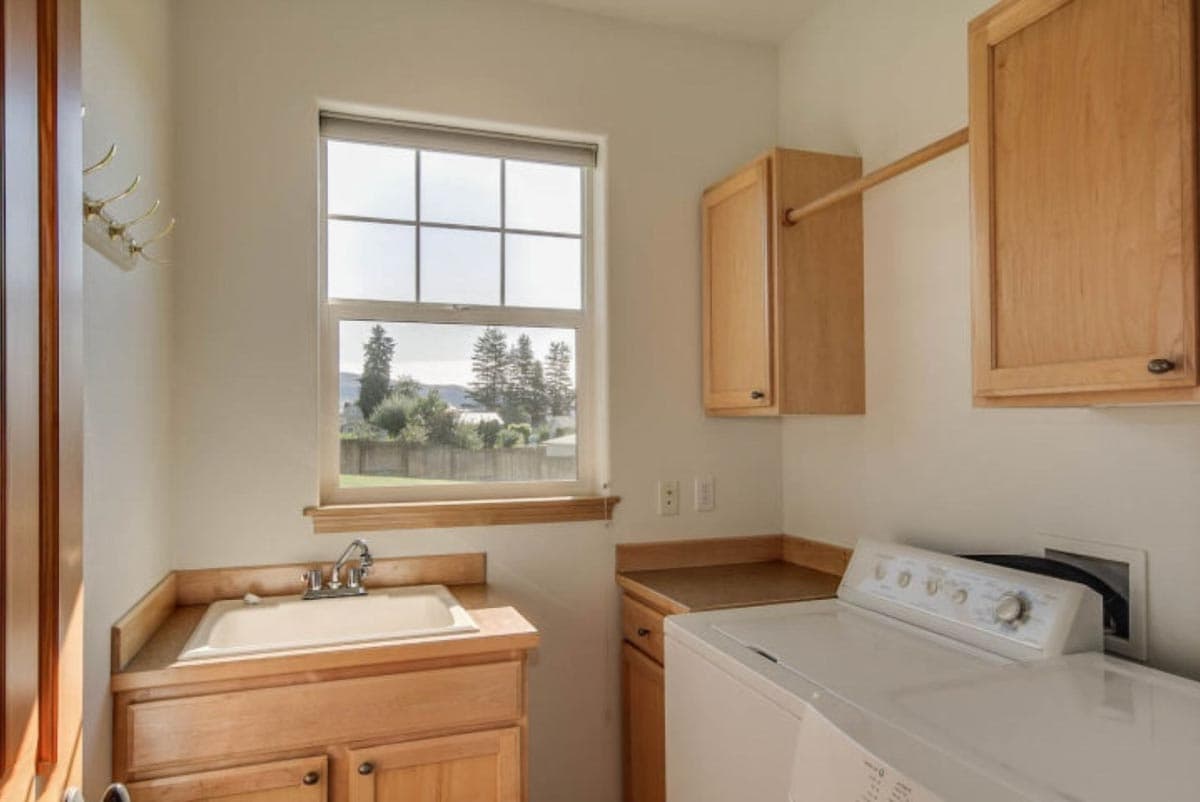

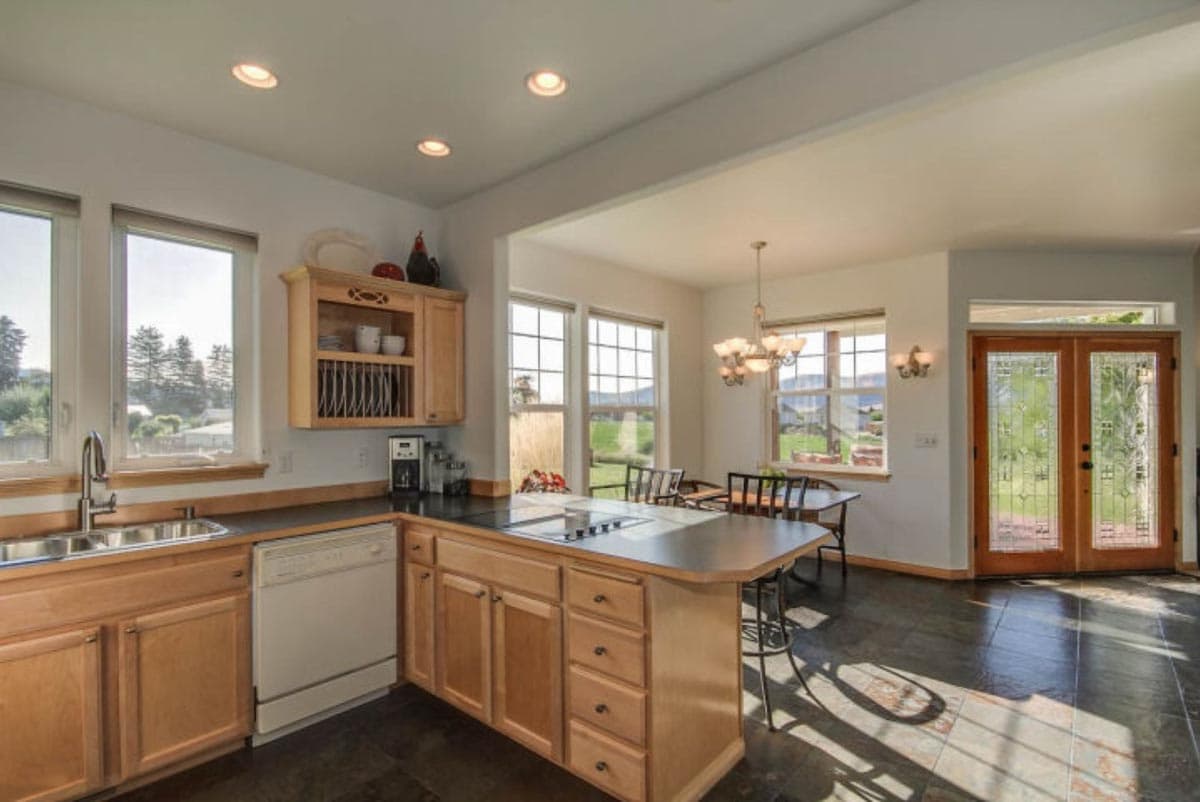

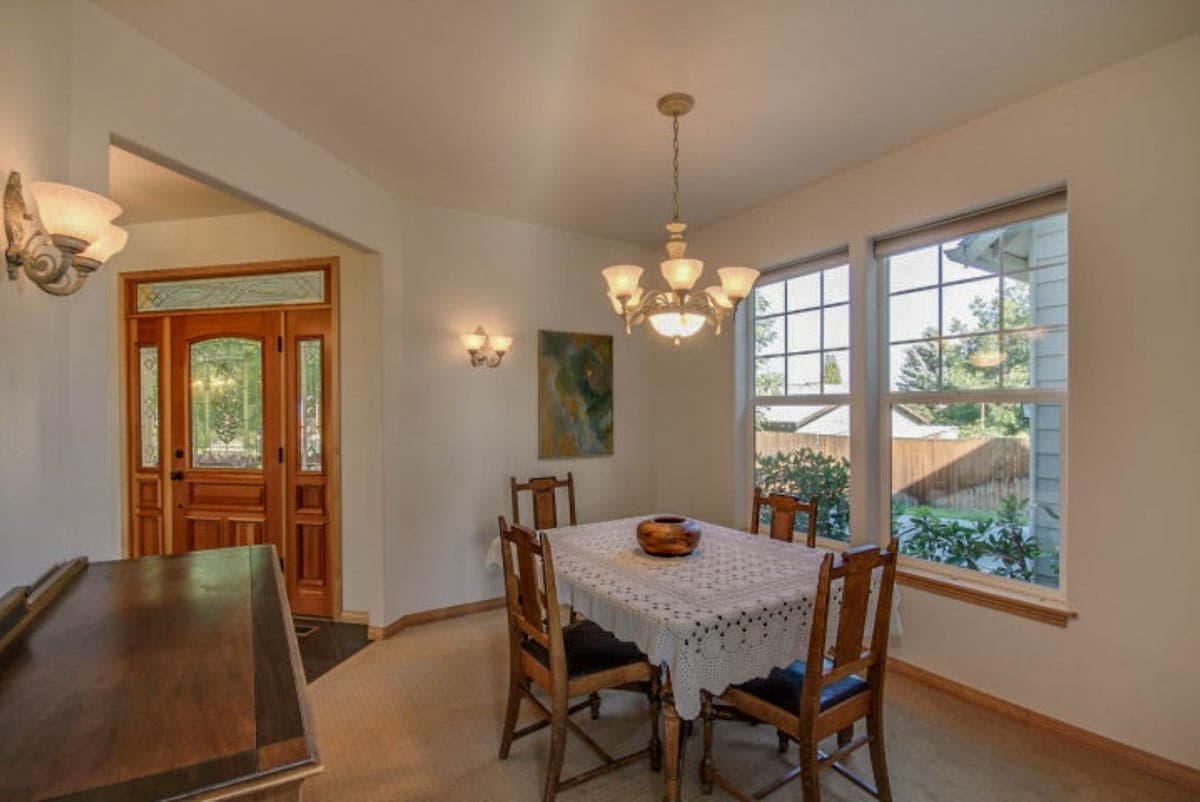

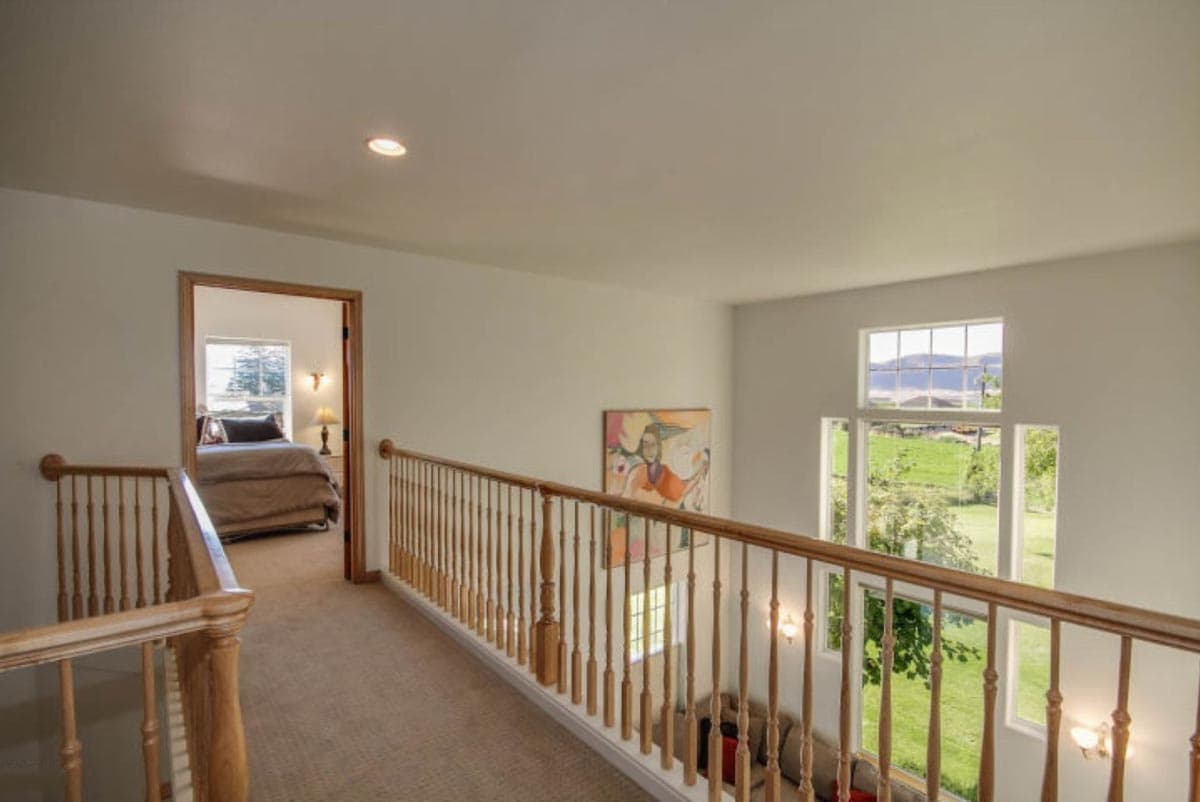

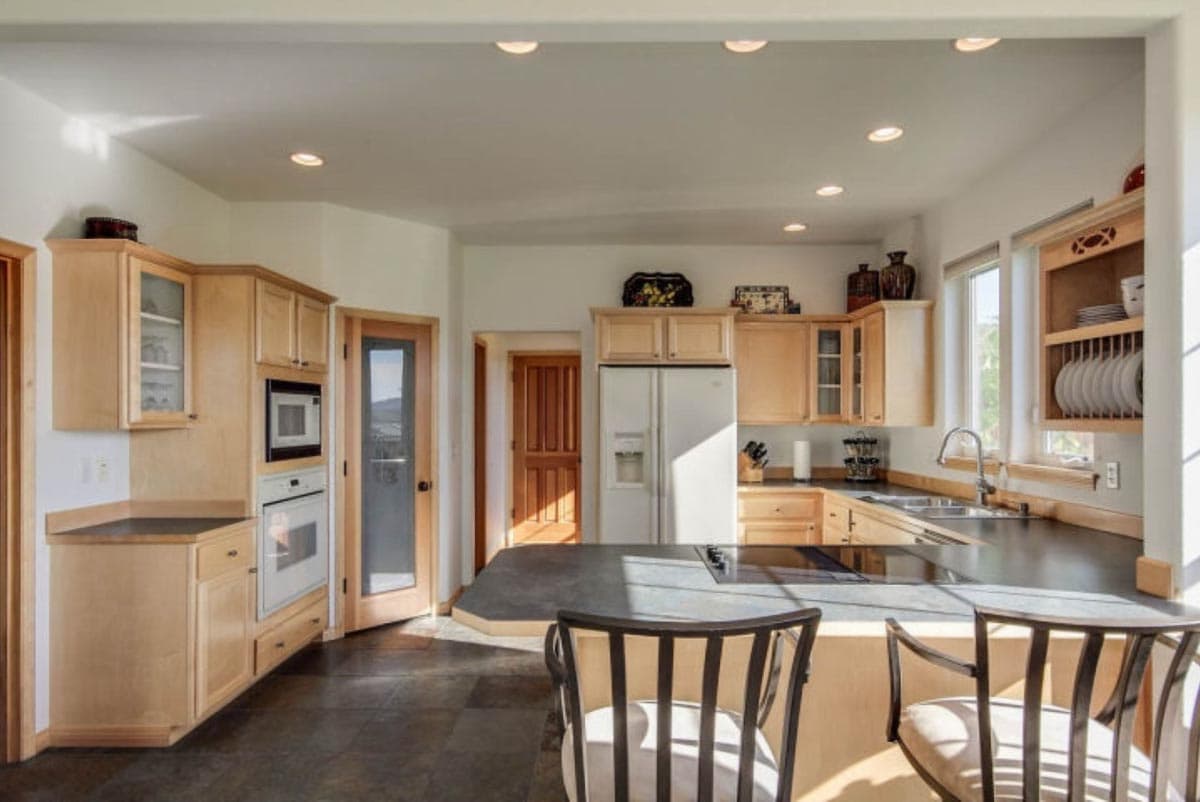

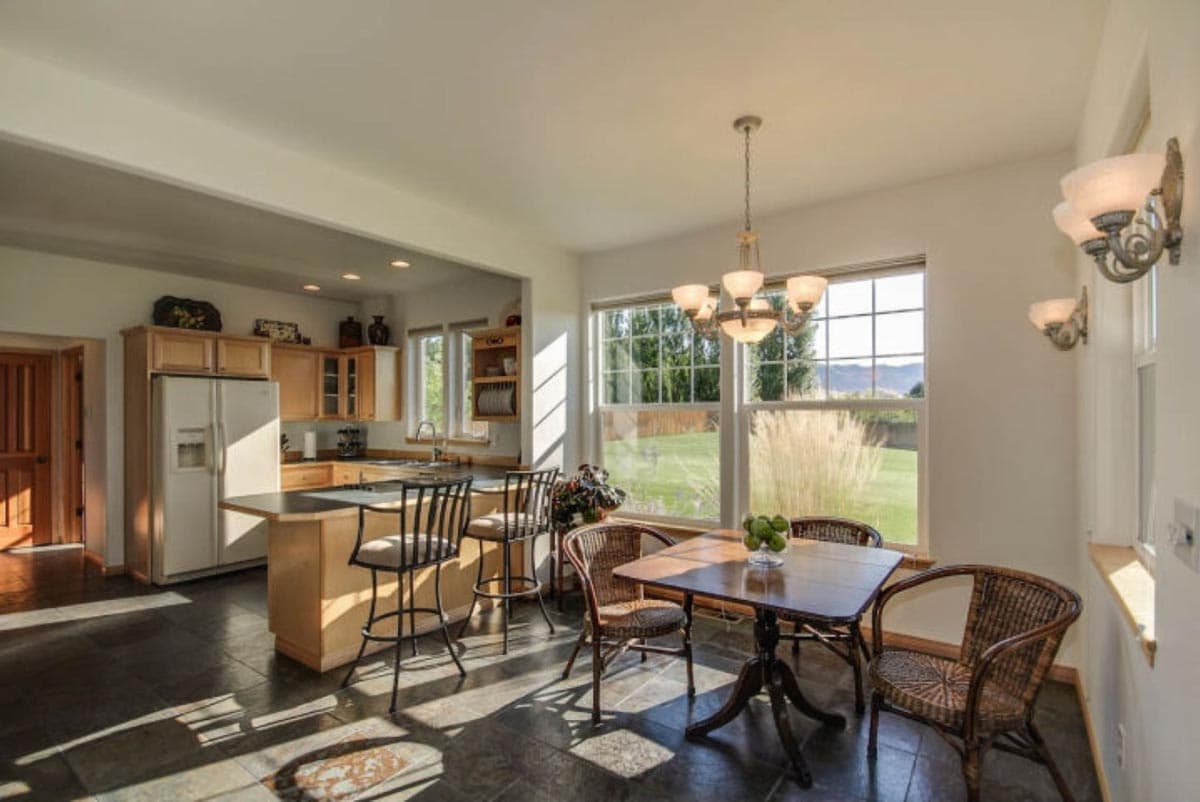

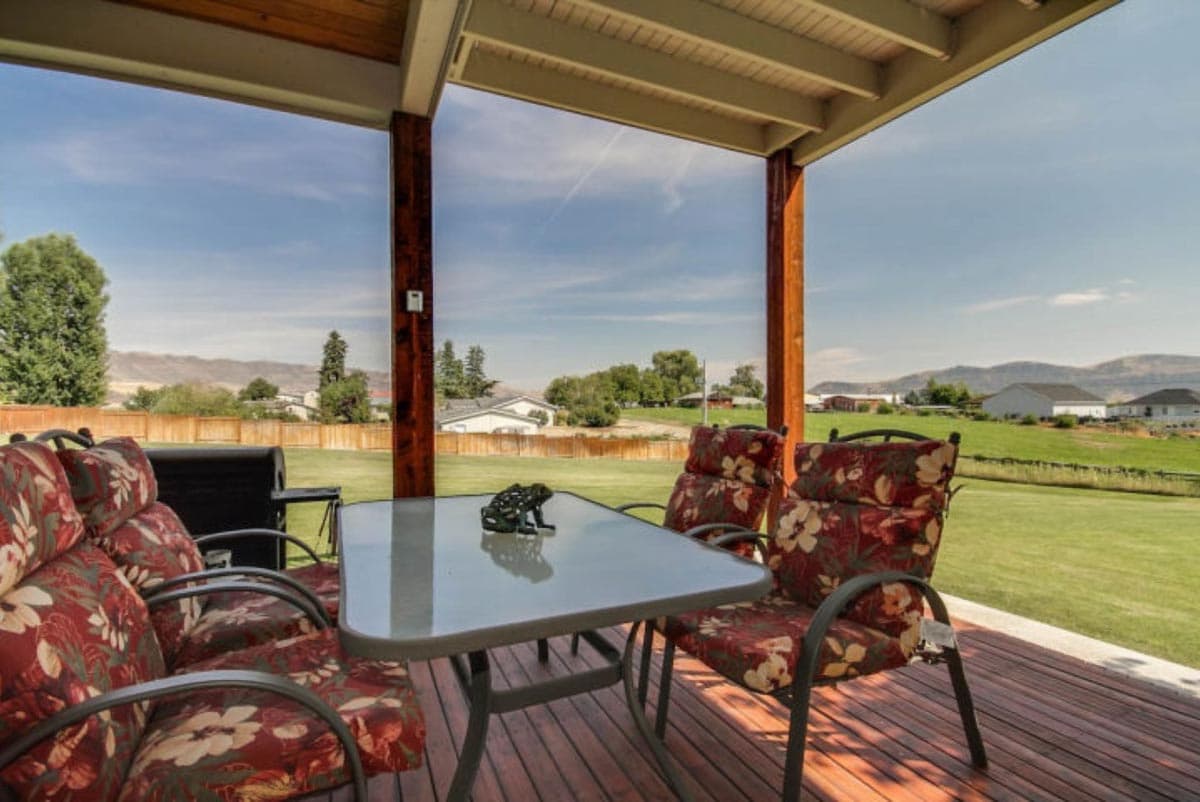

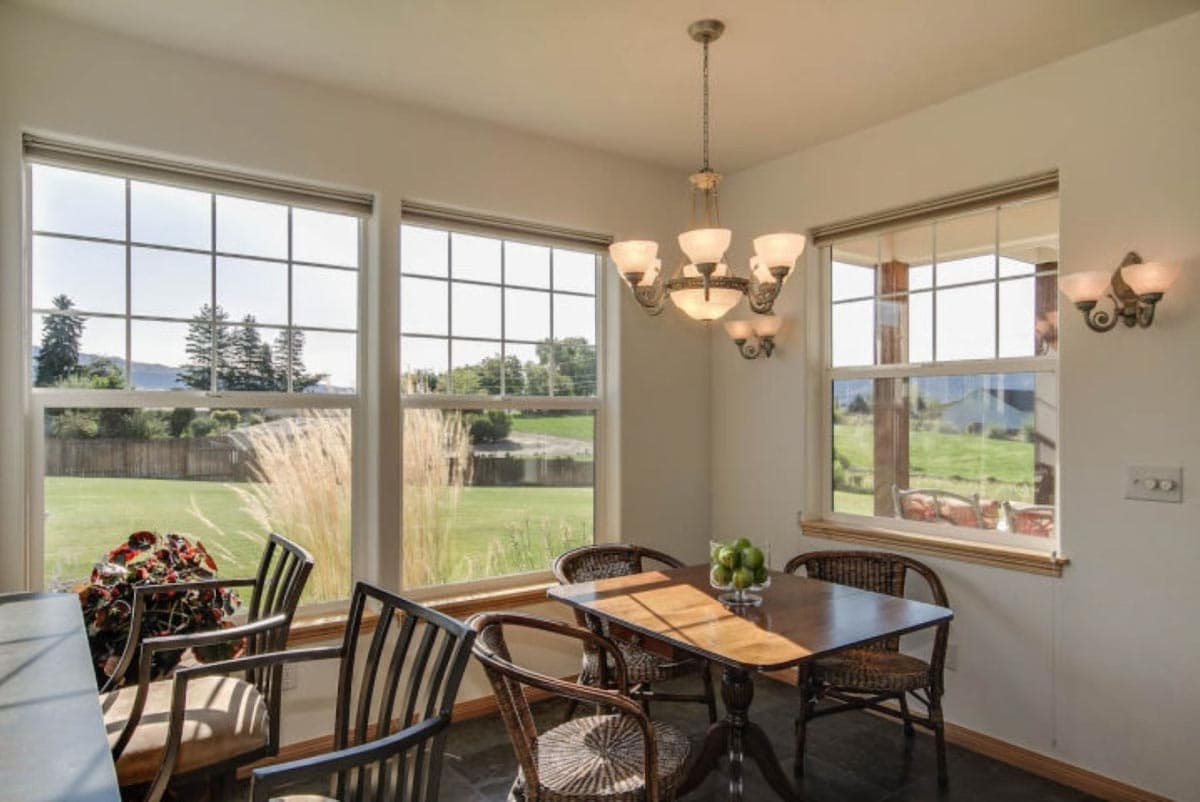

  • Two stories high, the spectacular great room offers a view from above, a built-in media center, corner fireplace, and a wall of windows. French doors lead to the back porch. The adjacent eating area is enveloped in windows, overlooking the back yard and the porch. The kitchen is open, but sheltered from traffic in the great room. It features a cooktop island and snack bar, a walk-in corner pantry, and convenient service to the formal dining room and the bright eating nook. Passage from the garage is through a hall, flanked by the full-service laundry room and a powder room.

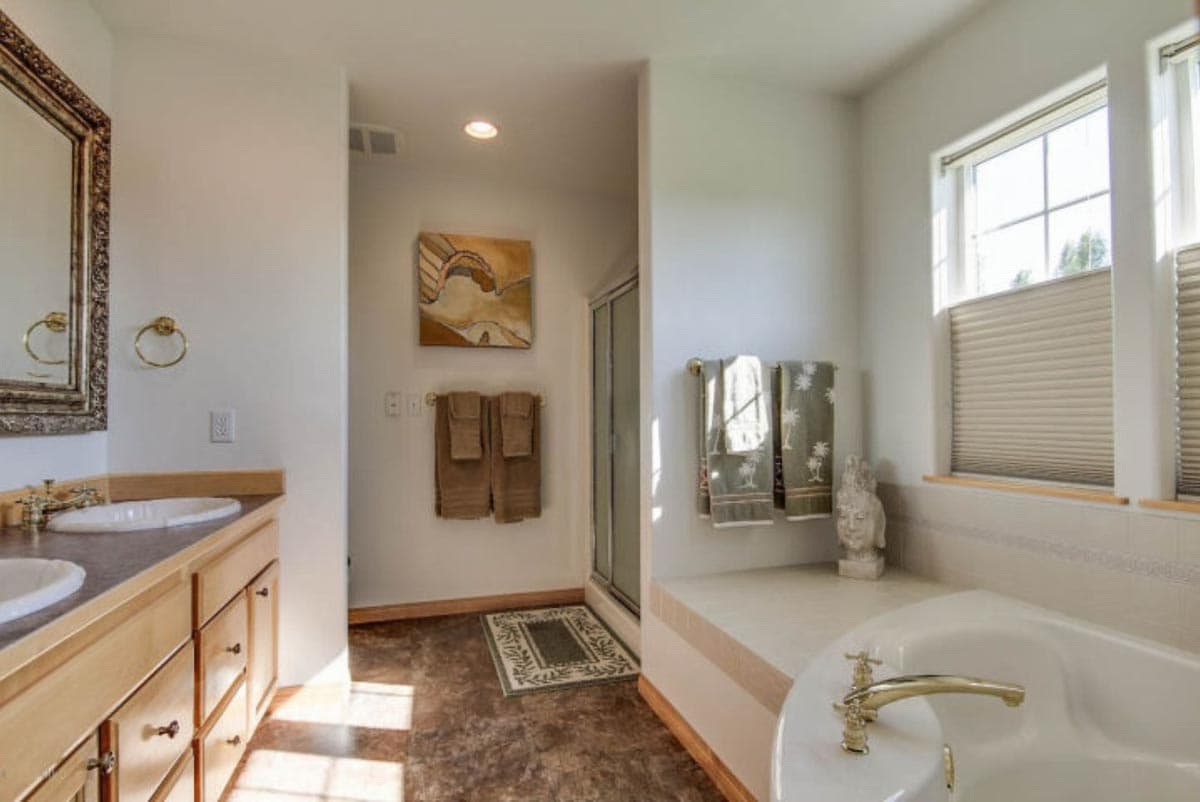

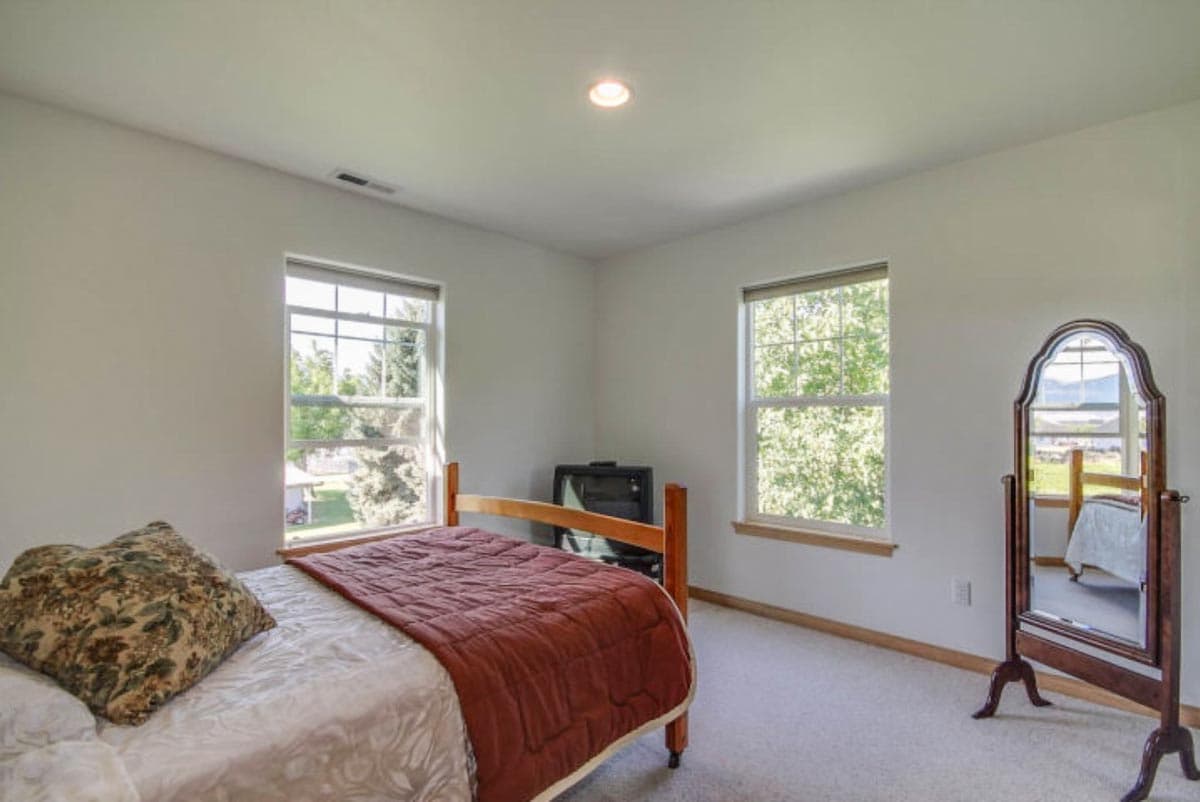

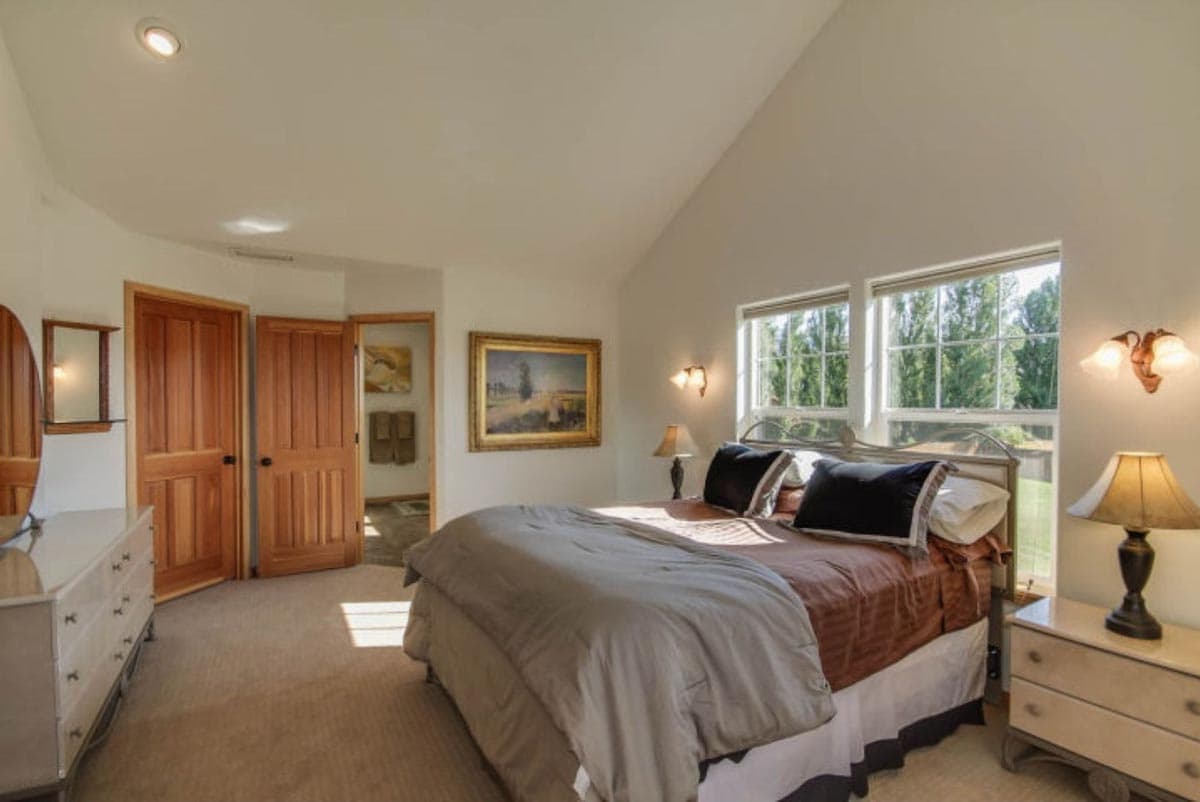

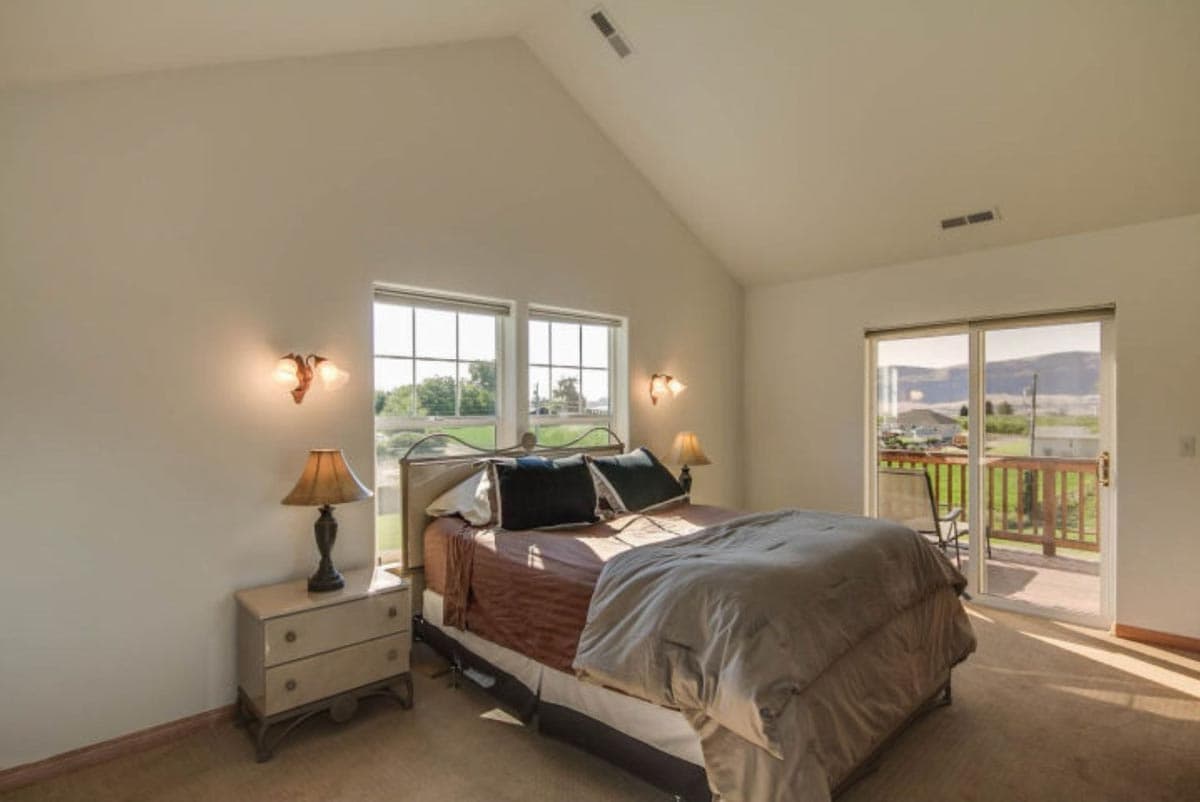

  • Designed for pampering, the upstairs master bedroom is spacious enough to accommodate sleeping and sitting areas.

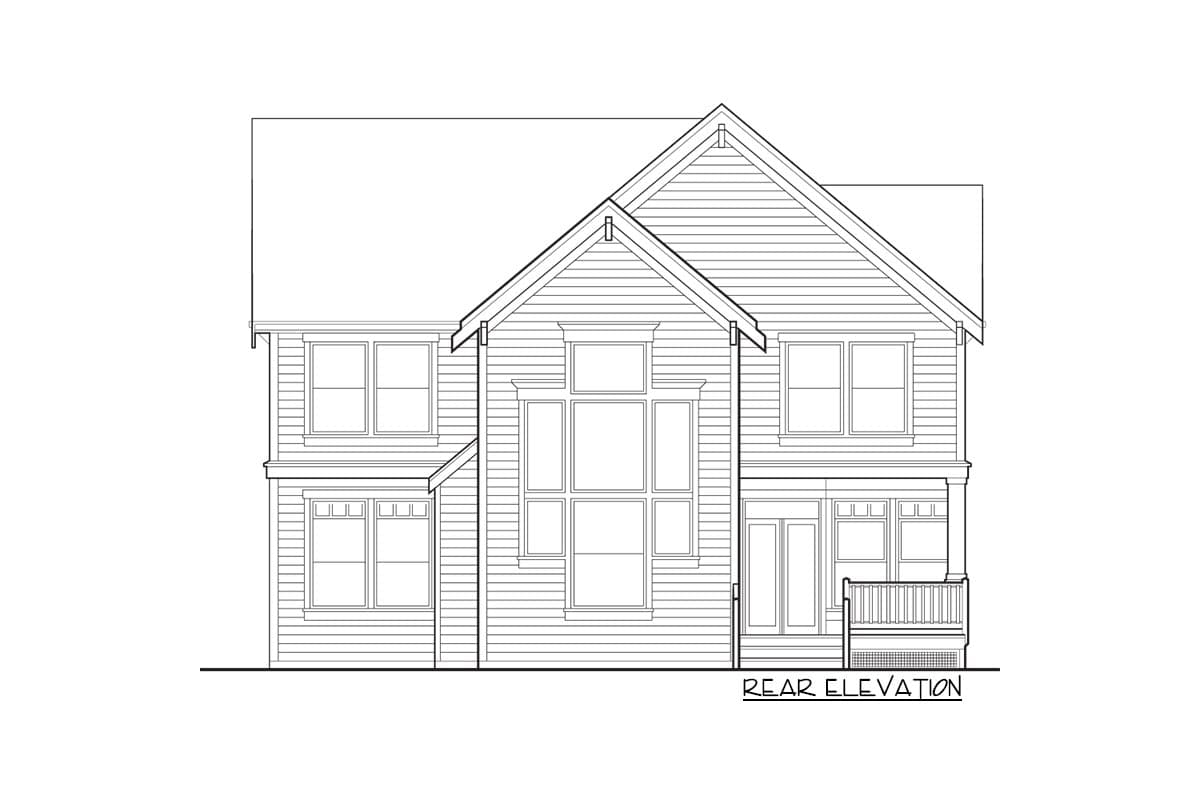

Exterior Elevations: In addition to the front exterior, your drawing set will include drawings of the rear and sides of your house as well. These drawings give notes on exterior materials and finishes. Particular attention is given to cornice detail, brick and stone accents, or other finish items that make your home unique.

Foundation Plan: The foundation page dimensions, concrete walls, footings, pads, posts, beams, bearing walls, and any stepped foundation information along with any retaining wall info (schematic only). A typical wall section for the home is also usually included on this page (if not, it is elsewhere in your plan set, as space allows). If your plan features a poured concrete slab rather than a basement or crawlspace, the foundation page shows footings and details for the slab, and includes plumbing locations.

Floor Plan(s): Exterior and interior wall framing, and windows/doors are dimensioned. Room sizes are indicated and any beams, posts and structural bearing points are called out. The floor plans include an electrical legend, and electrical fittings, lights and outlets are shown. Floor Plans will also indicate cross–section details (provided on the sections page) and show any special framing details applicable to the design. Cabinet elevations are included for kitchen and bathrooms; some designs feature cabinet elevations for design–related built–ins too.

Building Sections: Building sections show changes in floor, ceiling, or roof height, and the relationship of one level to another. Our section pages also show how the stairs are calculated (if there are some!) and depict roof and foundation members. We try and draw sections to show the most useful information — choosing locations where there are elements you or your contractor might need clarification on.

IMPORTANT NOTE:  Sections and elevations depict the standard foundation only.

Roof Plan: Roof framing or truss directions are shown, slope directions are indicated and structural members are sized and called out if applicable. The gravity loads used to calculate the rafters, beams and posts are indicated , and we also show gutters, downspouts, and any roof venting required for your home.

Notes and Details Page(s): Your home comes detailed to meet the requirements of the latest adopted version of the ‘International Residential Code’, and our notes and details pages outline all the elements applicable to the design of your home. Compliance with further standards may need to be incorporated into your plan set, depending on the requirements of your building department — these are usually done locally.

Floor Plan

Plan details

Architectural Style

Plan Collections



Craftsman Plan with Grand Staircase

  • 2,170

    Heated s.f.

  • 3

    Beds

  • 3

    Baths

  • 2

    Floors

  • 2

    Car garage

Buy This Plan
  • Digital Study Set $786
  • PDF - single-use $1,136
  • 5 Sets $1,286
  • 5 Sets PLUS $1,336
  • CAD - multi-use $2,272
  • View all purchase option online

About This Plan

  • A front porch is delightful-but this home plan has a back porch too! The house also features tall ceilings, a formal foyer with a coat closet, and a grand staircase. Furnish the double-doored room off the entrance as a formal parlor or reserve it as an office or den, complete with storage closet.
  • Two stories high, the spectacular great room offers a view from above, a built-in media center, corner fireplace, and a wall of windows. French doors lead to the back porch. The adjacent eating area is enveloped in windows, overlooking the back yard and the porch. The kitchen is open, but sheltered from traffic in the great room. It features a cooktop island and snack bar, a walk-in corner pantry, and convenient service to the formal dining room and the bright eating nook. Passage from the garage is through a hall, flanked by the full-service laundry room and a powder room.
  • Designed for pampering, the upstairs master bedroom is spacious enough to accommodate sleeping and sitting areas.

Floor Plans

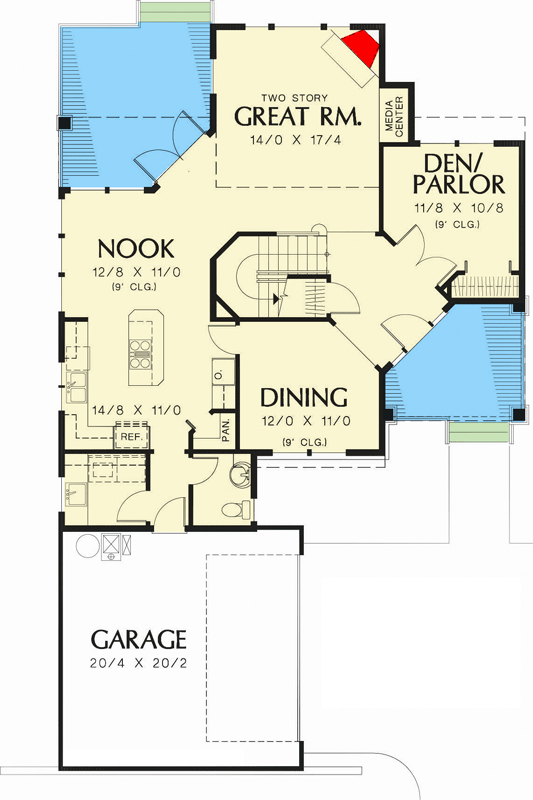

  • Main Level

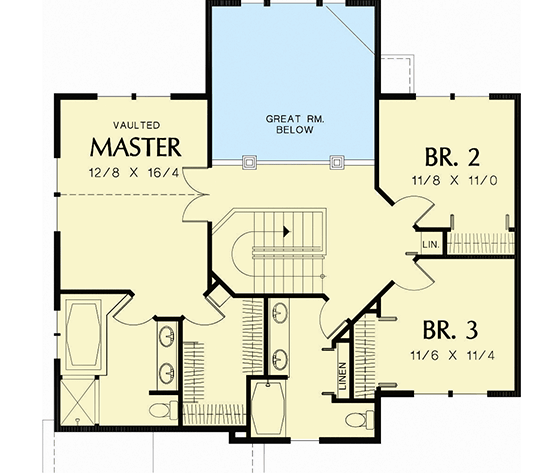

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total Heated Area: 2,170 sq. ft.
  • 1st Floor: 1,176 sq. ft.
  • 2nd Floor: 994 sq. ft.

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 2
  • Half bathrooms: 1

Foundation Type

    • Standard Foundations: Crawl
    • Optional Foundations: Basement, Slab

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 40' 0"
  • Depth: 64' 0"
  • Max ridge height: 31' 0"

Garage

  • Type: Attached
  • Area: 410 sq. ft.
  • Count: 2 Cars
  • Entry Location: Courtyard

Ceiling Heights

  • Floor / Height: First Floor / 9' 0"

Roof

  • Framing Type: Truss
