Craftsman Plan with Vaulted Great Room and Master Suite Fireplace - 2613 Sq Ft
Heated S.F.
2,613
Beds
3
Baths
2.5
Stories
2
Cars
2
Plan Details
  • This 2,613 square foot house plan gives you 3 beds, 2.5 baths and a 2-car front garage (834 sq. ft.). The exterior has an attractive mix of clapboard, stone and shakes.
  • The front door is set in the center of the 6'-deep front porch and opens to the foyer with view of the two-story great room ahead. Sliding doors on the back wall open to the 22' by 16' covered deck with an open decks to either side.
  • The dining room is open to the great room and the kitchen with island and walk-in pantry. A door opens to the mud room which connects to the 2-car garage.
  • On the right, the master suite with fireplace opens to a back deck and has a five-fixture bath and a walk-in closet. Upstairs, two more bedrooms share a bath and are separated by a loft open to the great room below.
  • Walk upstairs to the loft area overlooking the great room, in-between two bedrooms that share a bath and storage space.

What's Included

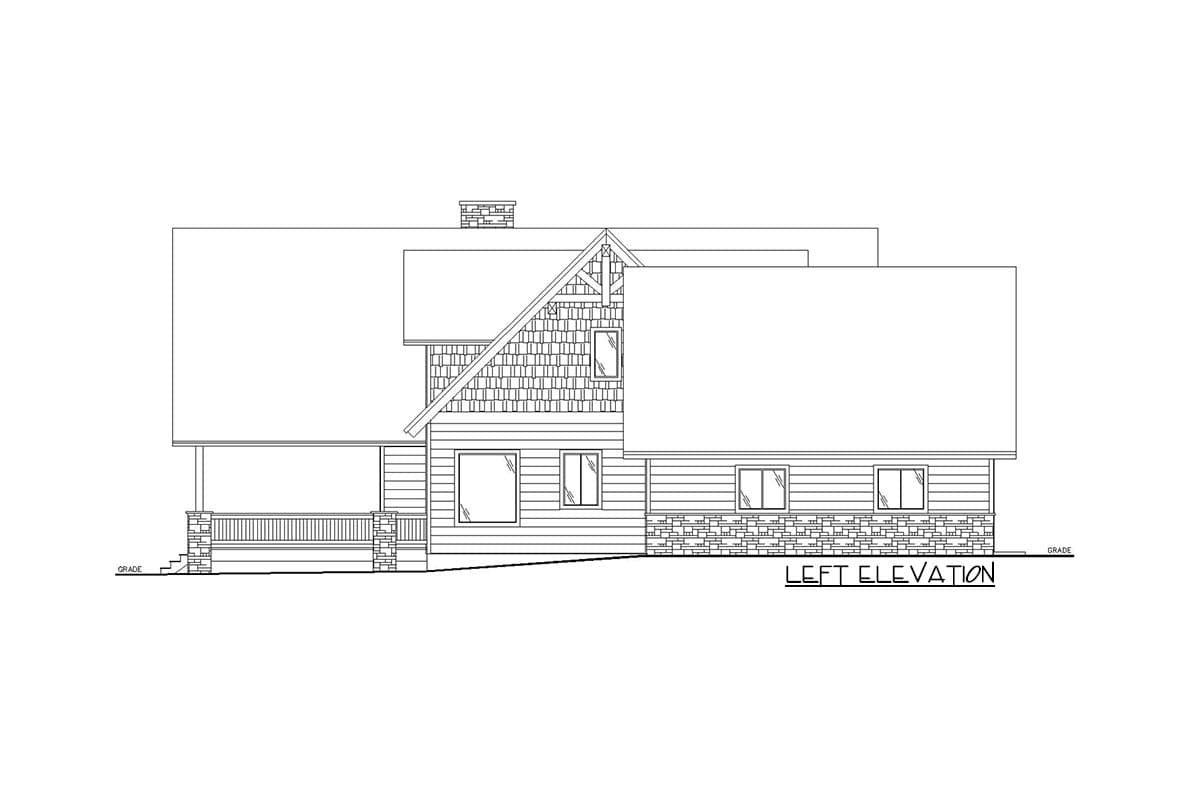

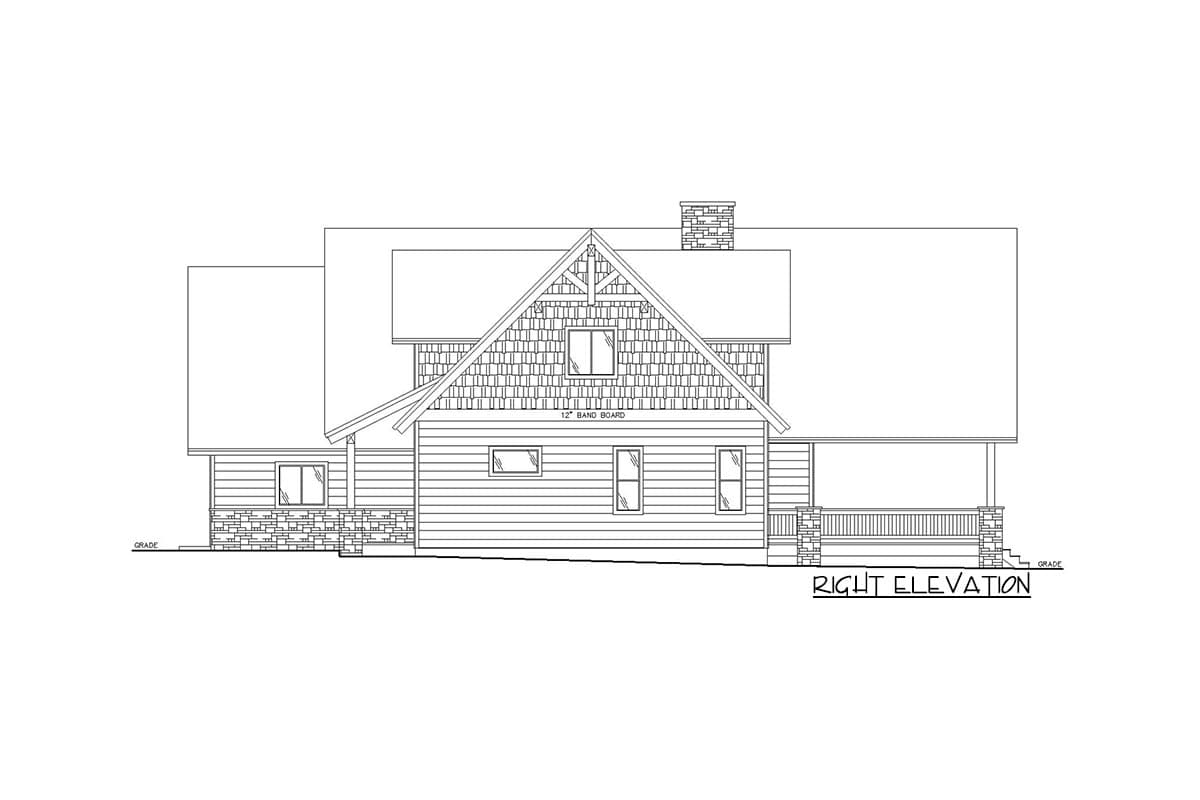

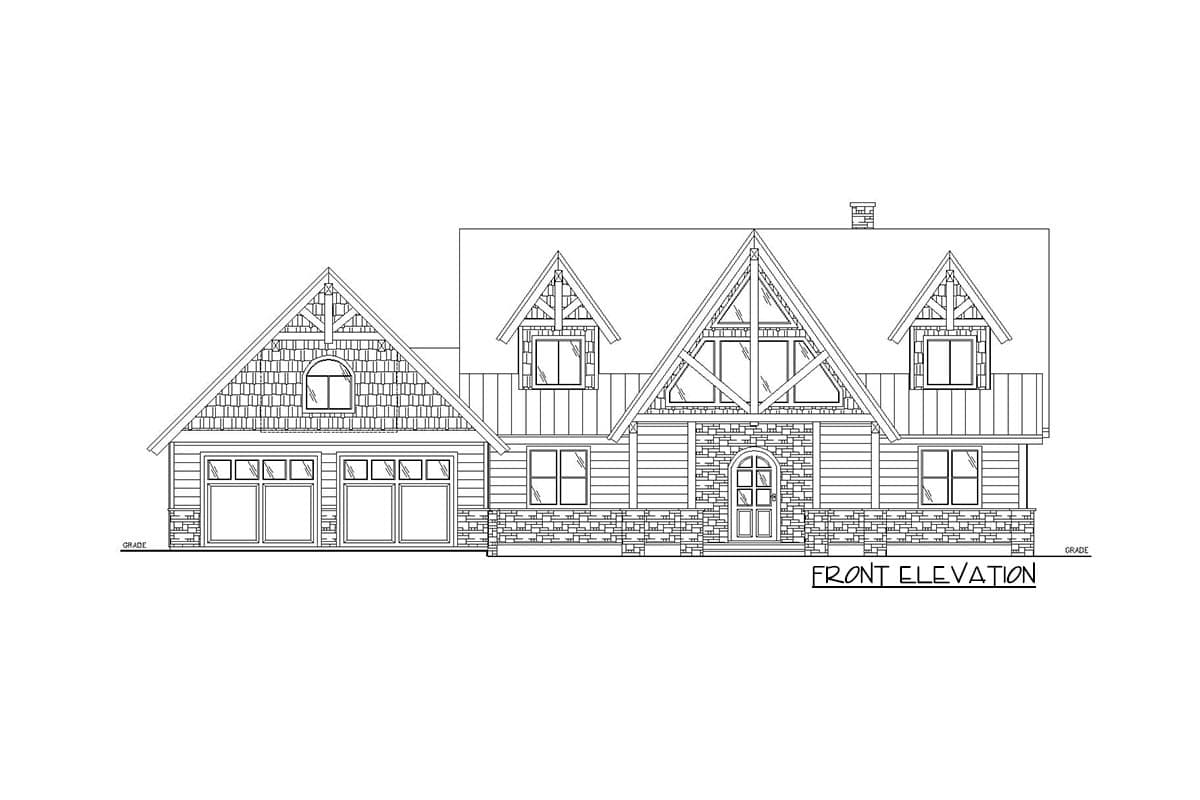

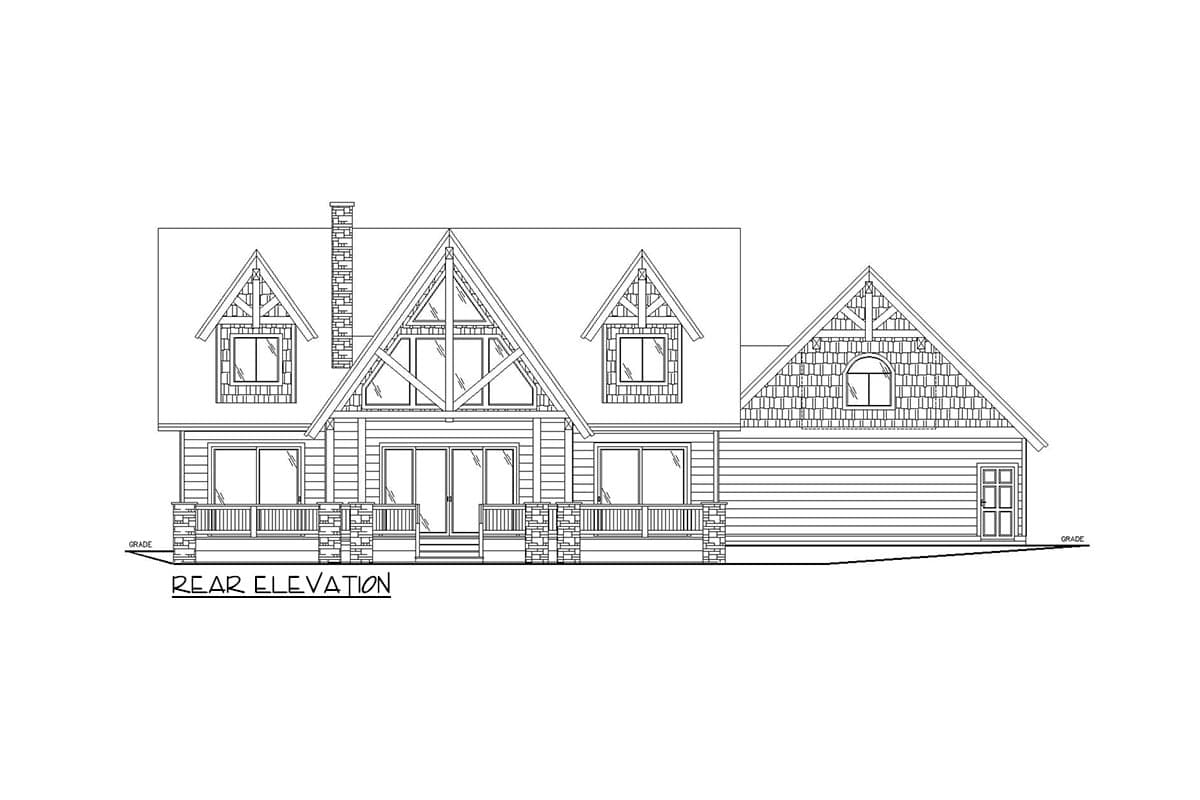

  • Exterior Elevations:  The exterior elevations provide exterior views of the house and call out the exterior finish materials, such as siding, stucco, brick, stone, etc. This page also shows roof pitches and materials, and decorative elements, such as columns and window shutters. Sometimes window and door sizes are also shown here.
  • Floor Plans:  The floor plan shows how each room is laid out on each floor of the house. In most cases, the floor plan will include wall sizes, room dimensions, notes about ceiling design, window and door locations and sizes, and other structural layout notes and details.
  • Foundation Plan: This page provides a detailed foundation drawing, including the thickness of the foundation walls, how the foundation is built, footing and wall placement, Rebar schedule, as well as other construction notes and details. This page may also include a floor framing plan.
  • Cross Sections: Cross sections are views from the top to the bottom of the house plan showing structural details related to the construction of the home. They will show the composition of the foundation, interior and exterior walls, roof, floor and stair details. They also show rooflines, ceiling heights, and the relationships between floors. Cross sections may be on a separate page or on various pages throughout the home plan.
  • Basic Electric: This page shows the locations of outlets, switches, and fixtures. It may be on a separate page, or located on the floor plan page.
  • Simple Plumbing: This page shows the locations of the bathtubs, showers, toilets, and sinks. This may be found on the floor plan, or it might be on a separate page.
  • Details: This page includes the structural details for the construction of the house.
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
* Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

Craftsman Plan with Vaulted Great Room and Master Suite Fireplace - 2613 Sq Ft

  • 2,613

    Heated s.f.

  • 3

    Beds

  • 2.5

    Baths

  • 2

    Floors

  • 2

    Car garage

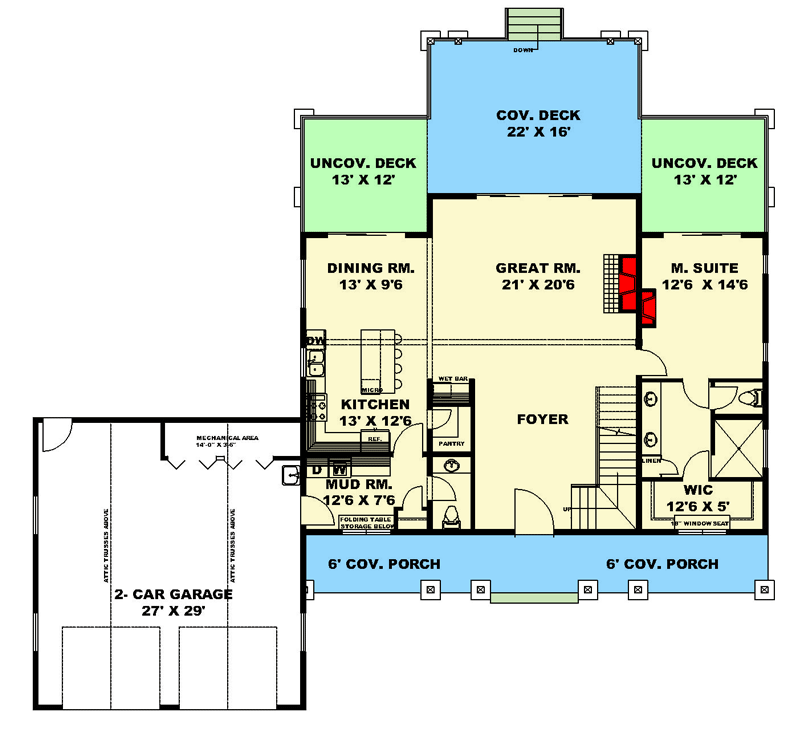

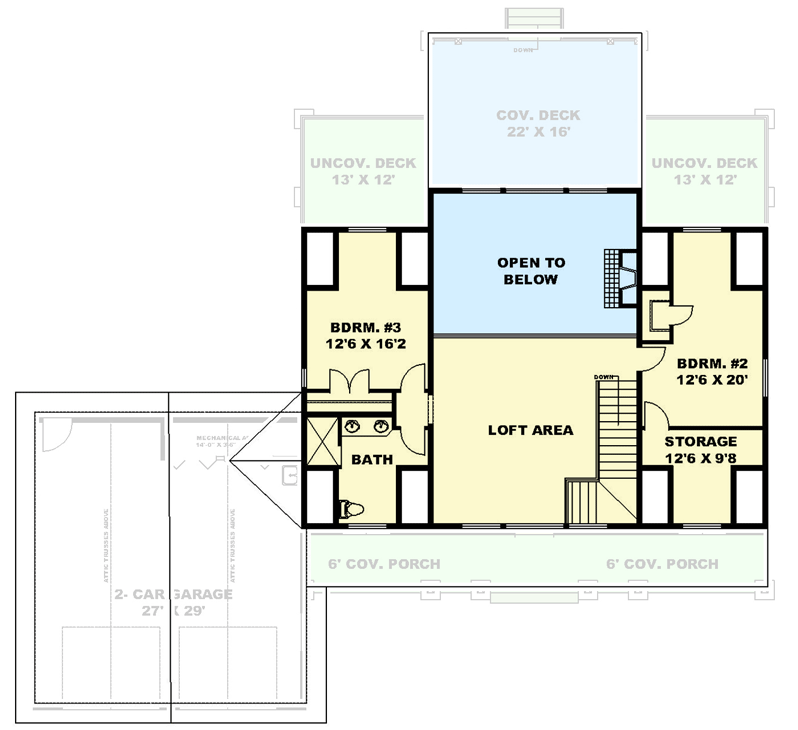

Floor Plan

  • Main Level

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total: 2,613 sq. ft.
  • 1st Floor: 1,576 sq. ft.
  • 2nd Floor: 1,037 sq. ft.

Dimensions

  • Width: 75' 6"
  • Depth: 53' 0"
  • Max ridge height: 28' 10"

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 2
  • Half bathrooms: 1

Garage

  • Type: Attached
  • Area: 834 sq. ft.
  • Count: 2 Cars
  • Entry Location: Front

Foundation Type

    • Standard Foundations: Crawl

Exterior Walls

  • Standard Type(s): 2x6

Ceiling Heights

  • Floor / Height: First Floor / 10' 1"

Roof

  • Primary Pitch: 17 on 12
  • Secondary Pitch: 12 on 12
  • Framing Type: Stick And Truss
