Plan 57306HA

Craftsman Ranch Home Plan

Heated S.F.
1,994
Beds
3
Baths
2
Stories
1
Cars
2

Floor Plan

Plan 57306HA

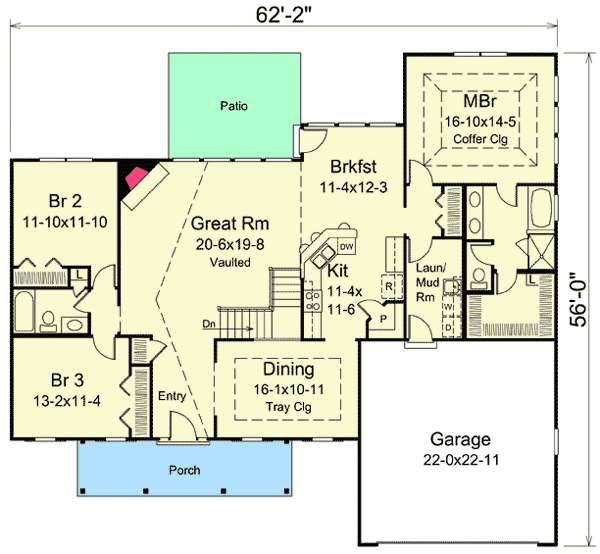

Main Level
Main Level

Plan 57306HA

M-F 9am-5pm EST |

1-203-761-8500

Main Level

Plan 57306HA: Craftsman Ranch Home Plan - Floor Plan - Main Level - Craftsman, Northwest, Ranch

Plan Details

  • Craftsman touches on this Ranch home heightens the curb appeal.
  • Every room is a good size while still coming in at under 2,000 square feet of finished living space.
  • A vaulted ceiling makes the great room feel even larger.
  • The corner fireplace can be seen from the kitchen and breakfast nook due to the open layout.
  • The master suite receives special treatment with its tray ceiling and secluded location.

What's Included

  • Front Cover Sheet
  • Detailed Floor Plans
  • Foundation Plan
  • Roof Plan
  • Exterior Elevations
  • Interior Elevations
  • Cross Section
  • Mechanical – Shows location of furnace
  • Electrical – Shows location of outlets, switches and fixtures
  • Plumbing – Shows location of fixtures

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Ready to Get Started?

Select your plan set options before checkout.

Price Match Guarantee
What's included?

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

1,994 sq. ft.

1st Floor

1,994 sq. ft.

Basement Unfinished

1,858 sq. ft.

Porch, Combined

142 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Foundation Type

Standard Foundations

Basement

Exterior Walls

Exterior Walls

2x4

Dimensions

Width

62' 2"

Depth

56' 0"

Max Ridge Height

23' 6"

Garage

Type

Attached

Area

505 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

First Floor

9'

Roof Details

Primary Pitch

8 on 12

Secondary Pitch

10 on 12

Framing Type

Truss

Architectural Style

Craftsman

Northwest

Ranch

Special Features

Bedrooms - Split

Breakfast Nook

Master Suite - 1st Floor

Walk-in Pantry

Square Footage Breakdown

Total Heated Area

1,994 sq. ft.

1st Floor

1,994 sq. ft.

Basement Unfinished

1,858 sq. ft.

Porch, Combined

142 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Foundation Type

Standard Foundations

Basement

Exterior Walls

Exterior Walls

2x4

Dimensions

Width

62' 2"

Depth

56' 0"

Max Ridge Height

23' 6"

Garage

Type

Attached

Area

505 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

First Floor

9'

Roof Details

Primary Pitch

8 on 12

Secondary Pitch

10 on 12

Framing Type

Truss

Architectural Style

Craftsman

Northwest

Ranch

Special Features

Bedrooms - Split

Breakfast Nook

Master Suite - 1st Floor

Walk-in Pantry
