Plan 57311HA

Craftsman Ranch Home Plan

Craftsman Ranch Home Plan

Plan 57311HA

  • 1,366

    Heated s.f.

  • 2

    Beds

  • 2

    Baths

  • 1

    Stories

  • 2

    Cars

  • A dynamic open floor plan makes this Craftsman Ranch home plan live much larger than its 1,366 square feet of finished living space would suggest.
  • The kitchen has an open wall and eating bar by the sink so you can see what's going on in the great room.
  • There's even room for a table and chairs making it an eat-in kitchen.
  • With two bedrooms and two baths, this home will be easy to maintain and clean.
  • A rear covered patio is pefect for grilling and chilling.

  • ·         Front Cover Sheet
  • ·         Detailed Floor Plans
  • ·         Foundation Plan
  • ·         Roof Plan
  • ·         Exterior Elevations
  • ·         Interior Elevations
  • ·         Cross Section
  • ·         Mechanical – Shows location of furnace
  • ·         Electrical – Shows location of outlets, switches and fixtures
  • ·         Plumbing – Shows location of fixtures

Floor Plan

Plan details

Architectural Style



Craftsman Ranch Home Plan

  • 1,366

    Heated s.f.

  • 2

    Beds

  • 2

    Baths

  • 1

    Floors

  • 2

    Car garage

Buy This Plan
  • PDF - single-use $675
  • 5 Sets $725
  • Reproducible Set $725
  • 8 Sets $800
  • CAD $1,475
  • View all purchase option online

About This Plan

  • A dynamic open floor plan makes this Craftsman Ranch home plan live much larger than its 1,366 square feet of finished living space would suggest.
  • The kitchen has an open wall and eating bar by the sink so you can see what's going on in the great room.
  • There's even room for a table and chairs making it an eat-in kitchen.
  • With two bedrooms and two baths, this home will be easy to maintain and clean.
  • A rear covered patio is pefect for grilling and chilling.

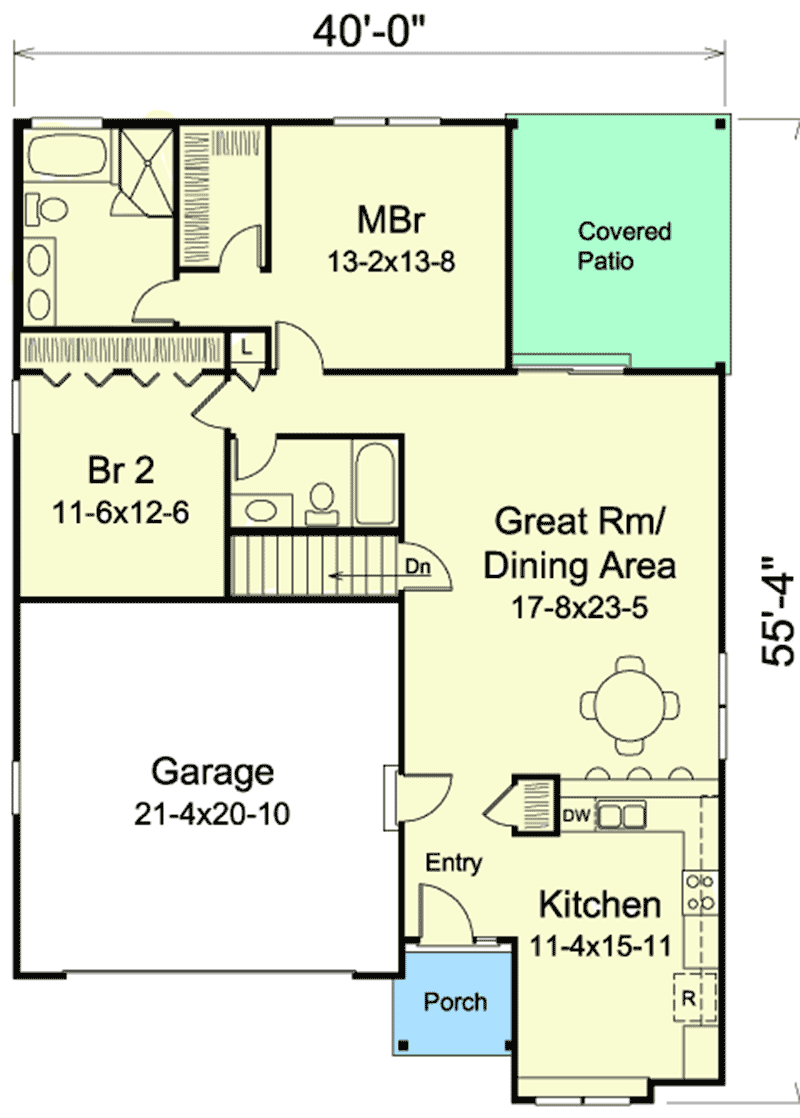

Floor Plans

  • Main Level

Plan Details

Square Footage Breakdown

  • Total Heated Area: 1,366 sq. ft.
  • 1st Floor: 1,366 sq. ft.
  • Basement Unfinished: 1,257 sq. ft.
  • Porch, Combined: 206 sq. ft.

Beds/Baths

  • Bedrooms: 2
  • Full bathrooms: 2

Foundation Type

    • Standard Foundations: Basement

Exterior Walls

  • Standard Type(s): 2x4

Dimensions

  • Width: 40' 0"
  • Depth: 55' 4"
  • Max ridge height: 22' 9"

Garage

  • Type: Attached
  • Area: 472 sq. ft.
  • Count: 2 Cars
  • Entry Location: Front

Ceiling Heights

  • Floor / Height: First Floor / 9' 0"

Roof

  • Primary Pitch: 6 on 12
  • Secondary Pitch: 10 on 12
  • Framing Type: Truss
