Plan 444360GDN

Craftsman Ranch Home Plan Under 1500 Square Feet with 2-Car Side Garage

Heated S.F.
1,475
Beds
2 - 3
Baths
2
Stories
1
Cars
2

Floor Plan

Plan 444360GDN

Main Level
Main Level
Main Level - Basement Stairs Location
Main Level - Basement Stairs Location

Plan 444360GDN

M-F 9am-5pm EST |

1-203-761-8500

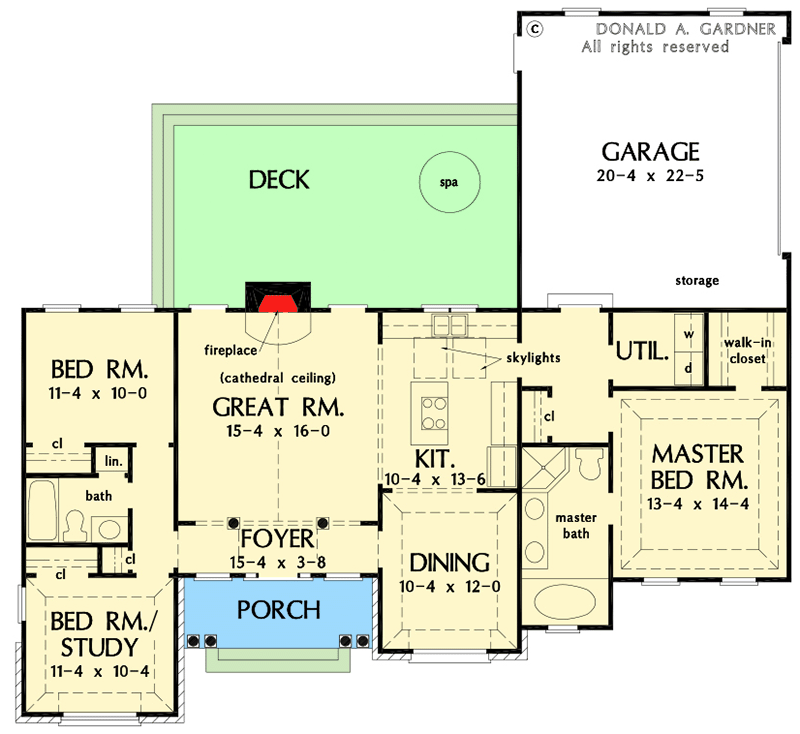

Main Level

Plan 444360GDN: Craftsman Ranch Home Plan Under 1500 Square Feet with 2-Car Side Garage - Floor Plan - Main Level - Craftsman, Ranch

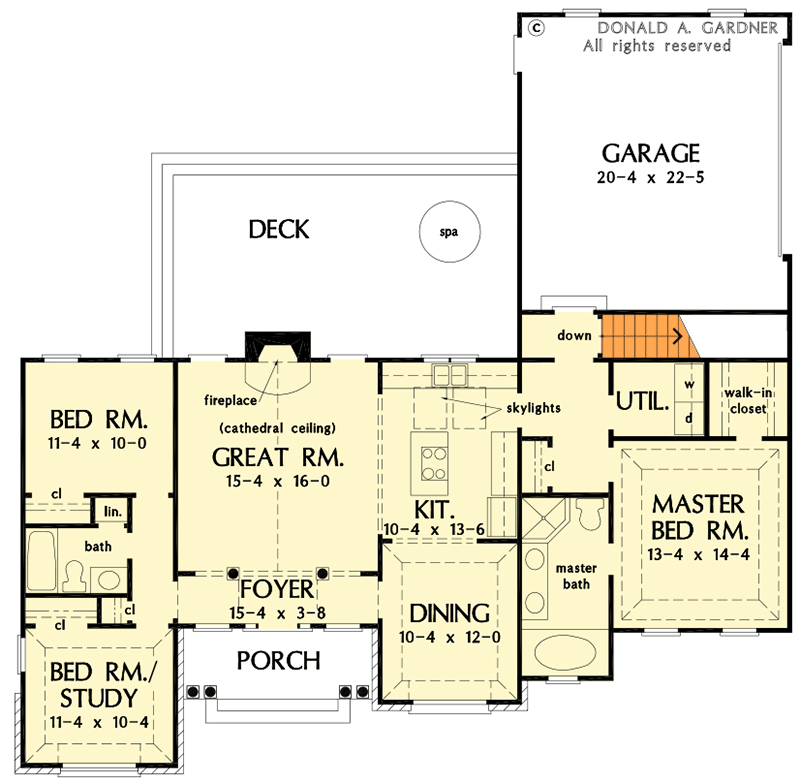

Main Level - Basement Stairs Location

Plan 444360GDN: Craftsman Ranch Home Plan Under 1500 Square Feet with 2-Car Side Garage - Floor Plan - Main Level - Basement Stairs Location - Craftsman, Ranch

Plan Details

  • An open design heightened inside by cathedral and tray ceilings, this dormered and gabled traditional home plan with marvelous arched windows and brick accents wastes very little space.
  • The foyer serves as an open hall with columns defining the entrance to the great room.
  • The great room features a 17'6" cathedral ceiling and opens to the contemporary island kitchen, great for large gatherings.
  • The master suite is the ultimate retreat, separate from the rest of the house and equipped with a tray ceiling, double bowl vanity, whirlpool tub, separate shower, and walk-in closet. The front bedroom can also be used as a study.
  • Please allow 15 to 20 days for delivery if it includes 2x6 upgrade.

What's Included

  • Cover Sheet - An artist's rendering of the exterior of the house shows you approximately how the house will look when built and landscaped
  • Foundation Plan - This plan gives the foundation layout, including support walls, excavated and unexcavated areas, if any, foundation notes and details, and floor framing.
  • Detailed Floor Plans - These plans show the layout of each floor of the house. Rooms and interior spaces are carefully dimensioned and keys are given for cross-section details provided later in the plans, as well as window and door schedules. These plans may also show the location of kitchen appliances and plumbing fixtures, and may suggest locations for electrical fixtures, switches and outlets.
  • Interior Elevations - The interior elevation drawings show a suggested layout design of cabinets, utility rooms, fireplaces, bookcases, built-in units and other special interior features depending on the nature and complexity of the item.
  • Roof Plan - The roof plan shows a bird's eye view of the overall layout of the roof, ridges, valleys, and slopes.
  • Exterior Elevations - Included are front, rear, left and right sides of the house. Exterior materials, details and measurements are also given.
  • Cross-Section / Wall Section Details -  Important changes in floor, ceiling and roof heights or the relationship of one level to another are called out. Also shown, when applicable, are exterior details such as railing and banding.
  • Structural Plan - Overall layout and necessary details for the ceiling, second-floor framing (if applicable) and roof construction. If trusses are used, it's suggested that you use a local truss manufacturer to design your trusses to comply with your local codes and regulations.

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Starting at
What's included?
Plan Set
Select...
Foundation
Select...
Options
Optional Add-Ons
+$0
Price Match Guarantee
Cost to Build Report
Still deciding? Calculate the cost to build this house in your area.
Customize This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Cost to Furnish Report
Instant room-by-room estimates for your entire furniture & home decor plan, matched to your budget.

Square Footage Breakdown

Total Heated Area

1,475 sq. ft.

1st Floor

1,475 sq. ft.

Porch, Front

78 sq. ft.

Deck

369 sq. ft.

Beds/Baths

Bedrooms

2 or 3

Full bathrooms

2

Foundation Type

Standard Foundations

Crawl

Exterior Walls

Exterior Walls

2x4

Dimensions

Width

59' 6"

Depth

54' 7"

Max Ridge Height

24' 8"

Garage

Type

Attached

Area

478 sq. ft.

Count

2 Cars

Entry Location

Side

Ceiling Heights

First Floor

9'

Roof Details

Primary Pitch

12 on 12

Framing Type

Stick And Truss

Architectural Style

Craftsman

Ranch

Special Features

Bedrooms - Split

Breakfast Nook

Formal Dining

Laundry - Main Level

Library/Study

Mudroom

Two Story Great Room
