Plan 72800DA

Craftsman Ranch Home Plan with 3 Beds

Craftsman Ranch Home Plan with 3 Beds

Plan 72800DA

  • 2,718

    Heated s.f.

  • 3

    Beds

  • 3.5

    Baths

  • 1

    Stories

  • 3

    Cars

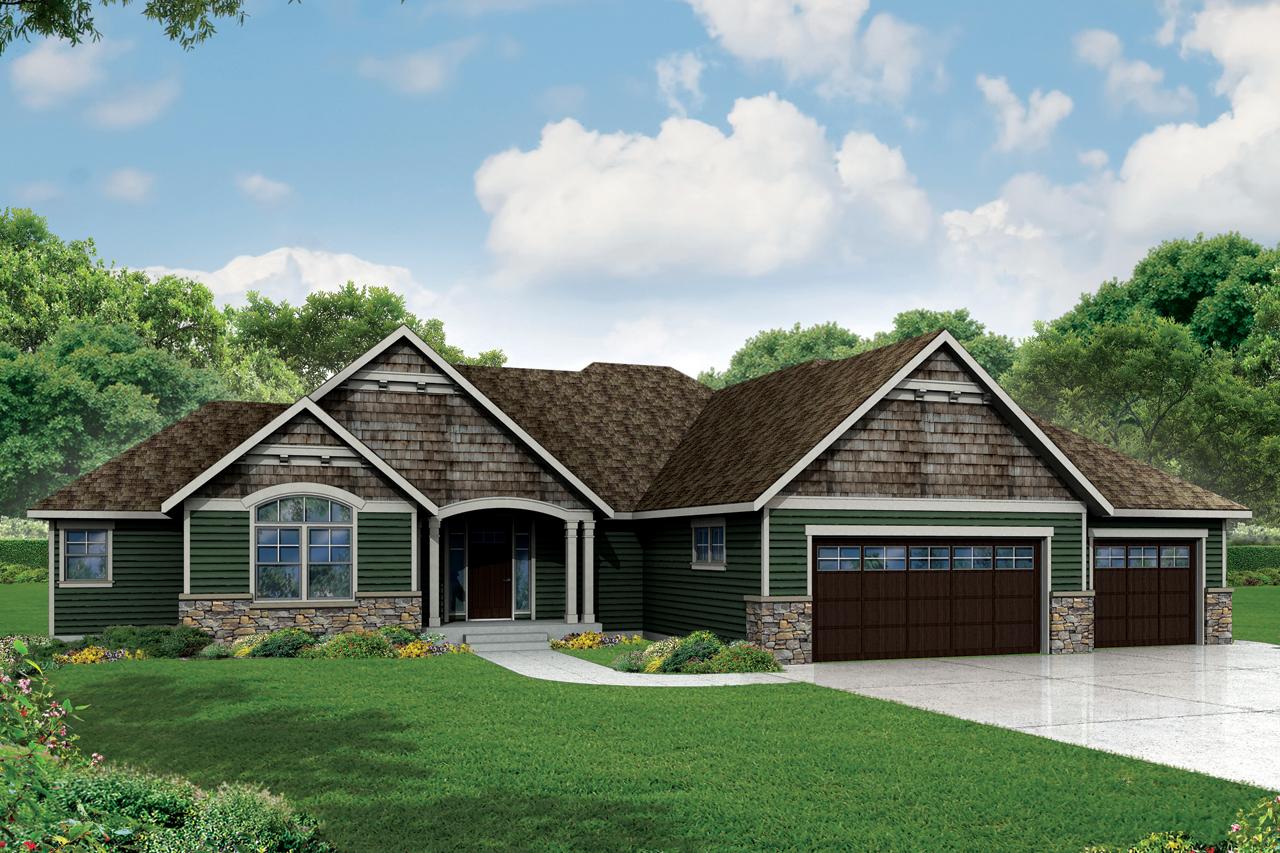

  • This ranch-style house plan gives you roomy linked gathering spaces inside that are ideal for entertaining, plus a den and three large bedrooms offer plenty of privacy.
  • Craftsman accents give charm to the exterior. Inside, living spaces are all on one floor while the unfinished basement below offers room for expansion. Space for a elevator was considered and is found behind a door off of the foyer.
  • A corner fireplace warms and brightens the high-ceilinged great room. Wide windows, stacked two high and rounded at the top, face onto the covered and vaulted rear patio. Standing at the kitchen sink, you can take it all in at a glance.
  • Eating bars rim the kitchen's cooking island. Counters and cabinetry, plus a deep pantry, wrap around three sides. Natural light washes in through windows on two sides of the dining room.
  • Utilities, a mud room, bedroom, den, and bathroom fill the right wing, which links up with the three-car garage. The luxurious owners' suite and another large suite fill out the left wing.

Each plan set is drawn at 1/4"=1' scale and includes the following drawings:

Artist's Rendering
An artist's drawing of the home, usually viewed from the front, and general construction notes.

Elevations
Shows the front, sides, and rear, including exterior materials, trim sizes, roof pitches, etc.

Main Floor Plan
Shows placement and dimensions of walls, doors, & windows. Includes the location of appliances, plumbing fixtures, beams, ceiling heights, etc.

Second Floor Plan (if any)
Shows the second floor in the same detail as the main floor. Includes second floor framing and details.

Foundation Plan
Shows the location of all concrete footings, floor beams, first floor framing, and foundation details. If there is a basement, a basement plan is included which shows all basement details. Foundation types vary; please call to confirm the foundation type of the plan you are interested in.

Roof Framing Plan
Shows roof outlines, conventional framing/trusses, beams, roof framing details, etc. Specific details such as fireplaces, stairways, decks, etc. Details are drawn at 1/2" = 1' scale, and appear as needed throughout the prints.

Section
Shows a cross-section of the home. Shows support members, exterior and interior materials, insulation, and foundation.

Electrical Plan
A schematic layout of all lighting, switches and electrical outlets.

Floor Plan

Plan details



Craftsman Ranch Home Plan with 3 Beds

  • 2,718

    Heated s.f.

  • 3

    Beds

  • 4

    Baths

  • 1

    Floors

  • 3

    Car garage

Buy This Plan
  • 1 Set $870
  • PDF Light $1,110
  • 5 Sets $1,110
  • 5 Sets PLUS $1,230
  • 8 Sets $1,290
  • PDF - single-use $2,165
  • CAD $2,345
  • CAD - multi-use $2,595
  • View all purchase option online

About This Plan

  • This ranch-style house plan gives you roomy linked gathering spaces inside that are ideal for entertaining, plus a den and three large bedrooms offer plenty of privacy.
  • Craftsman accents give charm to the exterior. Inside, living spaces are all on one floor while the unfinished basement below offers room for expansion. Space for a elevator was considered and is found behind a door off of the foyer.
  • A corner fireplace warms and brightens the high-ceilinged great room. Wide windows, stacked two high and rounded at the top, face onto the covered and vaulted rear patio. Standing at the kitchen sink, you can take it all in at a glance.
  • Eating bars rim the kitchen's cooking island. Counters and cabinetry, plus a deep pantry, wrap around three sides. Natural light washes in through windows on two sides of the dining room.
  • Utilities, a mud room, bedroom, den, and bathroom fill the right wing, which links up with the three-car garage. The luxurious owners' suite and another large suite fill out the left wing.

Floor Plans

  • Main Level

Plan Details

Square Footage Breakdown

  • Total Heated Area: 2,718 sq. ft.
  • 1st Floor: 2,718 sq. ft.
  • Covered Patio: 224 sq. ft.

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 3
  • Half bathrooms: 1

Foundation Type

    • Standard Foundations: Daylight

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 84' 0"
  • Depth: 70' 0"
  • Max ridge height: 25' 11"

Garage

  • Type: Attached
  • Area: 1189 sq. ft.
  • Count: 3 Cars
  • Entry Location: Front

Roof

  • Primary Pitch: 10 on 12
