Plan 360008DK

  • 2,845

    Heated s.f.

  • 3-4

    Beds

  • 2.5 - 3.5

    Baths

  • 1-2

    Stories

  • 3

    Cars

  • The left wing of this Craftsman house plan is angled giving it a dynamic presence. There are 6 different outdoor spaces to the home, and an entertaining floor plan inside.
  • Stunning details inside include a coffered family room with built-ins on either side of the big fireplace.
  • You'll have plenty of counter space in the spacious kitchen with its large island. The kitchen has views to the breakfast room, family room and even the dining room.
  • The split bedroom layout separates the master suite from the family bedrooms. The bonus room upstairs gives you an option for four bedrooms.
  • Related Plans: Get a 2-car garage with house plan 360002DK. And get an alternate exterior with house plans 36063DK (2,767 sq. ft.)

This plan includes the following elements:

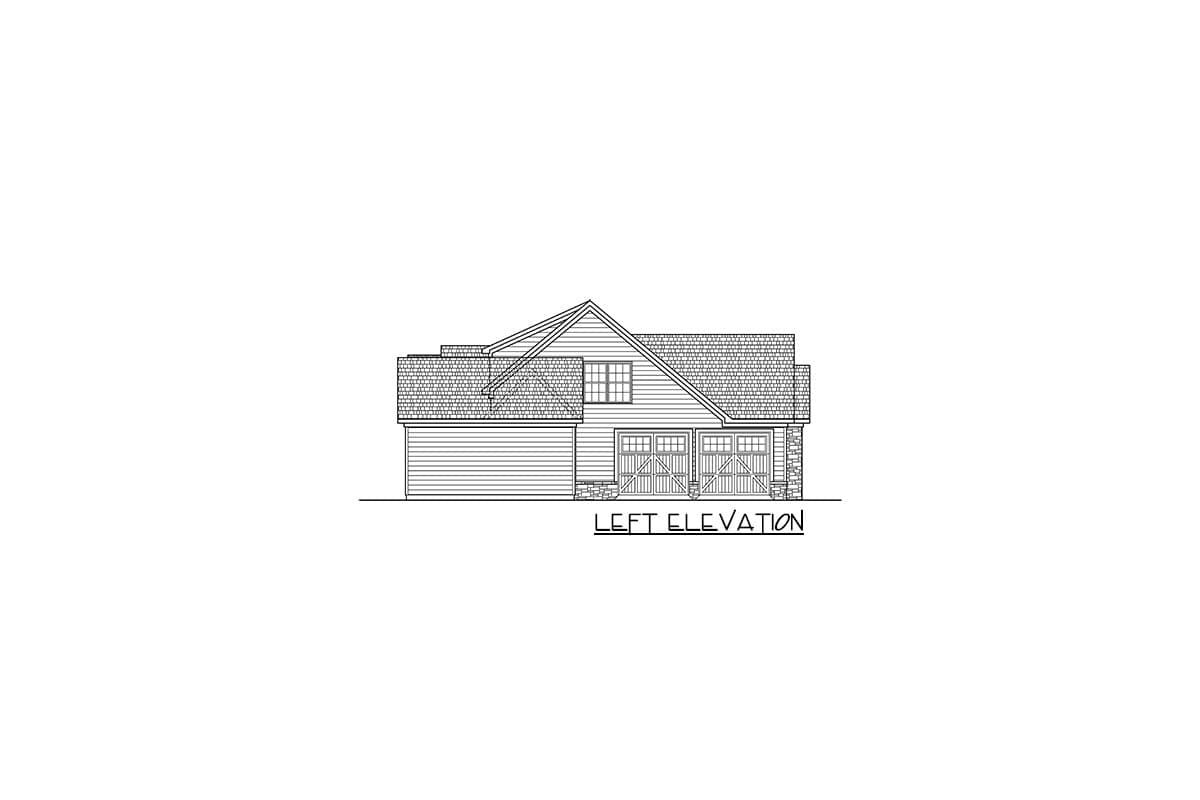

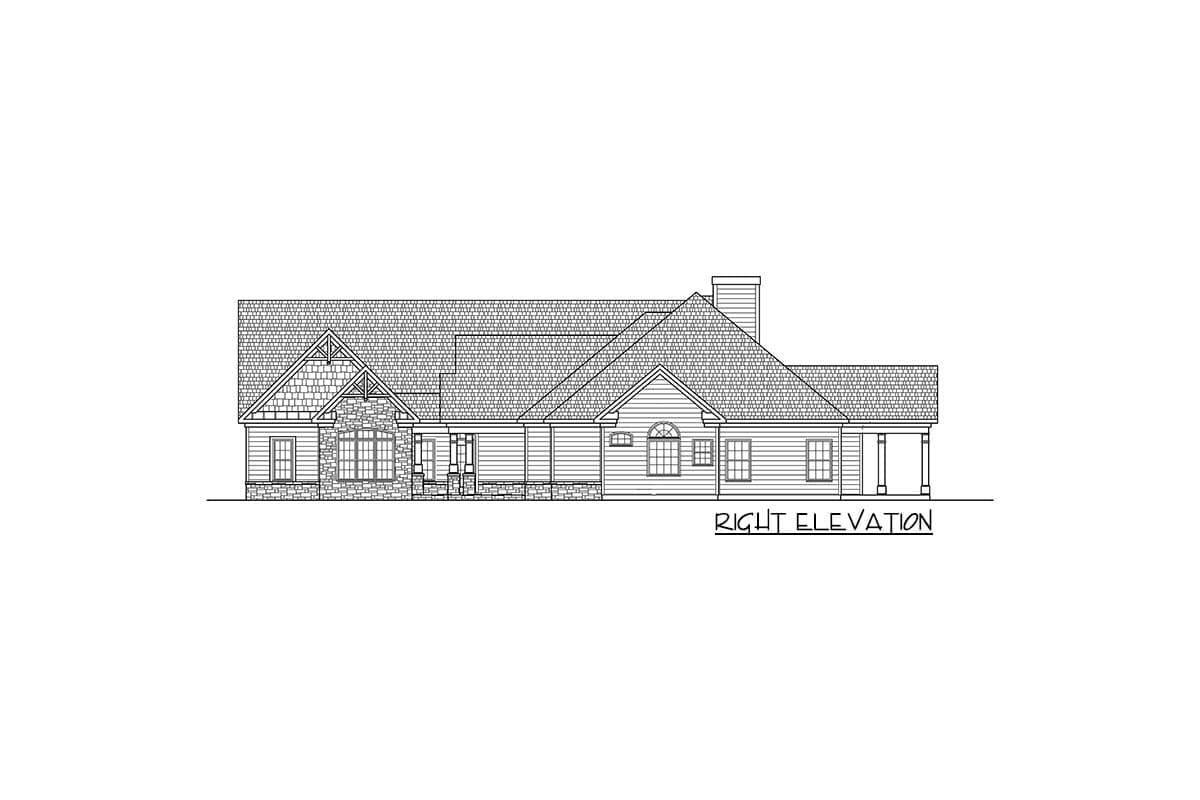

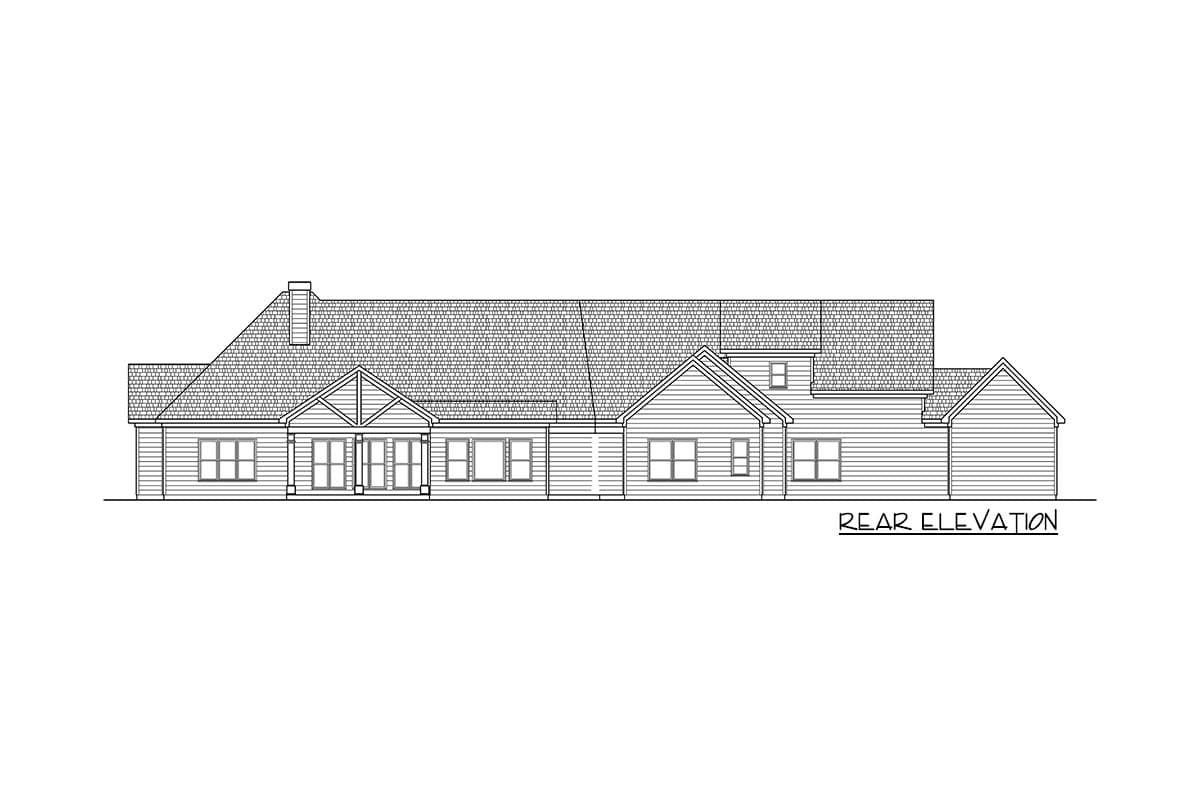

  • Front, Rear, Right Side and Left Side Elevational views with construction specification information
  • Roof Plan Quick View Floor Plans Foundation plan of choice specifying construction information
  • Floor Plan(s) with construction information
  • Electrical Plans
  • Construction Details for walls, Foundation, roof framing.
  • Some plans includes a Cross Section through the structure (but not all do); write us to find out if your plan has these - [email protected]

Floor Plan

Plan details



Craftsman Ranch Home Plan with 3-Car Garage

  • 2,845

    Heated s.f.

  • 3 - 4

    Beds

  • 3 +

    Baths

  • 1-2

    Floors

  • 3

    Car garage

Buy This Plan
  • 5 Sets $1,100
  • 8 Sets $1,425
  • PDF - single-use $1,925
  • CAD $2,350
  • View all purchase option online

About This Plan

  • The left wing of this Craftsman house plan is angled giving it a dynamic presence. There are 6 different outdoor spaces to the home, and an entertaining floor plan inside.
  • Stunning details inside include a coffered family room with built-ins on either side of the big fireplace.
  • You'll have plenty of counter space in the spacious kitchen with its large island. The kitchen has views to the breakfast room, family room and even the dining room.
  • The split bedroom layout separates the master suite from the family bedrooms. The bonus room upstairs gives you an option for four bedrooms.
  • Related Plans: Get a 2-car garage with house plan 360002DK. And get an alternate exterior with house plans 36063DK (2,767 sq. ft.)

Floor Plans

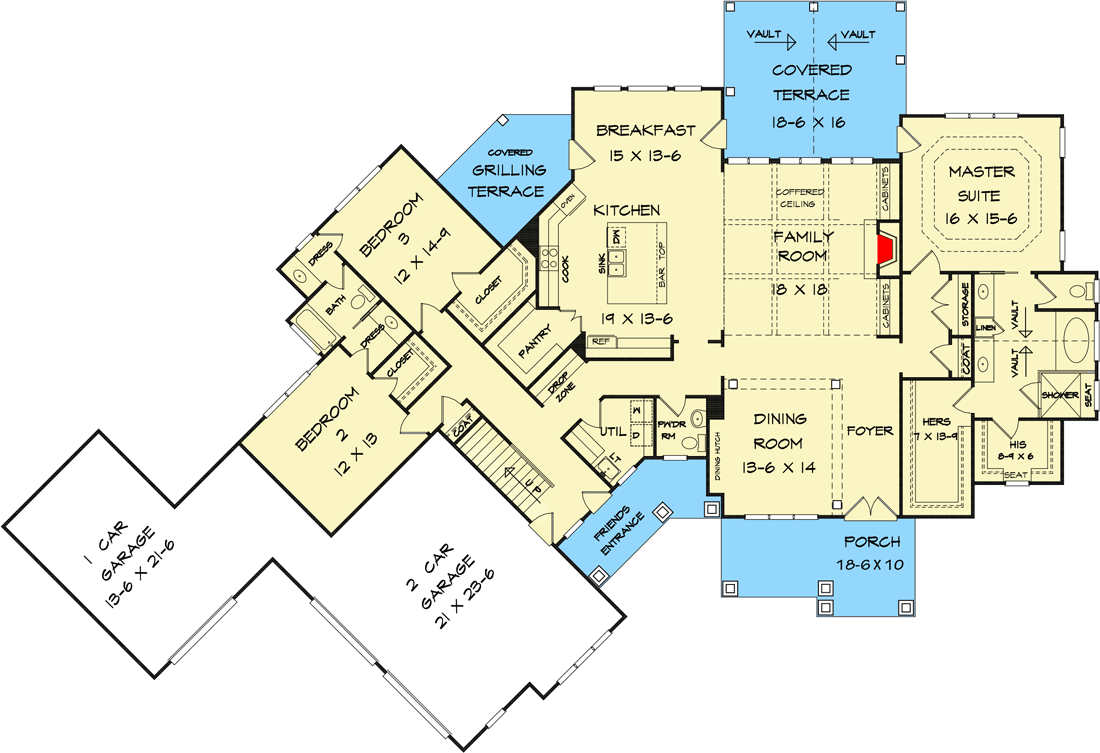

  • Main Level

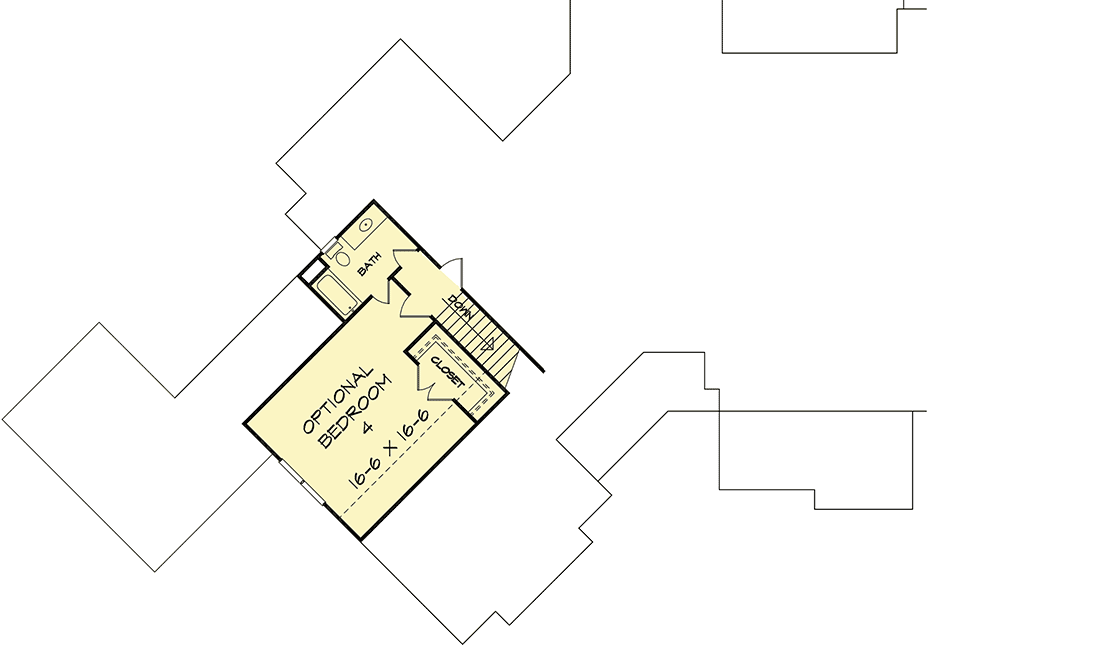

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total Heated Area: 2,845 sq. ft.
  • 1st Floor: 2,845 sq. ft.
  • Bonus: 468 sq. ft.

Beds/Baths

  • Bedrooms: 3 or 4
  • Full bathrooms: 2 or 3
  • Half bathrooms: 1

Foundation Type

    • Standard Foundations: Slab

Exterior Walls

  • Standard Type(s): 2x4

Dimensions

  • Width: 111' 6"
  • Depth: 76' 9"
  • Max ridge height: 26' 0"

Garage

  • Type: Attached
  • Area: 890 sq. ft.
  • Count: 3 Cars
  • Entry Location: Front, Side

Ceiling Heights

  • Floor / Height: First Floor / 9' 0" Second Floor / 9' 0"

Roof

  • Primary Pitch: 10 on 12
  • Secondary Pitch: 12 on 12
  • Framing Type: Stick
