Plan 890081AH

Craftsman Ranch Home Plan with 3-Car Garage

Heated S.F.

2,160

Beds

2

Baths

2.5

Stories

1

Cars

3

What's Included

Floor Plan

Main Level

Reverse Floor Plan

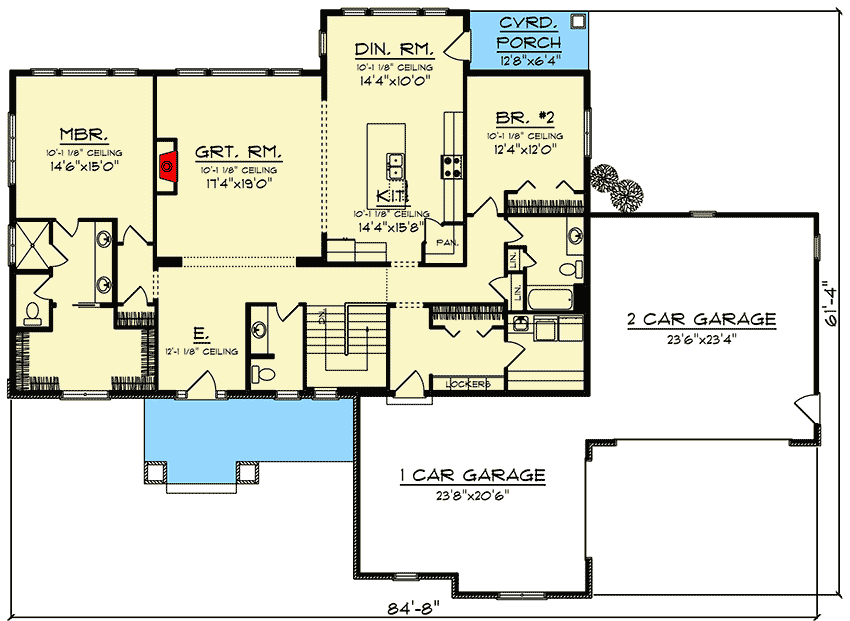

Craftsman Ranch Home Plan with 3-Car Garage - 890081AH floor plan - Main Level

Plan Details

This Craftsman Ranch-style home plan gives you one-story living and has a side-load two-stall garage and a front load single stall to keep the profile narrow enough to fit on smaller lots.
As you enter to 12’ ceilings you will love the view through the great room with covered porch out the back of the home.
To the right of the great room the open kitchen dining area work together to create an open plan with direct sight lines in all directions.
The master suite lies to the left of the house with a spacious walk-in closet and dual sinks.
To the right of the house an additional bedroom lies with a bathroom located in the same hallway.

What's Included

General Notes
Rendering
Elevations
Fully dimensioned floor plans
Foundation
Typical wall section & stair section
Cross section
Cabinet elevations
Electrical Plan
Roof plan

What's Not Included

Architectural or Engineering Stamp
Site Plan
Mechanical Drawings (location of heating and air equipment and duct work)
Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations)
Framing layouts with beam sizes and locations
Energy calculations

Square Footage Breakdown

Total Heated Area:

2,160 sq. ft.

1st Floor:

2,160 sq. ft.

Porch, Combined:

264 sq. ft.

Beds/Baths

Bedrooms:

2

Full bathrooms:

2

Half bathrooms:

1

Foundation Type

Standard Foundations:

Basement

Optional Foundations:

Slab, Crawl

Need A Different Foundation?

Request A Modification Quote

Exterior Walls

Standard Type(s):

2x6

Dimensions

Width:

84' 8"

Depth:

61' 4"

Max Ridge Height:

25' 8"

Garage

Type:

Attached

Area:

1066 sq. ft.

Count:

3 Cars

Entry Location:

Side, Front

Ceiling Heights

Floor / Height:

Lower Level / 9' 0" First Floor / 10' 0"

Roof Details

Primary Pitch:

8 on 12

Secondary Pitch:

8 on 12

Framing Type:

Truss

Architectural Style

Special Features

Bedrooms - Split

Master Suite - 1st Floor
