Plan 42555DB Craftsman Ranch Home Plan with Split Bedroom Layout

Craftsman Ranch Home Plan with Split Bedroom Layout

Plan 42555DB

  • 1,925

    Heated s.f.

  • 3

    Beds

  • 2

    Baths

  • 1

    Stories

  • 2

    Cars

  • Distinctive touches grace this 3-bedroom Craftsman ranch home plan's exterior creating instant curb appeal.
  • Need a place to work from home? There’s a pocket office just to the right of the entry hall. Or, perhaps bedroom 3, with its triple transom windows, will be your inspiration room!
  • An open floor plan makes this great for entertaining. The island kitchen island has seating on three sides and you have views of the great room and dining room, as well as the fireplace, from the kitchen.
  • The master bedroom has 10' tray ceilings and a large walk-in closet accessible through the bathroom with dual vanities. Across the home, two more bedrooms share a bath.
  • The entry coat closet is large, as is the back coat closet, plus there’s a drop zone to keep clutter out of the kitchen.
  • Related Plans: Get alternate versions with house plans 42556DB, 42361DB, 42358DB and 4021DB.

Most plans include the following:


Cover Page:
Each home plan features the front elevation and informative reference sections including, general notes and design criteria*, abbreviations, and symbols for your plan.

Elevations:

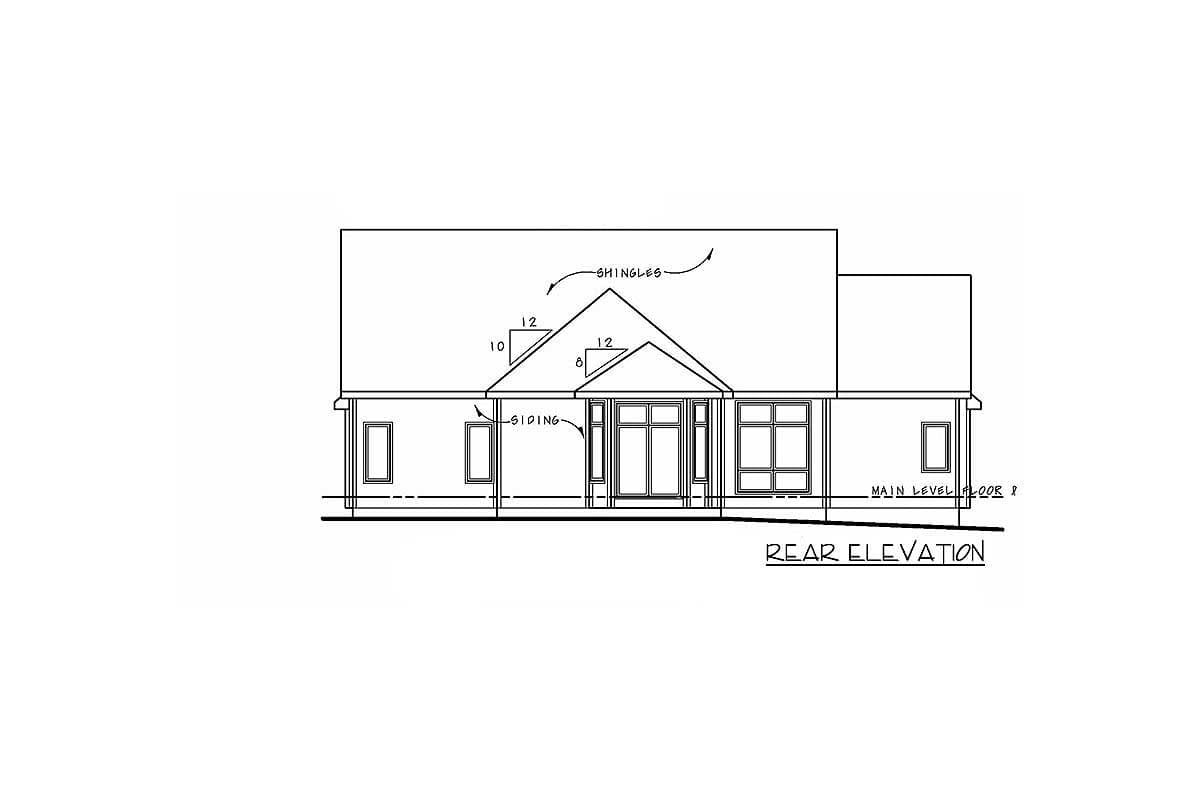

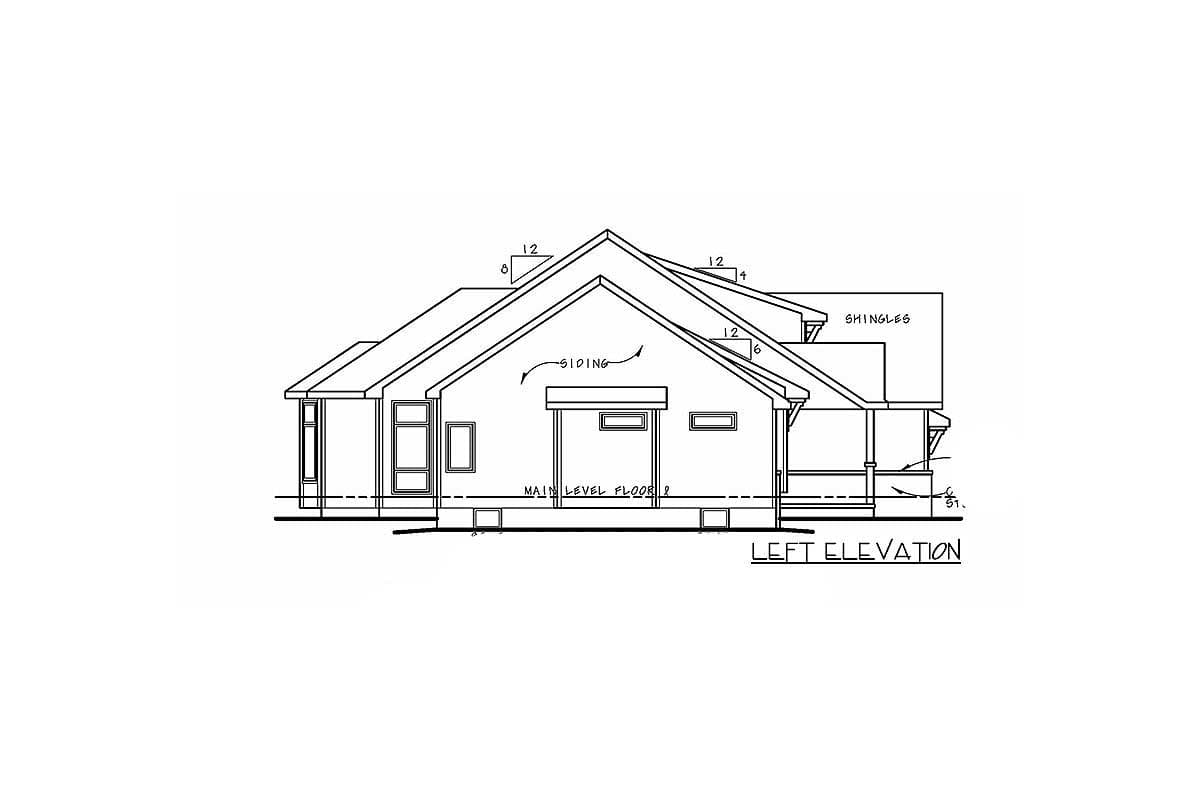

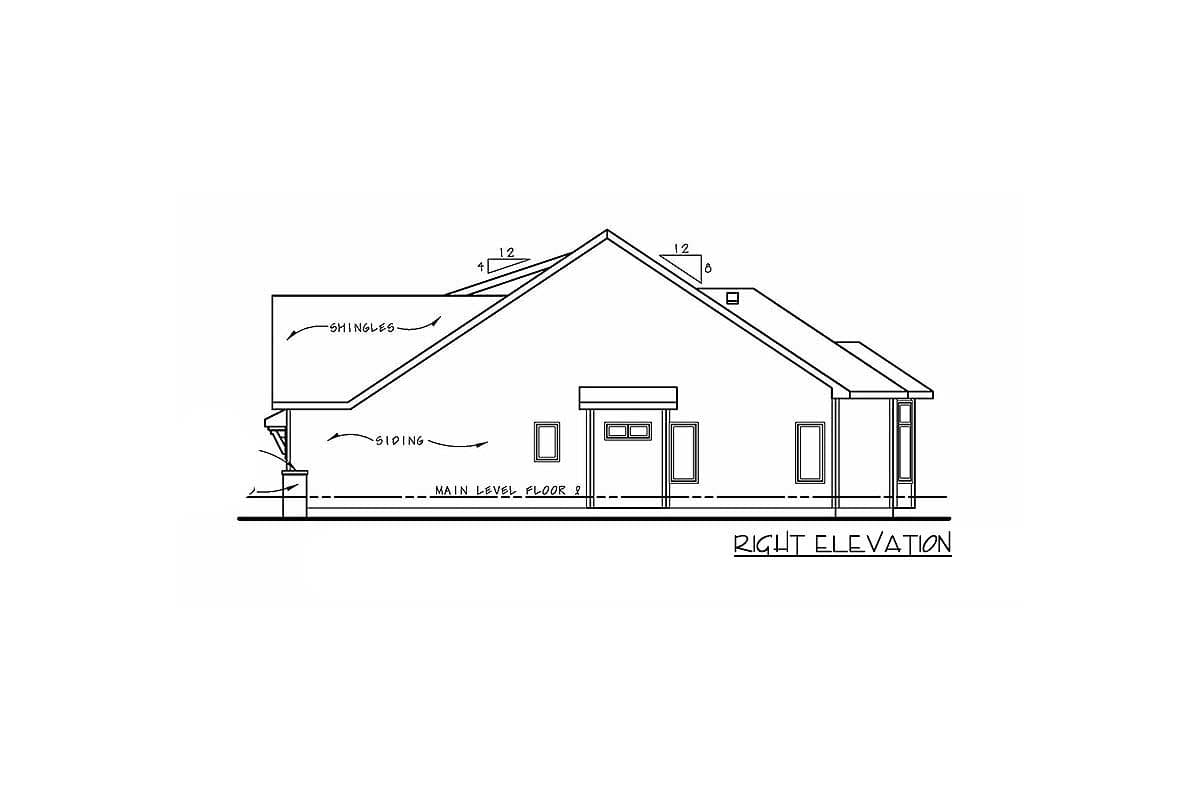

Scaled elevations for the front, rear, and sides are provided. All elevations are detailed, and an aerial view of the roof is provided.

Foundations:
Foundations are fully engineered for each design, whether slab or basement.

Main Level Floor Plan:
The detailed drawings are fully dimensioned for ease of framing. Exterior wall thicknesses vary by plan. If necessary, contact us to clarify the standard exterior wall thickness for the plan(s) you are interested in.

Second Level Floor Plan (if any):
Dimensioned and drafted to the same degree of detail as the main level floor plan*.

Electrical and Sections:
Illustrated on a separate page for clarity, the electrical plan shows suggested electrical layout for the main and second level floor plans. Typical wall and stair sections are provided to further explain construction of these areas.

Full technical support is provided to purchasers of each plan to answer your plan-related questions.

*Plans are drafted to meet the Uniform Building Code or IRC (International Residential Code) at the time they are designed (contact us for more information). Because codes and requirements can change and may vary from jurisdiction to jurisdiction, the designers cannot warrant compliance with any specific code or regulation. All plans can be adapted to your local building codes and requirements. It is the responsibility of the purchaser and/or builder of each plan to see that the structure is built in strict compliance with all governing municipal codes (city, county, state, and federal).

Floor Plan

NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

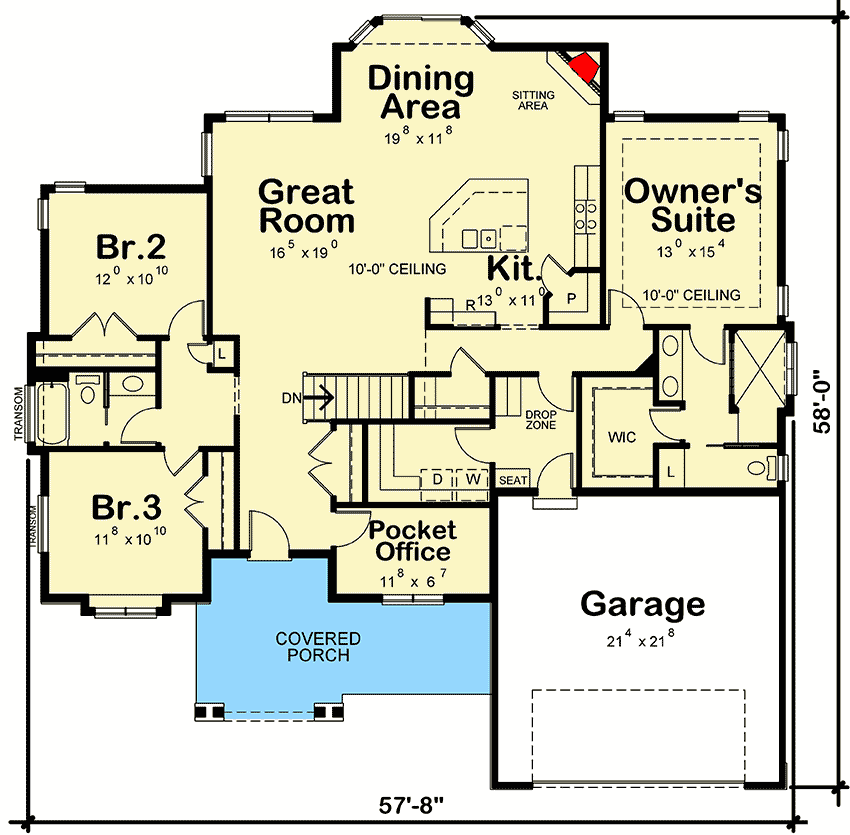

Craftsman Ranch Home Plan with Split Bedroom Layout - 42555DB floor plan - Main Level

Plan details

Craftsman Ranch Home Plan with Split Bedroom Layout

  • 1,925

    Heated s.f.

  • 3

    Beds

  • 2

    Baths

  • 1

    Floors

  • 2

    Car garage

Buy This Plan
  • Study Set – Digital $650
  • PDF - Single-Build $1,005
  • PDF - Unlimited Build $1,505
  • CAD - Single-Build $1,740
  • CAD - Unlimited Build $2,240
  • View all purchase option online

About This Plan

  • Distinctive touches grace this 3-bedroom Craftsman ranch home plan's exterior creating instant curb appeal.
  • Need a place to work from home? There’s a pocket office just to the right of the entry hall. Or, perhaps bedroom 3, with its triple transom windows, will be your inspiration room!
  • An open floor plan makes this great for entertaining. The island kitchen island has seating on three sides and you have views of the great room and dining room, as well as the fireplace, from the kitchen.
  • The master bedroom has 10' tray ceilings and a large walk-in closet accessible through the bathroom with dual vanities. Across the home, two more bedrooms share a bath.
  • The entry coat closet is large, as is the back coat closet, plus there’s a drop zone to keep clutter out of the kitchen.
  • Related Plans: Get alternate versions with house plans 42556DB, 42361DB, 42358DB and 4021DB.

Floor Plans

  • Main Level

Plan Details

Square Footage Breakdown

  • Total Heated Area: 1,925 sq. ft.
  • 1st Floor: 1,925 sq. ft.
  • Porch, Front: 209 sq. ft.

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 2

Foundation Type

    • Standard Foundations: Basement
    • Optional Foundations: Crawl, Slab

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 57' 8"
  • Depth: 58' 0"
  • Max ridge height: 26' 9"

Garage

  • Type: Attached
  • Area: 481 sq. ft.
  • Count: 2 Cars
  • Entry Location: Front

Ceiling Heights

  • Floor / Height: Lower Level / 9' 0" First Floor / 9' 0"

Roof

  • Primary Pitch: 8 on 12
