Plan 42574DB

Craftsman Ranch Home Plan with Split Bedroom Layout

Heated S.F.
1,844
Beds
3
Baths
2.5
Stories
1
Cars
2

Floor Plan

Plan 42574DB

Main Level
Main Level

Plan 42574DB

M-F 9am-5pm EST |

1-203-761-8500

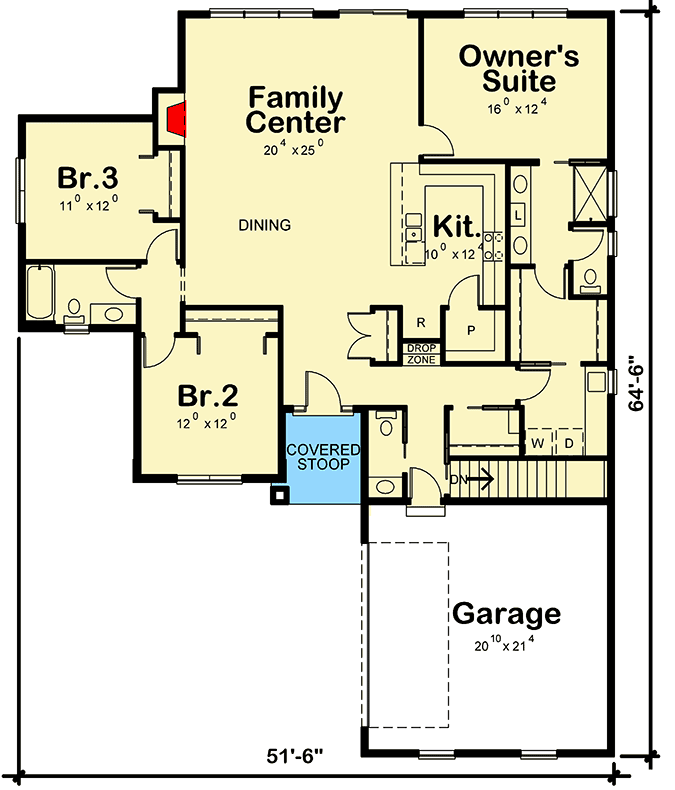

Main Level

Plan 42574DB: Craftsman Ranch Home Plan with Split Bedroom Layout - Floor Plan - Main Level - Craftsman, Northwest, Ranch

Plan Details

  • A shingle and stone exterior with multiple gables and a covered entry give this 3-bed Craftsman ranch home plan great curb appeal.
  • The family center is visible as soon as you step inside and is open to the kitchen. A fireplace on the left wall is visible from behind the peninsula.
  • The owner's suite has a five fixture bath and a walk-in closet with direct access to the laundry, a great convenience.
  • Across the home, two bedrooms share a bath.
  • A courtyard-entry garage has room for two cars.

What's Included

  • General Notes

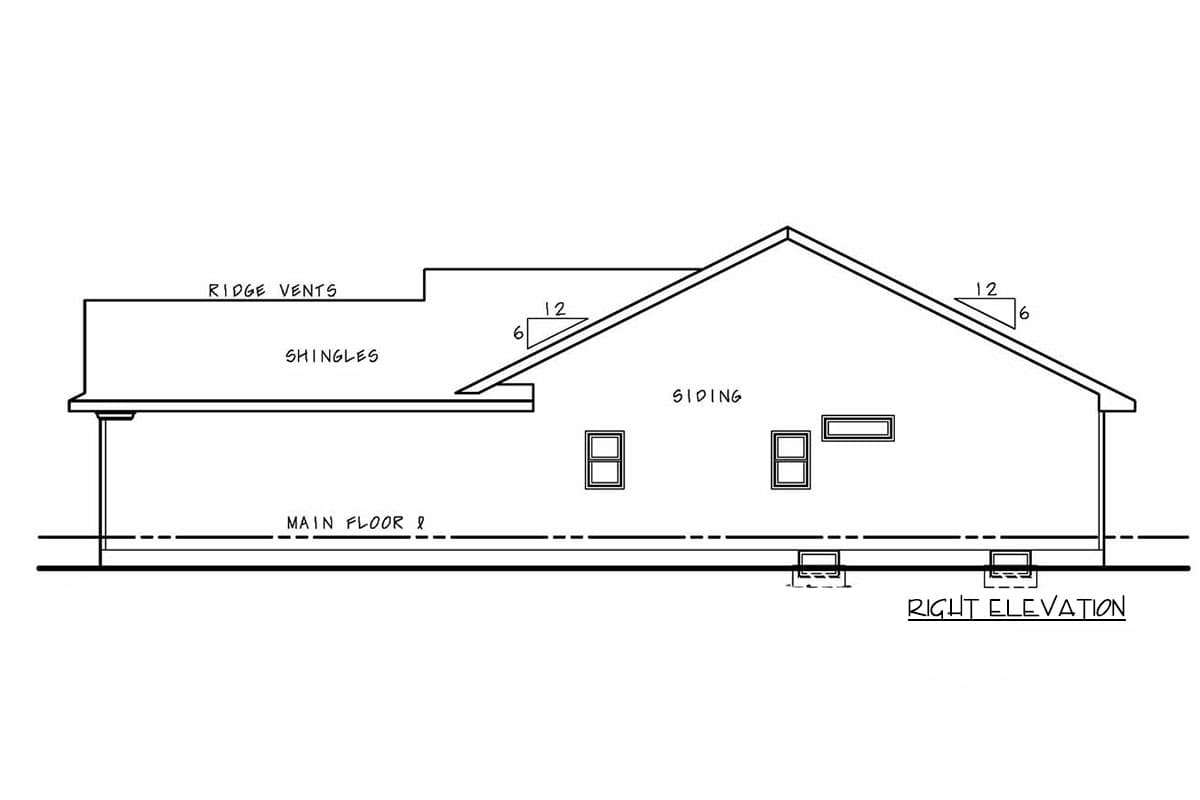

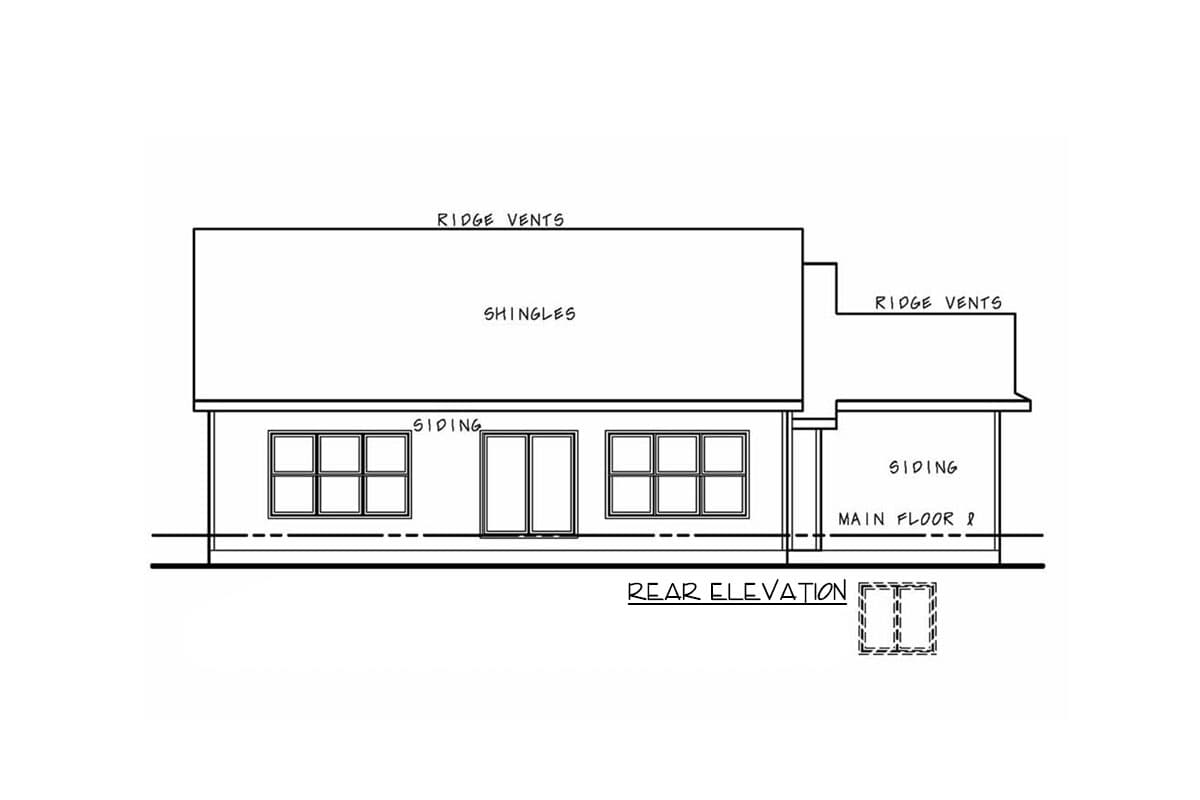

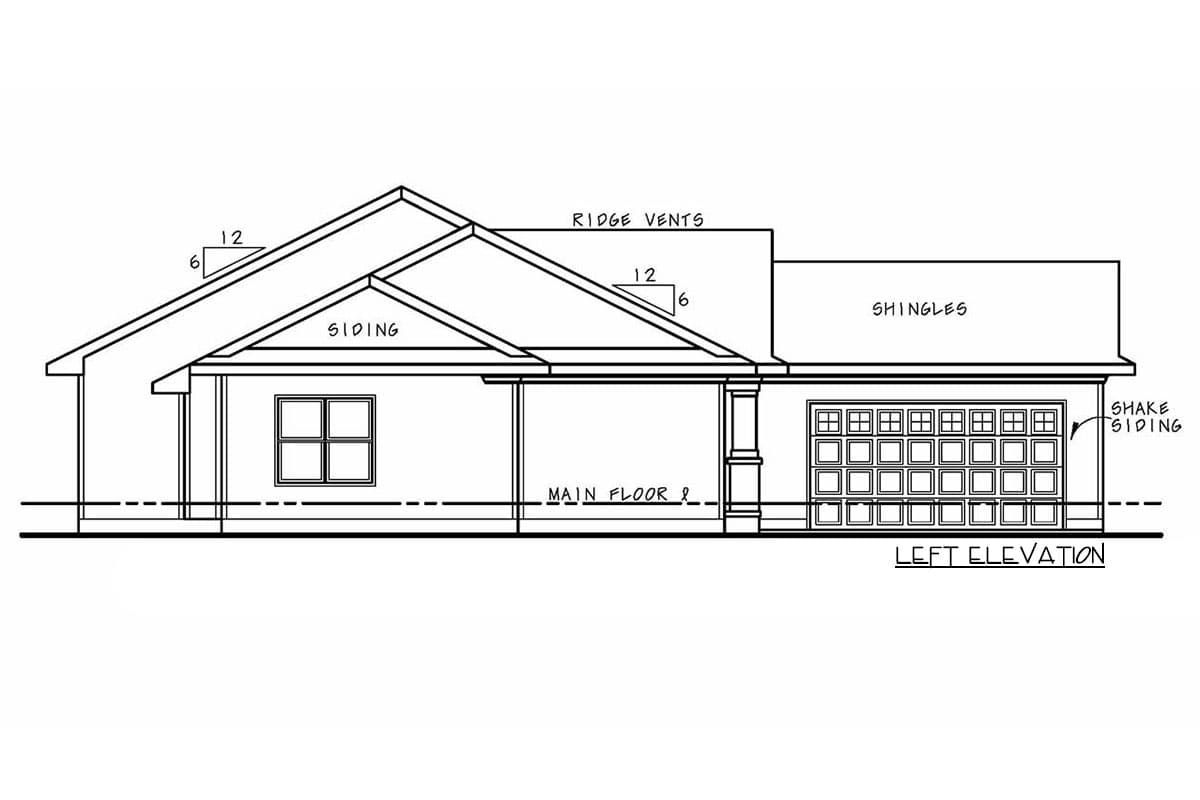

  • Front, Rear, Left, Right Elevations
  • Roof Plan - Birds Eye View
  • Foundation plan, Wall Section, Stair Section
  • Main Level Floor Plan
  • Second Level Floor Plan (if applicable)
  • Electrical Plan (showing fixtures, switches, outlets)
  • *Some plans include cabinet elevations. Please contact us for more information.
View Sample Plan

What's Not Included

  • Architectural or Engineering Stamp - handled locally, or use our structural engineering service if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
