Plan 89851AH
Craftsman Ranch Home Plan With Video
Heated S.F.
2,149
Beds
2
Baths
2
Stories
1
Cars
3
Videos
What's Included
Plan Details
  • Traditional in style but updated with Craftsman appeal, this ranch home plan provides plenty of unexpected features. And a fly-around video!
  • As you enter the home, the great room lies directly ahead and will surprise you with a twelve-foot coffered ceiling, wall of windows and fireplace with built-in shelving on both sides.
  • The kitchen includes a unique island that overlooks both the great room and dining room.
  • A covered porch leads from the dining room to the back of the home enlarging the living area even more.
  • The master suite lies to the left of the entry and includes a cathedral ceiling, spacious walk-in closet and dual sinks.
  • Directly behind to the back of the home lies a den with step ceiling that can be converted to a third bedroom if needed.
  • A three-stall, split-load garage completes the home.
  • Fly Around Video: See this house plan from every angle in our YouTube video.
What's Included
  • General Notes
  • Rendering
  • Elevations
  • Fully dimensioned floor plans
  • Foundation
  • Typical wall section & stair section
  • Cross section
  • Cabinet elevations
  • Electrical Plan
  • Roof plan

What's Not Included
  • Architectural or Engineering Stamp
  • Site Plan
  • Mechanical Drawings (location of heating and air equipment and duct work)
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations)
  • Framing layouts with beam sizes and locations
  • Energy calculations
Print
Hide
Compare
Favorite
Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

Craftsman Ranch Home Plan With Video

  • 2,149

    Heated s.f.

  • 2

    Beds

  • 2

    Baths

  • 1

    Floors

  • 3

    Car garage

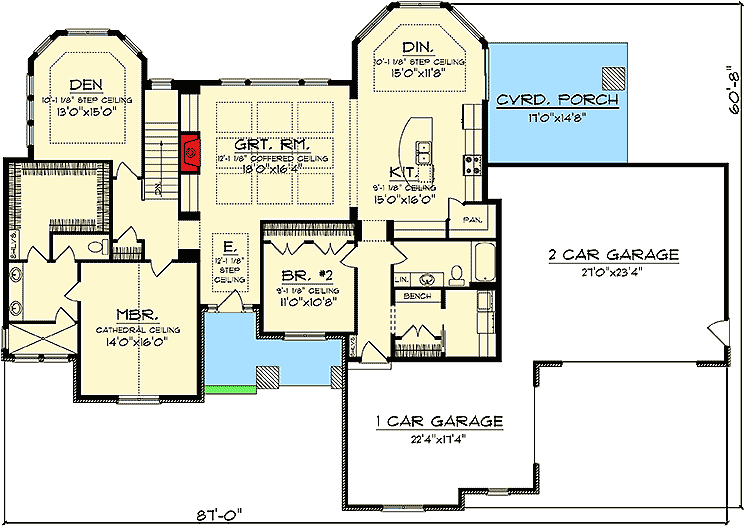

Floor Plan

  • Main Level

Plan Details

Square Footage Breakdown

  • Total: 2,149 sq. ft.
  • 1st Floor: 2,149 sq. ft.

Dimensions

  • Width: 87' 0"
  • Depth: 60' 8"
  • Max ridge height: 27' 7"

Beds/Baths

  • Bedrooms: 2
  • Full bathrooms: 2

Garage

  • Type: Attached
  • Area: 1050 sq. ft.
  • Count: 3 Cars
  • Entry Location: Front

Foundation Type

    • Standard Foundations: Basement
    • Optional Foundations: Slab, Crawl

Exterior Walls

  • Standard Type(s): 2x6

Ceiling Heights

  • Floor / Height: First Floor / 9' 0"

Roof

  • Primary Pitch: 10 on 12
  • Secondary Pitch: 10 on 12
  • Framing Type: Truss
