Plan 72720DA

Craftsman Ranch Home with Finished Lower Level

Craftsman Ranch Home with Finished Lower Level

Plan 72720DA

  • 4,197

    Heated s.f.

  • 4

    Beds

  • 3.5

    Baths

  • 1

    Stories

  • 3

    Cars

  • Thick stone columns support the posts for the front porch of this Craftsman Ranch home.
  • The main great room is huge with a big fireplace as the focal point.
  • Pocket doors slide open to reveal a sun room with its own corner fireplace.
  • The big kitchen has an island and lots of counter space as well as a walk-in pantry.
  • Sleep at night under the vaulted ceiling of the main floor master suite with its huge walk-in closet.

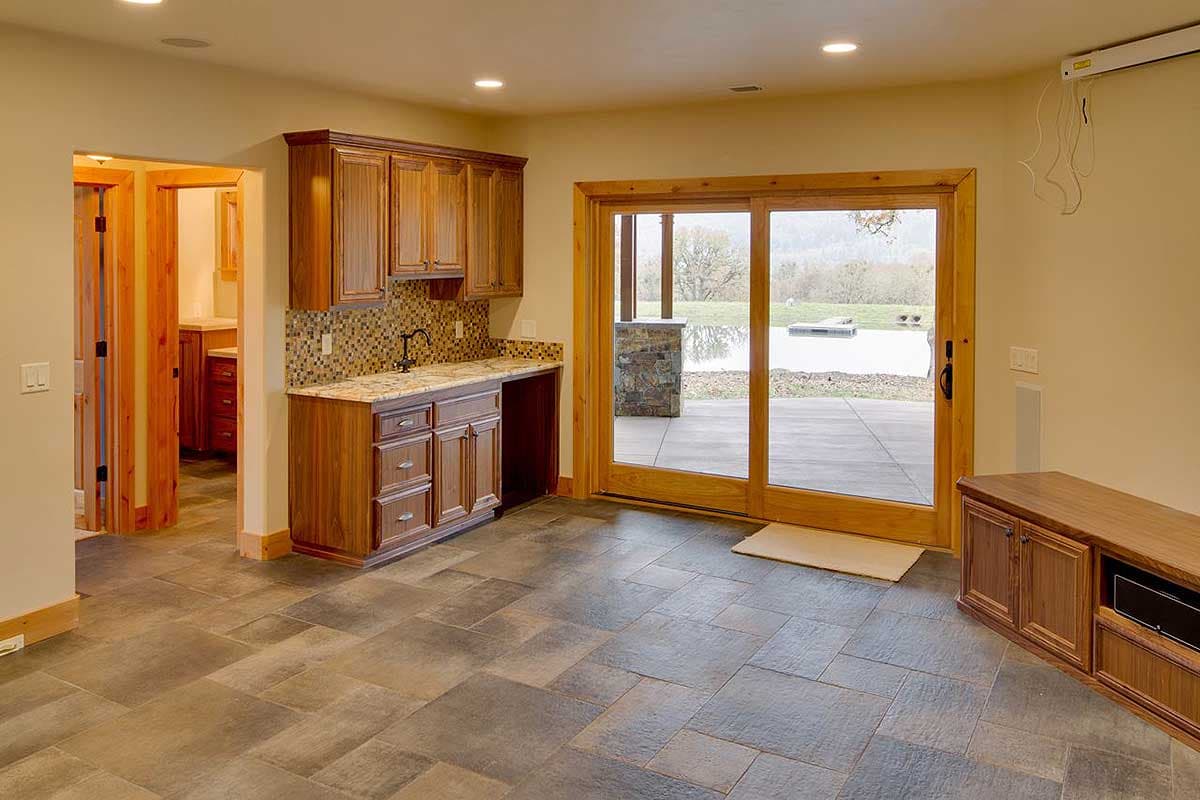

  • The beautifully finished lower level has three more bedrooms and a giant family room that opens to a covered patio.

Each plan set is drawn at 1/4"=1' scale and includes the following drawings:

Artist's Rendering
An artist's drawing of the home, usually viewed from the front, and general construction notes.

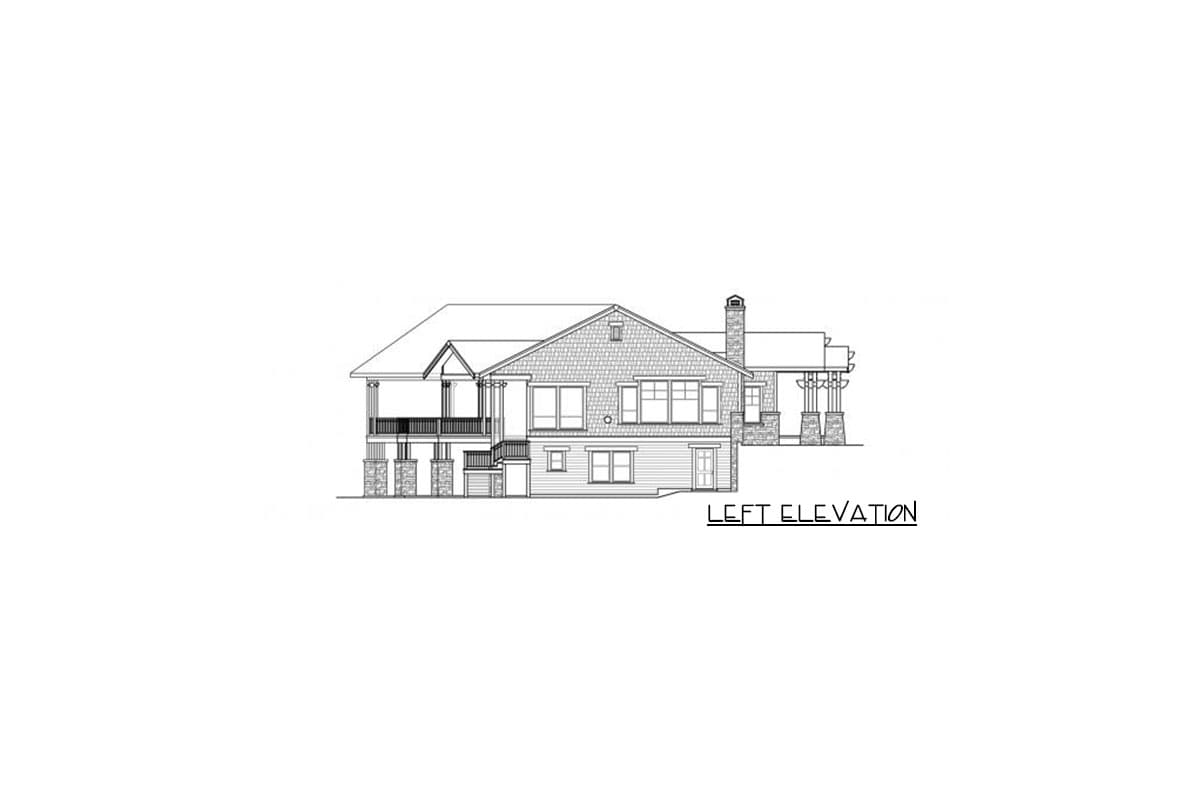

Elevations

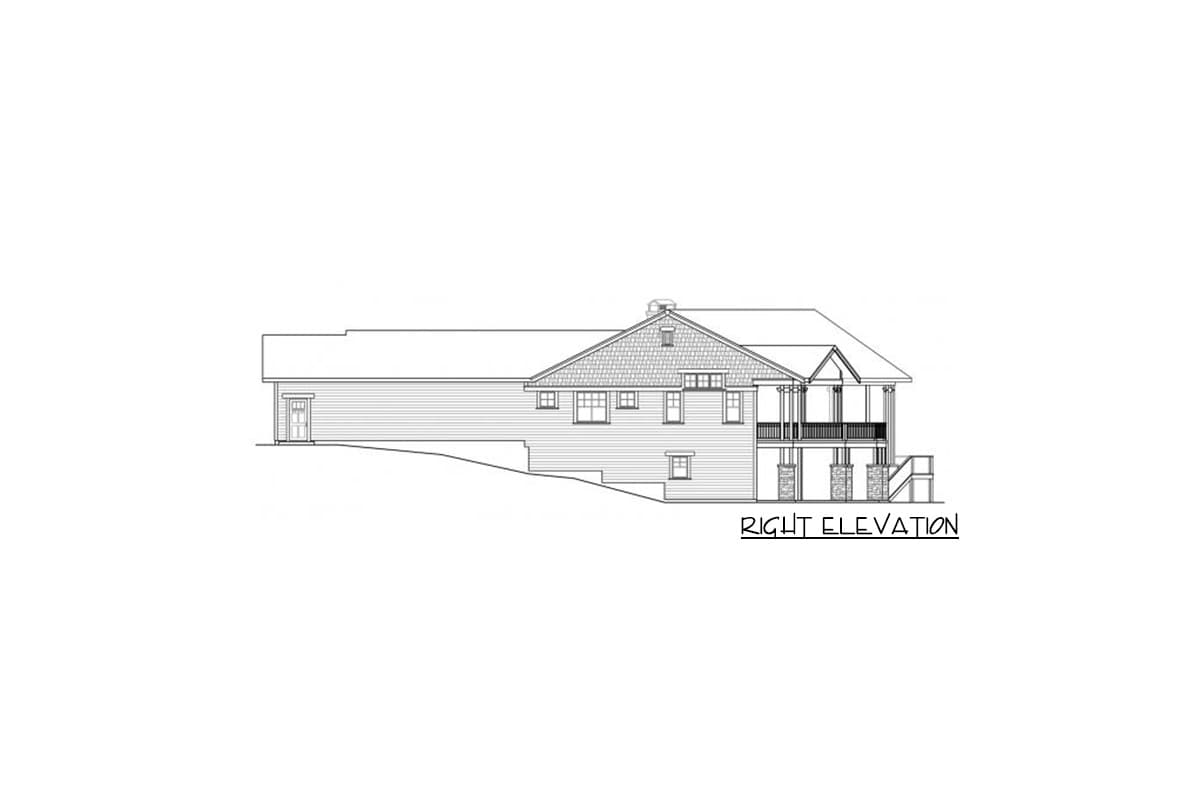

Shows the front, sides, and rear, including exterior materials, trim sizes, roof pitches, etc.

Main Floor Plan
Shows placement and dimensions of walls, doors, & windows. Includes the location of appliances, plumbing fixtures, beams, ceiling heights, etc.

Second Floor Plan (if any)
Shows the second floor in the same detail as the main floor. Includes second floor framing and details.

Foundation Plan
Shows the location of all concrete footings, floor beams, first floor framing, and foundation details. If there is a basement, a basement plan is included which shows all basement details. Foundation types vary; please call to confirm the foundation type of the plan you are interested in.

Roof Framing Plan
Shows roof outlines, conventional framing/trusses, beams, roof framing details, etc. Specific details such as fireplaces, stairways, decks, etc. Details are drawn at 1/2" = 1' scale, and appear as needed throughout the prints.

Section
Shows a cross-section of the home. Shows support members, exterior and interior materials, insulation, and foundation.

Electrical Plan
A schematic layout of all lighting, switches and electrical outlets.

Floor Plan

Plan details



Craftsman Ranch Home with Finished Lower Level

  • 4,197

    Heated s.f.

  • 4

    Beds

  • 4

    Baths

  • 1

    Floors

  • 3

    Car garage

Buy This Plan
  • 1 Set $1,325
  • PDF Light $1,655
  • 5 Sets $1,655
  • 5 Sets PLUS $1,805
  • 8 Sets $1,880
  • PDF - single-use $3,350
  • CAD $3,675
  • CAD - multi-use $4,045
  • View all purchase option online

About This Plan

  • Thick stone columns support the posts for the front porch of this Craftsman Ranch home.

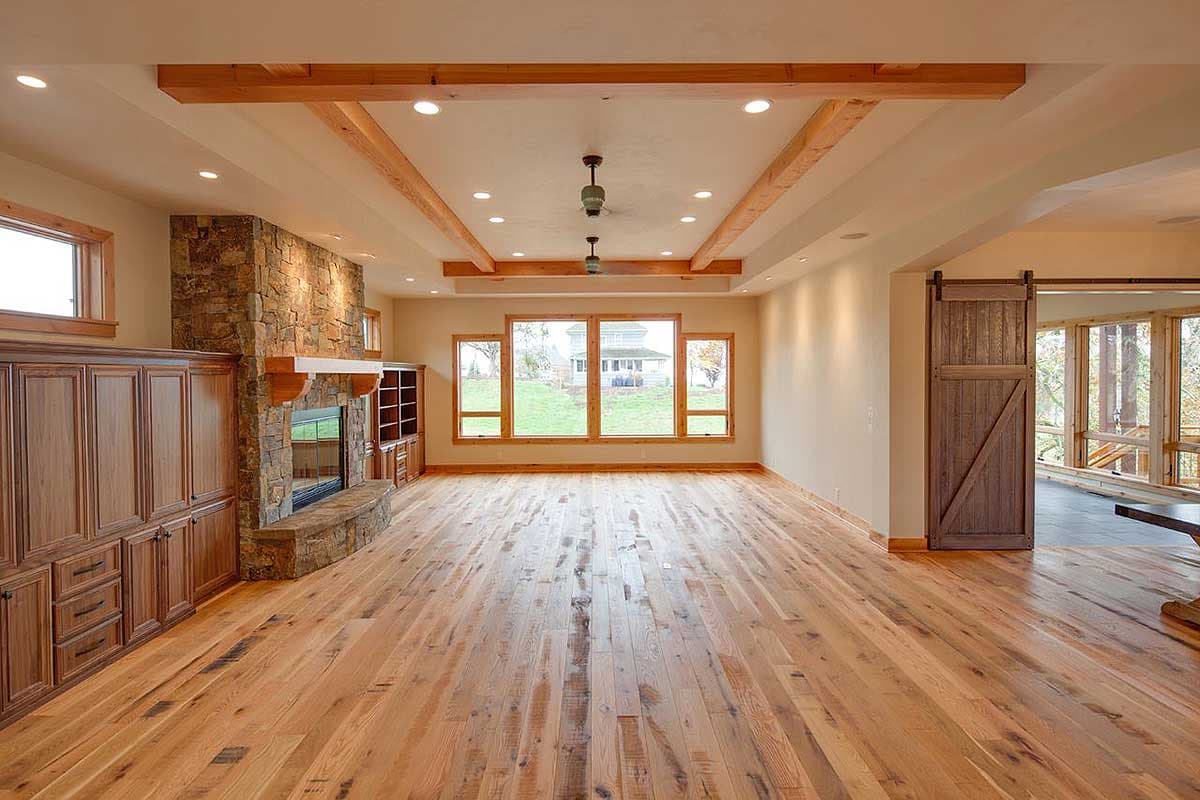

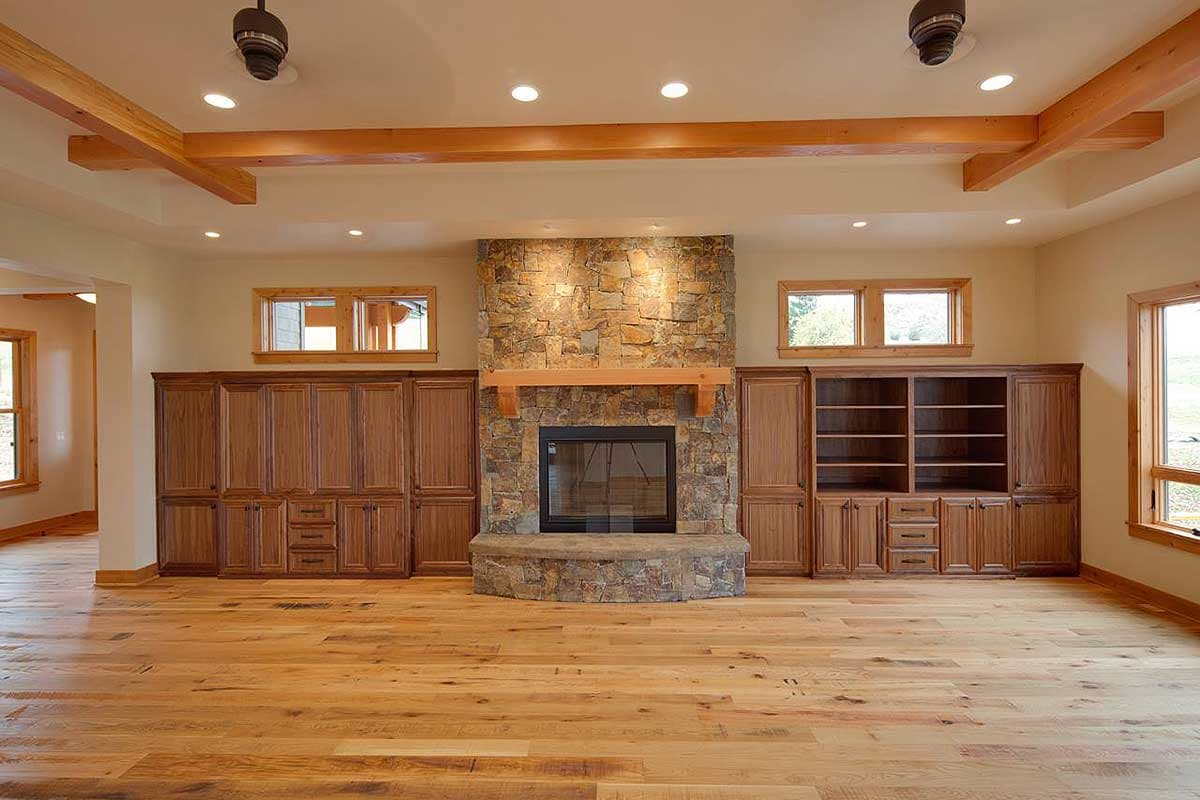

  • The main great room is huge with a big fireplace as the focal point.

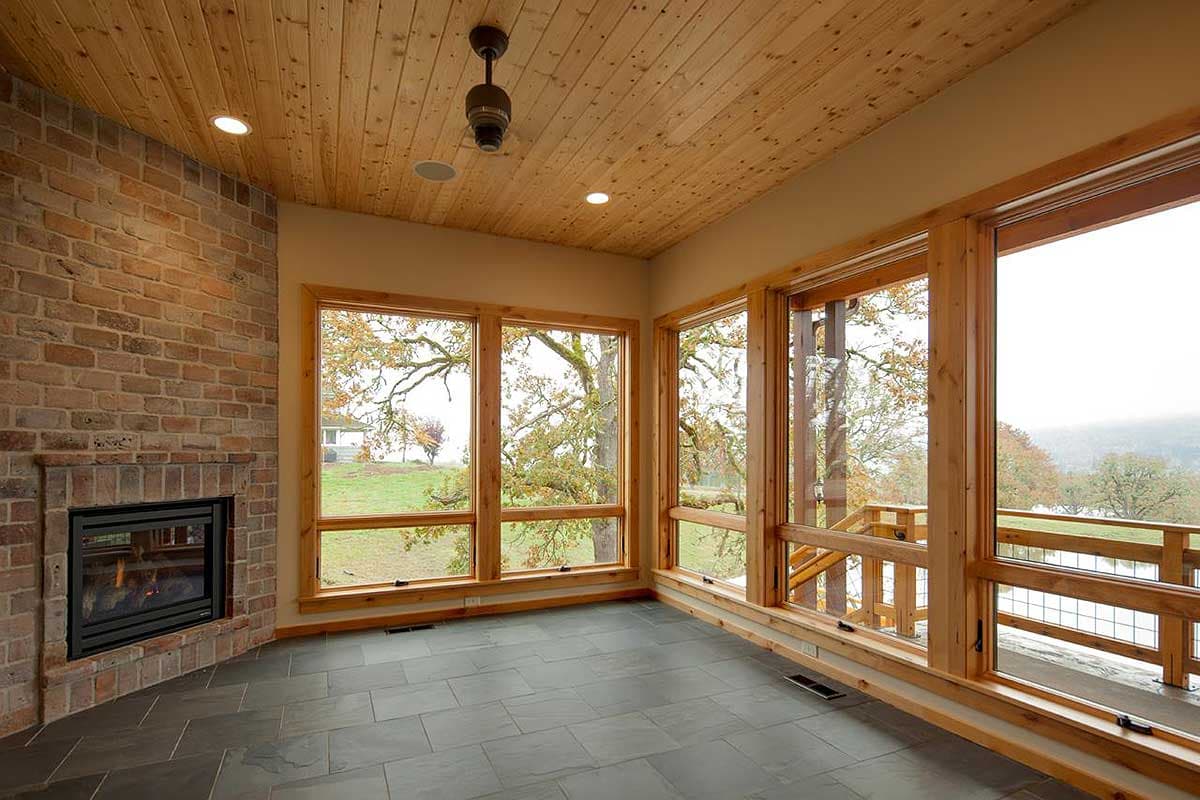

  • Pocket doors slide open to reveal a sun room with its own corner fireplace.

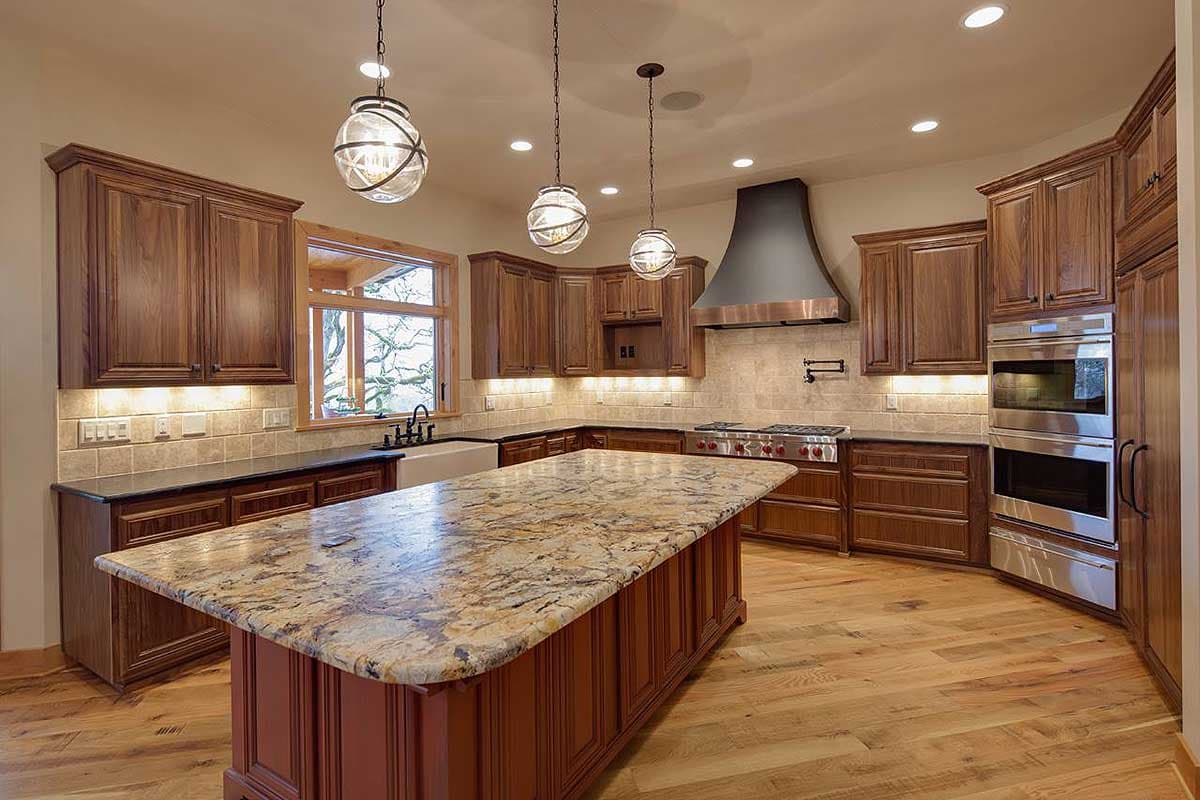

  • The big kitchen has an island and lots of counter space as well as a walk-in pantry.
  • Sleep at night under the vaulted ceiling of the main floor master suite with its huge walk-in closet.
  • The beautifully finished lower level has three more bedrooms and a giant family room that opens to a covered patio.

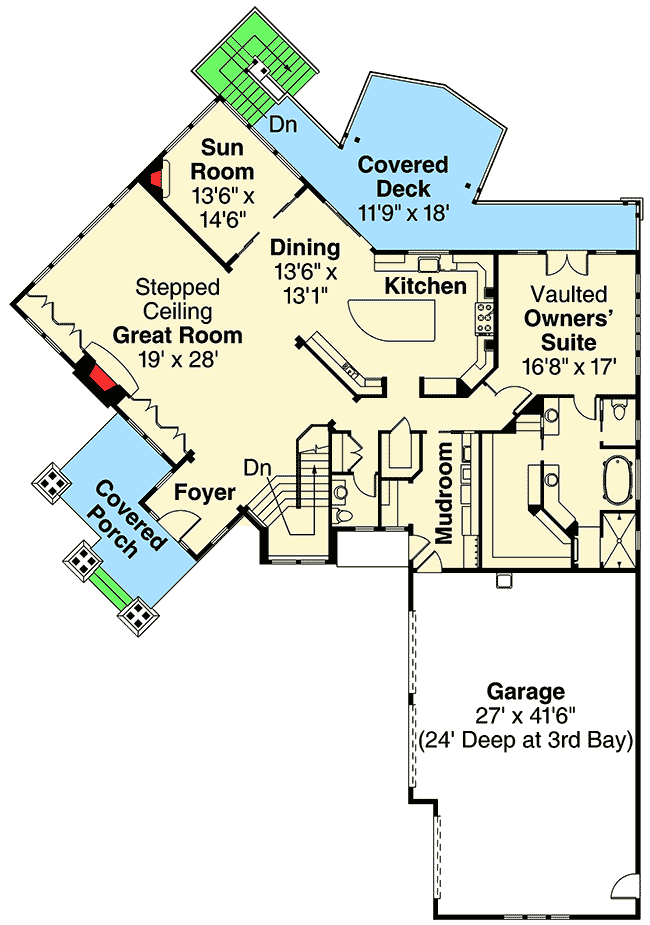

Floor Plans

  • Basement

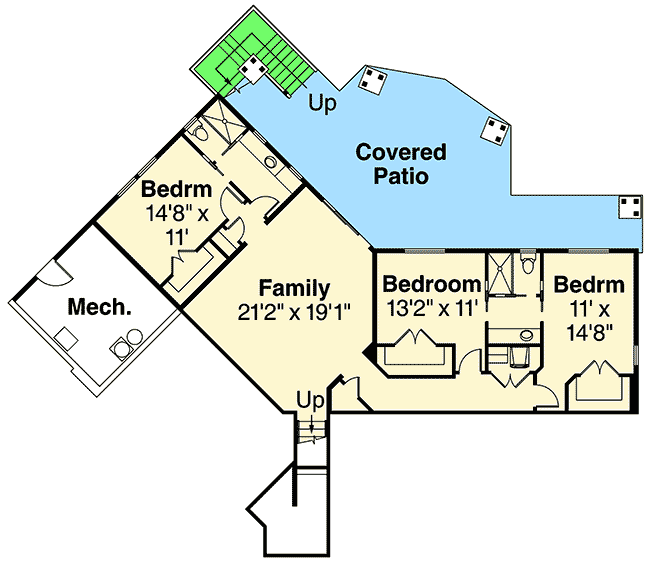

  • Lower Level

Plan Details

Square Footage Breakdown

  • Total Heated Area: 4,197 sq. ft.
  • Lower Level: 1,524 sq. ft.
  • 1st Floor: 2,673 sq. ft.

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 3
  • Half bathrooms: 1

Foundation Type

    • Standard Foundations: Walkout

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 76' 4"
  • Depth: 104' 2"
  • Max ridge height: 23' 7"

Garage

  • Type: Attached
  • Area: 1134 sq. ft.
  • Count: 3 Cars
  • Entry Location: Courtyard

Roof

  • Primary Pitch: 6 on 12
