Plan 39254ST

Craftsman Ranch House Plan with 3 Beds and Open Floor Plan - 1871 Sq Ft

Heated S.F.

1,871

Beds

3

Baths

2

Stories

1

Cars

2

What's Included

Floor Plan

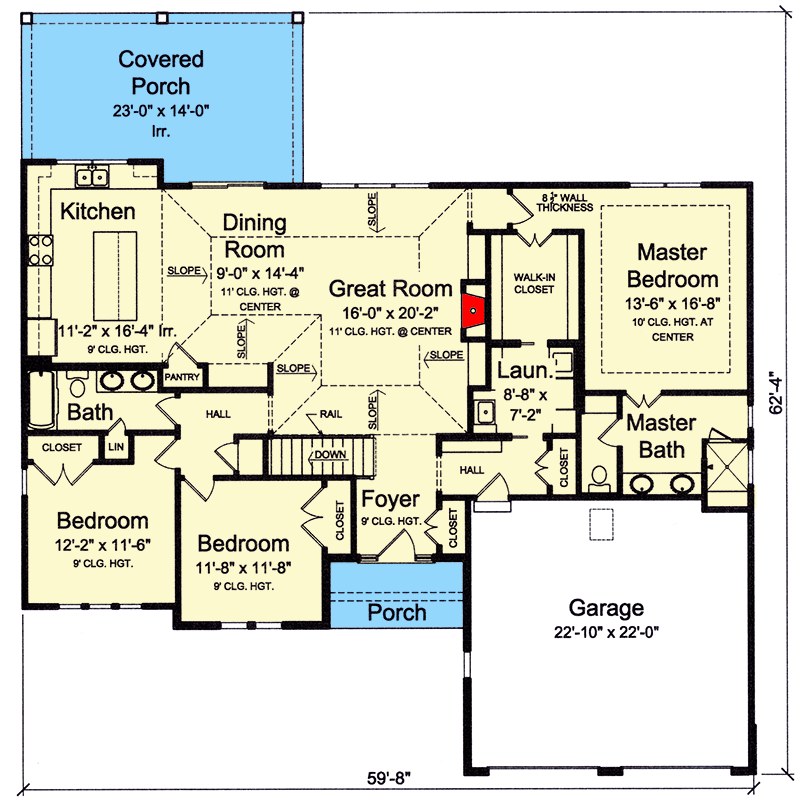

Main Level

Reverse Floor Plan

Craftsman Ranch House Plan with 3 Beds and Open Floor Plan - 1871 Sq Ft - 39254ST floor plan - Main Level

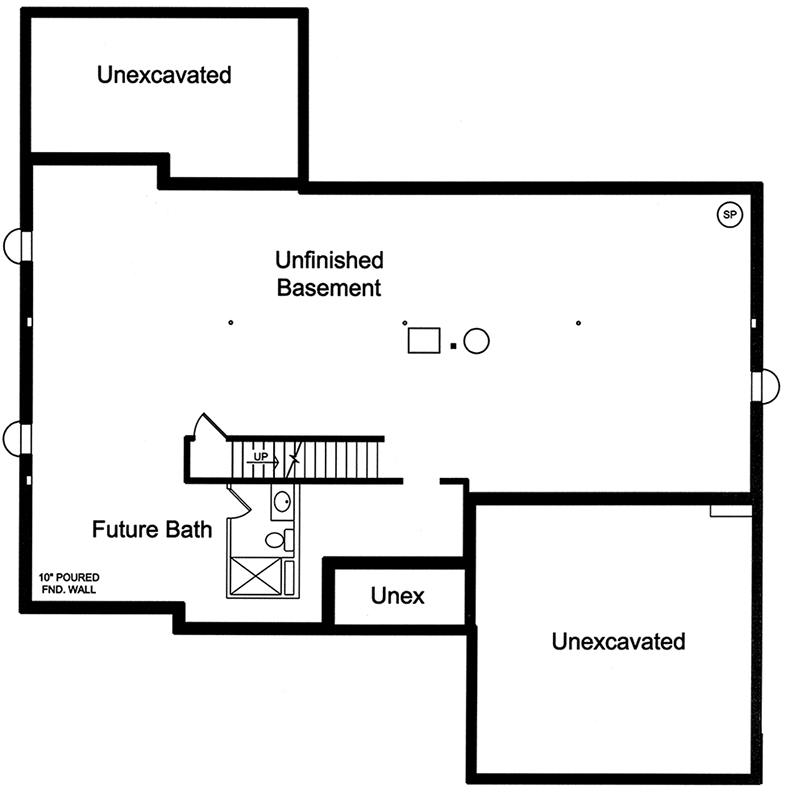

Lower Level

Reverse Floor Plan

Craftsman Ranch House Plan with 3 Beds and Open Floor Plan - 1871 Sq Ft - 39254ST floor plan - Lower Level

Plan Details

This 3 bed, 2 bath Craftsman house plan gives you 1871 square feet of heated living with a stone and siding exterior.
An open floor plan provides a great room, dining and kitchen that flow easily together for a wonderful family and friend’s gathering area.
The kitchen enjoys a 5 foot island with seating and pantry.
Alcoves for a dining hutch and built-in media center show a well thought out usage of the defined spaces.
A vaulted ceiling height and wall of glass bring an abundance of light to the area.
Split bedrooms offer privacy to the master bedroom suite.
A covered rear porch expands the living space to the outdoors and a full basement provides storage or additional square footage.
Related Plan: Get an alternate version with house plan 39113ST.

What's Included

General notes and specifications

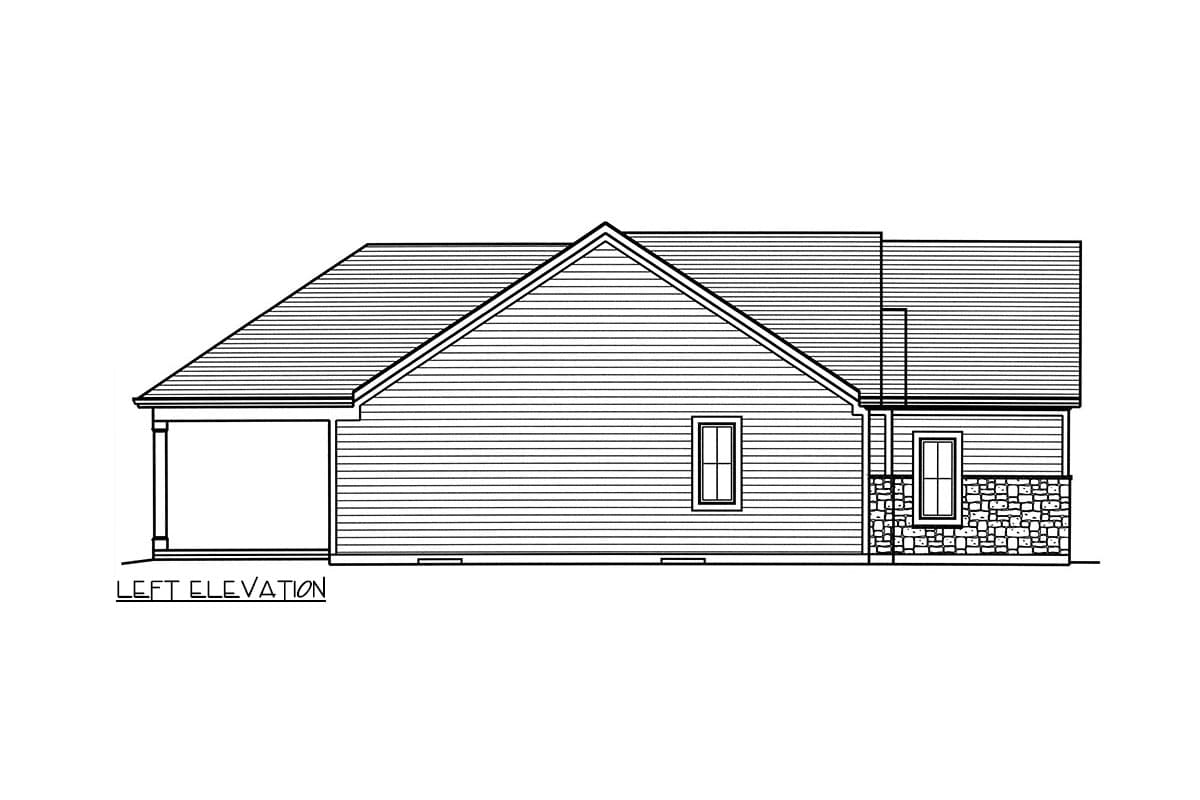

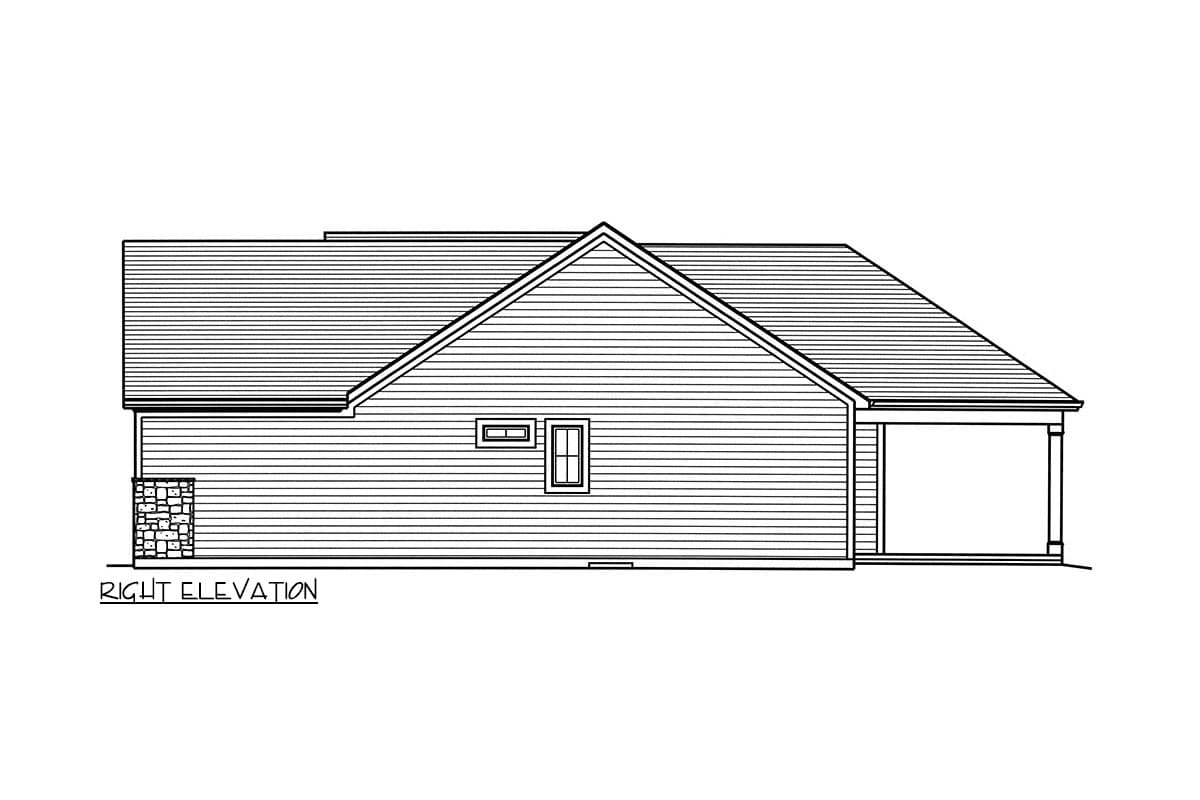

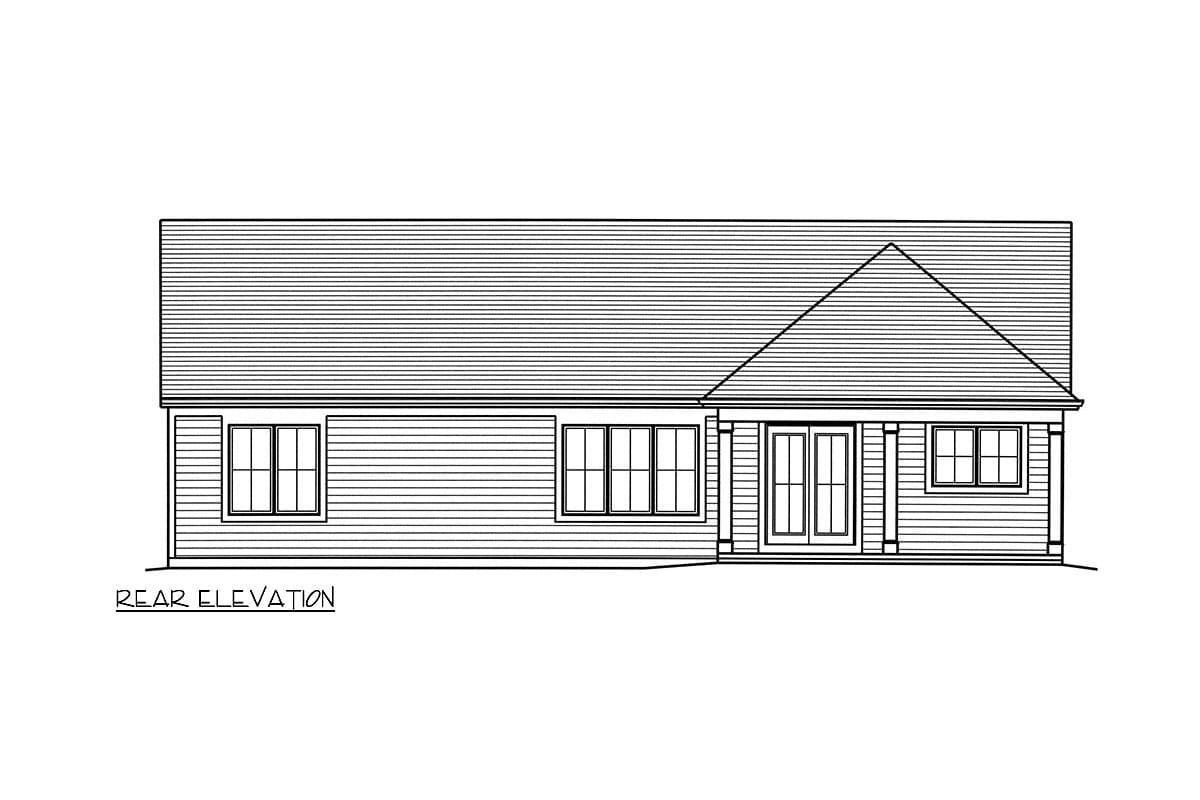

Front, rear and side elevations at (1/4" scale)
Foundation plan (1/4" scale) indicating beam and column sizes along with lower level framing
Reinforced foundation and footing details
First floor plan (1/4" scale) includes all necessary framing information, window rough openings, beam sizes and framing details for specialized areas
Stairs, sections, cabinet layouts, window flashing and miscellaneous details necessary for understanding of construction methods
Roof plan (1/8" scale) indicating pitches and wall height as well as truss profiles indicating heel heights and raised ceiling areas
Wall section indicating standard materials and detailing for typical wall construction

What's Not Included

Architectural or Engineering Stamp - handled locally if required
Site Plan - handled locally when required
Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
Energy calculations - handled locally when required

Square Footage Breakdown

Total Heated Area:

1,871 sq. ft.

1st Floor:

1,871 sq. ft.

Porch, Rear:

295 sq. ft.

Basement Unfinished:

1,871 sq. ft.

Beds/Baths

Bedrooms:

3

Full bathrooms:

2

Foundation Type

Standard Foundations:

Basement

Need A Different Foundation?

Request A Modification Quote

Exterior Walls

Standard Type(s):

2x4

Dimensions

Width:

59' 8"

Depth:

62' 4"

Max Ridge Height:

23' 0"

Garage

Type:

Attached

Area:

497 sq. ft.

Count:

2 Cars

Entry Location:

Front

Ceiling Heights

First Floor

9'

Room	Ceiling Type	Width	Depth	Height
Foyer				9' 0"
Great Room				11' 0"
Kitchen				9' 0"
Master Bedroom				10' 0"

Roof Details

Primary Pitch:

8 on 12

Secondary Pitch:

10 on 12

Framing Type:

Truss

Architectural Style

Special Features

Bedrooms - Split

Laundry - Main Level

Master Suite - 1st Floor

Square Footage Breakdown

Total Heated Area:

1,871 sq. ft.

1st Floor:

1,871 sq. ft.

Porch, Rear:

295 sq. ft.

Basement Unfinished:

1,871 sq. ft.

Beds/Baths

Bedrooms:

3

Full bathrooms:

2

Foundation Type

Standard Foundations:

Basement

Need A Different Foundation?

Request A Modification Quote

Exterior Walls

Standard Type(s):

2x4

Dimensions

Width:

59' 8"

Depth:

62' 4"

Max Ridge Height:

23' 0"

Garage

Type:

Attached

Area:

497 sq. ft.

Count:

2 Cars

Entry Location:

Front

Ceiling Heights

First Floor

9'

Room	Ceiling Type	Width	Depth	Height
Foyer				9' 0"
Great Room				11' 0"
Kitchen				9' 0"
Master Bedroom				10' 0"

Roof Details

Primary Pitch:

8 on 12

Secondary Pitch:

10 on 12

Framing Type:

Truss

Architectural Style

Special Features

Bedrooms - Split

Laundry - Main Level

Master Suite - 1st Floor
