Plan 72207DA

Craftsman Ranch House Plan with Dual Master Suites

Name: Plan 72207DA: Craftsman Ranch House Plan with Dual Master Suites
Brand: Architectural Designs
SKU: 72207DA
Price: 2740.0 USD
Availability: InStock

Heated S.F.

2,591

Beds

2 - 4

Baths

Stories

Cars

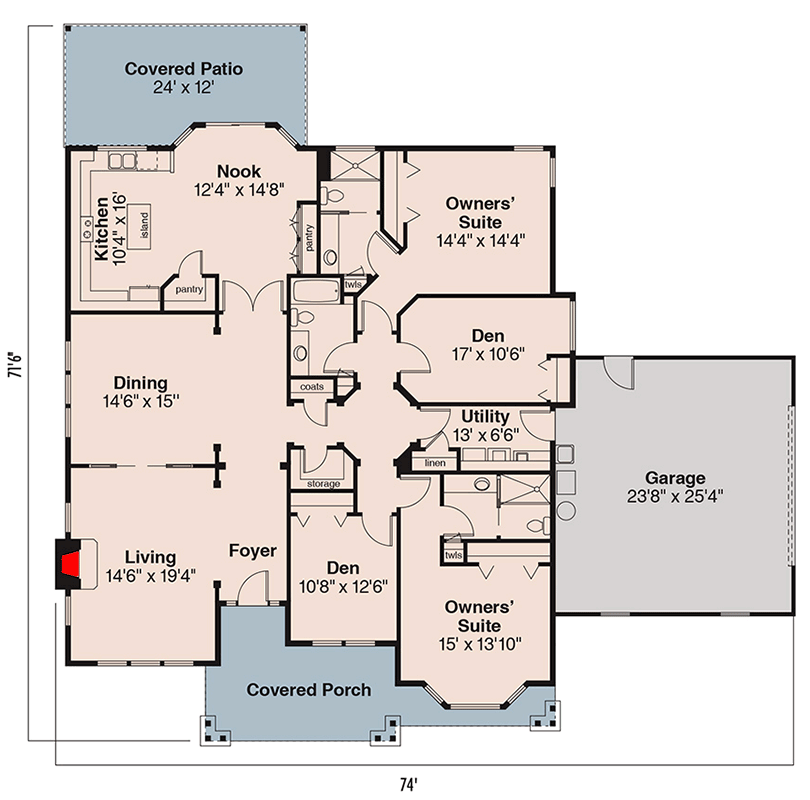

Floor Plan

Main Level

Plan Details

This inviting 2,591 sq. ft. Craftsman Ranch house plan offers flexible 2, 3, or 4 bedrooms, 3 full bathrooms, and an attached 614 sq. ft. side-entry two-car garage.
Step inside from the welcoming front porch to discover a thoughtfully designed layout, featuring 9-foot ceilings throughout the main floor. The plan includes a dedicated den, perfect for a home office, and a flexible room that can adapt to your evolving needs.
The heart of the home features an open-concept flow, connecting the spacious living areas. A charming breakfast nook complements the formal dining room, while a well-appointed butler walk-in pantry ensures seamless entertaining and daily convenience.
Designed for ultimate comfort, this unique plan boasts two distinct master suites, both conveniently located on the first floor. Secondary bedrooms, if configured, are thoughtfully clustered for privacy and accessibility, making this an ideal layout for multi-generational living or guest accommodations.
Enjoy tranquil mornings or evening relaxation on the expansive 524 sq. ft. front porch, offering a picturesque setting to connect with the outdoors and greet neighbors.

What's Included

Each plan set is drawn at 1/4"=1' scale and includes the following drawings:

Cover Sheet/Artist's Rendering: An artist's drawing of the home, usually viewed from the front, and general construction notes.

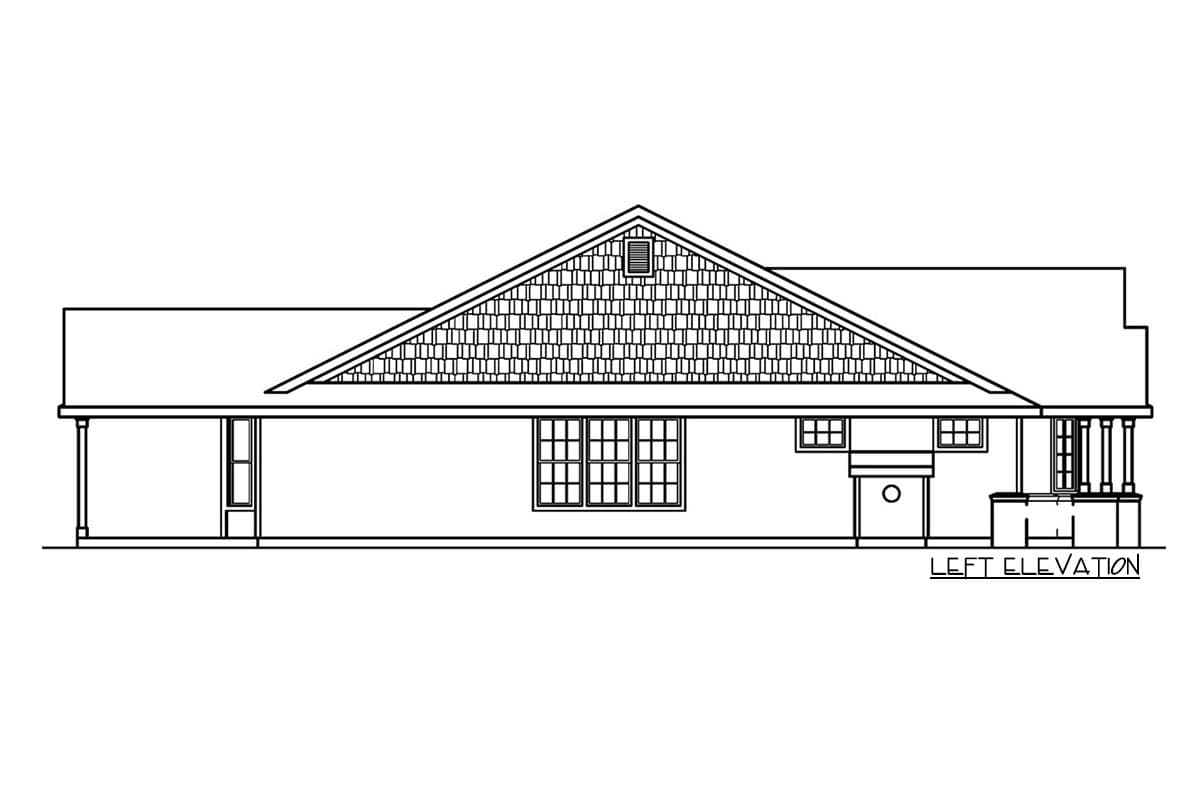

Elevations: Shows the front, sides, and rear, including exterior materials, trim sizes, roof pitches, etc.
Main Floor Plan: Shows placement and dimensions of walls, doors, & windows. Includes the location of appliances, plumbing fixtures, beams, ceiling heights, etc.
Second Floor Plan (if any): Shows the second floor in the same detail as the main floor. Includes second floor framing and details.
Foundation Plan: Shows the location of all concrete footings, floor beams, first floor framing, and foundation details. If there is a basement, a basement plan is included which shows all basement details. Foundation types vary; please call to confirm the foundation type of the plan you are interested in.
Roof Framing Plan: Shows roof outlines, conventional framing/trusses, beams, roof framing details, etc. Specific details such as fireplaces, stairways, decks, etc. Details are drawn at 1/2" = 1' scale, and appear as needed throughout the prints.
Building Section: Shows a cross-section of the home. Shows support members, exterior and interior materials, insulation, and foundation.
Electrical Plan: A schematic layout of all lighting, switches, and electrical outlets.

What's Not Included

Architectural or Engineering Stamp - handled locally if required
Site Plan - handled locally when required
Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
Energy calculations - handled locally when required
