Plan 147001RML
Craftsman Ranch House Plan with Finished Lower Level - 3414 Sq Ft
Heated S.F.
3,414
Beds
4
Baths
3.5
Stories
1
Cars
2
Flyer
What's Included
Plan Details

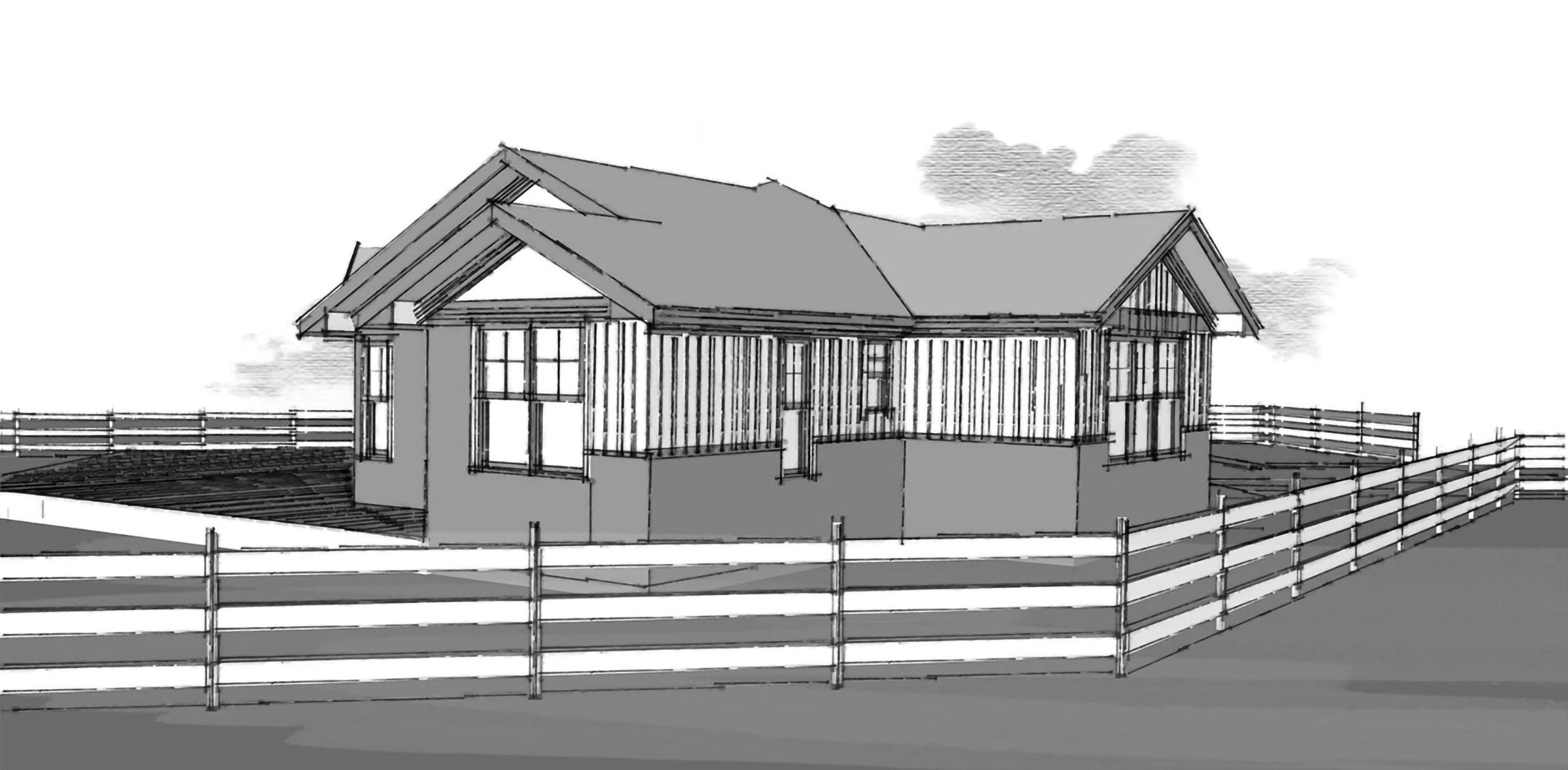

  • This one-story Craftsman ranch house plan gives you 3,414 square feet of heated living space with 3 beds on the main floor and a fourth in the finished lower level.

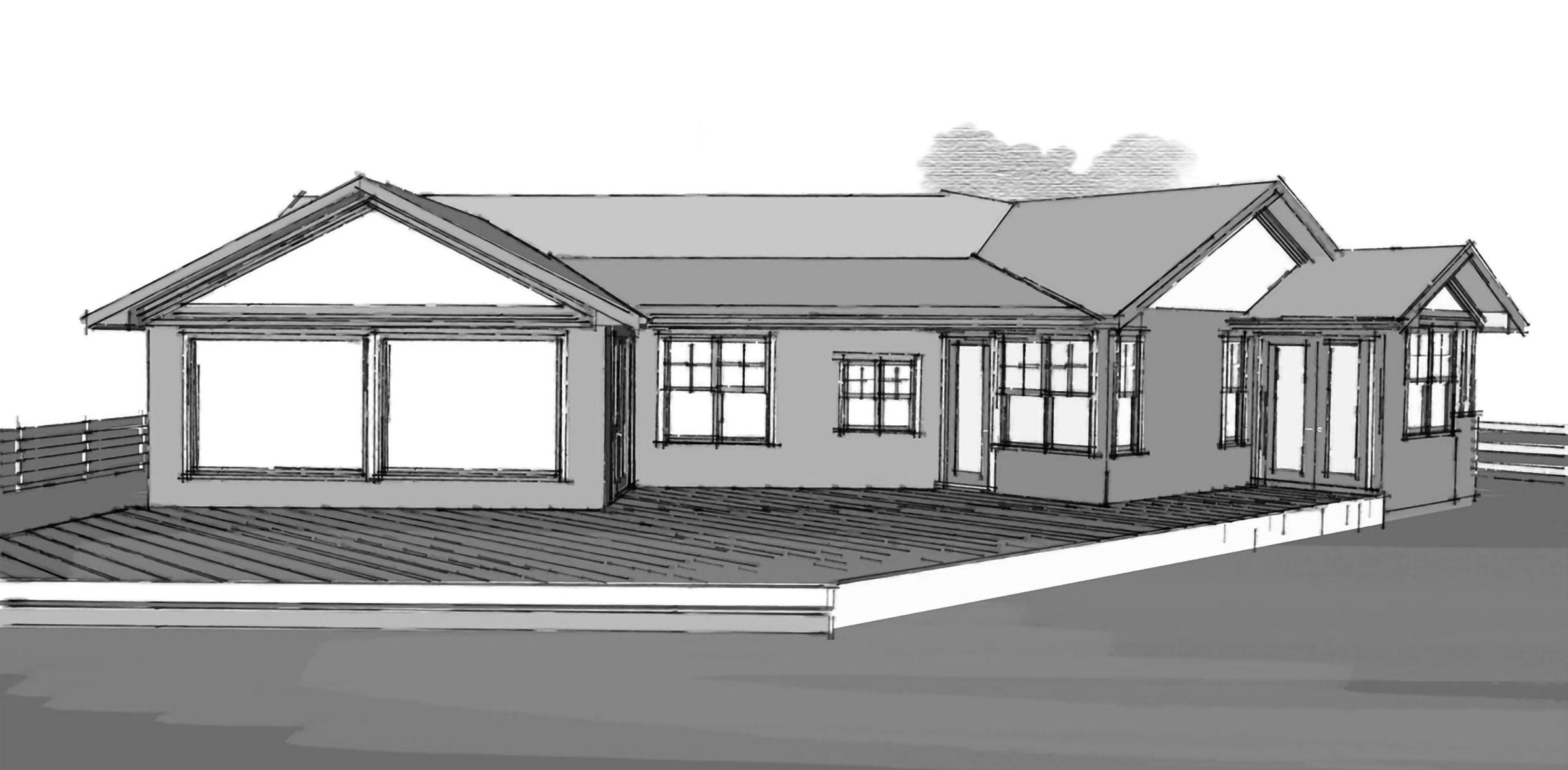

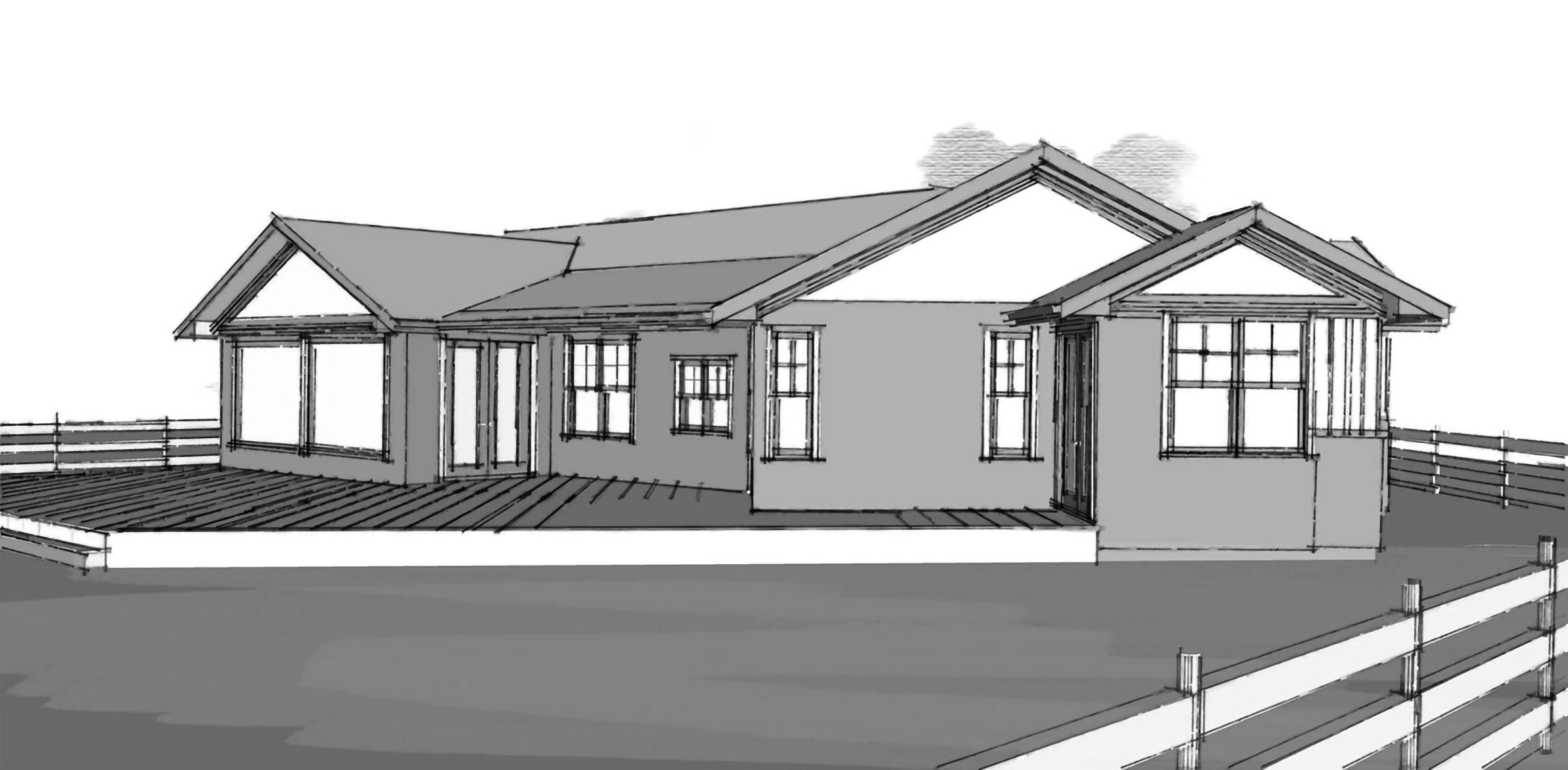

  • Entertain effortlessly on the expansive rear deck, offering both open-air and covered spaces for year-round enjoyment. A the timber-covered entry welcomes you to the large foyer with stairs ahead, bedrooms on the left and open living on the right.

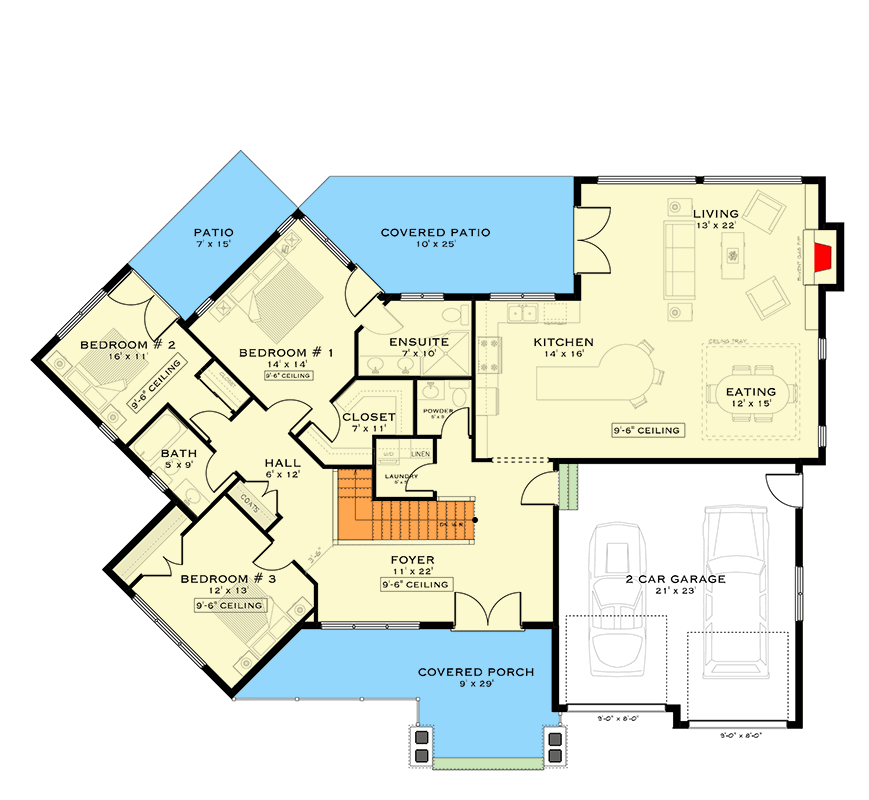

  • The kitchen has a generous circular island and a double sink set beneath windows looking across the covered patio.

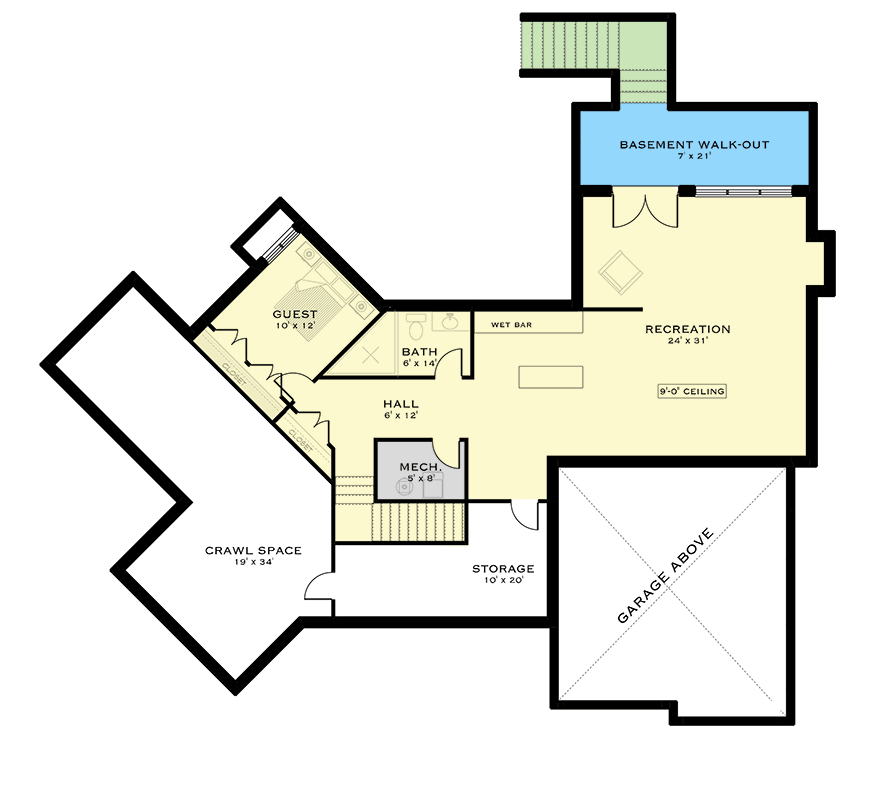

  • The lower level has a large rec are with outdoor access plus a guest suite, wet bar and storage.
  • We can modify any house plan you see on our site. Learn more about modifications.
What's Included
  • Title Sheet w/ Color Rendering and Sheet Index
  • General Notes and Details
  • Foundation Plan and Notes
  • Dimensioned Floor Plan(s) with Window Schedule
  • Roof Plan
  • Building Sections and Details

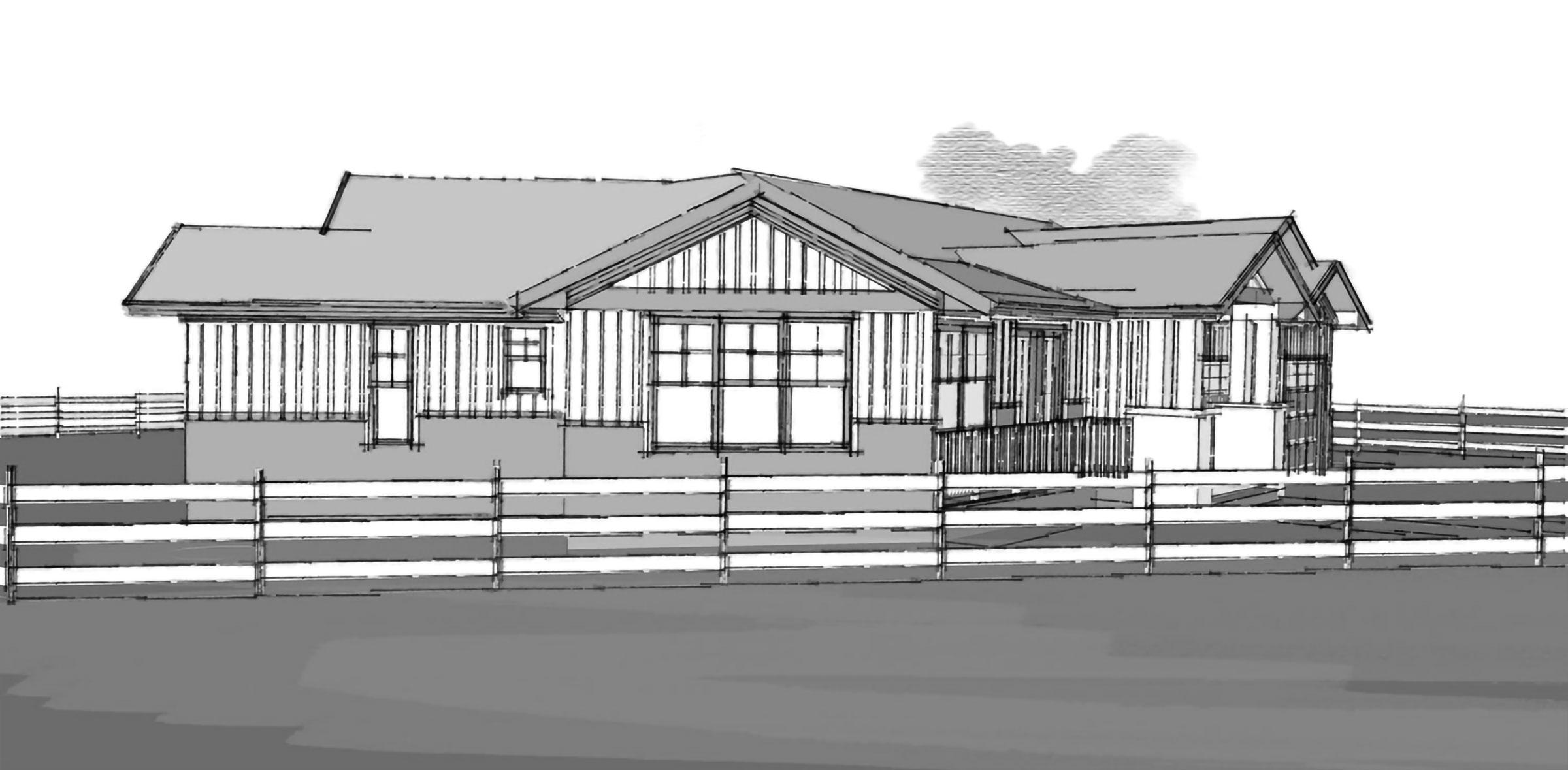

  • Exterior Elevations
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Print
Hide
Compare
Favorite
Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

Craftsman Ranch House Plan with Finished Lower Level - 3414 Sq Ft

  • 3,414

    Heated s.f.

  • 4

    Beds

  • 3.5

    Baths

  • 1

    Floors

  • 2

    Car garage

Floor Plan

  • Main Level

  • Lower Level

Plan Details

Square Footage Breakdown

  • Total: 3,414 sq. ft.
  • Lower Level: 1,448 sq. ft.
  • 1st Floor: 1,966 sq. ft.

Dimensions

  • Width: 71' 8"
  • Depth: 49' 9"
  • Max ridge height: 19' 8"

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 3
  • Half bathrooms: 1

Garage

  • Type: Attached
  • Area: 542 sq. ft.
  • Count: 2 Cars
  • Entry Location: Front

Foundation Type

    • Standard Foundations: Basement, Combo Basement-Crawl, Walkout

Exterior Walls

  • Standard Type(s): 2x6

Ceiling Heights

  • Floor / Height: Lower Level / 9' 0" First Floor / 9' 6"

Roof

  • Primary Pitch: 6 on 12
  • Secondary Pitch: 3 on 12
  • Framing Type: Truss
