Plan 61369UT
EXCLUSIVE
Craftsman Ranch House Plan with Lower-level 3-Bed Apartment
Heated S.F.
2,241
Beds
4-5
Baths
4
Stories
1
Cars
2
What's Included
Floor Plan
PRINT PLANS
Main Level
Reverse Floor Plan

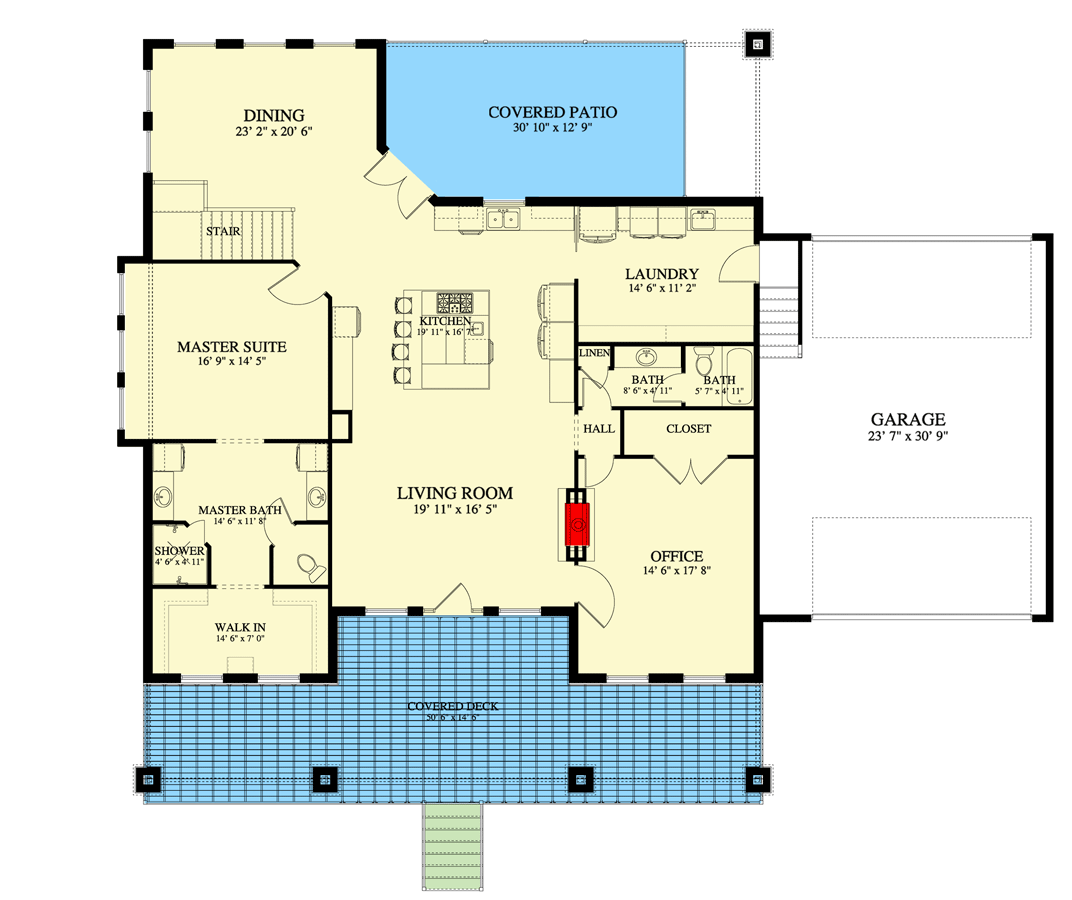

Craftsman Ranch House Plan with Lower-level 3-Bed Apartment - 61369UT floor plan - Main Level

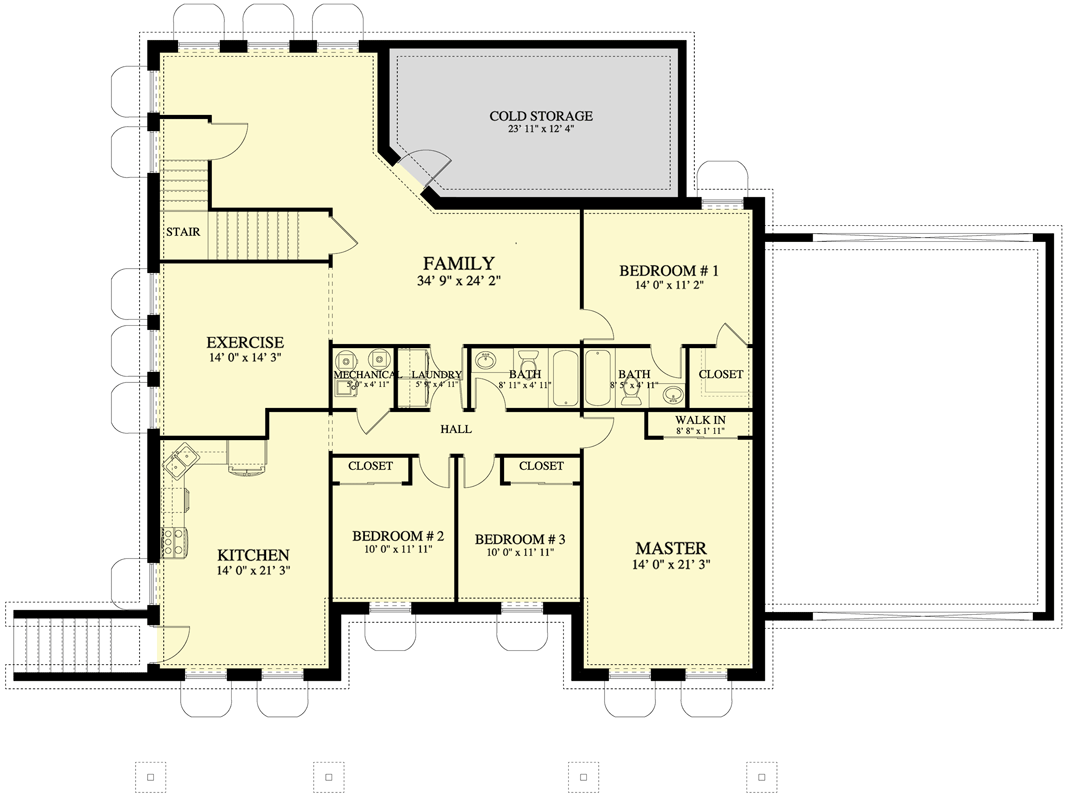

Optional Lower Level
Reverse Floor Plan
Craftsman Ranch House Plan with Lower-level 3-Bed Apartment - 61369UT floor plan - Optional Lower Level
Plan Details
  • Four tapered pillars support the large front porch on this Craftsman ranch house plan. The lower level apartment is ideal for in-laws or an income property.
  • The formal entry guides you directly into the heart of the home, where minimal walls create a desirable open layout. The living room's double-sided fireplace also warms a spacious home office.
  • A square-shaped cooktop island anchors the kitchen and includes seating for casual meals. The adjoining dining area is surrounded by windows, and nearby french doors grant access to the back covered patio.
  • Retreat to the easily accessible master suite to find a roomy master bath with a tile shower and walk-in closet.
  • Downstairs, loads of egress windows create a light and airy living space, which consists of a family room and exercise area, along with a bedroom with a full bath.
  • The lower-level laundry room connects the main home to the 3-bedroom apartment.
What's Included
  • General notes
  • Foundation plan
  • Detailed floor plans
  • Floor framing
  • Roof framing
  • Elevations
  • Cross sections
  • Electrical plans
  • General details
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Print
Hide
Compare
Favorite
Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

Craftsman Ranch House Plan with Lower-level 3-Bed Apartment

  • 2,241

    Heated s.f.

  • 4-5

    Beds

  • 4

    Baths

  • 1

    Floors

  • 2

    Car garage

Floor Plan

  • Main Level

  • Optional Lower Level

Plan Details

Square Footage Breakdown

  • Total: 2,241 sq. ft.
  • 1st Floor: 2,241 sq. ft.

Dimensions

  • Width: 77' 0"
  • Depth: 53' 0"
  • Max ridge height: 20' 9"

Beds/Baths

  • Bedrooms: 4 or 5
  • Full bathrooms: 4

Garage

  • Type: Attached
  • Area: 775 sq. ft.
  • Count: 2 Cars
  • Entry Location: Front

Foundation Type

    • Standard Foundations: Basement
    • Optional Foundations: Stem Wall, Monolithic Slab, Walkout, Daylight, Crawl

Exterior Walls

  • Standard Type(s): 2x6

Ceiling Heights

  • Floor / Height: First Floor / 9' 0"

Roof

  • Primary Pitch: 6 on 12
  • Secondary Pitch: 4 on 12
  • Framing Type: Truss
All house plans are copyright ©2024 by the architects and designers represented on our web site

Craftsman Ranch House Plan with Lower-level 3-Bed Apartment

  • 2,241

    Heated s.f.

  • 4-5

    Beds

  • 4

    Baths

  • 1

    Floors

  • 2

    Car garage

Craftsman Ranch House Plan with Lower-level 3-Bed Apartment

  • 2,241

    Heated s.f.

  • 4-5

    Beds

  • 4

    Baths

  • 1

    Floors

  • 2

    Car garage

Plan Details

Square Footage Breakdown

  • Total: 2,241 sq. ft.
  • 1st Floor: 2,241 sq. ft.

Dimensions

  • Width: 77' 0"
  • Depth: 53' 0"
  • Max ridge height: 20' 9"

Beds/Baths

  • Bedrooms: 4 or 5
  • Full bathrooms: 4

Garage

  • Type: Attached
  • Area: 775 sq. ft.
  • Count: 2 Cars
  • Entry Location: Front

Foundation Type

    • Standard Foundations: Basement
    • Optional Foundations: Stem Wall, Monolithic Slab, Walkout, Daylight, Crawl

Exterior Walls

  • Standard Type(s): 2x6

Ceiling Heights

  • Floor / Height: First Floor / 9' 0"

Roof

  • Primary Pitch: 6 on 12
  • Secondary Pitch: 4 on 12
  • Framing Type: Truss

    Main Level

    Optional Lower Level
Plan 61369UT
Plan 61369UT
