Plan 849084PGE

Craftsman Ranch House Plan with Split Bedrooms and 3-Car Garage

Heated S.F.
3,010
Beds
3 - 4
Baths
2.5
Stories
1
Cars
3

Floor Plan

Plan 849084PGE

Main Level
Main Level
2nd Floor
2nd Floor

Plan 849084PGE

M-F 9am-5pm EST |

1-203-761-8500

Main Level

Plan 849084PGE: Craftsman Ranch House Plan with Split Bedrooms and 3-Car Garage - Floor Plan - Main Level - Craftsman, Ranch, Traditional

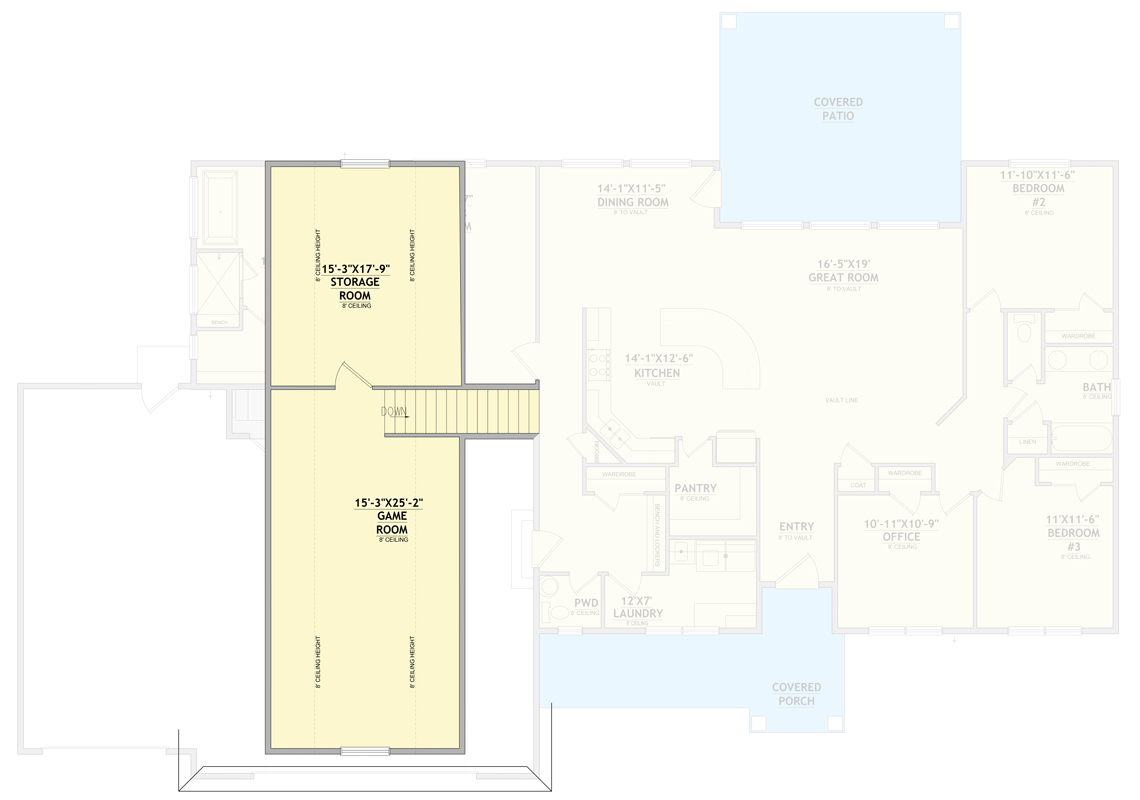

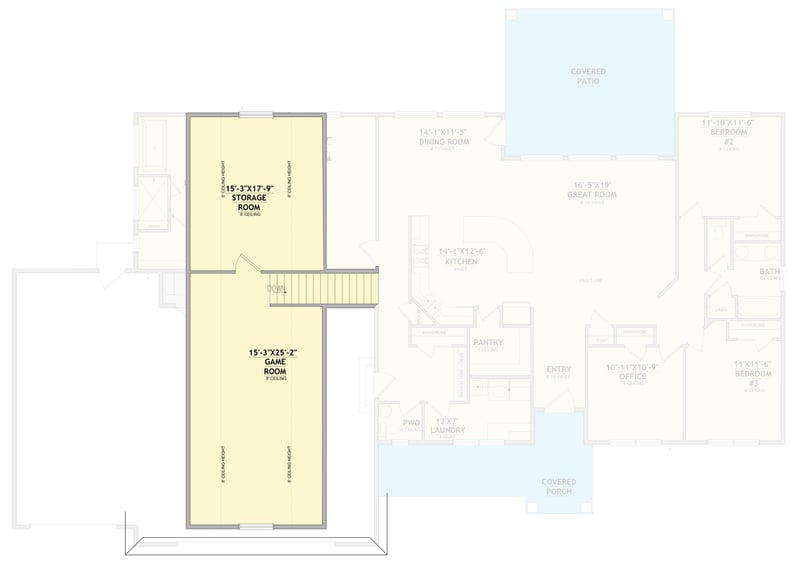

2nd Floor

Plan 849084PGE: Craftsman Ranch House Plan with Split Bedrooms and 3-Car Garage - Floor Plan - 2nd Floor - Craftsman, Ranch, Traditional

Plan Details

  • Boasting 3,010 finished sq ft, 3-4 bedrooms, 2.5 baths, and a generous 1153 sq ft 3-car garage, this inviting Craftsman Ranch home features a charming brick and shake exterior.
  • A welcoming covered porch leads into an open layout, with a convenient home office near the entry for quiet productivity.
  • The heart of the home features a seamless flow between the main living areas, centered around a spacious kitchen with a walk-in pantry and a cozy casual dining area.
  • The luxurious primary suite, located on the main floor for ultimate privacy, offers a serene retreat, while three secondary bedrooms are thoughtfully split for family comfort.
  • Upstairs, a versatile game or rec room provides ample space for entertainment or a dedicated hobby area.
  • The welcoming covered front porch offers a delightful spot for morning coffee or greeting guests.

What's Included

  • Cover Sheet
  • Elevations
  • Foundation Plan
  • Floor Plan
  • Electrical Plan
  • Details and Schedules
  • Upper Floor Framing Plan
  • Roof Flaming Plan
  • Details
  • Sections and Notes
View Sample Plan

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical and Electrical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Starting at
What's included?
Plan Set
Select...
Foundation
Select...
Options
Optional Add-Ons
+$0
Price Match Guarantee
Cost to Build Report
Still deciding? Calculate the cost to build this house in your area.
Customize This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Cost to Furnish Report
Instant room-by-room estimates for your entire furniture & home decor plan, matched to your budget.

Square Footage Breakdown

Total Heated Area

3,010 sq. ft.

1st Floor

2,257 sq. ft.

2nd Floor

753 sq. ft.

Beds/Baths

Bedrooms

3 or 4

Full bathrooms

2

Half bathrooms

1

Foundation Type

Standard Foundations

Crawl

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

89' 0"

Depth

62' 0"

Max Ridge Height

22' 11"

Garage

Type

Standard

Area

1153 sq. ft.

Count

3 Cars

Entry Location

Front

Ceiling Heights

First Floor

8'

Second Floor

8'

Roof Details

Primary Pitch

9 on 12

Secondary Pitch

8 on 12

Framing Type

Truss

Architectural Style

Craftsman

Ranch

Traditional

Special Features

Bedrooms - Split

Flex Room

Game/Rec Room

Home Office

Laundry - Main Level

Master Suite - 1st Floor

Walk-in Pantry

Square Footage Breakdown

Total Heated Area

3,010 sq. ft.

1st Floor

2,257 sq. ft.

2nd Floor

753 sq. ft.

Beds/Baths

Bedrooms

3 or 4

Full bathrooms

2

Half bathrooms

1

Foundation Type

Standard Foundations

Crawl

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

89' 0"

Depth

62' 0"

Max Ridge Height

22' 11"

Garage

Type

Standard

Area

1153 sq. ft.

Count

3 Cars

Entry Location

Front

Ceiling Heights

First Floor

8'

Second Floor

8'

Roof Details

Primary Pitch

9 on 12

Secondary Pitch

8 on 12

Framing Type

Truss

Architectural Style

Craftsman

Ranch

Traditional

Special Features

Bedrooms - Split

Flex Room

Game/Rec Room

Home Office

Laundry - Main Level

Master Suite - 1st Floor

Walk-in Pantry
