Plan 267026SPK
EXCLUSIVE
Craftsman Ranch Plan with RV Bay
Heated S.F.
1,972
Beds
2-3
Baths
2
Stories
1
Cars
3
What's Included
Plan Details

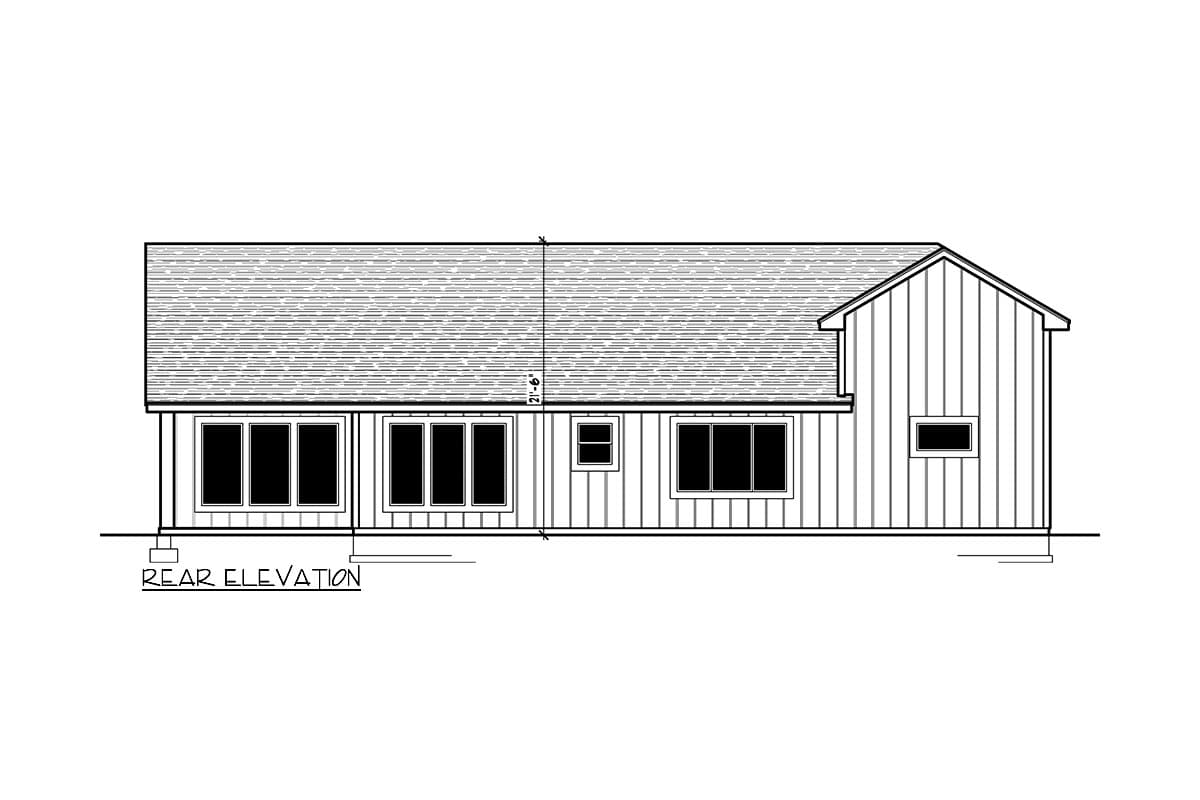

  • Exposed framing decorates the gabled peaks of this Craftsman Ranch home plan, which delivers an oversized RV bay, alongside the double garage.

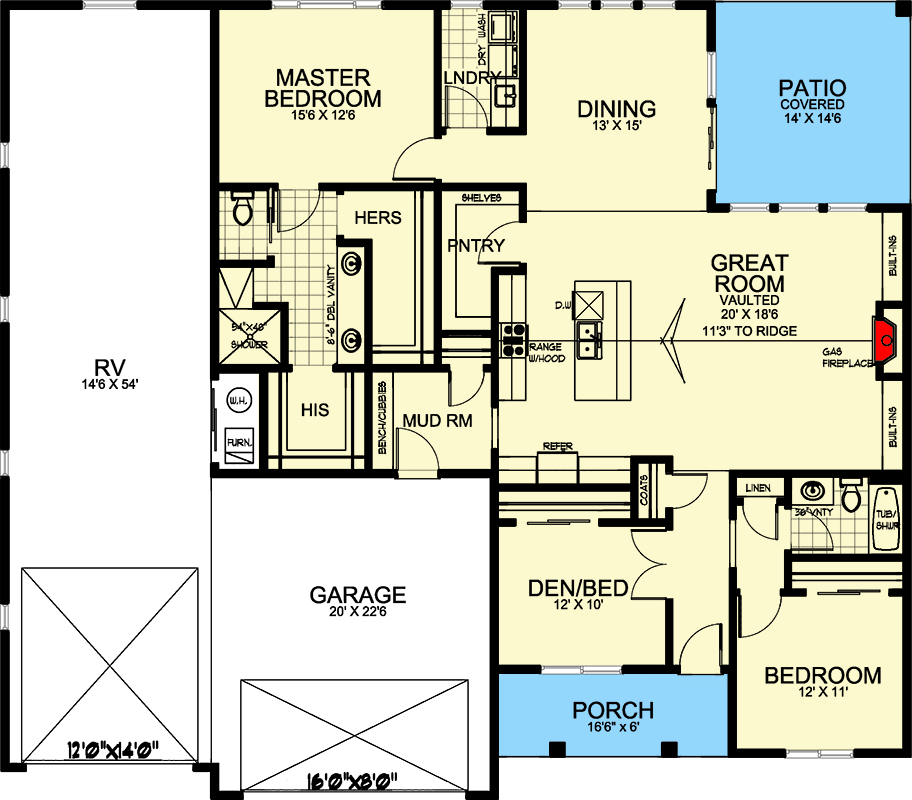

  • This one-level home plan was designed with comfort in mind and gives you a vaulted great room and kitchen that opens to the dining room. Glass sliders allow you to easily move onto the covered patio for outdoor enjoyment.
  • An island anchors the gourmet kitchen and a nearby walk-in pantry provides ample storage space.
  • The location of the master bedroom offers additional privacy, while two walk-in closets will accommodate larger wardrobes. The laundry room conveniently resides next to the master bedroom.
  • Two family bedrooms frame the entryway and a mudroom completes the design and serves as a catchall when entering from the garage.
What's Included
  • Exterior Elevations, Roof plan
  • Floor plan
  • Foundation plan
  • Typical details, building section
  • Notes and specifications
What's Not Included
  • Electrical Plan
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • REScheck or other energy related calculations are NOT included.
  • Wind load or seismic calculations are NOT included.
  • Framing plans or beam sizes are NOT included.
  • Other specific drawings that your local permit office may require
Print
Hide
Compare
Favorite
Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

Craftsman Ranch Plan with RV Bay

  • 1,972

    Heated s.f.

  • 2-3

    Beds

  • 2

    Baths

  • 1

    Floors

  • 3

    Car garage

Floor Plan

  • Main Level

Plan Details

Square Footage Breakdown

  • Total: 1,972 sq. ft.
  • 1st Floor: 1,972 sq. ft.

Dimensions

  • Width: 65' 0"
  • Depth: 57' 0"
  • Max ridge height: 21' 6"

Beds/Baths

  • Bedrooms: 2 or 3
  • Full bathrooms: 2

Garage

  • Type: RV Garage, Attached
  • Area: 1235 sq. ft.
  • Count: 3 Cars
  • Entry Location: Front

Foundation Type

    • Standard Foundations: Slab

Exterior Walls

  • Standard Type(s): 2x6

Ceiling Heights

  • Floor / Height: First Floor / 9' 0"

Roof

  • Primary Pitch: 7 on 12
  • Secondary Pitch: 5 on 12
  • Framing Type: Stick
