Plan 444000GDN
Craftsman Ranch Plan with Screened Porch and Deluxe Master Suite
Heated S.F.
3,048
Beds
3-4
Baths
4
Stories
1
Cars
3
What's Included
Floor Plan
PRINT PLANS

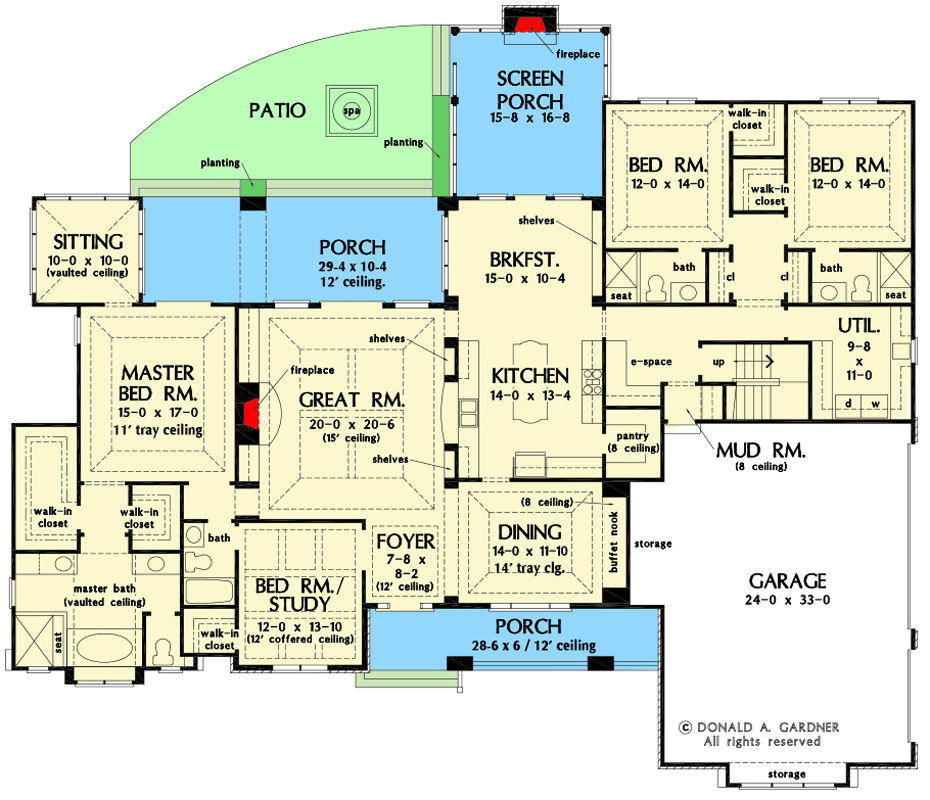

Main Level
Reverse Floor Plan
Craftsman Ranch Plan with Screened Porch and Deluxe Master Suite - 444000GDN floor plan - Main Level

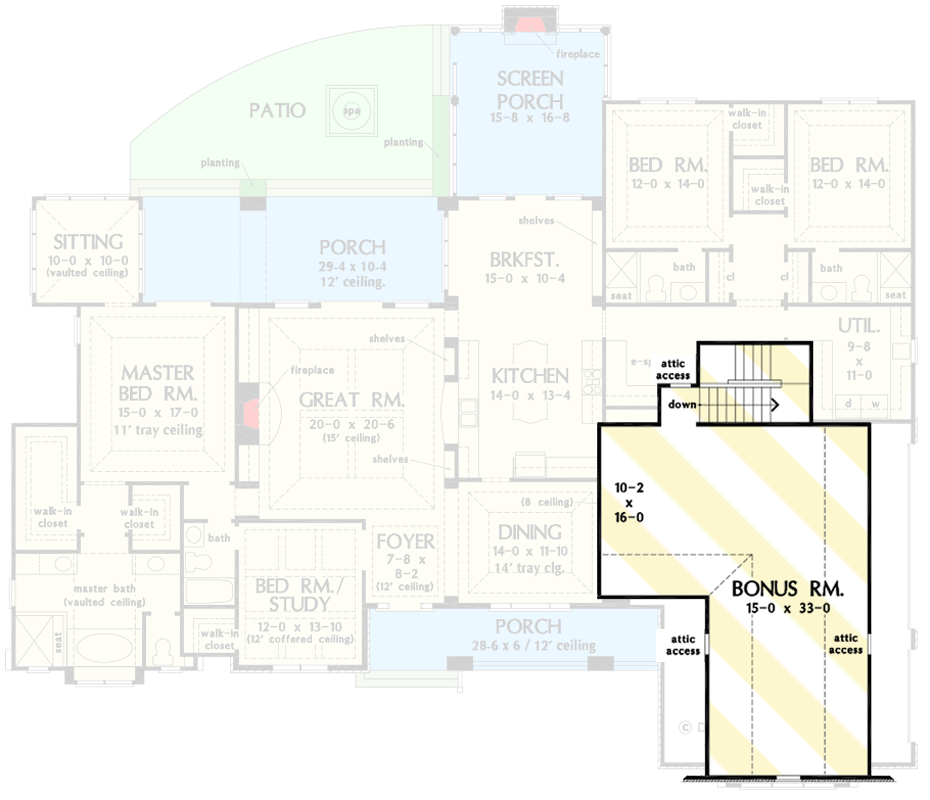

Optionally Finished Bonus Room
Reverse Floor Plan
Craftsman Ranch Plan with Screened Porch and Deluxe Master Suite - 444000GDN floor plan - Optionally Finished Bonus Room
Plan Details
  • This Craftsman Ranch home plan was designed with the modern homeowner in mind. The 3-car garage with extra storage provides space for a third automobile, workshop, or golf cart.

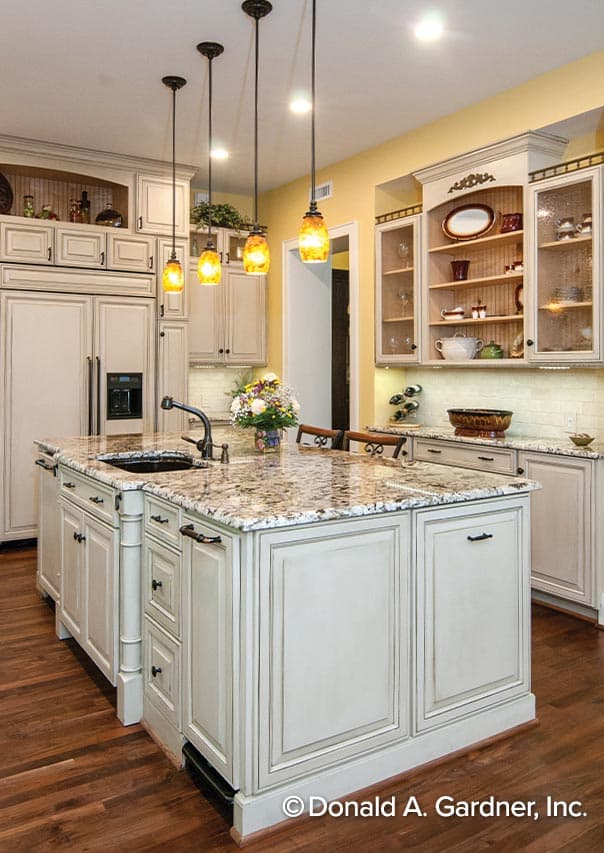

  • The large kitchen, outfitted for culinary greatness, includes a walk-in pantry and sizable central island, and the neighboring dining room offers oversized windows and a buffet nook for furniture, all under a 14' tray ceiling.

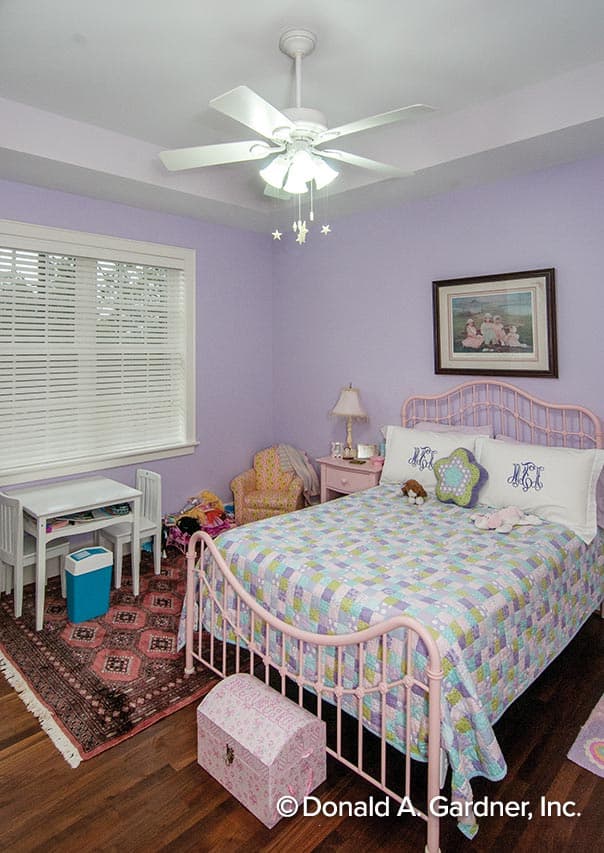

  • Custom-style details abound in this luxurious plan with built-ins in the great room (15' tray ceiling) and breakfast areas, along with elegant ceiling treatments in each of the bedrooms.

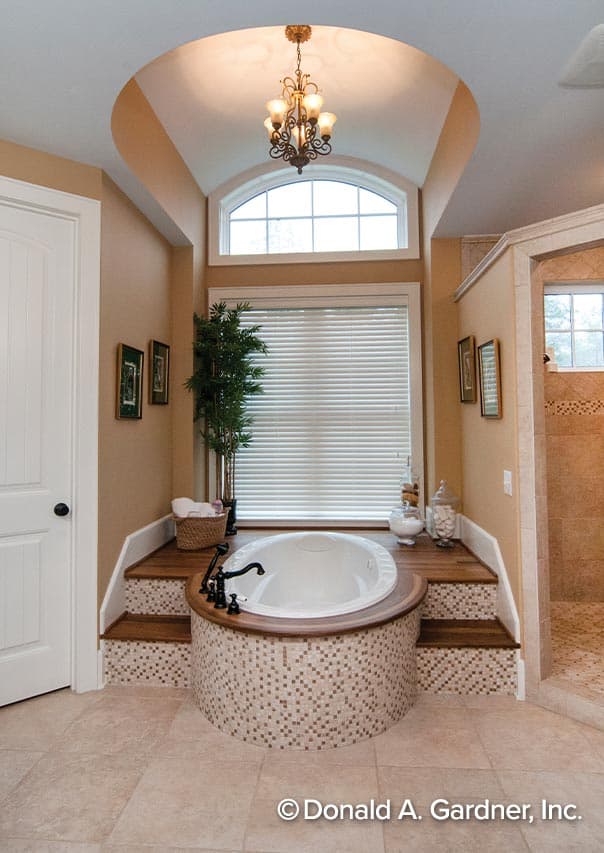

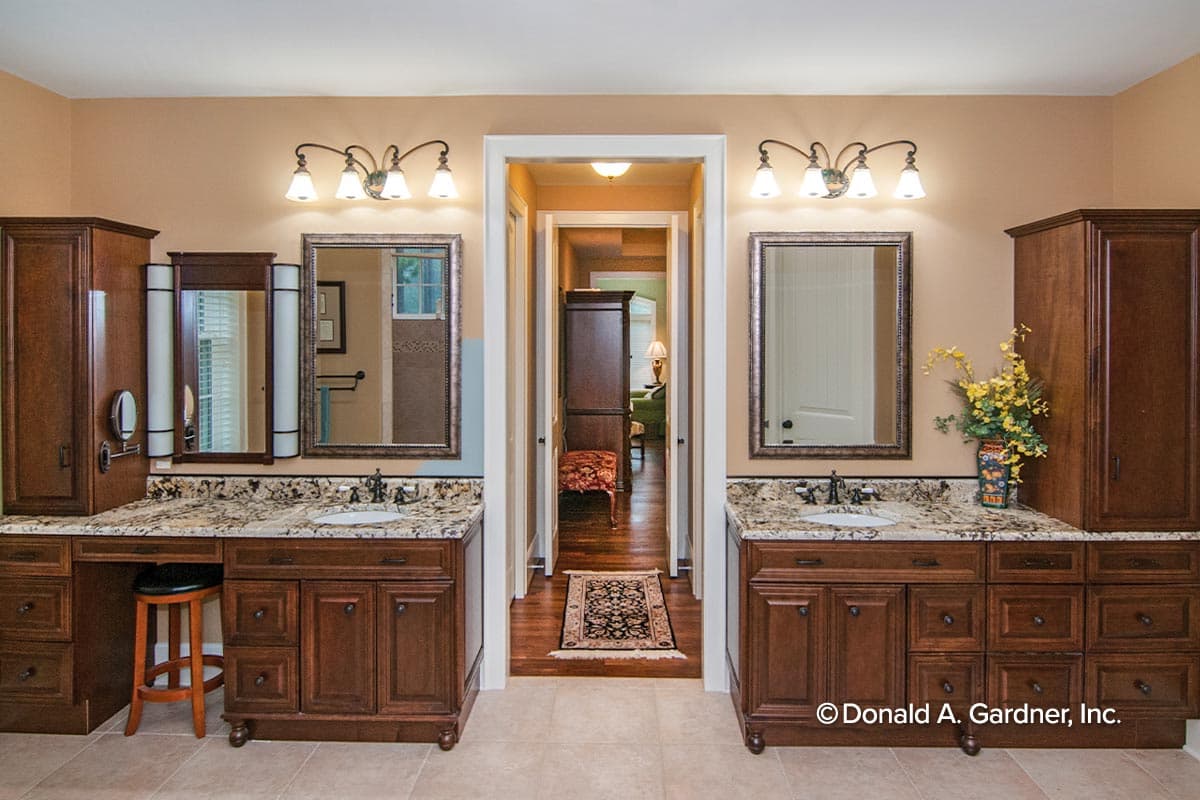

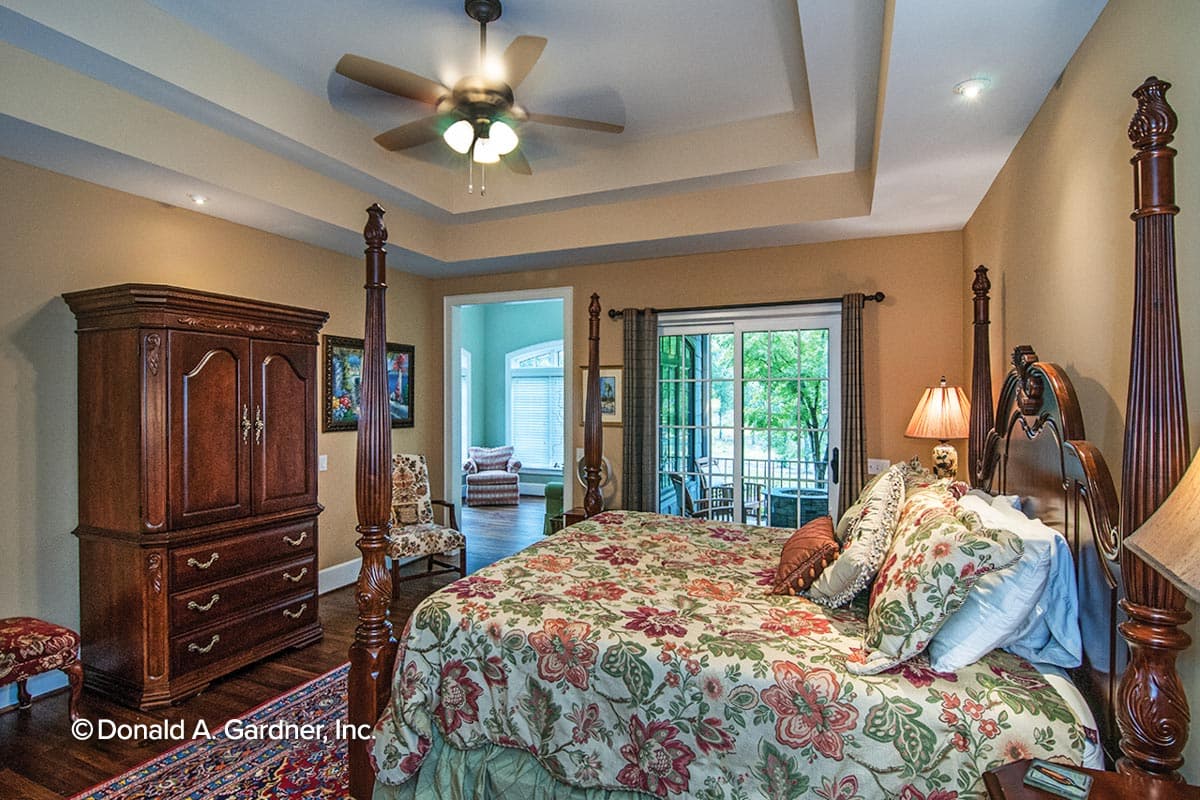

  • A sunroom-style sitting nook is the highlight of the master bedroom, along with the spa-like retreat that is the master bathroom.
  • The screened porch offers the best in year-round outdoor living with a fireplace, and a versatile bonus room (795 square feet) provides the option to gain square footage.
What's Included
  • Cover Sheet - An artist's rendering of the exterior of the house shows you approximately how the house will look when built and landscaped
  • Foundation Plan - This plan gives the foundation layout, including support walls, excavated and unexcavated areas, if any, foundation notes and details, and floor framing.
  • Detailed Floor Plans - These plans show the layout of each floor of the house. Rooms and interior spaces are carefully dimensioned and keys are given for cross-section details provided later in the plans, as well as window and door schedules. These plans may also show the location of kitchen appliances and plumbing fixtures, and may suggest locations for electrical fixtures, switches and outlets.
  • Interior Elevations - The interior elevation drawings show a suggested layout design of cabinets, utility rooms, fireplaces, bookcases, built-in units and other special interior features depending on the nature and complexity of the item.
  • Roof Plan - The roof plan shows a bird's eye view of the overall layout of the roof, ridges, valleys, and slopes.
  • Exterior Elevations - Included are front, rear, left and right sides of the house. Exterior materials, details and measurements are also given.
  • Cross-Section / Wall Section Details -  Important changes in floor, ceiling and roof heights or the relationship of one level to another are called out. Also shown, when applicable, are exterior details such as railing and banding.
  • Structural Plan - Overall layout and necessary details for the ceiling, second-floor framing (if applicable) and roof construction. If trusses are used, it's suggested that you use a local truss manufacturer to design your trusses to comply with your local codes and regulations.
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
