Plan 350044GH Craftsman Ranch Plan with Split-Bed Layout and Finished Lower Level

3,732 3 2.5 2
Print
Compare HIDE
All plans are copyrighted by our designers. Photographed homes may include modifications made by the homeowner with their builder.

Craftsman Ranch Plan with Split-Bed Layout and Finished Lower Level

Plan 350044GH

  • 3,732

    Heated s.f.

  • 3

    Beds

  • 2.5

    Baths

  • 2

    Stories

  • A 6-foot-deep front porch spans the full length of this 3,732 square foot Craftsman ranch house plan with 3 beds, 2.5 baths and a finished lower level.
  • The master suite and Bed 2 are clustered on the right and Bed 3 is across the home, leaving the central core of the home plan open concept.
  • An extra large island in the kitchen has seating on two sides. A separate dining area overlooks the front and French doors take you to a covered patio in back where you can eat al fresco.
  • The lower level gives you a home office, a home theater and a family room.

Each plan set includes the following:

  • Coversheet: This is an artist's rendering of the finished home. This is used as a visual aid, but it is not needed for construction.

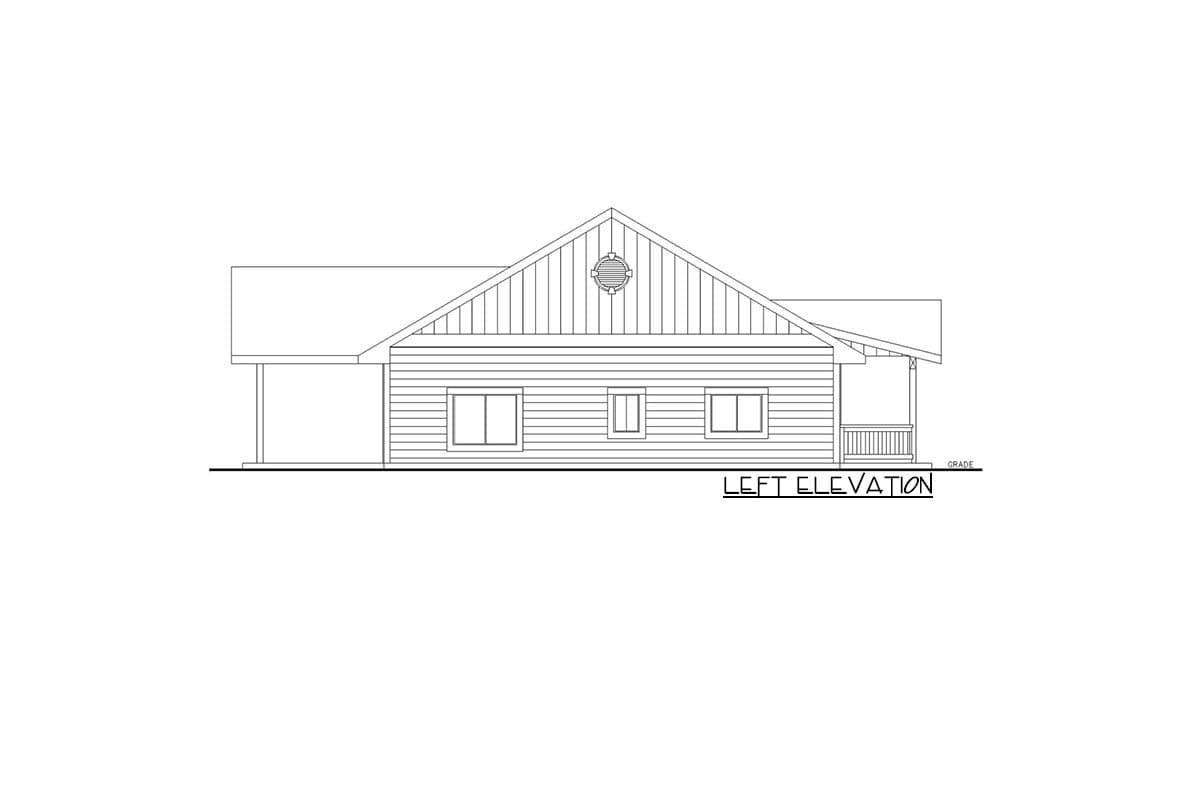

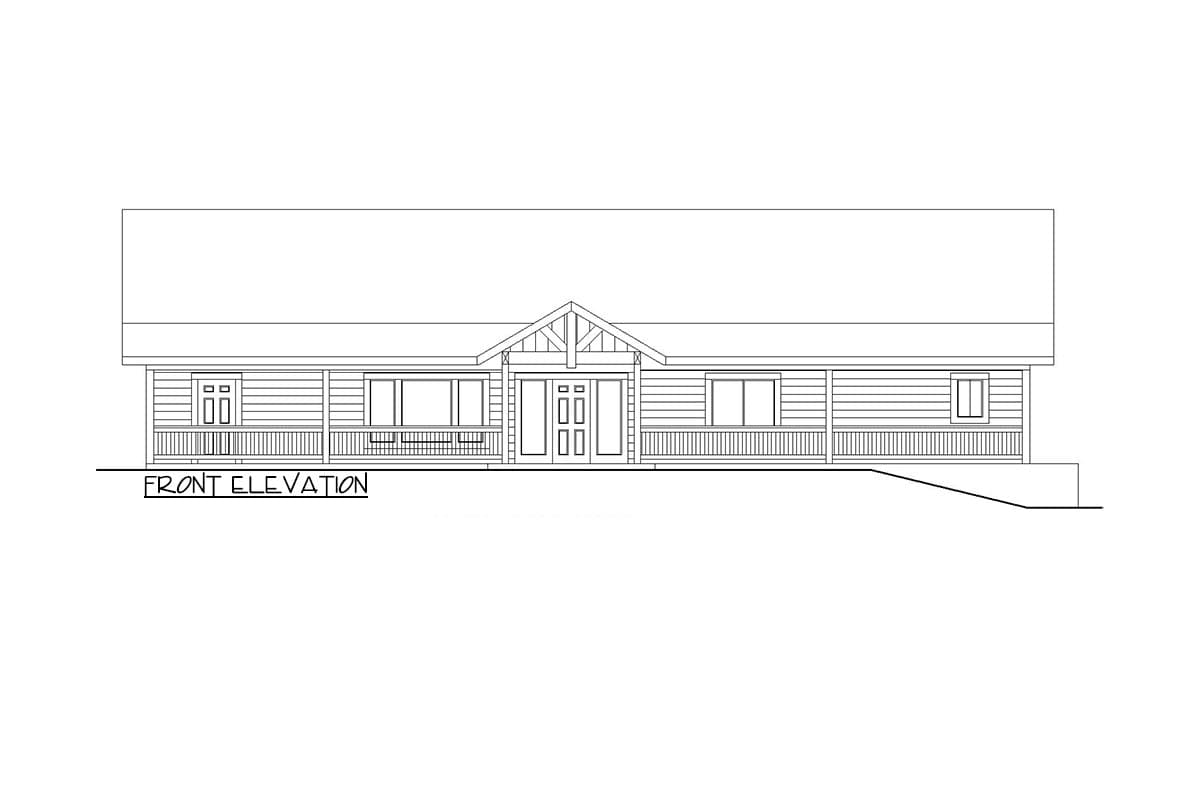

  • Exterior Elevations:  The exterior elevations provide exterior views of the house and call out the exterior finish materials, such as siding, stucco, brick, stone, etc. This page also shows roof pitches and materials, and decorative elements, such as columns and window shutters. Sometimes window and door sizes are also shown here.
  • Floor Plans:  The floor plan shows how each room is laid out on each floor of the house. In most cases, the floor plan will include wall sizes, room dimensions, notes about ceiling design, window and door locations and sizes, and other structural layout notes and details.
  • Foundation Plan:This page provides a detailed foundation drawing, including the thickness of the foundation walls, how the foundation is built, footing and wall placement, Rebar schedule, as well as other construction notes and details. This page may also include a floor framing plan.
  • Cross Sections: Cross sections are views from the top to the bottom of the house plan showing structural details related to the construction of the home. They will show the composition of the foundation, interior and exterior walls, roof, floor and stair details. They also show rooflines, ceiling heights, and the relationships between floors. Cross sections may be on a separate page or on various pages throughout the home plan.
  • Interior Elevations: The interior elevations show built-in features of a house plan, such as kitchen cabinets, fireplaces, built-in bookshelves and desks, vanities, moldings, and hand rails.
  • Basic Electric:This page shows the locations of outlets, switches, and fixtures. It may be on a separate page, or located on the floor plan page.
  • Simple Plumbing: This page shows the locations of the bathtubs, showers, toilets, and sinks. This may be found on the floor plan, or it might be on a separate page.
  • Details: This page includes the structural details for the construction of the house.
These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

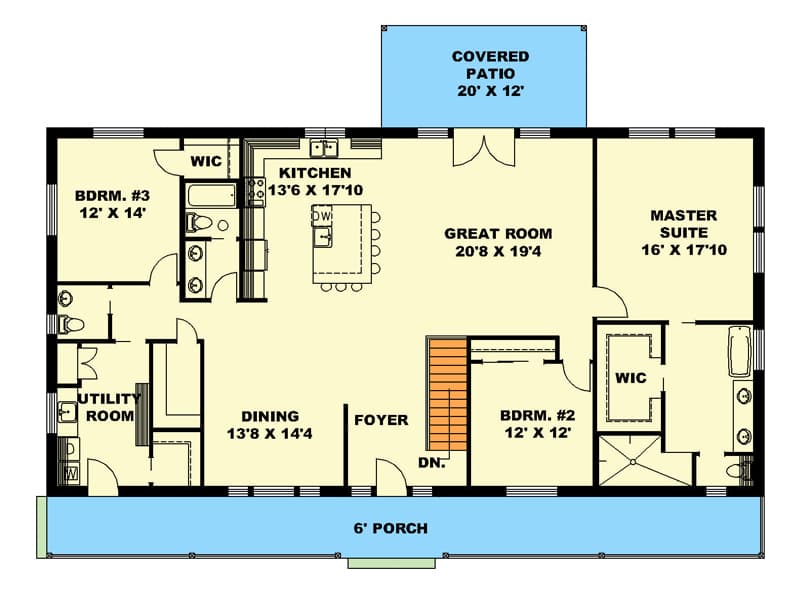

Craftsman Ranch Plan with Split-Bed Layout and Finished Lower Level - 350044GH floor plan - Main Level

Lower Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

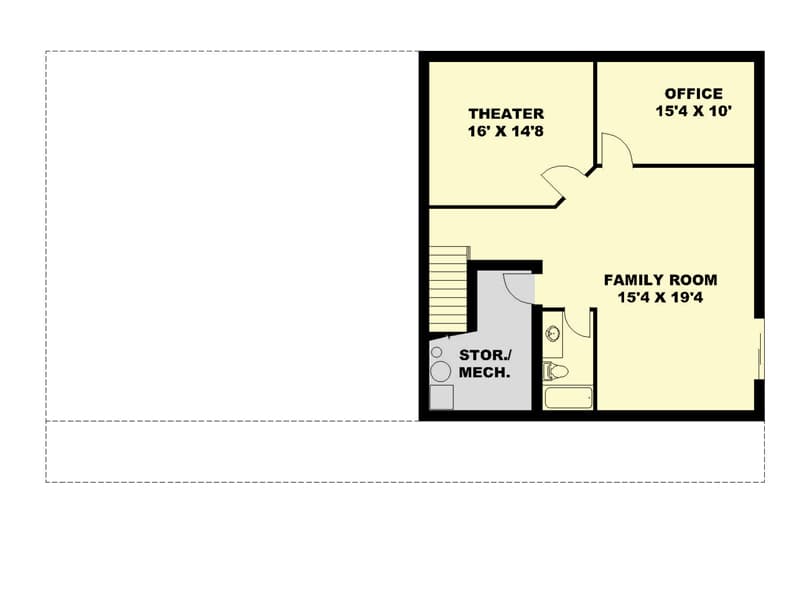

Craftsman Ranch Plan with Split-Bed Layout and Finished Lower Level - 350044GH floor plan - Lower Level

Plan details

Square Footage Breakdown

  • Total Heated Area: 3,732 sq. ft.
  • Lower Level: 1,212 sq. ft.
  • 1st Floor: 2,520 sq. ft.

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 2
  • Half bathrooms: 1

Foundation Type

  • Standard Foundations: Slab, Basement

Exterior Walls

  • Standard Type(s): ICF

Dimensions

  • Width: 70' 0"
  • Depth: 36' 0"
  • Max ridge height: 20' 8"

Ceiling Heights

  • Floor / Height: Lower Level / 9' 1" First Floor / 9' 1"

Roof Details

  • Primary Pitch: 7 on 12
  • Secondary Pitch: 3 on 12
  • Framing Type: Truss

Architectural Style

Special features

Craftsman Ranch Plan with Split-Bed Layout and Finished Lower Level

  • 3,732

    Heated s.f.

  • 3

    Beds

  • 2.5

    Baths

  • 2

    Floors

Buy This Plan
  • 5 Sets $1,795
  • PDF + CAD - Single Build $1,895
  • 5 Sets + PDF $2,045
  • CAD + PDF - Unlimited Build $2,595
  • View all purchase option online

About This Plan

  • A 6-foot-deep front porch spans the full length of this 3,732 square foot Craftsman ranch house plan with 3 beds, 2.5 baths and a finished lower level.
  • The master suite and Bed 2 are clustered on the right and Bed 3 is across the home, leaving the central core of the home plan open concept.
  • An extra large island in the kitchen has seating on two sides. A separate dining area overlooks the front and French doors take you to a covered patio in back where you can eat al fresco.
  • The lower level gives you a home office, a home theater and a family room.

Floor Plans

  • Main Level

  • Lower Level

Plan Details

Square Footage Breakdown

  • Total Heated Area: 3,732 sq. ft.
  • Lower Level: 1,212 sq. ft.
  • 1st Floor: 2,520 sq. ft.

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 2
  • Half bathrooms: 1

Foundation Type

    • Standard Foundations: Slab, Basement

Exterior Walls

  • Standard Type(s): ICF

Dimensions

  • Width: 70' 0"
  • Depth: 36' 0"
  • Max ridge height: 20' 8"

Ceiling Heights

  • Floor / Height: Lower Level / 9' 1" First Floor / 9' 1"

Roof

  • Primary Pitch: 7 on 12
  • Secondary Pitch: 3 on 12
  • Framing Type: Truss
Plan 350044GH
View this and more for this plan by visiting www.architechtecturaldesigns.com/350044GH
|
