Plan 135146GRA

Craftsman Ranch Plan with Sunroom and Split-bed Layout

Heated S.F.
1,894
Beds
3
Baths
2
Stories
1
Cars
2

Floor Plan

Plan 135146GRA

Main Level
Main Level

Plan 135146GRA

M-F 9am-5pm EST |

1-203-761-8500

Main Level

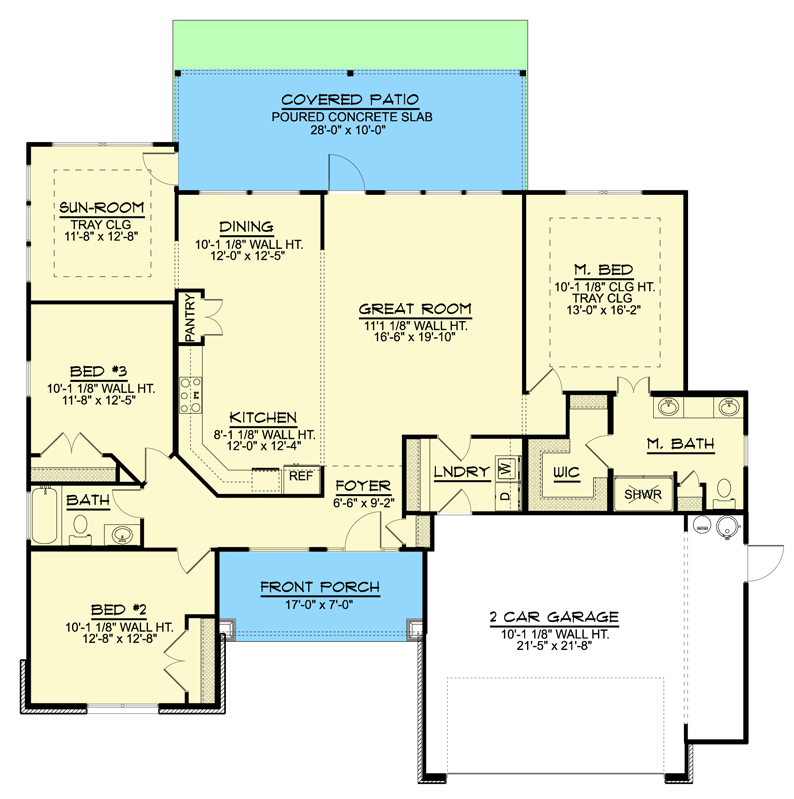

Plan 135146GRA: Craftsman Ranch Plan with Sunroom and Split-bed Layout - Floor Plan - Main Level - Ranch, Traditional

Plan Details

  • Craftsman features adorn the facade of this Traditional Ranch plan that delivers a master bedroom separated from the secondary bedrooms and an open, central living space that connects to the covered patio.
  • The kitchen flows directly into the single dining room and great room to help bring family and friends together.
  • A tray ceiling crowns the master bedroom, which includes a 4-fixture bathroom and a walk-in closet.
  • The hallway off the foyer leads to bedrooms 2 and 3 that share the hall bathroom.
  • Extra space in the double garage is perfect for storage, or a hobby shop, and the laundry / mudroom combo creates a space to catch your personal items when coming home.

What's Included

  • Elevations
  • Fully Dimensioned Floor Plans
  • Roof Plan & Sections
  • Foundation plan
  • General Notes
  • Suggested Electrical Layout
View Sample Plan

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Starting at

Ready to Get Started?

Select your plan set options before checkout.

Price Match Guarantee
What's included?

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

1,894 sq. ft.

1st Floor

1,894 sq. ft.

Porch, Combined

116 sq. ft.

Covered Patio

288 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

60' 0"

Depth

59' 0"

Max Ridge Height

19' 10"

Garage

Type

Attached

Area

577 sq. ft.

Count

2 Cars

Ceiling Heights

First Floor

10'

Roof Details

Primary Pitch

8 on 12

Secondary Pitch

6 on 12

Framing Type

Truss

Architectural Style

Ranch

Traditional

Special Features

Bedrooms - Split

Laundry - Main Level

Master Suite - 1st Floor

Mudroom

Sunroom

Square Footage Breakdown

Total Heated Area

1,894 sq. ft.

1st Floor

1,894 sq. ft.

Porch, Combined

116 sq. ft.

Covered Patio

288 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

60' 0"

Depth

59' 0"

Max Ridge Height

19' 10"

Garage

Type

Attached

Area

577 sq. ft.

Count

2 Cars

Ceiling Heights

First Floor

10'

Roof Details

Primary Pitch

8 on 12

Secondary Pitch

6 on 12

Framing Type

Truss

Architectural Style

Ranch

Traditional

Special Features

Bedrooms - Split

Laundry - Main Level

Master Suite - 1st Floor

Mudroom

Sunroom
