Plan 444155GDN
Craftsman Ranch Plan with Two Gathering Spaces and Formal Dining Room
Heated S.F.
2,818
Beds
3-4
Baths
3
Stories
1
Cars
2
What's Included
Floor Plan
PRINT PLANS

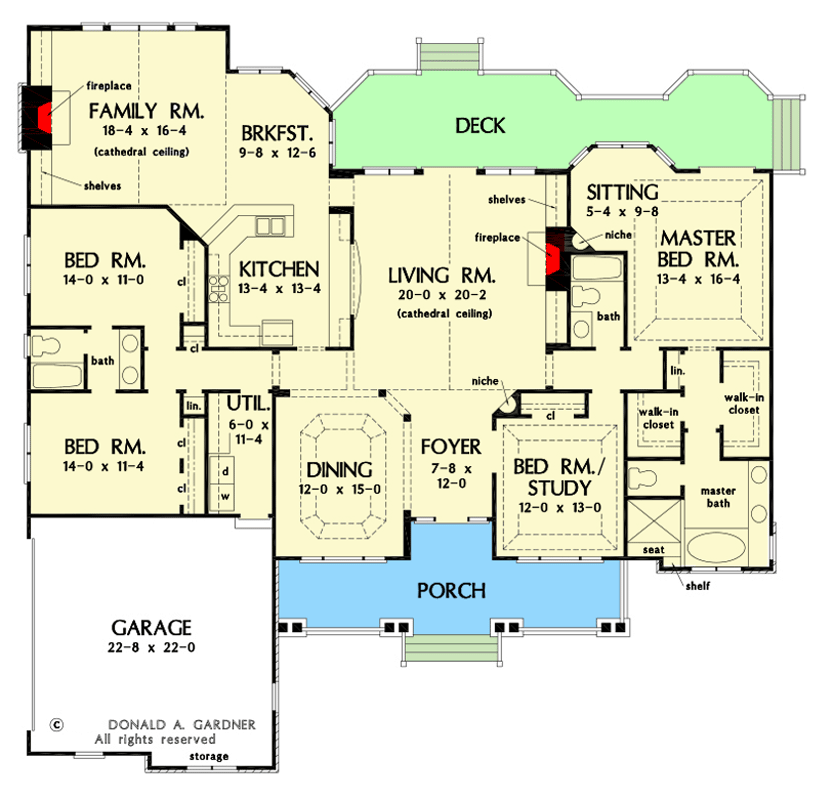

Main Level
Reverse Floor Plan
Craftsman Ranch Plan with Two Gathering Spaces and Formal Dining Room - 444155GDN floor plan - Main Level

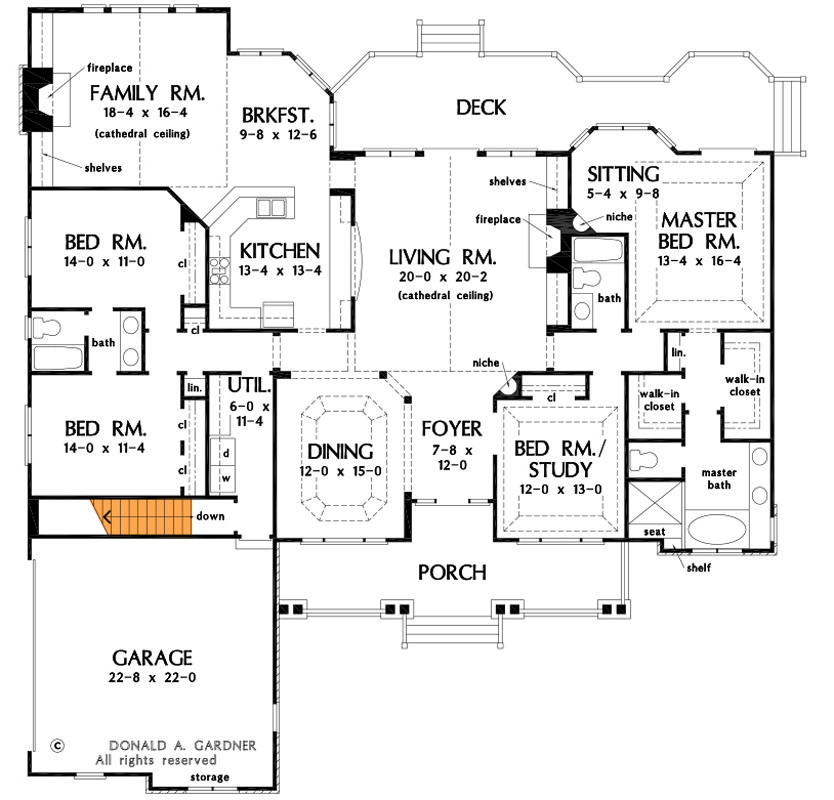

Basement Stair Location
Reverse Floor Plan
Craftsman Ranch Plan with Two Gathering Spaces and Formal Dining Room - 444155GDN floor plan - Basement Stair Location
Plan Details
  • Promoting easy living, this Craftsman Ranch house design combines character with low maintenance.

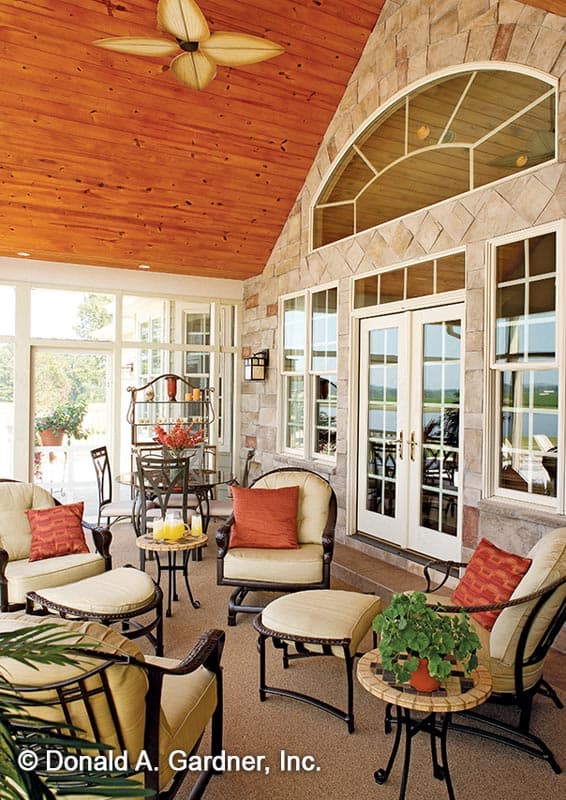

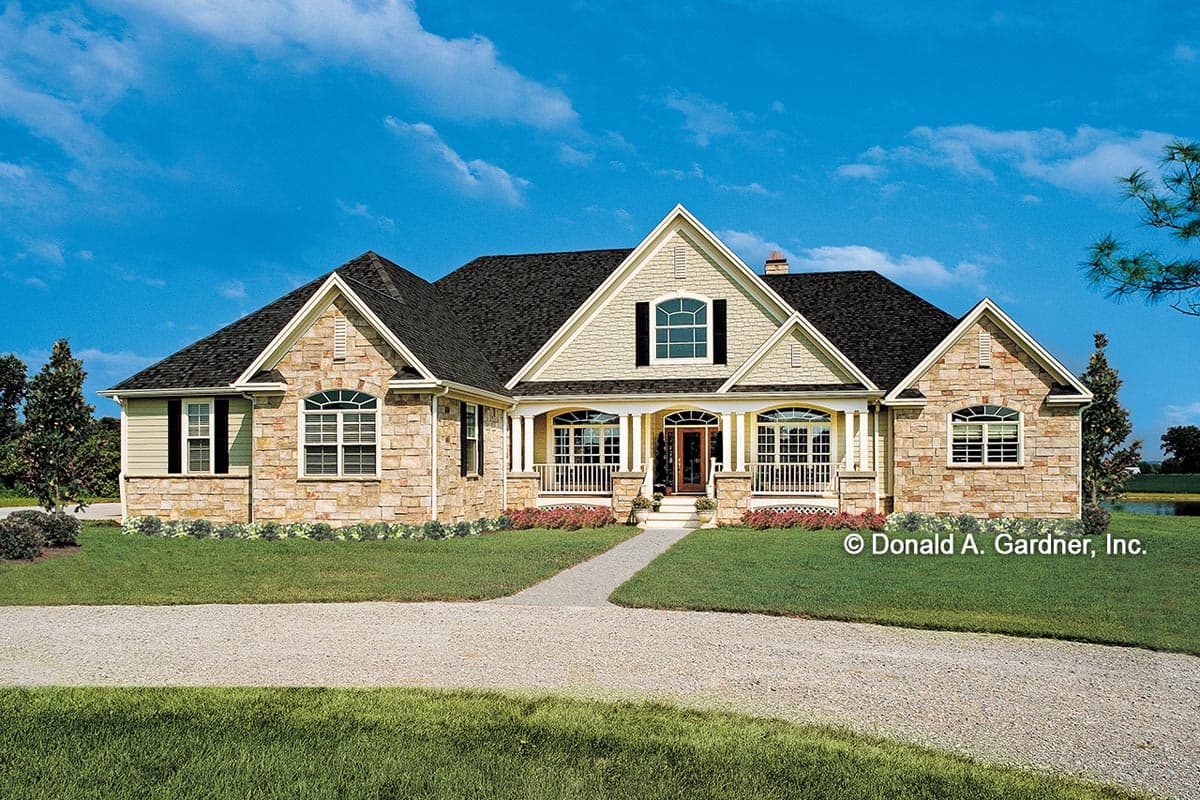

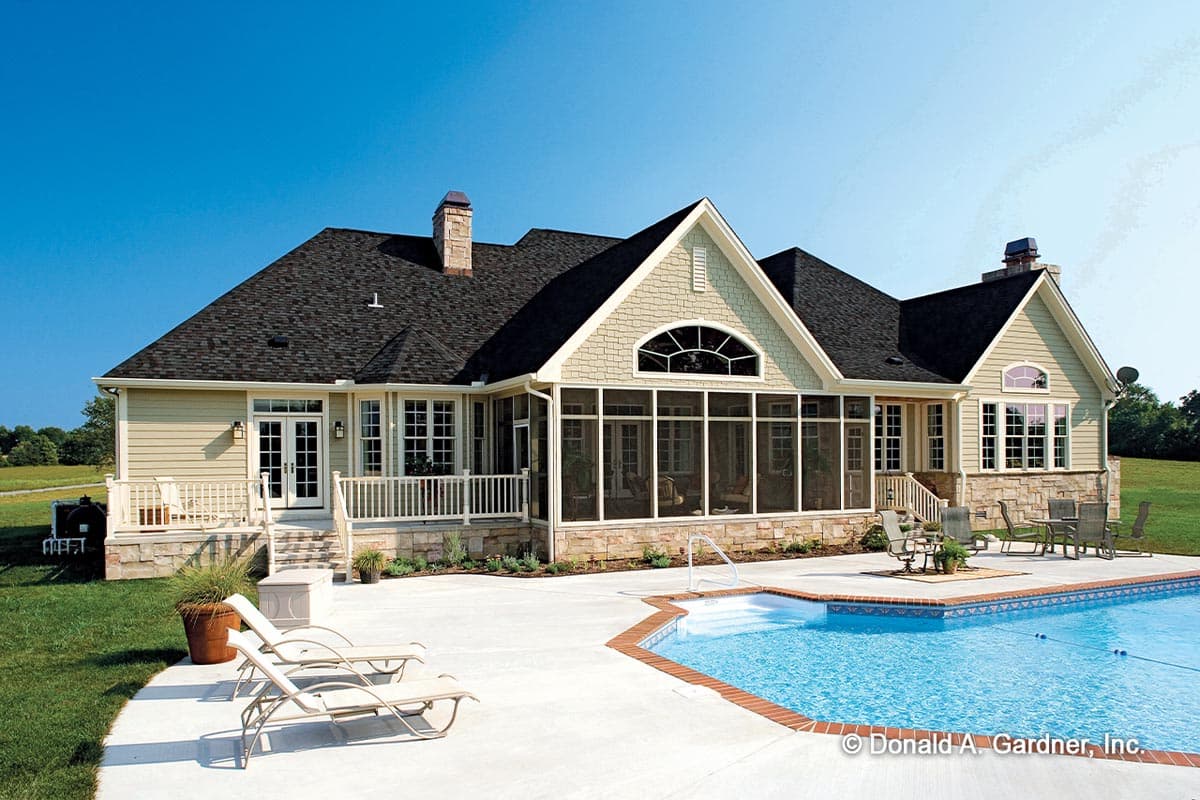

  • Doubled columns and stone accents create architectural interest for the exterior, and the rear deck accommodates outdoor living.
  • From the foyer, double doors open into the bedroom/study, while art niches, fireplaces, a handy pass-thru in the kitchen add beauty and convenience throughout the house plan. The living room has a fireplace and a 18'5" cathedral ceiling.

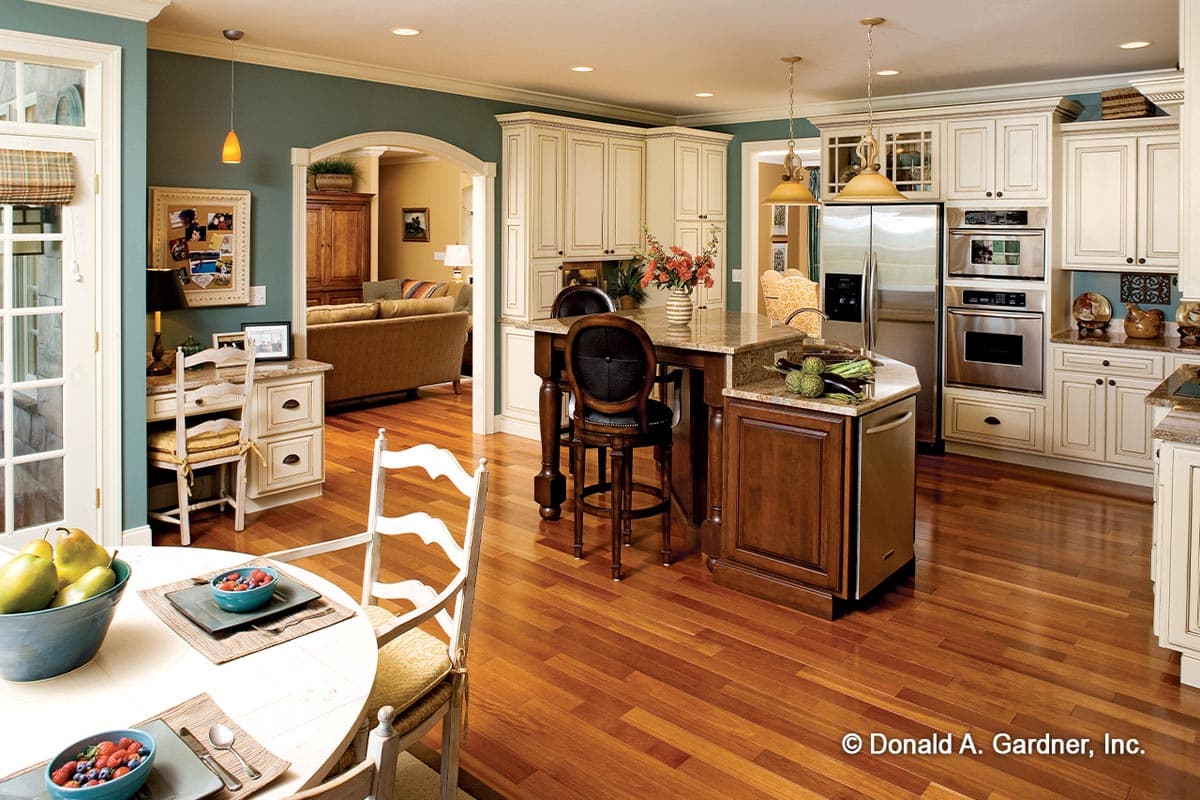

  • A family room off the kitchen / breakfast nook provides a casual, secondary gathering space, complete with a fireplace surrounded by builtins.

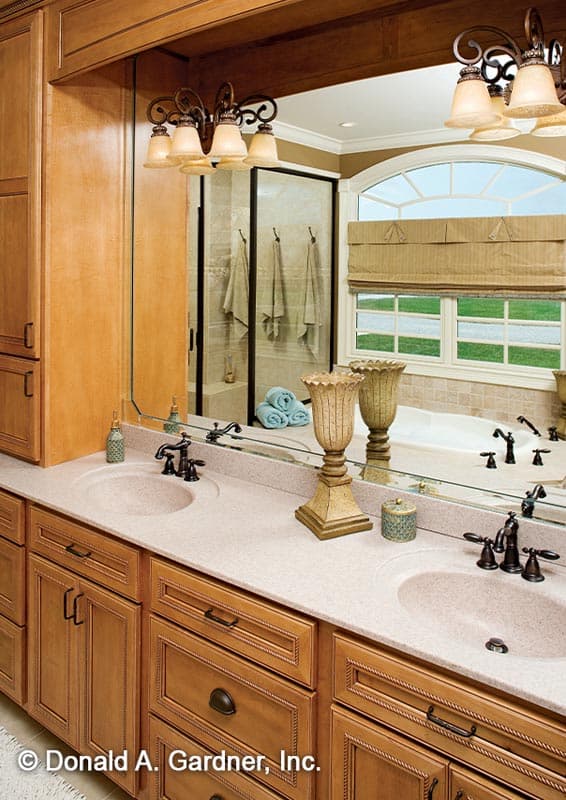

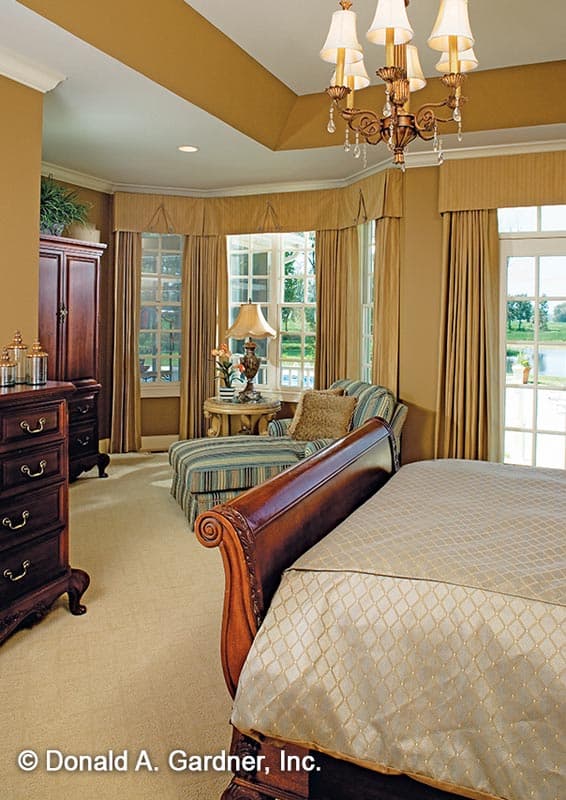

  • The master bedroom with 11'1" tray ceiling serves as a true oasis for the homeowner with its sitting nook, access to the deck, and spa-like ensuite.
What's Included
  • Cover Sheet - An artist's rendering of the exterior of the house shows you approximately how the house will look when built and landscaped
  • Foundation Plan - This plan gives the foundation layout, including support walls, excavated and unexcavated areas, if any, foundation notes and details, and floor framing.
  • Detailed Floor Plans - These plans show the layout of each floor of the house. Rooms and interior spaces are carefully dimensioned and keys are given for cross-section details provided later in the plans, as well as window and door schedules. These plans may also show the location of kitchen appliances and plumbing fixtures, and may suggest locations for electrical fixtures, switches and outlets.
  • Interior Elevations - The interior elevation drawings show a suggested layout design of cabinets, utility rooms, fireplaces, bookcases, built-in units and other special interior features depending on the nature and complexity of the item.
  • Roof Plan - The roof plan shows a bird's eye view of the overall layout of the roof, ridges, valleys, and slopes.
  • Exterior Elevations - Included are front, rear, left and right sides of the house. Exterior materials, details and measurements are also given.
  • Cross-Section / Wall Section Details -  Important changes in floor, ceiling and roof heights or the relationship of one level to another are called out. Also shown, when applicable, are exterior details such as railing and banding.
  • Structural Plan - Overall layout and necessary details for the ceiling, second-floor framing (if applicable) and roof construction. If trusses are used, it's suggested that you use a local truss manufacturer to design your trusses to comply with your local codes and regulations.
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Print
Hide
Compare
Favorite
Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

Craftsman Ranch Plan with Two Gathering Spaces and Formal Dining Room

  • 2,818

    Heated s.f.

  • 3-4

    Beds

  • 3

    Baths

  • 1

    Floors

  • 2

    Car garage

Floor Plan

  • Main Level

  • Basement Stair Location

Plan Details

Square Footage Breakdown

  • Total: 2,818 sq. ft.
  • 1st Floor: 2,818 sq. ft.

Dimensions

  • Width: 70' 0"
  • Depth: 69' 10"
  • Max ridge height: 29' 10"

Beds/Baths

  • Bedrooms: 3 or 4
  • Full bathrooms: 3

Garage

  • Type: Attached
  • Area: 536 sq. ft.
  • Count: 2 Cars
  • Entry Location: Side

Foundation Type

    • Standard Foundations: Crawl
    • Optional Foundations: Slab, Basement

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Ceiling Heights

  • Floor / Height: First Floor / 9' 0"

Roof

  • Primary Pitch: 10 on 12
  • Secondary Pitch: 12 on 12
  • Framing Type: Stick
All house plans are copyright ©2024 by the architects and designers represented on our web site

Craftsman Ranch Plan with Two Gathering Spaces and Formal Dining Room

  • 2,818

    Heated s.f.

  • 3-4

    Beds

  • 3

    Baths

  • 1

    Floors

  • 2

    Car garage

Craftsman Ranch Plan with Two Gathering Spaces and Formal Dining Room

  • 2,818

    Heated s.f.

  • 3-4

    Beds

  • 3

    Baths

  • 1

    Floors

  • 2

    Car garage

Plan Details

Square Footage Breakdown

  • Total: 2,818 sq. ft.
  • 1st Floor: 2,818 sq. ft.

Dimensions

  • Width: 70' 0"
  • Depth: 69' 10"
  • Max ridge height: 29' 10"

Beds/Baths

  • Bedrooms: 3 or 4
  • Full bathrooms: 3

Garage

  • Type: Attached
  • Area: 536 sq. ft.
  • Count: 2 Cars
  • Entry Location: Side

Foundation Type

    • Standard Foundations: Crawl
    • Optional Foundations: Slab, Basement

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Ceiling Heights

  • Floor / Height: First Floor / 9' 0"

Roof

  • Primary Pitch: 10 on 12
  • Secondary Pitch: 12 on 12
  • Framing Type: Stick
