Plan 444164GDN
Craftsman Ranch with 17' Cathedral Ceiling and Bonus Expansion Over Garage
Heated S.F.
2,324
Beds
3-4
Baths
3
Stories
1
Cars
2
Flyer
What's Included
Floor Plan
PRINT PLANS
Main Level
Reverse Floor Plan

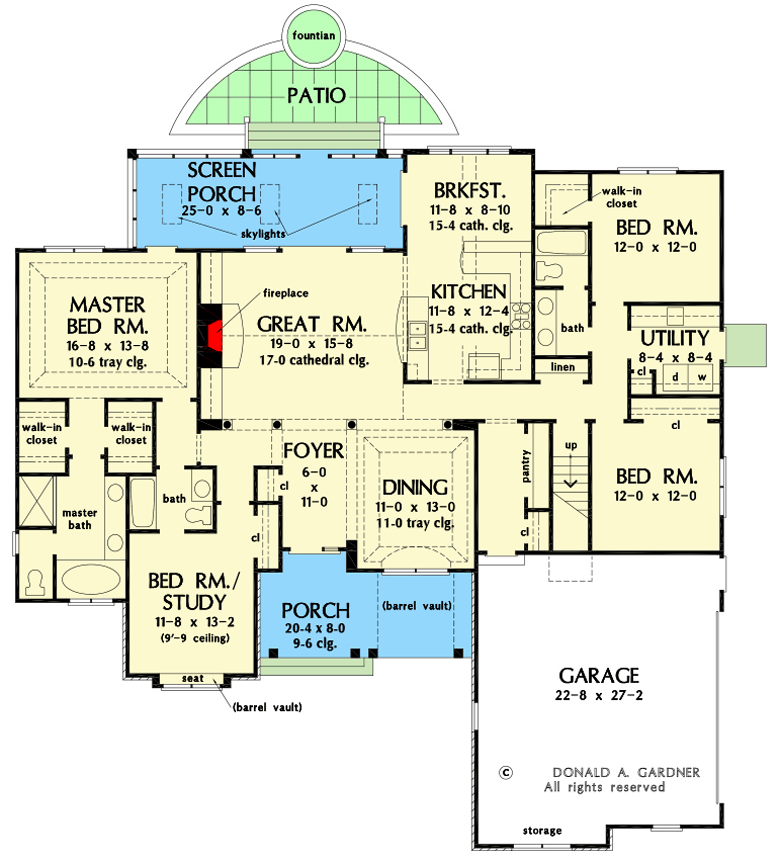

Craftsman Ranch with 17' Cathedral Ceiling and Bonus Expansion Over Garage - 444164GDN floor plan - Main Level

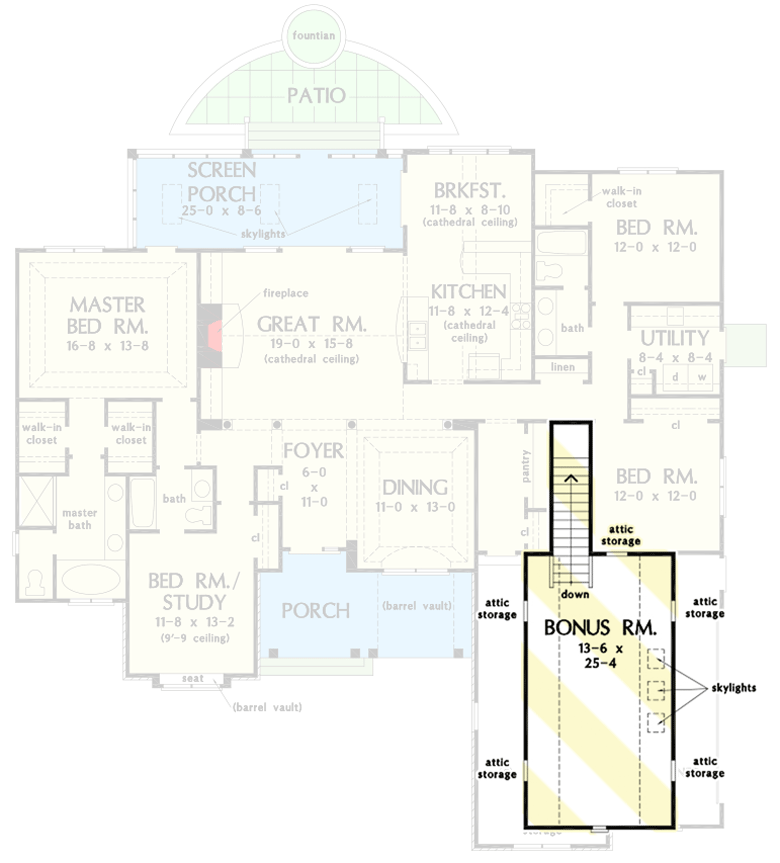

Bonus Room
Reverse Floor Plan
Craftsman Ranch with 17' Cathedral Ceiling and Bonus Expansion Over Garage - 444164GDN floor plan - Bonus Room

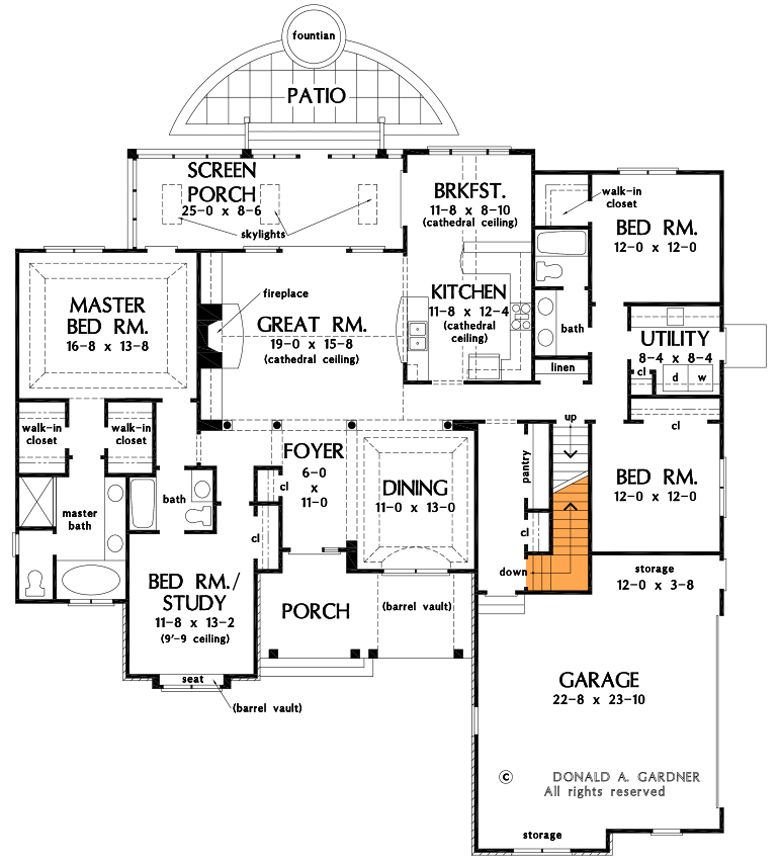

Basement Stair Location
Reverse Floor Plan
Craftsman Ranch with 17' Cathedral Ceiling and Bonus Expansion Over Garage - 444164GDN floor plan - Basement Stair Location
Plan Details
  • Arch-topped windows and striking gables give character to this graceful Craftsman ranch home plan.
  • Inside, cathedral and tray ceilings in the living spaces give this home plan a spacious feel, with French doors and large windows facing the rear of the home.
  • A coat closet and mud room off the garage help control clutter, and the laundry room includes counters for extra workspace.
  • The master suite features a tray ceiling, screen porch access, and two walk-in closets. The bedroom towards the front of the home can be used as a study or home office. Two beds across the home share a bath.
  • Stairs on the right side of the home take you to a bonus room giving you 408 square feet of expansion.
What's Included
  • Cover Sheet - An artist's rendering of the exterior of the house shows you approximately how the house will look when built and landscaped
  • Foundation Plan - This plan gives the foundation layout, including support walls, excavated and unexcavated areas, if any, foundation notes and details, and floor framing.
  • Detailed Floor Plans - These plans show the layout of each floor of the house. Rooms and interior spaces are carefully dimensioned and keys are given for cross-section details provided later in the plans, as well as window and door schedules. These plans may also show the location of kitchen appliances and plumbing fixtures, and may suggest locations for electrical fixtures, switches and outlets.
  • Interior Elevations - The interior elevation drawings show a suggested layout design of cabinets, utility rooms, fireplaces, bookcases, built-in units and other special interior features depending on the nature and complexity of the item.
  • Roof Plan - The roof plan shows a bird's eye view of the overall layout of the roof, ridges, valleys, and slopes.
  • Exterior Elevations - Included are front, rear, left and right sides of the house. Exterior materials, details and measurements are also given.
  • Cross-Section / Wall Section Details -  Important changes in floor, ceiling and roof heights or the relationship of one level to another are called out. Also shown, when applicable, are exterior details such as railing and banding.
  • Structural Plan - Overall layout and necessary details for the ceiling, second-floor framing (if applicable) and roof construction. If trusses are used, it's suggested that you use a local truss manufacturer to design your trusses to comply with your local codes and regulations.
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
