Plan 57327HA
Craftsman Ranch with 3 Beds and Tray Ceilings
Heated S.F.
2,274
Beds
3
Baths
3
Stories
1
Cars
2
What's Included
Plan Details
  • This attractive house plan has 3 bedrooms and 3 full baths. Step inside thisstylish home and discover a foyer leading to a spacious great room featuring a corner firpelace and an eye-catching tray ceiling.
  • The formal dining room also has a tray ceiling adding elegance when entertaining.
  • The kitchen/breakfast room features a huge walk-in pantry, a center island with stovetop, tons of counterspace, and direct access to the patio through glass sliding doors.
  • Relax in the spacious master bedroom that includes a roomy walk-in closet and pampering bath with a corner whirlpool tub. Plus, the two secondary bedrooms each have large walk-in closets and a full bath nearby.
What's Included

  • Front Cover Sheet
  • Detailed Floor Plans
  • Foundation Plan
  • Roof Plan
  • Exterior Elevations
  • Interior Elevations
  • Cross Section
  • Mechanical – Shows location of furnace
  • Electrical – Shows location of outlets, switches and fixtures
  • Plumbing – Shows location of fixtures

What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Print
Hide
Compare
Favorite
Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

Craftsman Ranch with 3 Beds and Tray Ceilings

  • 2,274

    Heated s.f.

  • 3

    Beds

  • 3

    Baths

  • 1

    Floors

  • 2

    Car garage

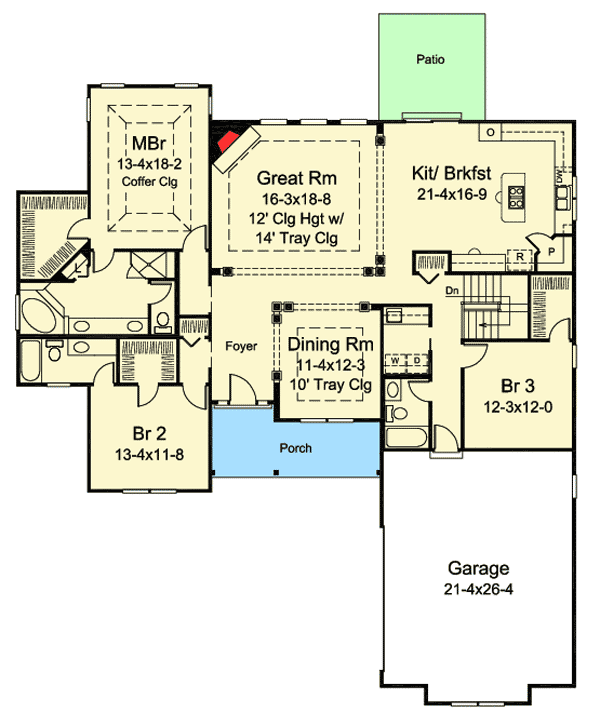

Floor Plan

  • Main Level

Plan Details

Square Footage Breakdown

  • Total: 2,274 sq. ft.
  • 1st Floor: 2,274 sq. ft.

Dimensions

  • Width: 63' 0"
  • Depth: 70' 0"

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 3

Garage

  • Type: Attached
  • Area: 562 sq. ft.
  • Count: 2 Cars
  • Entry Location: Courtyard

Foundation Type

    • Standard Foundations: Basement

Exterior Walls

  • Standard Type(s): 2x4

Ceiling Heights

  • Floor / Height: First Floor / 9' 0"
