Craftsman Ranch with 3 Gables - 1807 Sq Ft - Architectural Designs

Heated S.F.
1,807
Beds
3
Baths
2.5
Stories
1
Cars
2

Floor Plan

Plan 89935AH

Main Level
Main Level

Plan 89935AH

M-F 9am-5pm EST |

1-203-761-8500

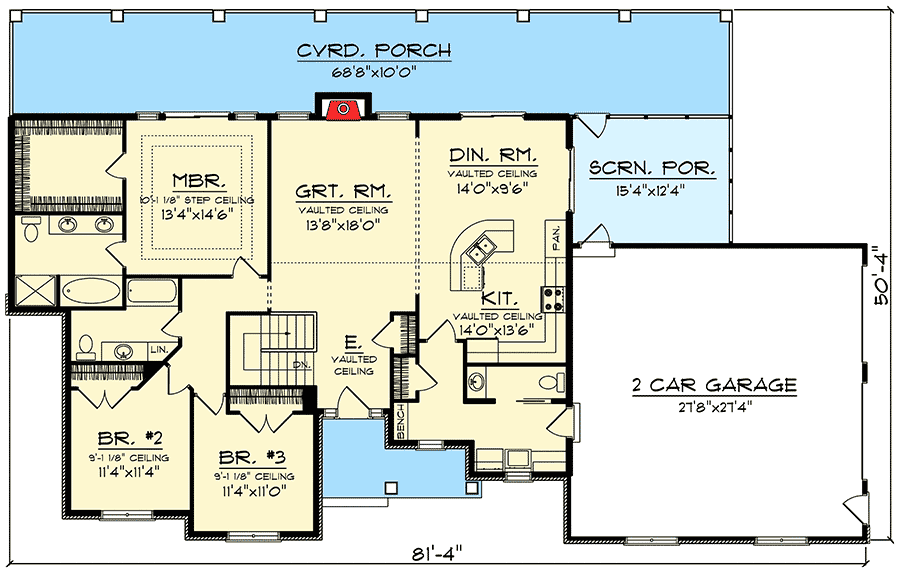

Main Level

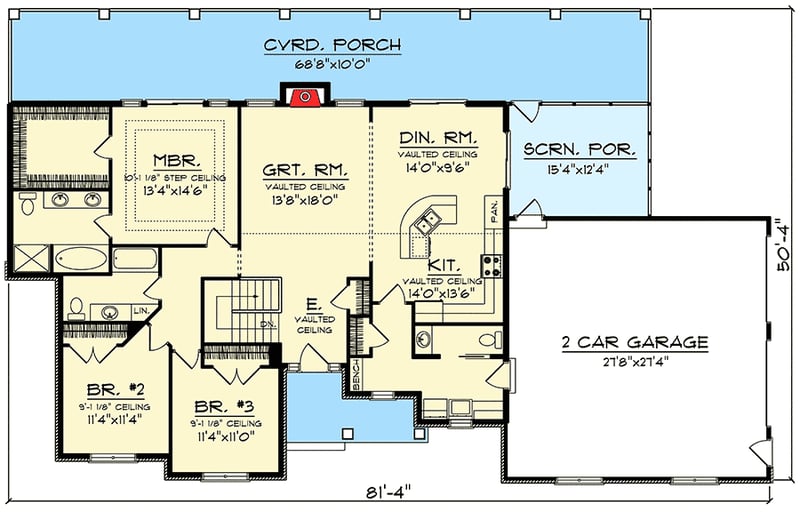

Plan 89935AH: Craftsman Ranch with 3 Gables - 1807 Sq Ft - Architectural Designs - Floor Plan - Main Level - Craftsman, Northwest, Ranch

Plan Details

  • The vaulted entry leads to an open-concept living space where a unique breakfast bar overlooks the space.
  • The ceiling vaults over the entire living space creating extra volume in the area.
  • The three bedrooms lie to the left of the entry and include a master suite with spacious walk-in closet and step ceilings in the bedroom.
  • A screen porch is tucked behind the side-load two-stall garage with access to a porch that wraps the entire back end of the home.
  • The truss roof has an 8:12 pitch.

What's Included

  • General Notes
  • Rendering
  • Elevations
  • Fully dimensioned floor plans
  • Foundation
  • Typical wall section & stair section
  • Cross section
  • Cabinet elevations
  • Electrical Plan
  • Roof plan

What's Not Included

  • Architectural or Engineering Stamp
  • Site Plan
  • Mechanical Drawings (location of heating and air equipment and duct work)
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations)
  • Framing layouts with beam sizes and locations
  • Energy calculations
Starting at
What's included?
Plan Set
Select...
Foundation
Select...
Options
Optional Add-Ons
+$0
Price Match Guarantee
Cost to Build Report
Still deciding? Calculate the cost to build this house in your area.
Customize This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Cost to Furnish Report
Instant room-by-room estimates for your entire furniture & home decor plan, matched to your budget.

Square Footage Breakdown

Total Heated Area

1,807 sq. ft.

1st Floor

1,807 sq. ft.

Screened Porch

189 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Half bathrooms

1

Foundation Type

Standard Foundations

Basement

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

81' 4"

Depth

50' 4"

Max Ridge Height

25' 4"

Garage

Type

Attached

Area

786 sq. ft.

Count

2 Cars

Entry Location

Side

Ceiling Heights

Lower Level

8'

First Floor

9'

Roof Details

Primary Pitch

8 on 12

Secondary Pitch

8 on 12

Framing Type

Truss

Architectural Style

Craftsman

Northwest

Ranch

Special Features

Bedrooms - Clustered

Game/Rec Room

Laundry - Main Level

Master Suite - 1st Floor

Mudroom

Square Footage Breakdown

Total Heated Area

1,807 sq. ft.

1st Floor

1,807 sq. ft.

Screened Porch

189 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Half bathrooms

1

Foundation Type

Standard Foundations

Basement

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

81' 4"

Depth

50' 4"

Max Ridge Height

25' 4"

Garage

Type

Attached

Area

786 sq. ft.

Count

2 Cars

Entry Location

Side

Ceiling Heights

Lower Level

8'

First Floor

9'

Roof Details

Primary Pitch

8 on 12

Secondary Pitch

8 on 12

Framing Type

Truss

Architectural Style

Craftsman

Northwest

Ranch

Special Features

Bedrooms - Clustered

Game/Rec Room

Laundry - Main Level

Master Suite - 1st Floor

Mudroom
