Plan 290010IY

Craftsman Ranch With Finished Lower Level

Heated S.F.
3,954
Beds
4
Baths
2.5+
Stories
1
Cars
3

Floor Plan

Plan 290010IY

Main Level
Main Level
Lower Level
Lower Level

Plan 290010IY

M-F 9am-5pm EST |

1-203-761-8500

Main Level

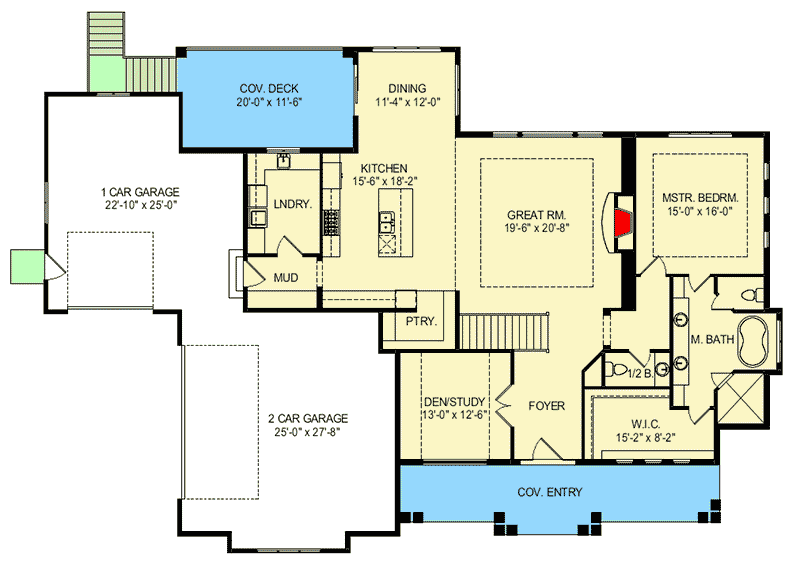

Plan 290010IY: Craftsman Ranch With Finished Lower Level - Floor Plan - Main Level - Craftsman, Northwest, Ranch

Lower Level

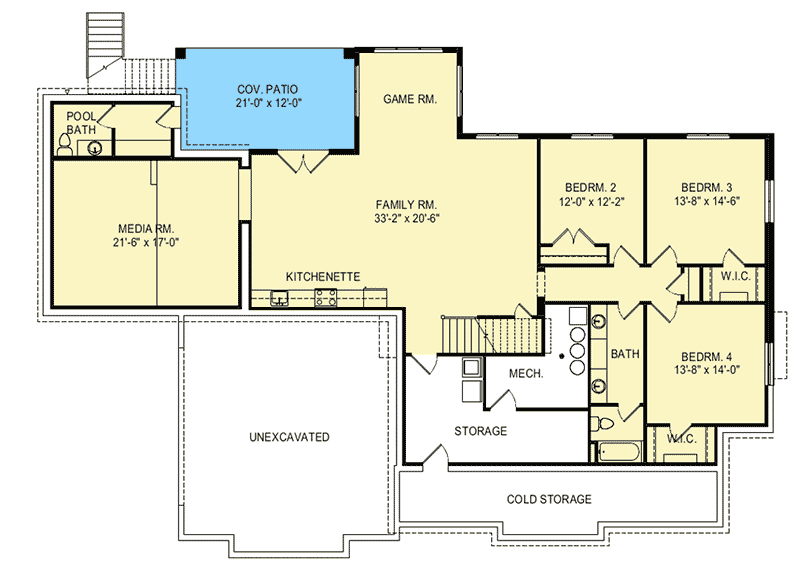

Plan 290010IY: Craftsman Ranch With Finished Lower Level - Floor Plan - Lower Level - Craftsman, Northwest, Ranch

Plan Details

  • A gabled covered entry and a bumpout clad in stone greet you to this Craftsman Ranch home plan with a finished lower level. The garage is on the side and gives you parking for a single car in one garage and two more cars in the other.
  • A study or den is off to the left and the great room straight ahead when you enter the home. The great room has a tray ceiling and a fireplace and opens to the kitchen and dining room.
  • The kitchen has an island with casual seating and a large pantry. Serve meals in the adjacent dining room or outside on the covered deck.
  • The master bedroom has a tray ceiling and the bath gives you dual vanities and a large walk-in closet.
  • The lower level gives you three bedrooms, a large family room with kitchenette and a media room as well as a covered patio should you build it on a rear-sloping lot.

What's Included

  • Cover sheet (with rendering)
  • Notes page
  • Complete schedule page
  • Foundation plan
  • Floor plans
  • Dimension plans
  • Elevations
  • Sections
  • Architectural details
  • 3D perspective views (not included with all plans)
  • Floor finish plans
  • Roof plan
  • Lighting plans, and power plans.

Note: Contact us if building in Utah as these plans may not be available for construction in certain areas in that state.

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Ready to Get Started?

Select your plan set options before checkout.

Price Match Guarantee
What's included?

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

3,954 sq. ft.

Lower Level

1,795 sq. ft.

1st Floor

2,159 sq. ft.

Beds/Baths

Bedrooms

4

Full bathrooms

2

Half bathrooms

2

Foundation Type

Standard Foundations

Basement

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

86' 2"

Depth

59' 0"

Max Ridge Height

25' 9"

Garage

Type

Attached

Area

1228 sq. ft.

Count

3 Cars

Entry Location

Front, Side

Ceiling Heights

Lower Level

9'

First Floor

9'

Architectural Style

Craftsman

Northwest

Ranch

Special Features

Bedrooms - Split

Den

Library/Study

Master Suite - 1st Floor

Media Room

Mudroom

Wet Bar

Plan Collections

Sloping Lot

Square Footage Breakdown

Total Heated Area

3,954 sq. ft.

Lower Level

1,795 sq. ft.

1st Floor

2,159 sq. ft.

Beds/Baths

Bedrooms

4

Full bathrooms

2

Half bathrooms

2

Foundation Type

Standard Foundations

Basement

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

86' 2"

Depth

59' 0"

Max Ridge Height

25' 9"

Garage

Type

Attached

Area

1228 sq. ft.

Count

3 Cars

Entry Location

Front, Side

Ceiling Heights

Lower Level

9'

First Floor

9'

Architectural Style

Craftsman

Northwest

Ranch

Special Features

Bedrooms - Split

Den

Library/Study

Master Suite - 1st Floor

Media Room

Mudroom

Wet Bar

Plan Collections

Sloping Lot
